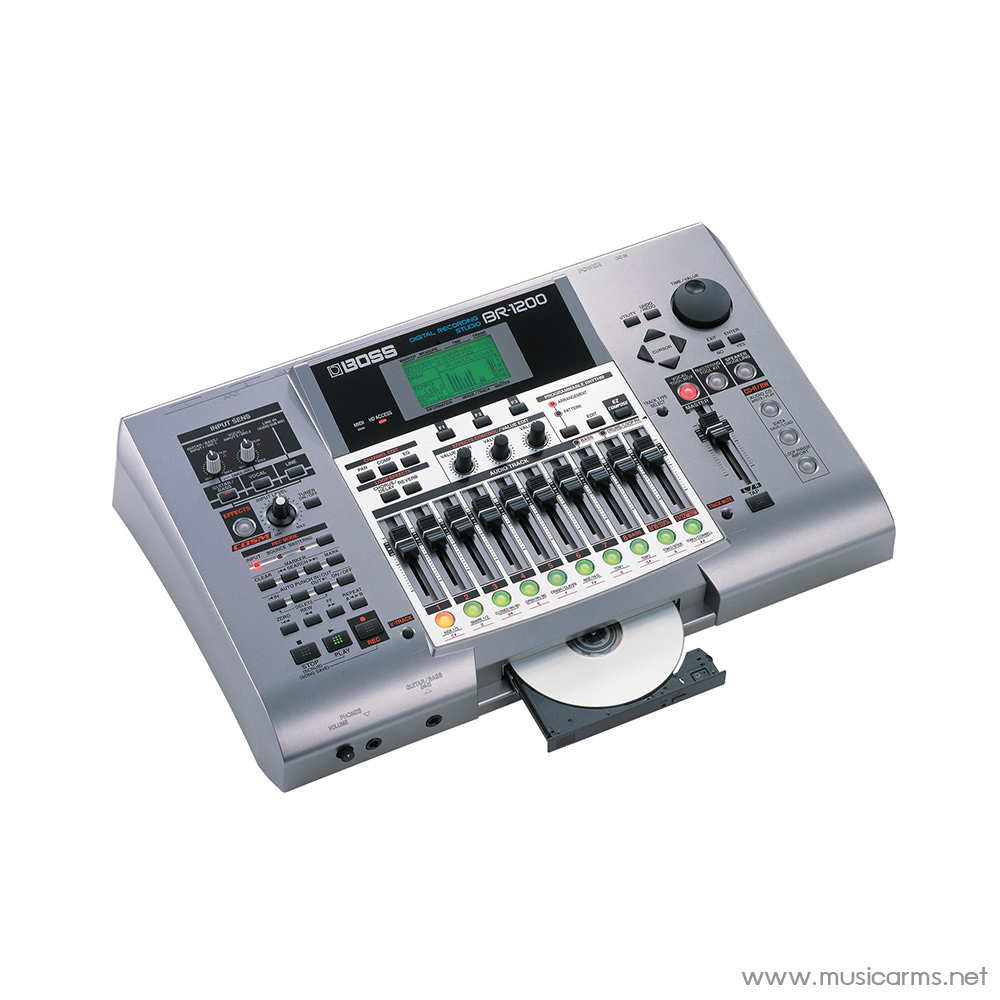

Boss BR-1200CD Digital Recorder

BR-1200CD: Digital Recorder

Tracks
Track: 2
V-Track: 92 (6 V-Tracks per each Track)
* Up to 2 tracks can be recorded simultaneously, and up to 2 tracks can be played back simultaneously.
Maximum Useful Capacity/Recording Time
Internal Hard Disk: 80 GB
Recording Time: 20 hours (conversion in one track)
* The above-listed recording time is approximate. Times may be slightly shorter depending on the number of songs and size of imported loop phrase that were created.
* The above-listed recording time is the total for all the tracks that are used. If each of the twelve tracks contain an equal amount of data, the length of the resulting song will be approximately /2 of the above.
Signal Processing
AD Conversion: 24 bit AF Method (Guitar/Bass), 24 bit delta-sigma Modulation (VOCAL, LINE, SIMUL)
DA Conversion: 24 bit delta-sigma Modulation
Internal Processing: 24 bit (digital mixer section)
Recording Data: 6 bit linear
Sample Rate
44. kHz
Frequency Response
20 Hz to 20 kHz (+/-3 dB)
Total Distortion
0.05% or less(INPUT SENS: CENTER, kHz at nominal output level)
Nominal Input Level (Variable)
GUITAR/BASS jack: -20 dBu
MIC , 2 (TRS balanced/XLR) jacks: -40 dBu
LINE IN jacks: -0 dBu
Input Impedance
GUITAR/BASS jack: M ohms
MIC , 2 jacks: 2.5 k ohms (HOT-COLD)(TRS balanced/XLR), 6.5 k ohms (HOT-GND, COLD-GND)
LINE IN jack: 22 k ohms
Nominal Output Level
LINE OUT jacks: -0 dBu
Output Impedance
LINE OUT jack: 2 k ohms
PHONES jack: 00 ohms
Recommended Load Impedance
LINE OUT jack: 20 k ohms or greater
PHONES jack: 8 to 50 ohms
Residual Noise Level
LINE OUT jack: -87 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with k ohms, INPUT SENS: CENTER, IHF-A, typ.)
Interface
DIGITAL OUT: S/PDIF 624 bit (optical type)
USB connector (B type)
Display
64 x 40 mm (Backlit LCD)

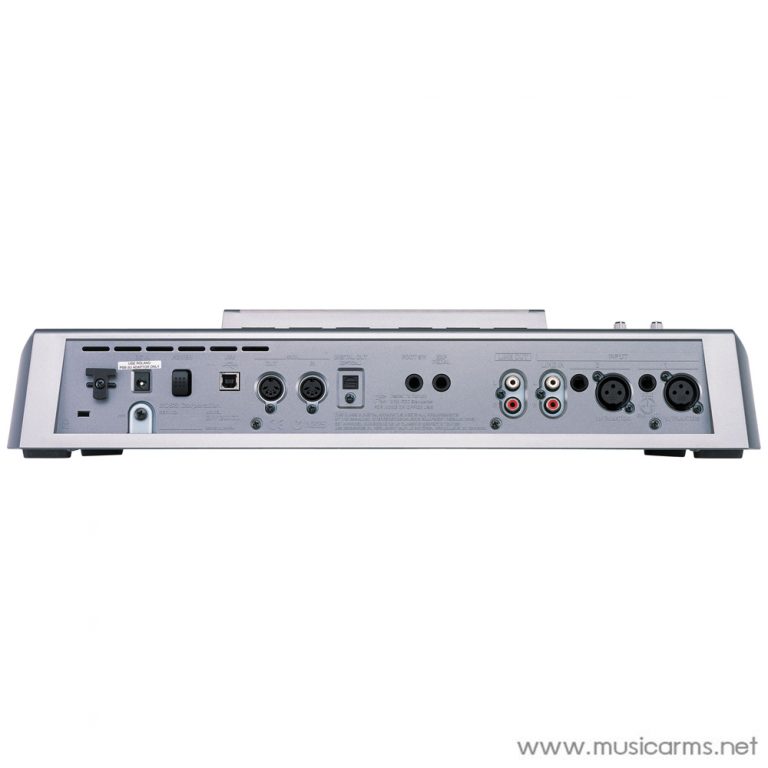

Connectors
MIDI IN connector
MIDI OUT connector
USB connector
DIGITAL OUT connector (optical type)
FOOT SW jack (/4 inch phone type)
EXP PEDAL jack (Stereo /4 inch phone type)
LINE OUT jacks (RCA Phono type)
LINE IN jacks (RCA Phono type)
MIC , 2 jacks (TRS balanced
Power Supply
DC 2 V; Supply AC Adaptor (Roland PSB-7U)
Power Consumption
3.0 A
Accessories
AC Adaptor: PSB-7U
DISCRETE DRUMS (CD-ROM)
Owner’s Manual
Options
Expression Pedal: EV-5 (Roland)
Foot Volume/Expression: FV-300L
Foot Switch: FS-5U
Pedal Switch: DP-2 (Roland)
Size and Weight ( excl. AC Adaptor )
Width
478 mm
8-7/8 inches
Depth
297 mm
-3/4 inches
Height
95 mm
3-3/4 inches
Weight
4. kg
9 lbs. oz.
*0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
