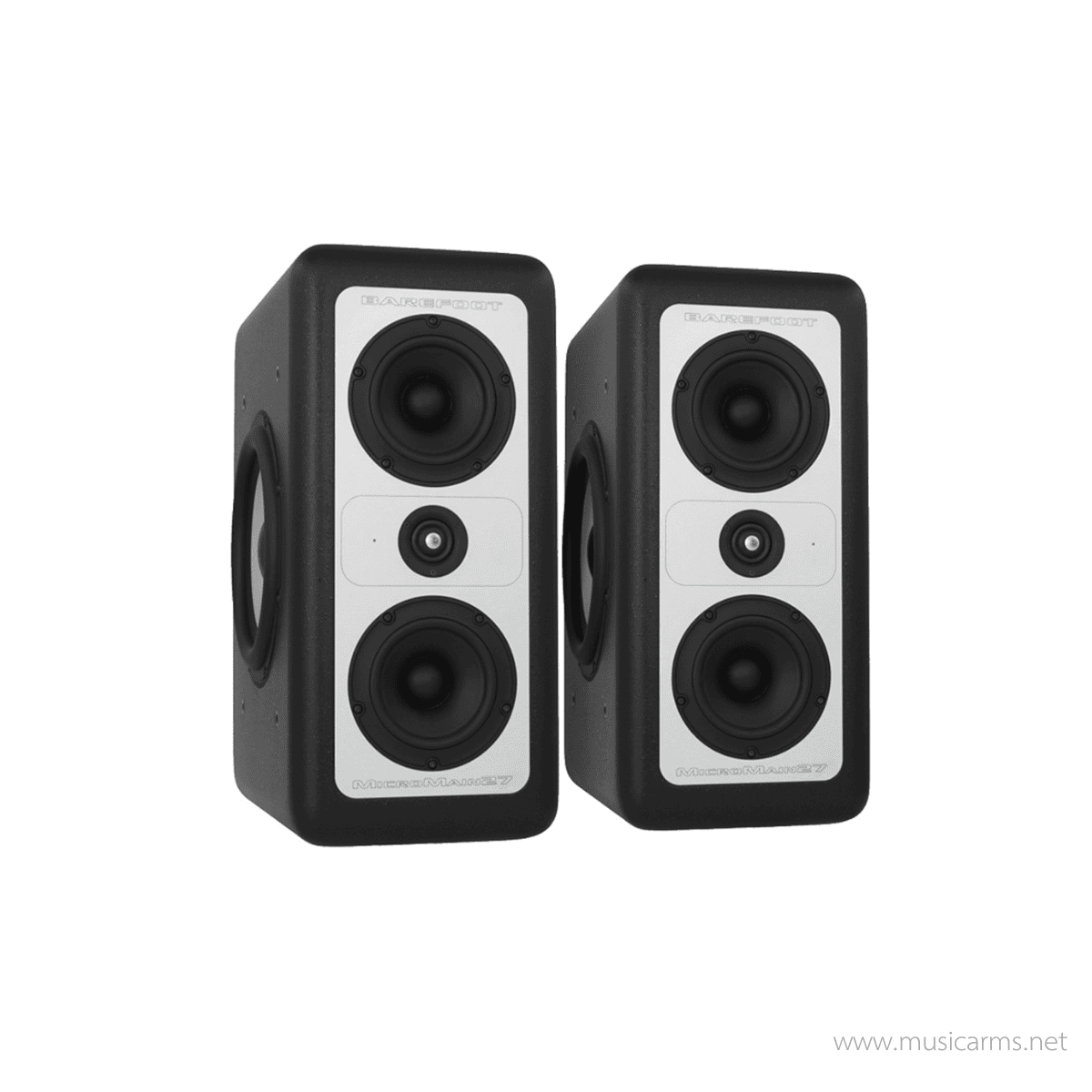

Barefoot Sound Micromain27 ลำโพงมอนิเตอร์
ราคา : (กรุณาสอบถาม)
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description
Barefoot Sound MicroMain27: The Monitor that Defined a New Standard

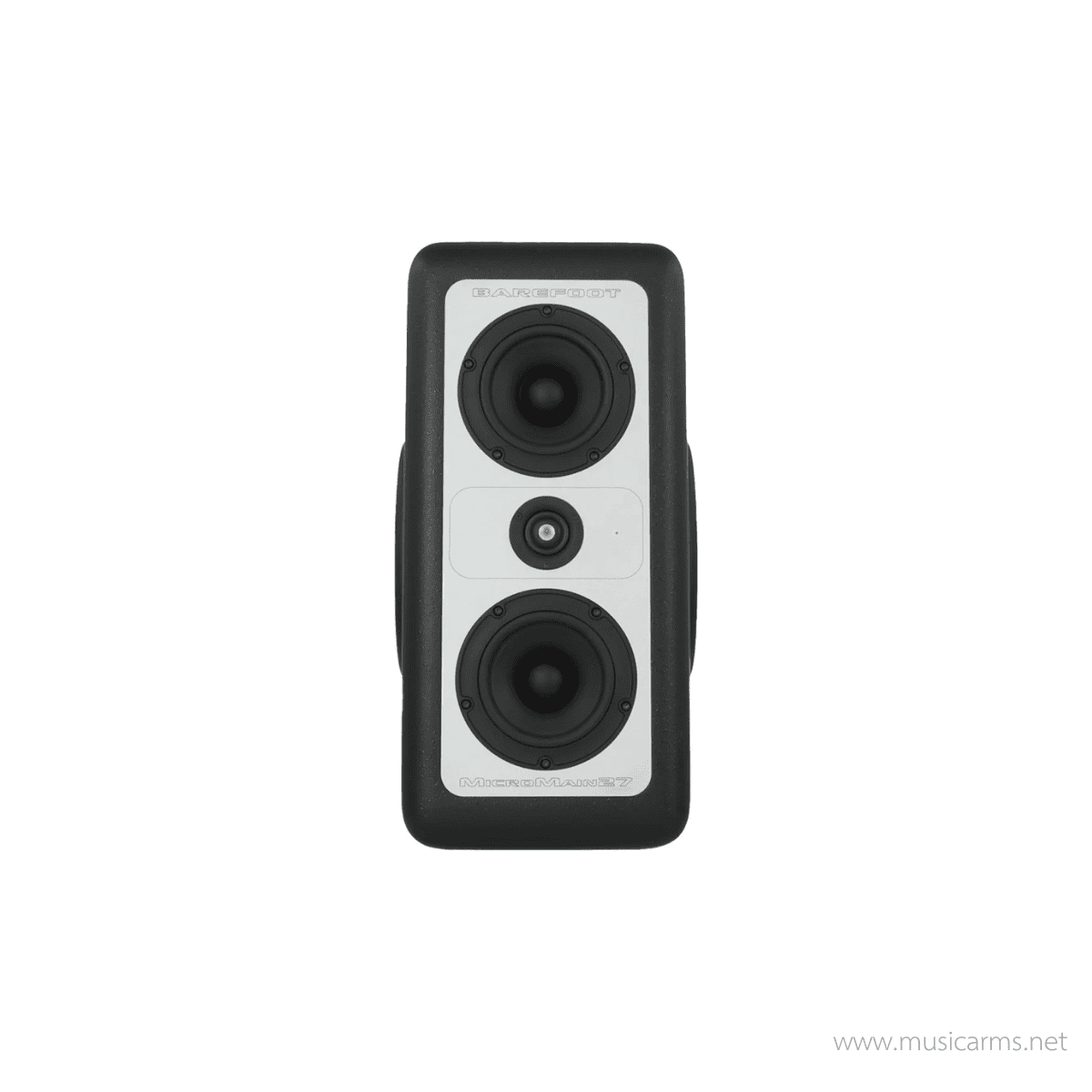

The **Barefoot Sound MicroMain27 (MM27)** is the legendary monitor that first put Barefoot Sound on the map, defining the company’s radical identity and commitment to uncompromising audio. This **3.5-way active system** features **five drive units** housed in sealed enclosures, providing an accurate frequency span from **30Hz to 45kHz**. Known for its **vanishingly low distortion, breathtaking dynamic range, and incredibly fast transient response**, the MM27 delivers a major soundstage used by some of the biggest artists and studios worldwide.
Key Features & Engineering

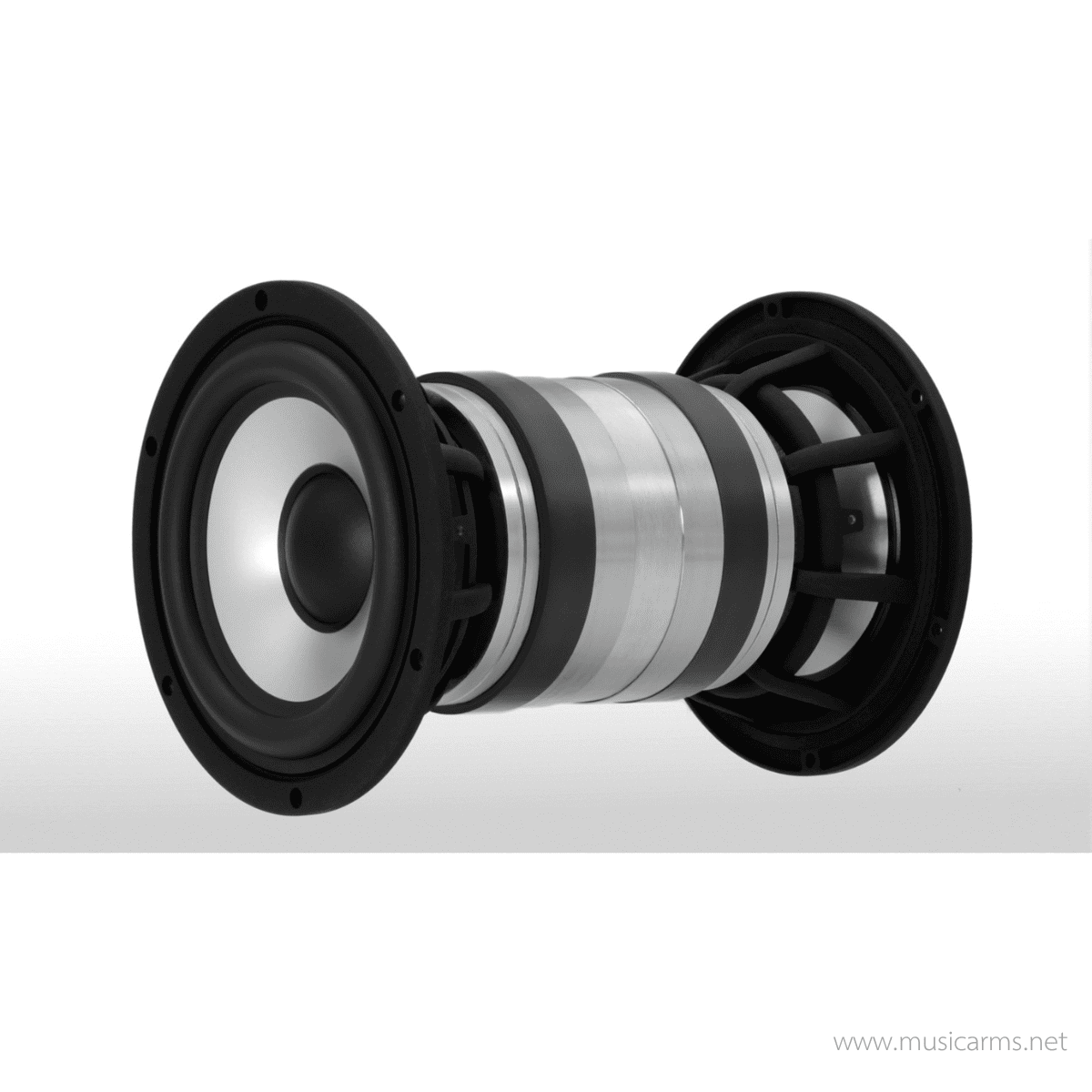

- Signature Dual-Force™ Technology: Features opposing **10″ Dual-Force™ Subwoofers** on the sides, a radical design that is fundamental to eliminating cabinet vibration and bolstering the core sound.
- 3.5-Way Active System: Utilizes five drivers per speaker, including a 1-inch ring radiator tweeter, a 5.25-inch midbass driver, and the powerful 10-inch subwoofers.
- Extended Frequency Range: Delivers full-spectrum sound from **30Hz up to 45kHz**.
- Advanced Midbass Driver: The 5.25″ midbass driver incorporates advanced technology, yielding **midrange detail rivaling any driver on the planet** for exceptional clarity.
- Seamless Coherence: A groundbreaking **DSP (Digital Signal Processor) crossover**, developed over thousands of hours, utilizes high-end converters and cutting-edge proprietary filtering to create a **seamlessly coherent and deeply revealing soundstage**.
- Transparent Amplifier Stage: Features a powerful and completely **transparent amplifier stage** developed specifically for the MicroMain27.
The Radical Design: Form Follows Function

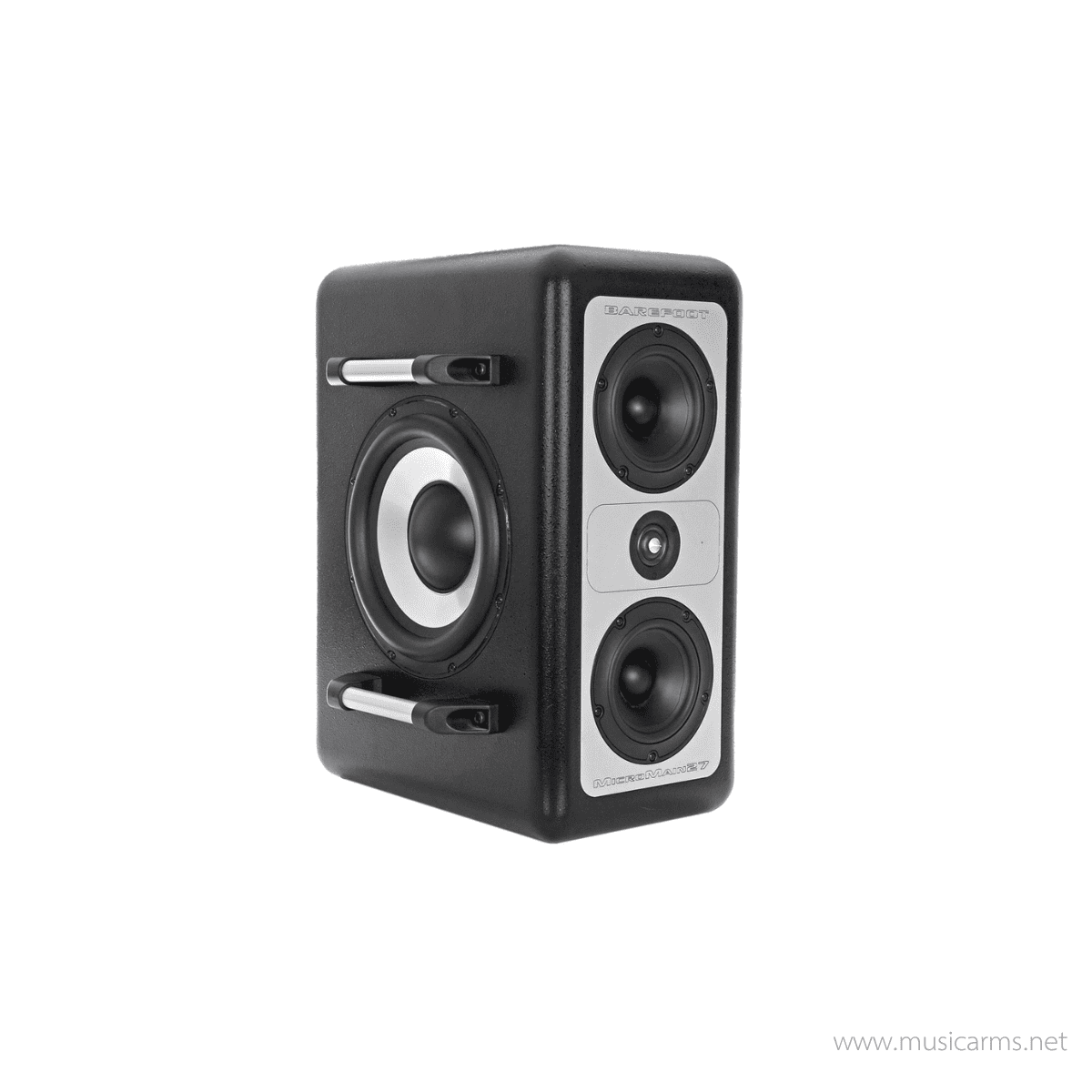

The initial “unusual” radical design of the MM27, with the subwoofers placed on the sides, proved to be fundamental to its accuracy. This configuration, paired with woofers, subs, and a tweeter in a compact box, ensures that the monitor accurately translates sound, with all drivers working together to **buttress and amplify** the core signal. This design grants the monitor greater dimension and transparency across the entire audio spectrum, making it a reliable and powerful reference tool.
Conclusion: The Defining Reference Monitor
The **Barefoot Sound MicroMain27** is the monitor that solidified the brand’s reputation for innovation and quality. It successfully combined subwoofers, woofers, and mid/high drivers into a single, compact, and highly accurate system. By integrating **Dual-Force™ Technology** and a meticulously crafted **DSP crossover**, the MM27 offers engineers a truly transparent and deeply revealing listening experience that continues to be the reference standard for top-tier professional recording facilities globally.
Specification
Technical Specifications |
|
|---|---|
| Description | **3.5-way active monitor** with **Dual-Force™** and **MEME™** Technologies |

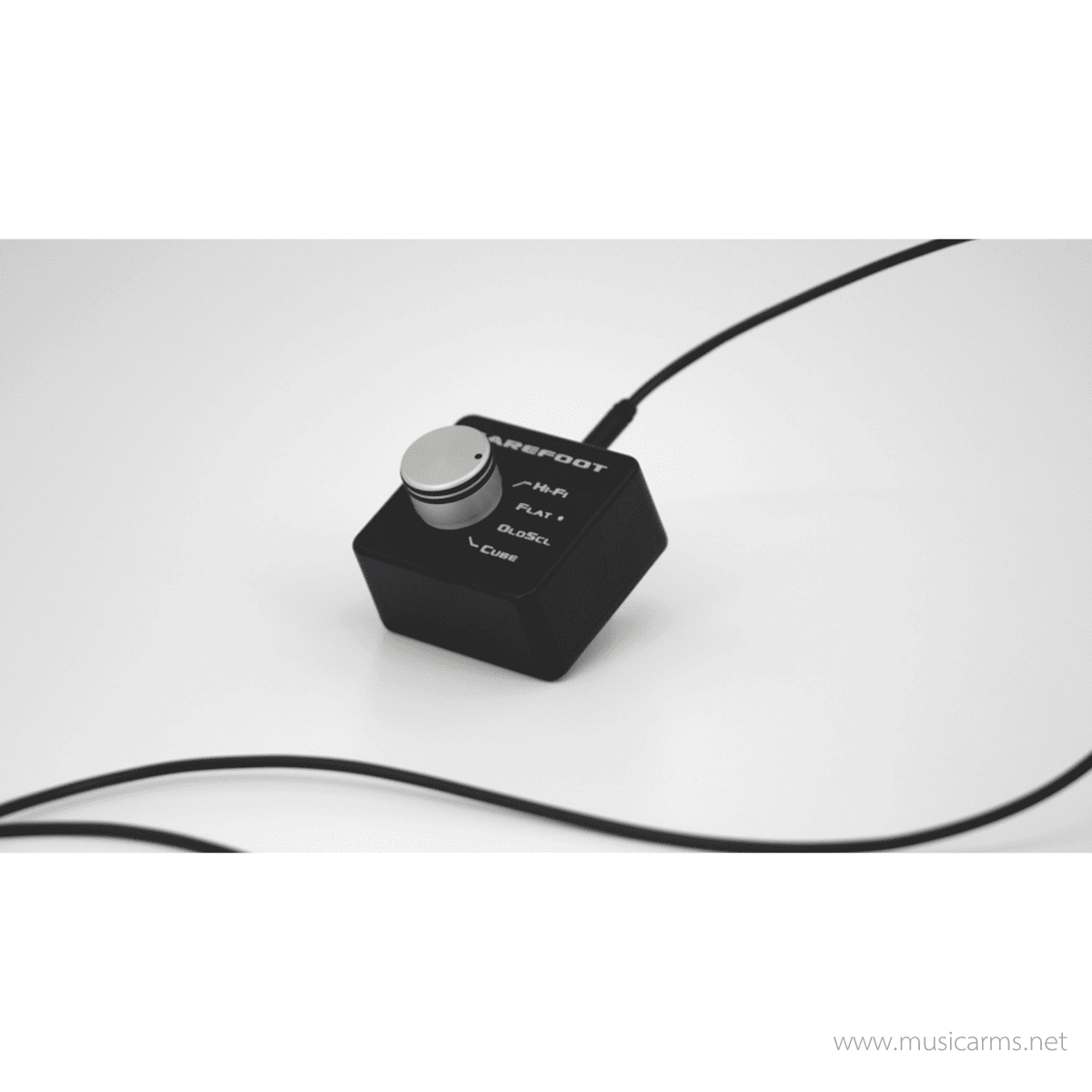

| Controls | Analog/AES3 input select, AES3 L/R channels select, Input level stepped attenuator, Subwoofer level, Emulation voice select |
| Input Impedance | 50k Ohm |
| Frequency Response | **30Hz – 45kHz** (±3dB) **40Hz – 40kHz** (±1dB) |
| Bass Response | -3 dB @ 30Hz, Q = 0.707 Slope = 12 dB/octave |
| Cabinet | **32 liters** total internal volume, Sealed subwoofer and midbass enclosures, Machined aluminum baffle plate, Aluminum subwoofer frames function as lateral cabinet bracing, Long fiber wool acoustic damping throughout |
| Crossover Frequencies | 100 / 600 / 3000 Hz |
Drivers and Amplifiers |
|

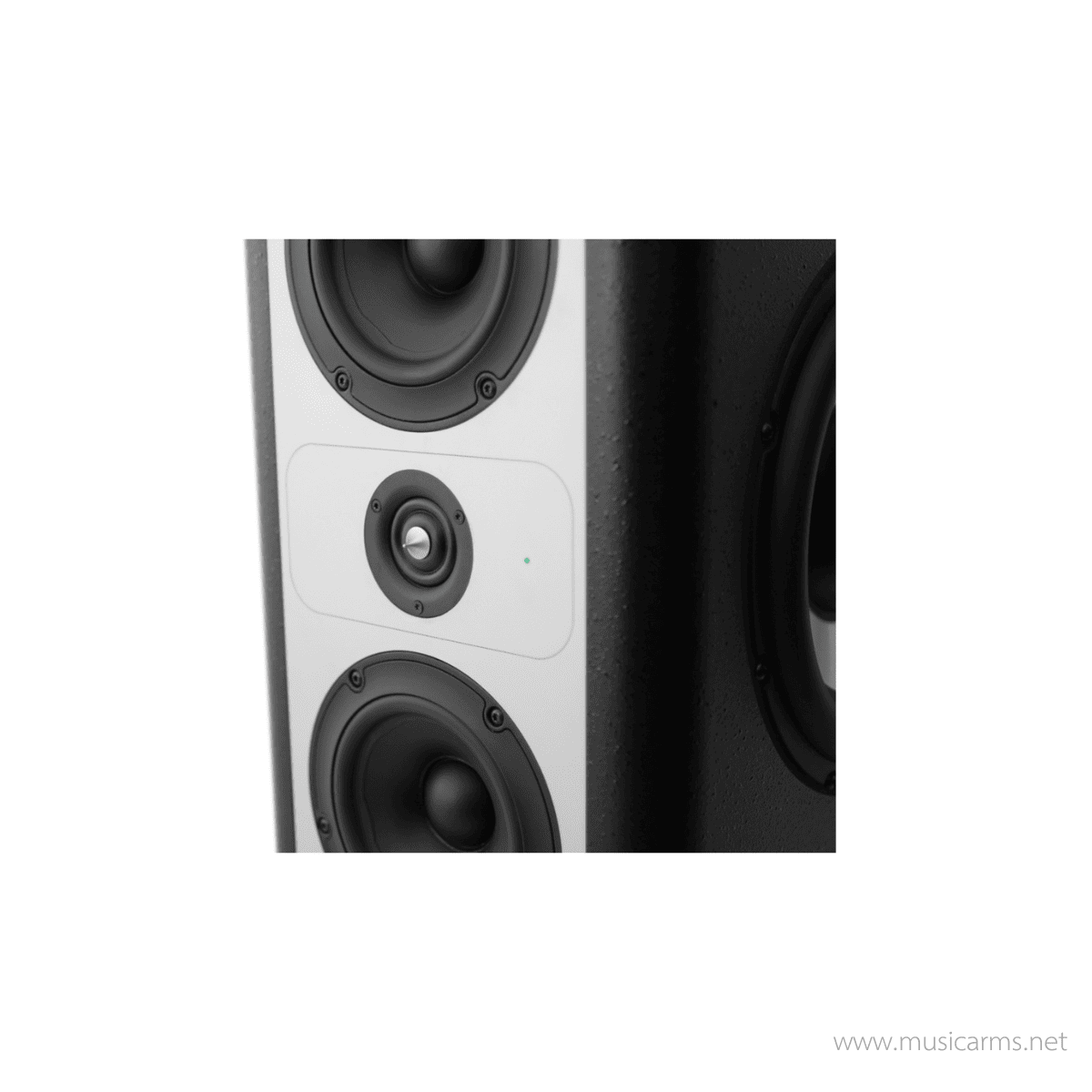

| Tweeter | 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber **Amplifier:** 180W |

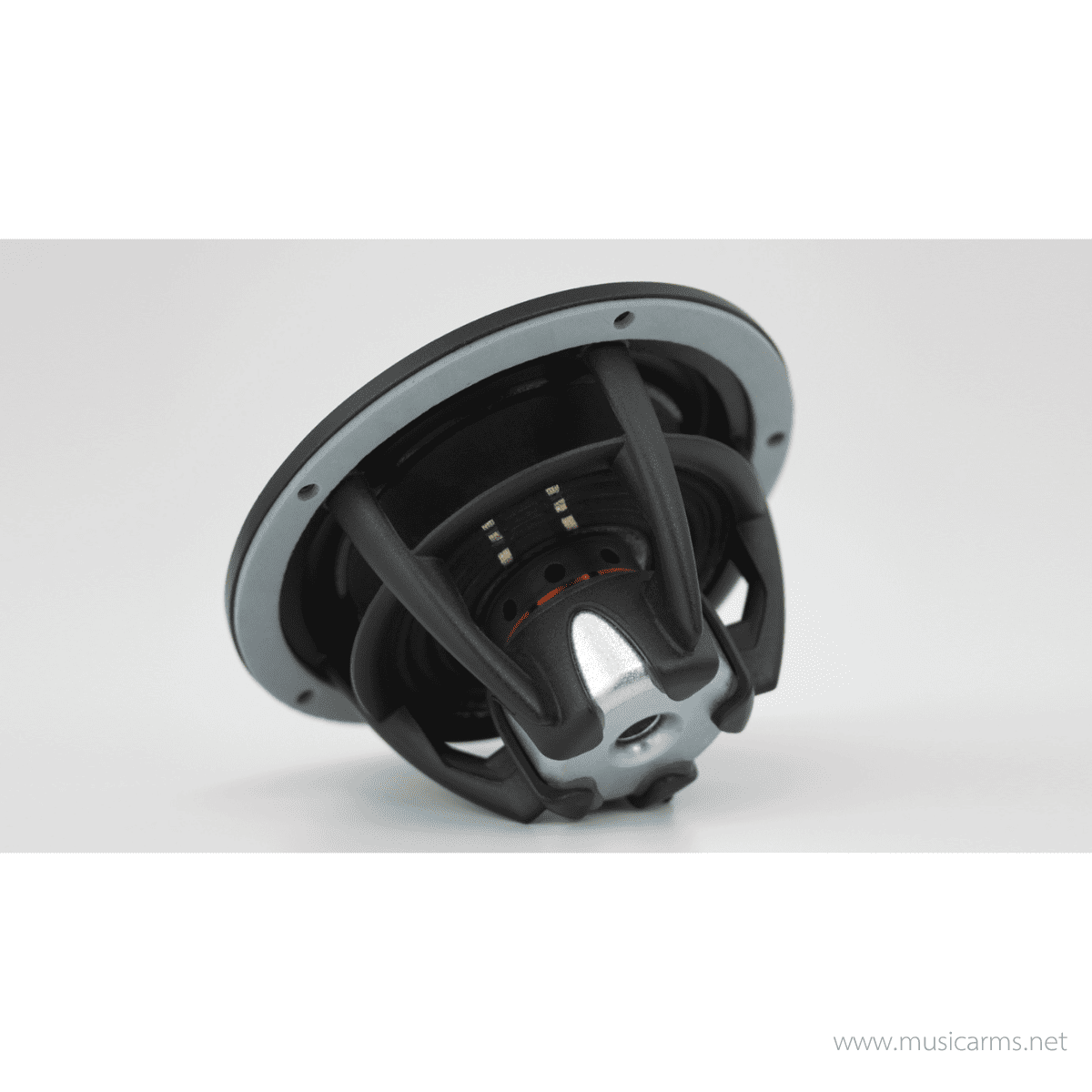

| Midbass 1 | 5.25″ poly/paper cone, Advanced geometry neodymium motor, +/- 5 mm linear excursion **Amplifier:** 250W |
| Midbass 2 | 5.25″ poly/paper cone, Advanced geometry neodymium motor, +/- 5 mm linear excursion **Amplifier:** 250W |
| Subwoofers | 2 x **10″** aluminum cone with high linearity motor, +/- 13 mm linear excursion **Amplifier:** 500W |
| MAX SPL | Single: **116 dB** Dual: **119 dB** |
Power and Dimensions |
|
| AC Power Input | Nominal 115 VAC or 230 VAC selectable |
| Power Consumption | Idle: 30W, Maximum: **650W** |
| Weight | Speaker: **68 lbs each (31 kg)** Shipping: 80 lbs each (36 kg) |
| Dimensions HxWxD | Cabinet: **20.5 x 9.5 x 15.5 inches** (521 x 241 x 394 mm) Overall: 20.5 x 10.5 x 17.4 inches (521 x 267 x 442 mm) |
Review
ข้อมูลสินค้า
Barefoot Sound MicroMain27: มอนิเตอร์ที่สร้างนิยามใหม่ของมาตรฐาน
Barefoot Sound MicroMain27 (MM27) คือมอนิเตอร์ระดับตำนานที่ทำให้ Barefoot Sound เป็นที่รู้จัก โดยกำหนดเอกลักษณ์ที่ก้าวล้ำของบริษัทและความมุ่งมั่นในด้านเสียงที่แม่นยำสูงสุด ระบบนี้เป็น **3.5-way Active** ที่ประกอบด้วย **ห้าดอกลำโพง** ในตู้ปิด (Sealed Enclosures) ให้ช่วงความถี่ที่แม่นยำตั้งแต่ **30Hz ถึง 45kHz** เป็นที่รู้จักในด้าน **การบิดเบือนเสียงที่ต่ำมาก, ช่วงไดนามิกที่น่าทึ่ง, และการตอบสนองชั่วขณะ (Transient Response) ที่รวดเร็วอย่างเหลือเชื่อ** ทำให้ MM27 สร้างสนามเสียงที่ยิ่งใหญ่และถูกใช้งานโดยศิลปินและสตูดิโอที่ใหญ่ที่สุดทั่วโลก
คุณสมบัติหลักและวิศวกรรม
- เทคโนโลยี Dual-Force™ อันเป็นเอกลักษณ์: มาพร้อม **ซับวูฟเฟอร์ Dual-Force™ ขนาด 10 นิ้ว** แบบหันเข้าหากันที่ด้านข้าง ซึ่งเป็นการออกแบบที่ล้ำสมัยและเป็นหัวใจสำคัญในการกำจัดแรงสั่นสะเทือนของตู้ลำโพง และเสริมความแข็งแกร่งให้กับเสียงหลัก
- ระบบ Active 3.5-Way: ใช้ดอกลำโพงห้าตัวต่อข้าง ประกอบด้วย ทวีตเตอร์ Ring Radiator 1 นิ้ว, เสียงกลาง/เบส (Midbass) 5.25 นิ้ว, และซับวูฟเฟอร์ 10 นิ้วที่ทรงพลัง
- ช่วงความถี่กว้าง: ให้เสียงครอบคลุมเต็มสเปกตรัมตั้งแต่ **30Hz ไปจนถึง 45kHz**
- ดอกลำโพง Midbass ขั้นสูง: ดอกลำโพง 5.25 นิ้ว ใช้เทคโนโลยีขั้นสูงที่ให้ **รายละเอียดเสียงกลางที่ทัดเทียมกับดอกลำโพงใด ๆ ในโลก** เพื่อความชัดเจนเป็นพิเศษ
- ความต่อเนื่องที่ไร้รอยต่อ: ระบบครอสโอเวอร์ **DSP (Digital Signal Processor)** ที่ก้าวล้ำ พัฒนามานานหลายพันชั่วโมง โดยใช้ตัวแปลงสัญญาณระดับไฮเอนด์และเทคนิคการกรองเฉพาะกิจ (Proprietary Filtering) เพื่อสร้าง **สนามเสียงที่ต่อเนื่องและเปิดเผยรายละเอียดอย่างล้ำลึก**
- ภาคขยายเสียงที่โปร่งใส: มีภาคขยายเสียงที่ทรงพลังและ **โปร่งใสอย่างสมบูรณ์** ซึ่งพัฒนาขึ้นสำหรับ MicroMain27 โดยเฉพาะ
การออกแบบที่ก้าวล้ำ: รูปแบบเป็นไปตามฟังก์ชัน
การออกแบบที่ “ผิดปกติ” ในตอนแรกของ MM27 ที่มีการติดตั้งซับวูฟเฟอร์ไว้ด้านข้าง ได้พิสูจน์แล้วว่าเป็นองค์ประกอบพื้นฐานสำหรับความแม่นยำของลำโพง การจัดวางนี้เมื่อจับคู่กับวูฟเฟอร์ ซับวูฟเฟอร์ และทวีตเตอร์ในตู้ที่กะทัดรัด ทำให้มั่นใจได้ว่ามอนิเตอร์จะถ่ายทอดเสียงได้อย่างแม่นยำ โดยดอกลำโพงทั้งหมดทำงานร่วมกันเพื่อ **เสริมและขยาย** สัญญาณหลัก การออกแบบนี้มอบมิติเสียงและความโปร่งใสที่มากขึ้นตลอดช่วงสเปกตรัมเสียงทั้งหมด ทำให้เป็นเครื่องมืออ้างอิงที่ทรงพลังและเชื่อถือได้
สรุป: มอนิเตอร์อ้างอิงที่กำหนดมาตรฐาน
Barefoot Sound MicroMain27 คือมอนิเตอร์ที่สร้างชื่อเสียงให้กับแบรนด์ในด้านนวัตกรรมและคุณภาพ โดยประสบความสำเร็จในการรวมซับวูฟเฟอร์ วูฟเฟอร์ และดอกลำโพงเสียงกลาง/สูง เข้าไว้ในระบบเดียวที่กะทัดรัดและแม่นยำสูง ด้วยการผสานรวม **เทคโนโลยี Dual-Force™** และ **ครอสโอเวอร์ DSP** ที่ได้รับการรังสรรค์อย่างพิถีพิถัน MM27 มอบประสบการณ์การฟังที่โปร่งใสอย่างแท้จริงและเปิดเผยรายละเอียดอย่างล้ำลึกให้กับวิศวกร ซึ่งยังคงเป็นมาตรฐานอ้างอิงสำหรับสตูดิโอบันทึกเสียงมืออาชีพระดับสูงสุดทั่วโลก
รายละเอียดคุณสมบัติ
รายละเอียดคุณสมบัติทางเทคนิค (Technical Specifications) |
|
|---|---|
| คำอธิบาย | ลำโพงมอนิเตอร์แบบ **3.5 ทาง, แอคทีฟ** (Active), พร้อมเทคโนโลยี **Dual-Force™** และ **MEME™** |
| การควบคุม | ปุ่มเลือกอินพุต Analog/AES3, ปุ่มเลือกช่องสัญญาณ AES3 L/R, ตัวลดทอนสัญญาณระดับอินพุตแบบสเต็ป, ระดับเสียงซับวูฟเฟอร์, ปุ่มเลือกโหมดจำลองเสียง (Emulation Voice Select) |
| ความต้านทานอินพุต | 50k โอห์ม |
| การตอบสนองความถี่ | **30Hz – 45kHz** (±3dB) **40Hz – 40kHz** (±1dB) |
| การตอบสนองความถี่ต่ำ (เบส) | -3 dB @ 30Hz, Q = 0.707 Slope = 12 dB/octave |
| ตู้ลำโพง (Cabinet) | ปริมาตรรวมภายใน **32 ลิตร**, ช่องซับวูฟเฟอร์และมิดเบสแบบปิด (Sealed), แผ่นหน้าลำโพงอะลูมิเนียมขึ้นรูป, โครงซับวูฟเฟอร์อะลูมิเนียมทำหน้าที่เป็นโครงยึดด้านข้างตู้, การหน่วงเสียงด้วยขนแกะยาวตลอดทั้งตู้ |
| ความถี่ครอสโอเวอร์ | 100 / 600 / 3000 Hz |
ระบบขับเสียงและแอมพลิฟายเออร์ |
|
| ทวีตเตอร์ (Tweeter) | 1 นิ้ว, แบบ Ring Radiator, มอเตอร์รูปทรงขั้นสูง, ช่อง Waveguide ด้านหลัง **แอมพลิฟายเออร์:** 180W |
| มิดเบส 1 (Midbass 1) | 5.25 นิ้ว, กรวย Poly/Paper, มอเตอร์นีโอไดเมียมรูปทรงขั้นสูง, ระยะเคลื่อนที่เชิงเส้น +/- 5 มม. **แอมพลิฟายเออร์:** 250W |
| มิดเบส 2 (Midbass 2) | 5.25 นิ้ว, กรวย Poly/Paper, มอเตอร์นีโอไดเมียมรูปทรงขั้นสูง, ระยะเคลื่อนที่เชิงเส้น +/- 5 มม. **แอมพลิฟายเออร์:** 250W |
| ซับวูฟเฟอร์ (Subwoofers) | 2 ตัว x **10 นิ้ว**, กรวยอะลูมิเนียมพร้อมมอเตอร์ความแม่นยำสูง, ระยะเคลื่อนที่เชิงเส้น +/- 13 มม. **แอมพลิฟายเออร์:** 500W |
| ระดับความดันเสียงสูงสุด (MAX SPL) | ลำโพงเดี่ยว: **116 dB** ลำโพงคู่: **119 dB** |
พลังงานและขนาด |
|
| กำลังไฟฟ้ากระแสสลับ (AC Power) | 115 VAC หรือ 230 VAC (เลือกได้) |
| การใช้พลังงาน | ขณะไม่ได้ใช้งาน (Idle): 30W, สูงสุด (Maximum): **650W** |
| น้ำหนัก | ต่อลำโพง: **68 ปอนด์ (31 กิโลกรัม)** รวมบรรจุภัณฑ์ (Shipping): 80 ปอนด์ (36 กิโลกรัม) |
| ขนาด (สูงxกว้างxลึก) | ตัวตู้: **20.5 x 9.5 x 15.5 นิ้ว** (521 x 241 x 394 มม.) โดยรวม: 20.5 x 10.5 x 17.4 นิ้ว (521 x 267 x 442 มม.) |
