ADAM Audio T5V (Pair) ลำโพงมอนิเตอร์
ราคา : 19,800 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
วีดีโอ
Description
Active Vertical 2-way Nearfield Monitor with 50W 5″ Woofer and 20W U-ART Accelerated-ribbon Tweeter
ลำโพงมอนิเตอร์แอคทีฟ Nearfield แบบสองทาง พร้อมวูฟเฟอร์ 50 “5” และทวีตเตอร์ริบบ้อน U-ART 20 วัตต์
Professional ADAM Monitoring for the Budget-conscious Studio

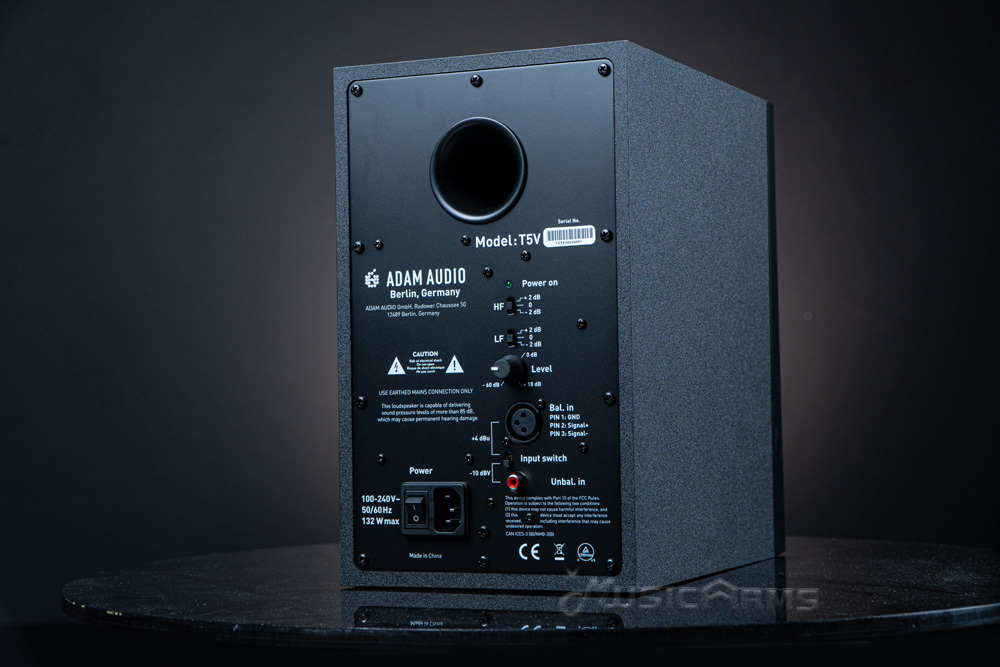

The T5V’s beveled cabinet features a rear-firing bass reflex port affixed to a thick metal backplate that houses the analog input connections and DSP-controlled driver crossovers and equalization. The woofer’s 50W Class D amplifier, in combination with the 20W Class D tweeter amp, enables a pair of T5Vs to achieve a maximum SPL of 106dB at one meter. The T5V’s extended frequency response, robust dynamic range, exemplary transient response, broad sweet spot, and compact footprint make it ideally suited for use in small control rooms for music production, video post, and broadcast applications. It’s a perfect monitoring solution, considering the modest budgets that many facilities have to work with.
The drivers in ADAM Audio studio monitors benefit from years of in-house research and development and take advantage of the latest advances in technology and materials science. The woofer in the T5V is engineered to deliver optimized low-frequency reproduction with extended dynamic range and freedom from coloration. It incorporates a rigid, yet low-mass polypropylene driver cone; a highly efficient magnet assembly and precisely aligned voice coil; and an optimized driver chassis/basket design. The T5V’s 5″ woofer extends response down to 45Hz, making the speaker a suitable choice for nearfield monitoring in small control rooms, with or without a subwoofer. If more low-end extension is desirable, ADAM Audio’s Sub8 and Sub7 subwoofers pair perfectly with the T5V.
Specification
- Powered: Yes
- Power Configuration: Bi-amped
- LF Driver Size: 5″ woofer
- LF Driver Type: Polypropylene
- HF Driver Size: 1.9″ U-ART tweeter
- LF Driver Power Amp: 50W
- HF Driver Power Amp: 20W
- Frequency Response: 45Hz-25kHz
- Crossover Frequency: 3000Hz
- Maximum Peak SPL: ≥106dB SPL @ 1m
- Input Types: 1 x XLR, 1 x RCA
- Enclosure Type: Rear ported
- Height: 11.7″
- Width: 7″
- Depth: 11.7″
- Weight: 12.6 lbs.
- Manufacturer Part Number: T5V
ข้อมูล
ADAM Audio T5V ลำโพงมอนิเตอร์ระยะใกล้แบบสองทางราคาประหยัดและปรับให้เหมาะสำหรับห้องควบคุมขนาดเล็ก ด้วยวูฟเฟอร์ขนาด 5” การตอบสนองความถี่เบสของ T5V ขยายเป็น 45 Hz ทวีตเตอร์ U-ART ใหม่ ซึ่งเป็นโซลูชันที่ก้าวล้ำสำหรับใช้ในการบันทึกและมิกซ์เสียงที่มีความละเอียดสูงในราคาประหยัด ขึ้นไปถึง 25 kHz และเชื่อมต่อกับท่อนำคลื่นที่มีความแม่นยำซึ่งมีคุณลักษณะการควบคุมการกระจายเช่นเดียวกับ High Frequency Propagation (HPS) ท่อนำคลื่นที่ใช้ในจอภาพ S Series ของ ADAM Audio การกระจายความถี่สูงที่สม่ำเสมอ
ตู้เอียงที่มีพอร์ตสะท้อนเสียงเบสแบบยิงด้านหลังและฐานขนาดเล็กช่วยให้จัดวางได้ทุกที่ในห้องของคุณ ไม่ว่าจะมีขนาดเล็กเพียงใด และมีครอสโอเวอร์ไดรเวอร์ที่ควบคุมด้วย DSP ในตัวและอีควอไลเซอร์ รวมถึงการเชื่อมต่ออนาล็อกหลายทาง ขับเคลื่อนด้วยเครื่องขยายเสียง Class D 50 W สำหรับวูฟเฟอร์ และเครื่องขยายเสียง Class D 20 W สำหรับทวีตเตอร์ U-ART T5V สร้าง SPL ได้สูงถึง 106 dB เหมาะอย่างยิ่งสำหรับใช้ในห้องควบคุมขนาดเล็กในการผลิตเพลง วิดีโอ และการออกอากาศ
สเปค
รายละเอียด ADAM Audio T5V
- ลำโพงแบบพาวเวอร์
- รูปแบบ Bi-amped
- LF วูฟเฟอร์ขนาด 5 นิ้ว
- LF ไดร์เวอร์ประเภท:Polypropylene
- HF ทวีตเตอร์ X-ART ขนาด 1.9 นิ้ว
- LF ไดร์เวอร์เพาเวอร์แอมป์:50W
- HF ไดร์เวอร์เพาเวอร์แอมป์:20W
- การตอบสนองความถี่:45Hz-25kHz
- ความถี่ครอสโอเวอร์: 3000Hz
- SPL สูงสุด:≥106dB SPL @ 1m
- ประเภทอินพุต:1 x XLR, 1 x RCA
- ความสูง: 11.7 นิ้ว
- ความกว้าง:7 นิ้ว
- ความลึก:11.7 นิ้ว
- น้ำหนัก:12.6 ปอนด์
