Yamaha BB735A เบสไฟฟ้า

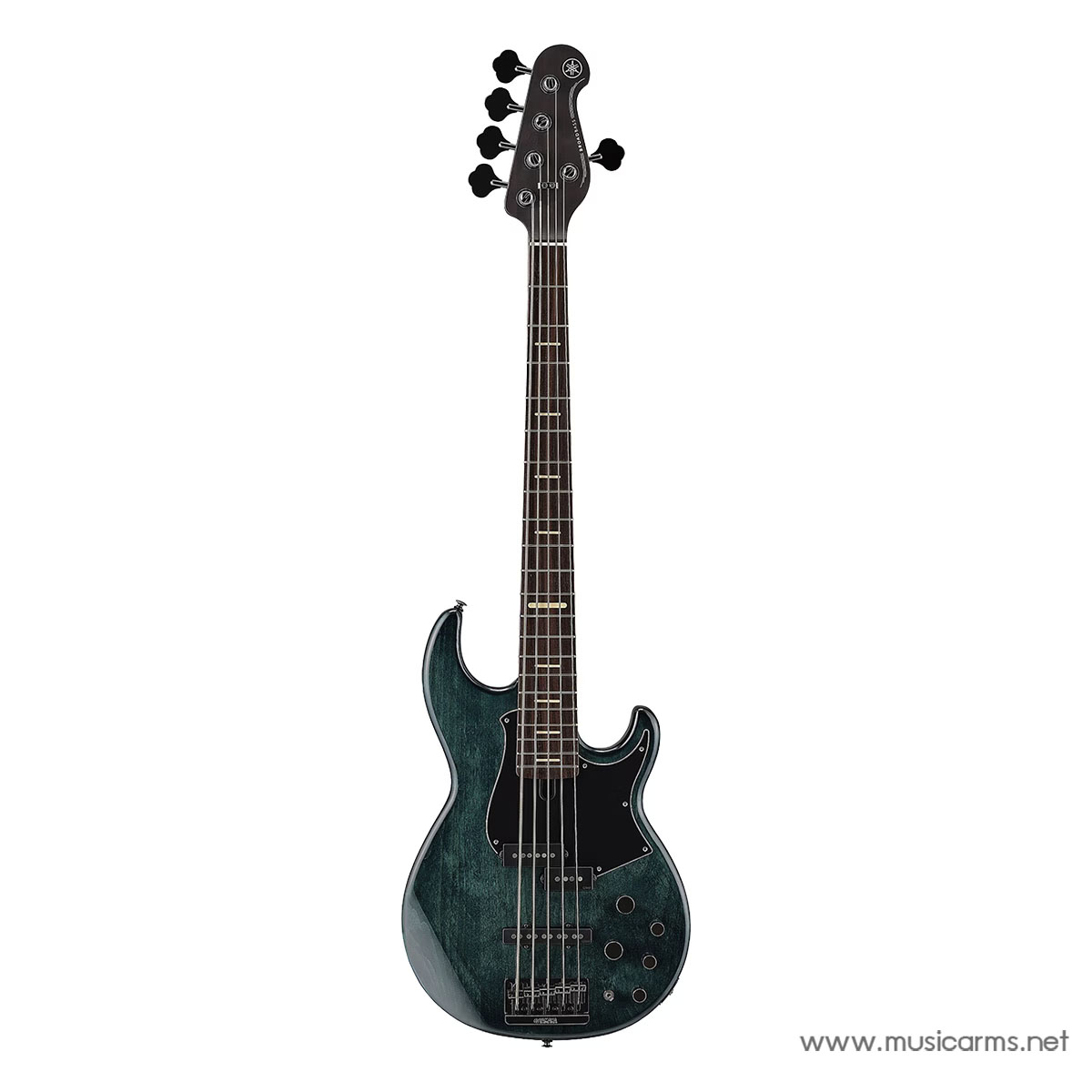

Yamaha BB735A Bass Guitar

True Innovation Any Bassist Can Appreciate

At first glance, the Yamaha BB735A 5-string bass is a workhorse instrument capable of a wide range of bass tones. Look a bit closer, and you’ll find a slew of innovations that make it a truly unique bass. Its 6-bolt miter neck joint transmits more string vibration to the body for impressive sustain, as does its Vintage Plus bridge with diagonal body-through stringing. The BB735A’s switchable active/passive circuits deliver impressive sonic versatility, with automatic level matching for both circuits. Factor in stainless steel hardware to resist corrosion over the years, and the Yamaha BB735A is truly a bass to treasure for a lifetime.

Impressive sonic control and active/passive operation

With its specially tuned active/passive circuit, the Yamaha BB735A boasts a sonic range that has impressed bassists at Sweetwater. The switchable active/passive circuit features a level-matched output, which means you won’t have to adjust your output volume when changing circuits. In active mode, you have comprehensive sound-shaping potential with the 3-band EQ. In passive mode, the treble control becomes a master tone control. And instead of a selector switch, a blend control allows you to find the perfect balance for its YGD Custom V7 pickups.

Innovating basic concepts

When it comes to building a better bass, Yamaha took nothing for granted with the BB735A. For example, the bolt-on neck is joined to the body with six bolts, two of them mitered (joined at a 45-degree angle). Yamaha’s engineers determined that this offers more efficient transfer of vibration, leading to improved sustain and resonance. The innovation continues with the Vintage Plus bridge with diagonal body-through stringing, where strings pass through the body to the bridge at a 45-degree angle. This reduces stress on the string and also contributes to better vibrational transfer.

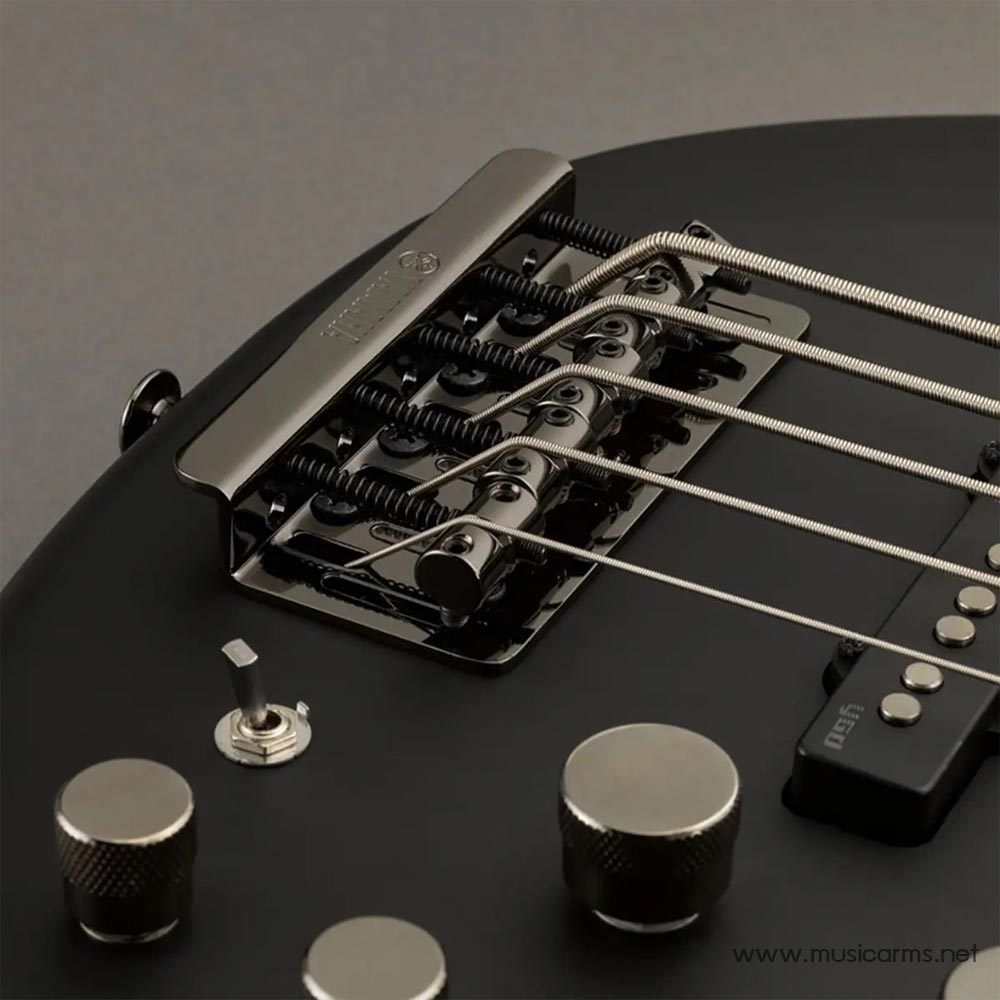

Convertible saddles offer two distinct voicings

The Vintage Plus bridge actually offers multiple stringing options — you can pass the strings through the body at a 45-degree angle or pass them through the tail end of the bridge. And whichever you choose, you can further dial in your tone via the convertible saddles. Each saddle has a rounder side for a slightly softer sound and a more angled side for a slightly tighter tone. And with the ability to convert each string’s saddle individually, you can fine-tune your bass tone on a per-string basis with this bridge.

Yamaha BB735A 5-string Electric Bass Features:

• Alder/maple/alder multi-lam body construction for maximum tonal impact
• 6-bolt miter neck joint for improved vibrational transfer from strings to body
• YGD Custom V7 pickups with alnico magnets for an organic, well-defined sound
• Active/passive tone circuit with volume matching for consistent output
• 3-band EQ in active mode, treble control becomes your master tone control in passive mode
• Pickup blend knob for dialing in your ideal pickup combination
• Vintage Plus bridge with diagonal body-through stringing for better vibrational transfer
• Convertible saddles offer 2 distinct voicings that you can set per string
• Brass saddles for deep low end, steel bridge plate for added brightness
• All screws and springs are stainless steel to resist corrosion

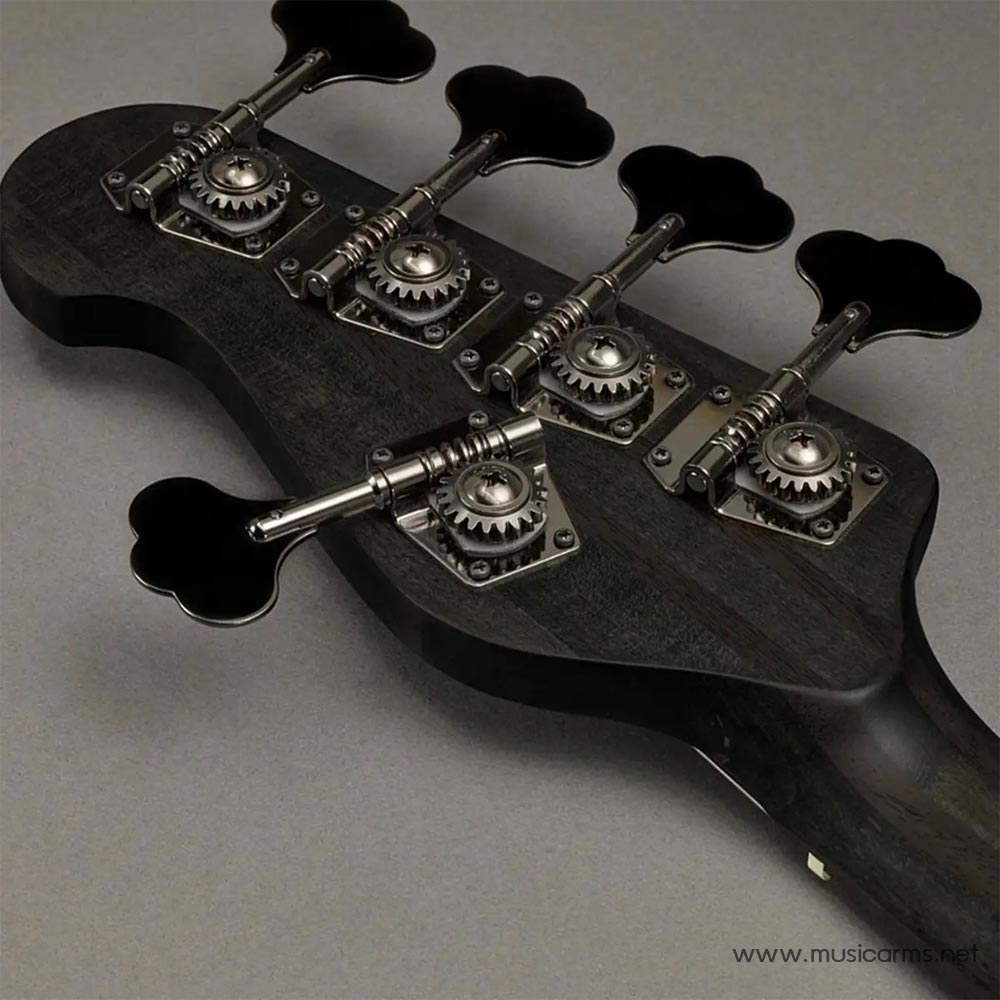

• Lightweight tuning machines for improved balance

Tech Specs

• Body Shape: BB Series Doublecut
• Left-/Right-handed: Right-handed
• Number of Strings: 5
• Body Material: Alder/Maple/Alder
• Body Finish: Satin Polyurethane
• Neck Material: 5-piece Maple/Mahogany
• Neck Shape: C
• Radius: 23.625″
• Fingerboard Material: Rosewood
• Fingerboard Inlay: Bars
• Number of Frets: 21, Medium
• Scale Length: 34″
• Nut Width: 1.692″
• Nut Material: GraphTech Tusq
• Bridge/Tailpiece: Vintage Plus String-thru Bridge with Convertible Brass Saddles, Steel Plate
• Tuners: Lightweight Open-gear
• Neck Pickup: VSP7n Alnico V Split-coil
• Bridge Pickup: VSC7b Alnico V Single-coil
• Controls: 1 x master volume, 1 x balancer, 3-band Active EQ, Active/Passive switch
• Strings: D’Addario EXL, .045-.130
• Case Included: Gig Bag

รายละเอียด เบสไฟฟ้า Yamaha BB735A

• 5 สาย
• ทรง Yamaha BB Doublecut
• บอดี้ไม้เอลเดอร์/เมเปิ้ล/เอลเดอร์ 3 ชิ้นประกบกัน
• เคลือบด้านด้วยโพลียูรีเทน
• คอไม้เมเปิ้ล/มะฮอกกานี 5 ชิ้นประกบกัน
• ทรงคอ BB แบบบาง
• Radius 23.625 นิ้ว
• ฟิงเกอร์บอร์ดไม้โรสวู้ด อินเลย์รูปบาร์
• 21 เฟร็ตแบบ Medium
• ความยาวสเกล 34 นิ้ว
• Nut ทำจาก GraphTech กว้าง 1.692 นิ้ว
• Bridge / Tailpiece สไตล์วินเทจ
• ลูกบิด open gear
• ปิ๊กอัพคอรุ่น VSP7n Alnico V Split Single-coil
• ปิ๊กอัพบริดจ์รุ่น VSC7b Alnico V Single-coil
• 1 Volume 1 Pickup Balance
• สวิทช์ Active/Passive และปุ่มปรับ EQ 3 แบนด์
