Allen & Heath dLive DX Link

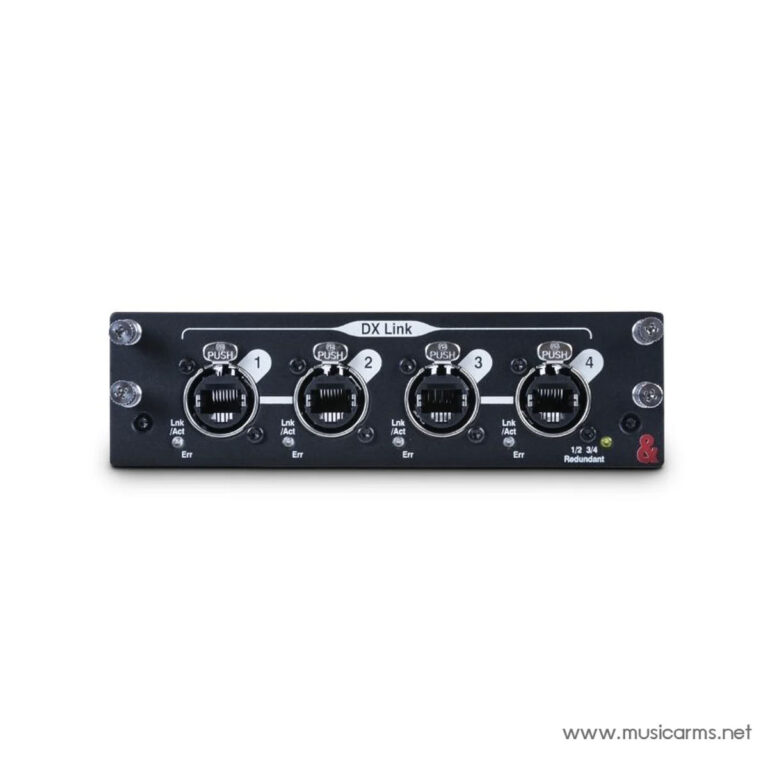

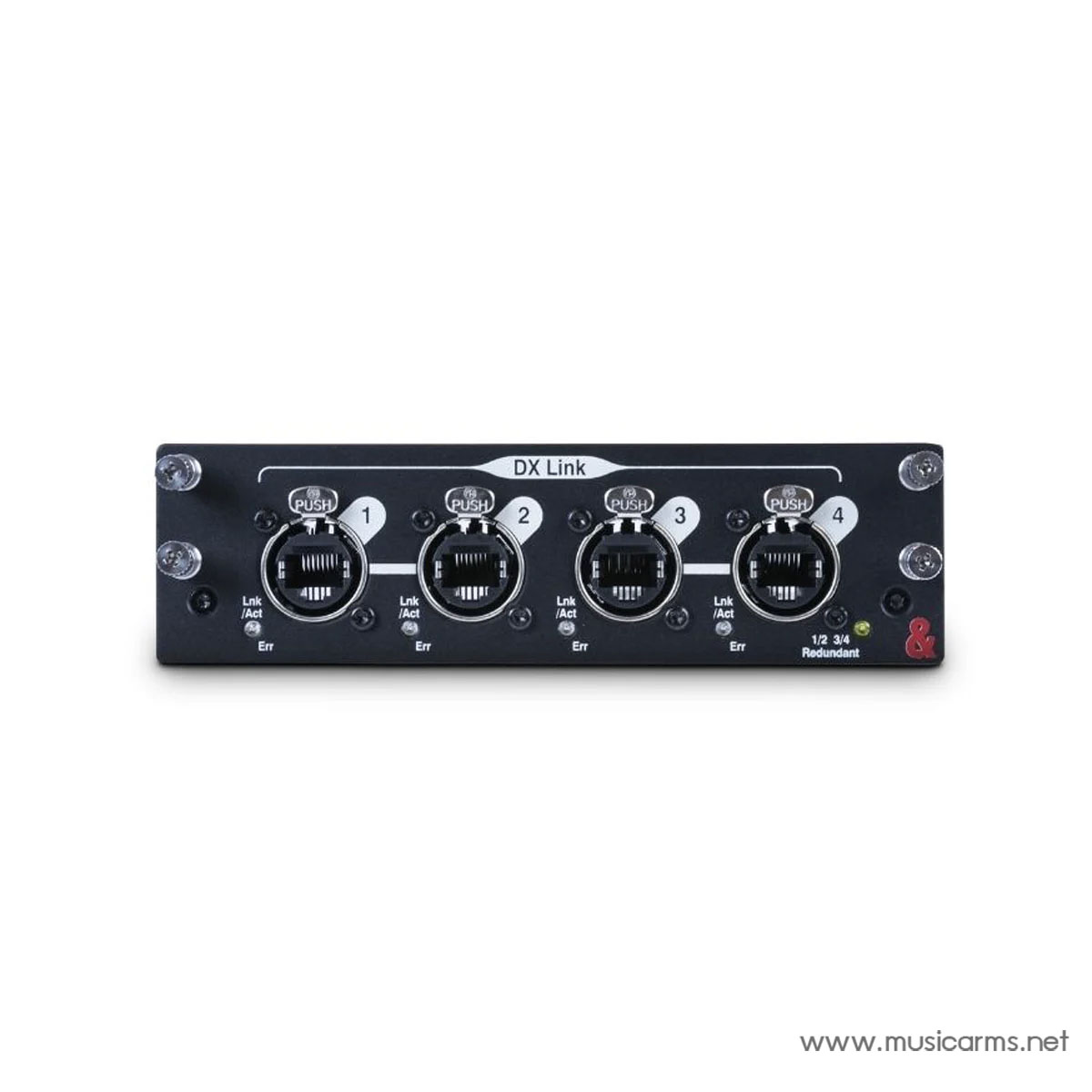

Allen & Heath dLive DX Link (M-DL-DXLINK): 4-Port I/O Expansion Card for DX Devices at 96kHz

Allen & Heath dLive DX Link (M-DL-DXLINK) is a dedicated network audio interface card designed specifically to expand the input/output (I/O) capabilities of the dLive mixer series.
It can be easily installed into an available I/O port on any dLive MixRack or Control Surface, acting as a bridge between the mixer and Allen & Heath’s DX remote audio expanders, such as the DX32, DX168, and DX164, which are widely used in professional setups.

The standout feature of the DX Link is its four DX Link ports, each capable of handling up to 32 input × 32 output digital audio channels at a 96kHz sample rate.
This allows a single card to expand up to 128 inputs and 64 outputs when fully paired with compatible DX expanders.
With support for both Parallel and Redundant connection modes, it provides high flexibility for system design and installation while ensuring stable and secure audio transmission for engineers in any environment.

Key Features

• 4 DX Link Ports: Equipped with 4 DX Link ports for connecting to DX expanders.
• Channel Capacity per Port: Each port supports 32 inputs × 32 outputs at 96kHz.
• Maximum Expansion Capacity: A single card can provide up to 128 inputs and 64 outputs (when used with DX expanders).
• Redundancy Support: Supports both Parallel and Redundant connection modes for added flexibility and system reliability.
• Wide Compatibility: Compatible with all DX series devices, including DX32, DX168, and DX164.

Summary: Reliable and Flexible I/O Expansion for dLive Systems

The Allen & Heath dLive DX Link (M-DL-DXLINK) I/O Card is a core component for expanding the I/O capabilities of dLive systems, making it ideal for professional applications requiring large channel counts.
With four DX Link ports and support for 32×32 channels per port at 96kHz, engineers can expand their setups to accommodate up to 128 input channels per card.

Support for both Parallel and Redundant connection modes ensures continuity of operation and signal integrity in any scenario.
The DX Link card is indispensable for installations or touring setups that require flexible stagebox placement and reliable long-distance audio connectivity.
