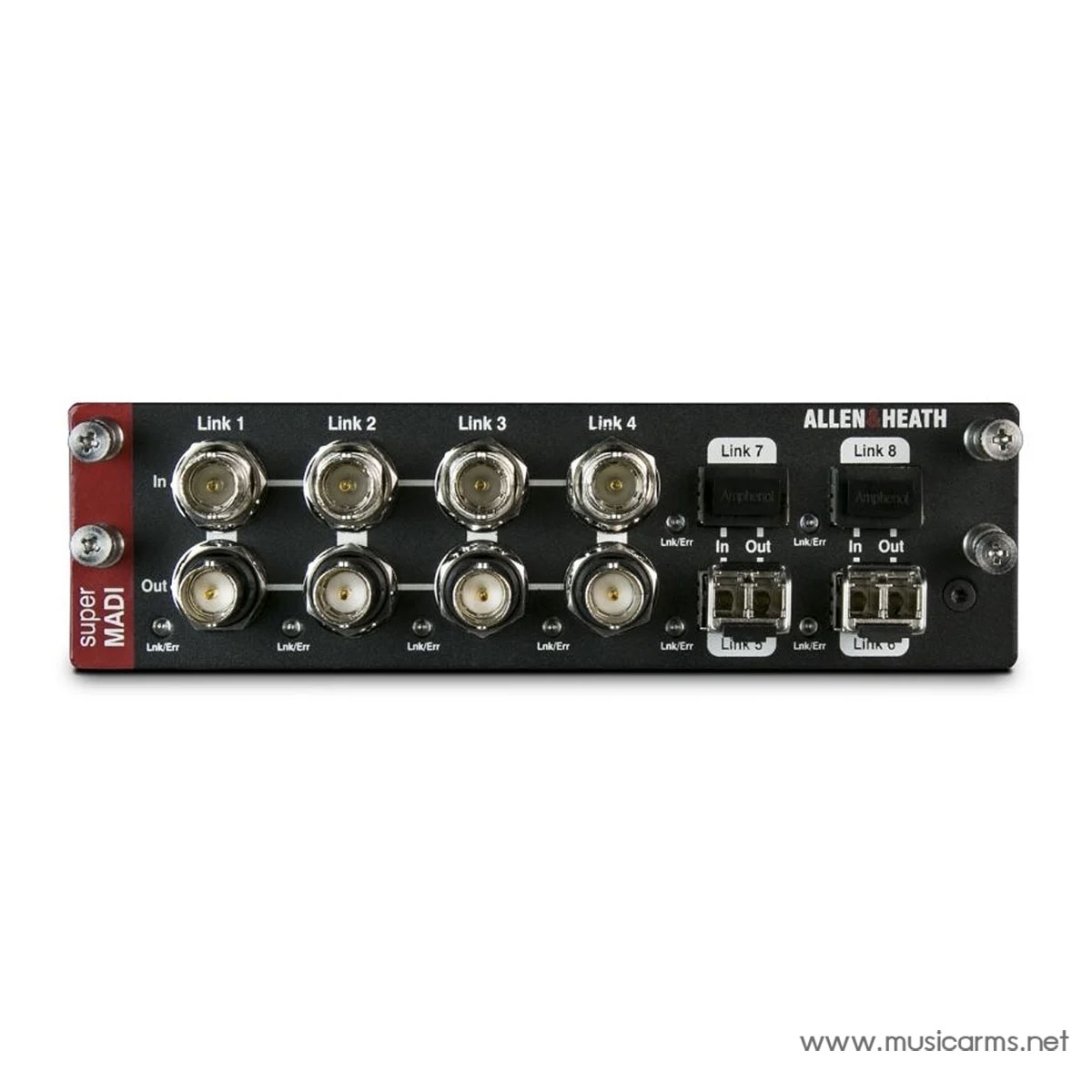

Allen & Heath dLive SuperMADI

Allen & Heath dLive SuperMADI: 128×128-Channel MADI Network Card for Broadcast and Live Sound 96kHz

Allen & Heath dLive SuperMADI is a powerful and highly flexible digital audio network interface card designed for MADI connectivity within dLive and Avantis systems. This card is engineered to meet the demands of professional audio environments that require seamless integration across multiple platforms, such as Broadcast, Live Sound, and Recording studios that demand high channel counts and pristine 96kHz audio quality.
The key highlight of SuperMADI lies in its unmatched connectivity options, featuring 8 BNC ports (4 links) for Coaxial connections and 8 SFP slots for Optical fiber connections. Users can freely install SFP modules as needed, enabling a single card to handle up to 128 I/O per connection type (Coaxial or Optical).
It also supports Dual Redundancy operation and allows per-link pair switching between 48kHz and 96kHz sample rates, with selectable Smux or HighSpeed modes for 96kHz. This makes SuperMADI the perfect tool for splitting digital signals to other consoles or integrating seamlessly and reliably with external systems.

Key Features

• High Channel Capacity: Supports up to 128 I/O per connection type (Coaxial or Optical) at 96kHz.
• Dual-Format Connectivity: Equipped with 8 BNC ports (Coaxial MADI) and 8 SFP slots (Optical MADI) on a single card.
• Flexible Sample Rate: Switchable sample rate between 48kHz and 96kHz per link pair.
• Redundancy System: Supports redundancy mode for secure and reliable audio operation.
• 96kHz Mode Support: Offers selectable Smux or HighSpeed mode for 96kHz operation, depending on system requirements.

Summary: The Perfect MADI Connectivity Solution with Maximum Flexibility and Channel Capacity

Allen & Heath dLive SuperMADI I/O Card is an exceptional solution for sound engineers who need to integrate dLive or Avantis systems with existing MADI networks.
With both Coaxial and Optical connections available on a single card and the ability to transmit up to 128 channels at 96kHz, this card stands among the most flexible and powerful MADI interfaces in the market.
The built-in sample rate switching and redundancy functions ensure maximum compatibility and system stability when connecting to MADI consoles or external devices.
If you are looking for a MADI card designed for Broadcast, Live Sound, and Recording applications that require high channel counts and reliable performance, the SuperMADI is the complete and trustworthy answer.
