Allen & Heath SQ MADI Network Interface Card

Allen & Heath SQ MADI Network Interface Card: Adds 64×64 MADI Connectivity to SQ Mixers

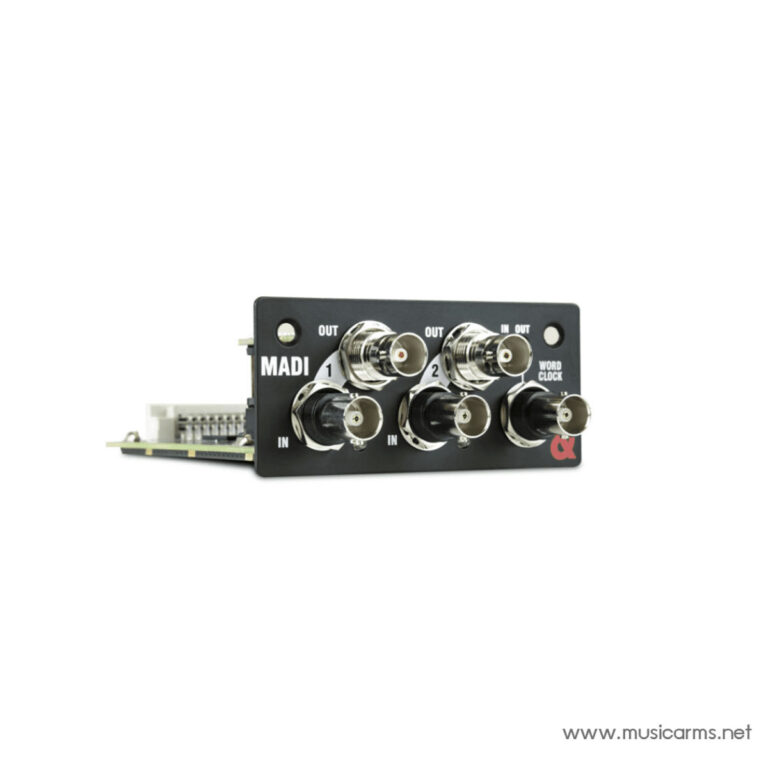

The Allen & Heath SQ MADI Module Card is an interface card designed to add MADI connectivity to the SQ mixer family. It supports a 64×64 channel interface and operates at either 48kHz or 96kHz. Equipped with 2 BNC Input ports and 2 BNC Output ports, the card supports Split or Redundant operation, allowing the SQ mixer to be easily and reliably integrated into MADI distribution or recording systems.

Key Features

• 64×64 Channel MADI Interface: Supports 64 inputs and 64 outputs of digital audio signal for integration into large-scale audio systems.
• 96kHz Sample Rate Support: Operates at both 48kHz and 96kHz frequencies, enabling use in high-quality audio environments.

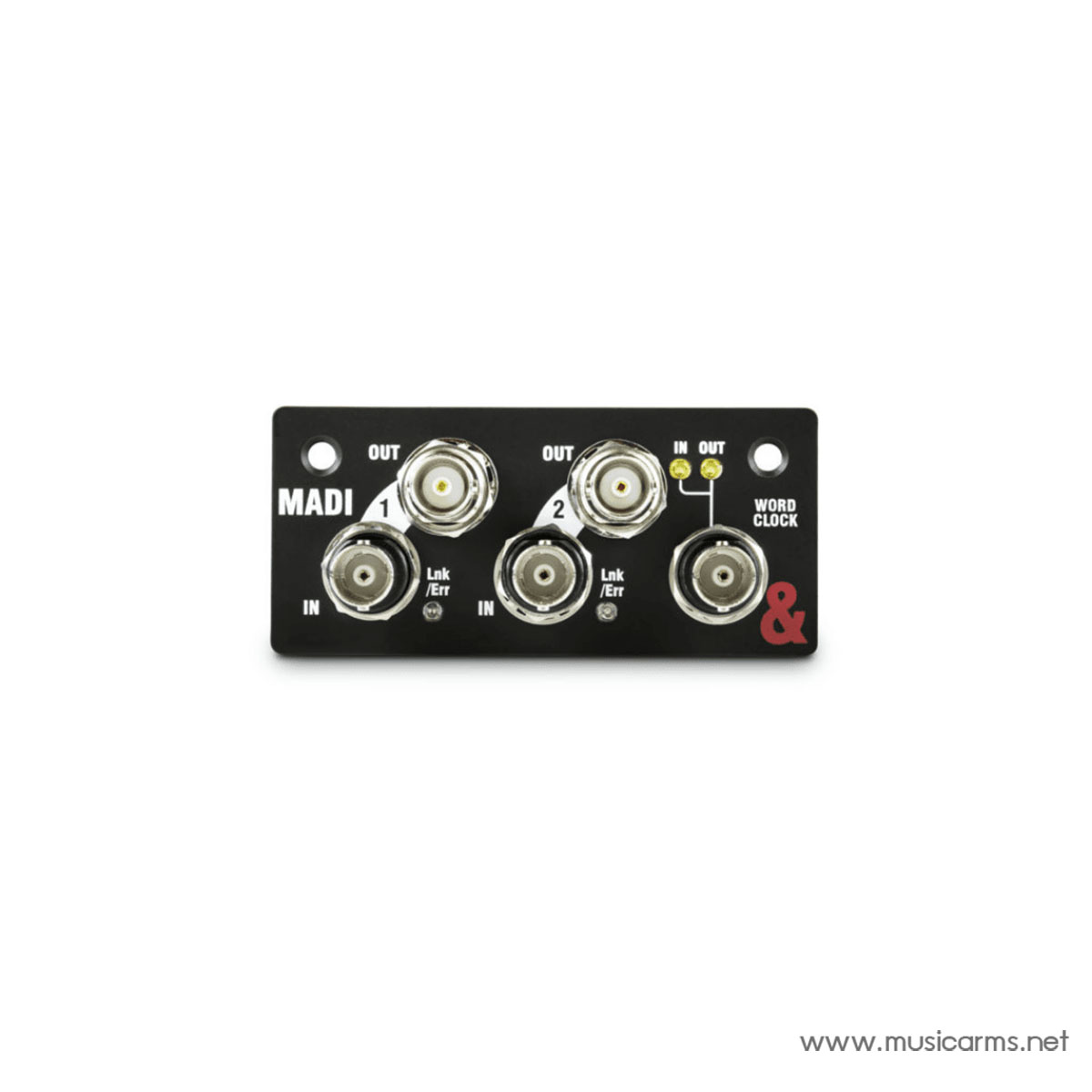

• Dual BNC Ports for Redundancy: Features 2 BNC In and 2 BNC Out ports, supporting Split or Redundant (backup) operation for maximum signal reliability.
• Wordclock BNC: Includes a BNC Wordclock port (Input/Output capable) to allow the mixer to stably synchronize signals with other MADI equipment.

Professional Flexibility and Interoperability

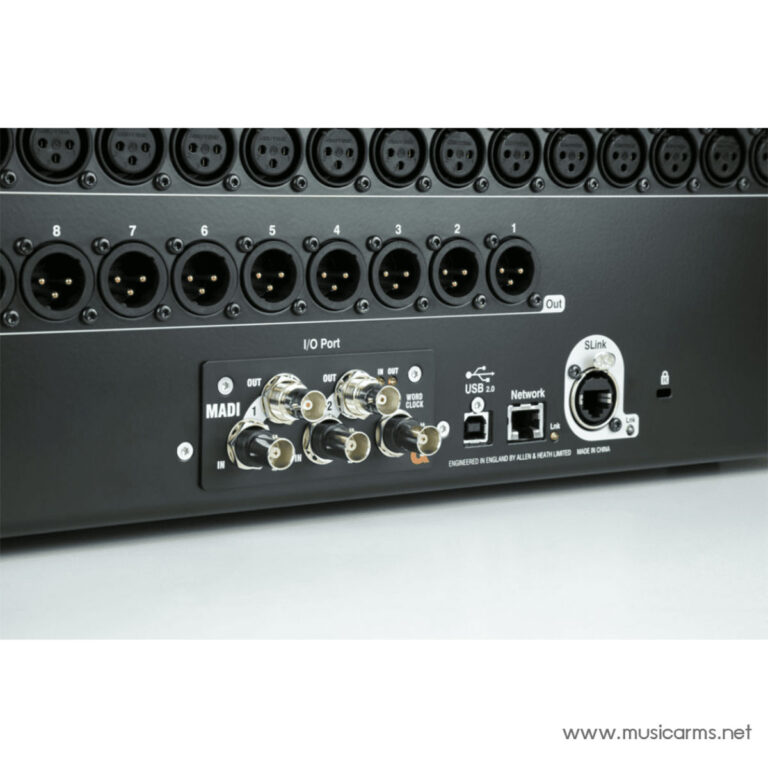

The SQ MADI Module Card is a powerful addition to the SQ mixer, extending its capability to interface with the MADI industry standard. With built-in Redundancy and Wordclock support, the card is an excellent choice for recording studios or large live sound systems that demand reliability and precise synchronization.
