Apogee Duet 3 อินเตอร์เฟส

ราคา : 26,000 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ
Description

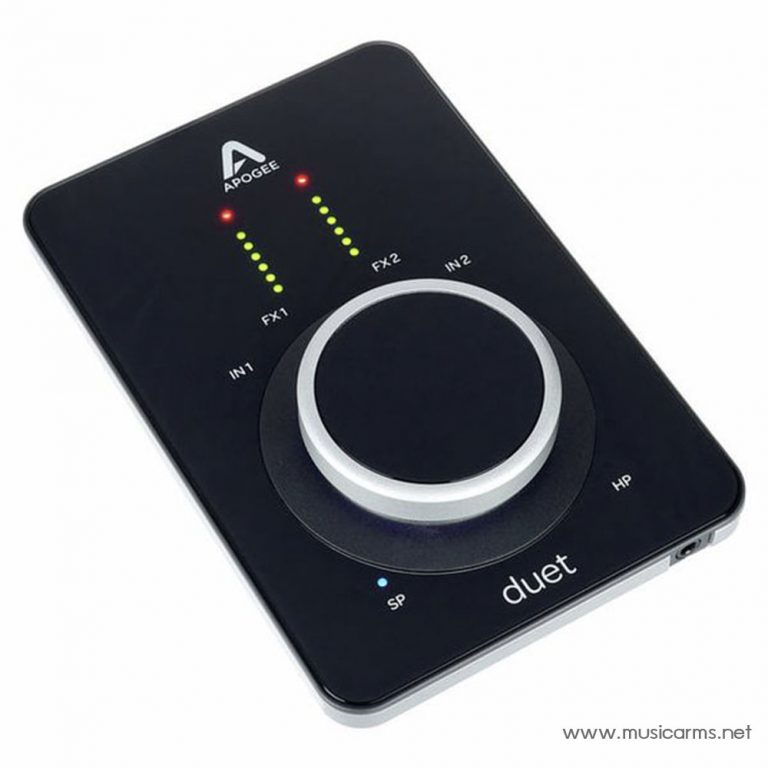

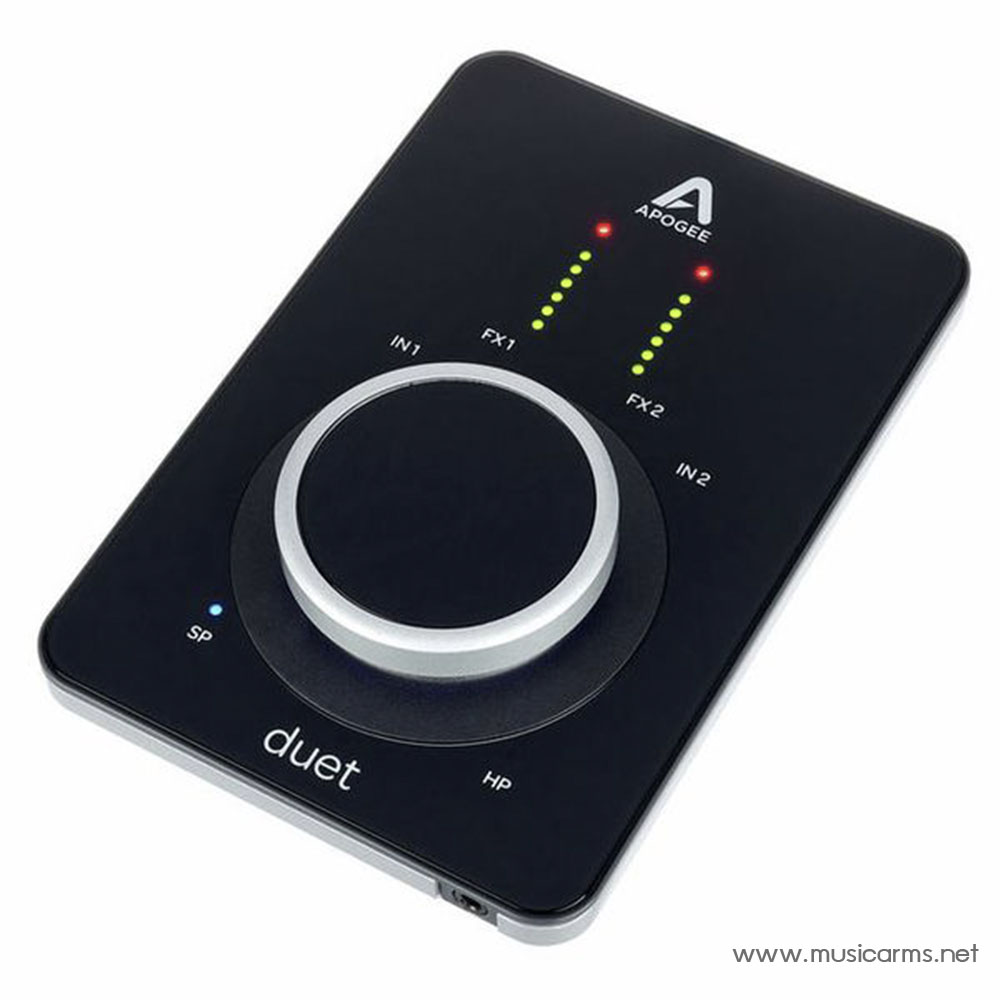

Apogee Duet 3
Portable USB-C Audio Interface with Professional Hardware DSP
Apogee Duet 3 represents the latest evolution of a legendary portable audio interface,
combining premium AD/DA conversion, world-class analog circuitry, and built-in hardware DSP
in one sleek unit. Designed for music production, recording, streaming, gaming, and mobile content creation,
Duet 3 delivers uncompromising sound quality wherever you work.
⭐ Key Features
- 🎚️ Two flagship mic preamps with up to +65dB of gain
- ⚡ Built-in hardware DSP for zero-latency processing
- 🎧 High-quality headphone output with exceptional clarity
- 🔌 USB-C connectivity with convenient bus-powered operation
- 🧠 Includes ECS Channel Strip tuned by Bob Clearmountain
- 🪟 Premium contoured body with scratch-resistant Gorilla Glass
🎼 Legendary AD/DA Conversion and Analog Design
Duet 3 is built around Apogee’s renowned AD/DA converters, ultra-stable digital clocking,
and pristine analog circuitry. The result is transparent, detailed audio capture with
true-to-life depth and dimension, making monitoring and mixing more accurate and musical.
Backed by nearly 40 years of innovation, Apogee delivers best-in-class sound and performance.
🎤 Microphone Preamps That Handle Any Source
From vocals and drums to guitars, strings, and brass, every source demands precision.
Duet 3 features Apogee’s Advanced Stepped Gain Architecture,
an analog design that dynamically optimizes performance across a 0–65dB gain range,
ensuring wide bandwidth, ultra-low distortion, and exceptional detail—even at high gain levels.
🚀 Hardware DSP for Zero-Latency Sound Shaping
One of Duet 3’s standout features is its onboard DSP, allowing you to shape your sound
directly at the input stage with zero latency. The included ECS Channel Strip
provides studio-quality EQ, compression, and saturation, meticulously tuned by Bob Clearmountain
for musical, professional results.
- 🎛️ High-quality EQ, compressor, and saturation effects
- ⏱️ Zero-latency monitoring while recording
- 🖥️ Full control via Apogee Control 2 software
- 🎚️ Adjust gain, phantom power, monitor levels, and print FX directly from your DAW
🔧 Designed for Modern Workflows

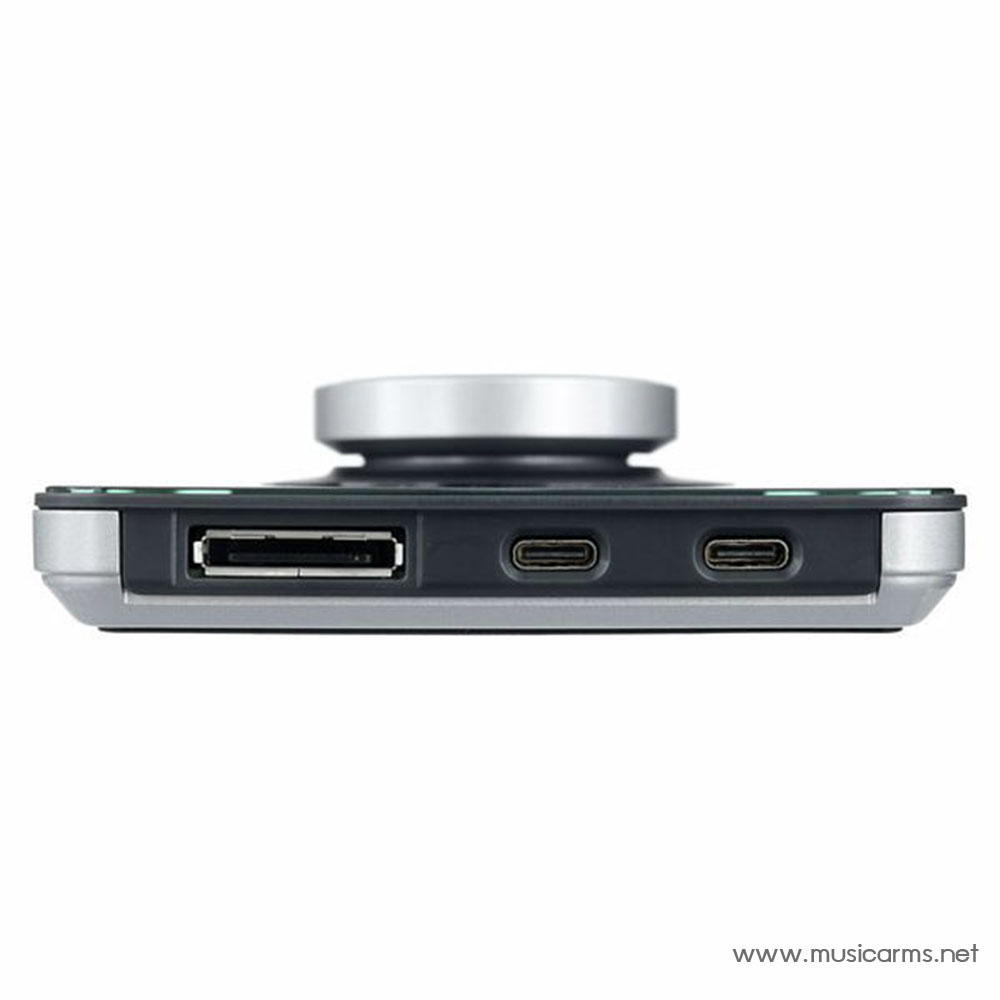

Duet 3 features a redesigned breakout cable with streamlined connectors and extended reach
for improved usability. Its USB-C bus-powered design eliminates the need for external power,
while the elegant contoured enclosure adds a premium look and feel to any studio or mobile setup.
🎯 Ideal For
- 🎶 Musicians and producers seeking professional sound quality
- 🎙️ Voice artists, podcasters, and streamers
- 🎮 Gamers who demand low latency and crystal-clear audio
- ✈️ Content creators who need a premium portable interface
Specification
📋 Apogee Duet 3 – Technical Specifications
| 🎛️ | Interface Type | 2 × 4 USB 3.0 Audio Interface with USB-C & DSP |
| 🎚️ | AD / DA Conversion | 24-bit / 192kHz High-Resolution Converter |
| 🎤 | Audio Inputs | 2 × Combo Inputs • XLR (Mic / Line) • 6.3 mm TS (Instrument) |
| 🔊 | Microphone Preamps | Up to 65dB Gain Switchable +48V Phantom Power |
| 🛡️ | Signal Processing | Soft Limiter Phase Inversion |
| ⚡ | Internal DSP | Low-Latency Recording with Apogee FX (Includes Symphony ECS Channel Strip) |
| 🔈 | Line Outputs | Stereo Line Output: 2 × 6.3 mm TRS |

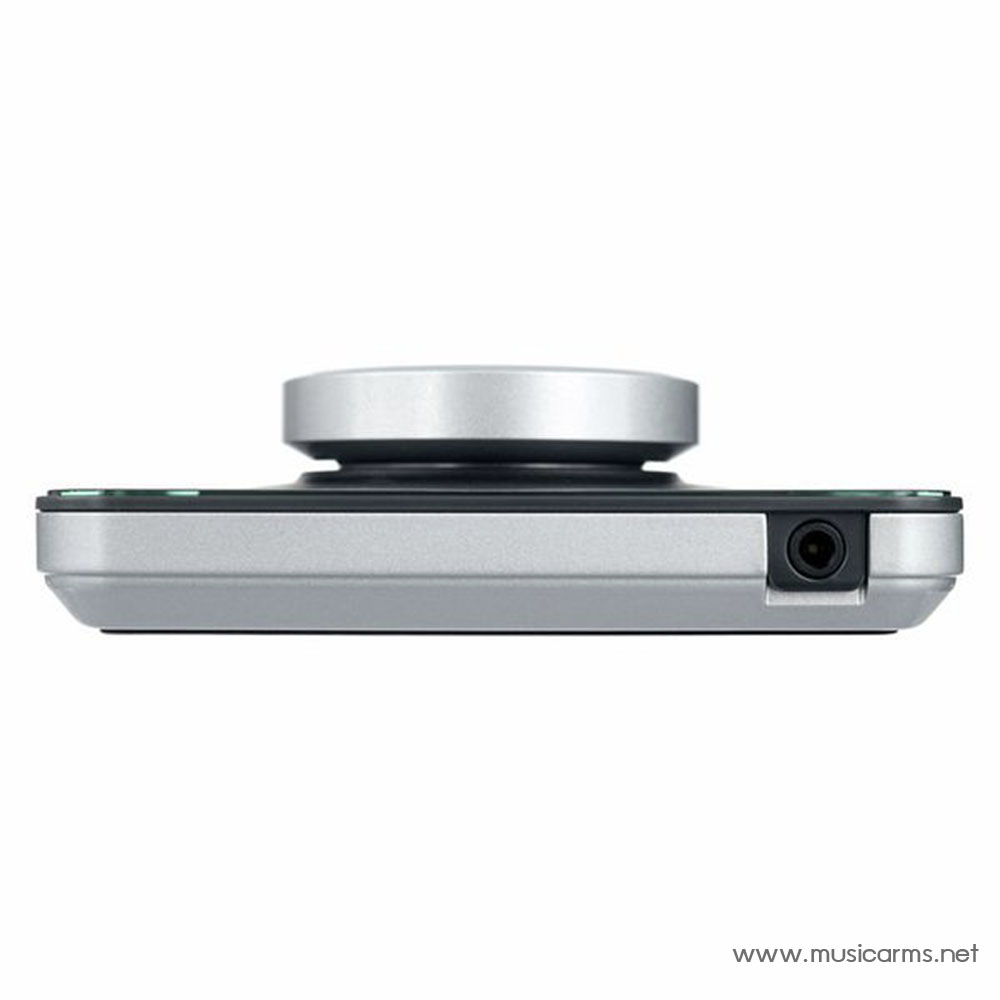

| 🎧 | Headphone Output | Stereo 3.5 mm TRS Headphone Jack |
| 🔌 | Power Supply | Bus-Powered via USB-C Port |
| 🖥️ | Software Control | Fully Controllable via Apogee Control 2 |
| 💻 | System Requirements | macOS 10.15 or later / Windows 10 |
| 📐 | Dimensions (W × D × H) | 103 × 151 × 30 mm |
| ⚖️ | Weight | 1.4 kg |

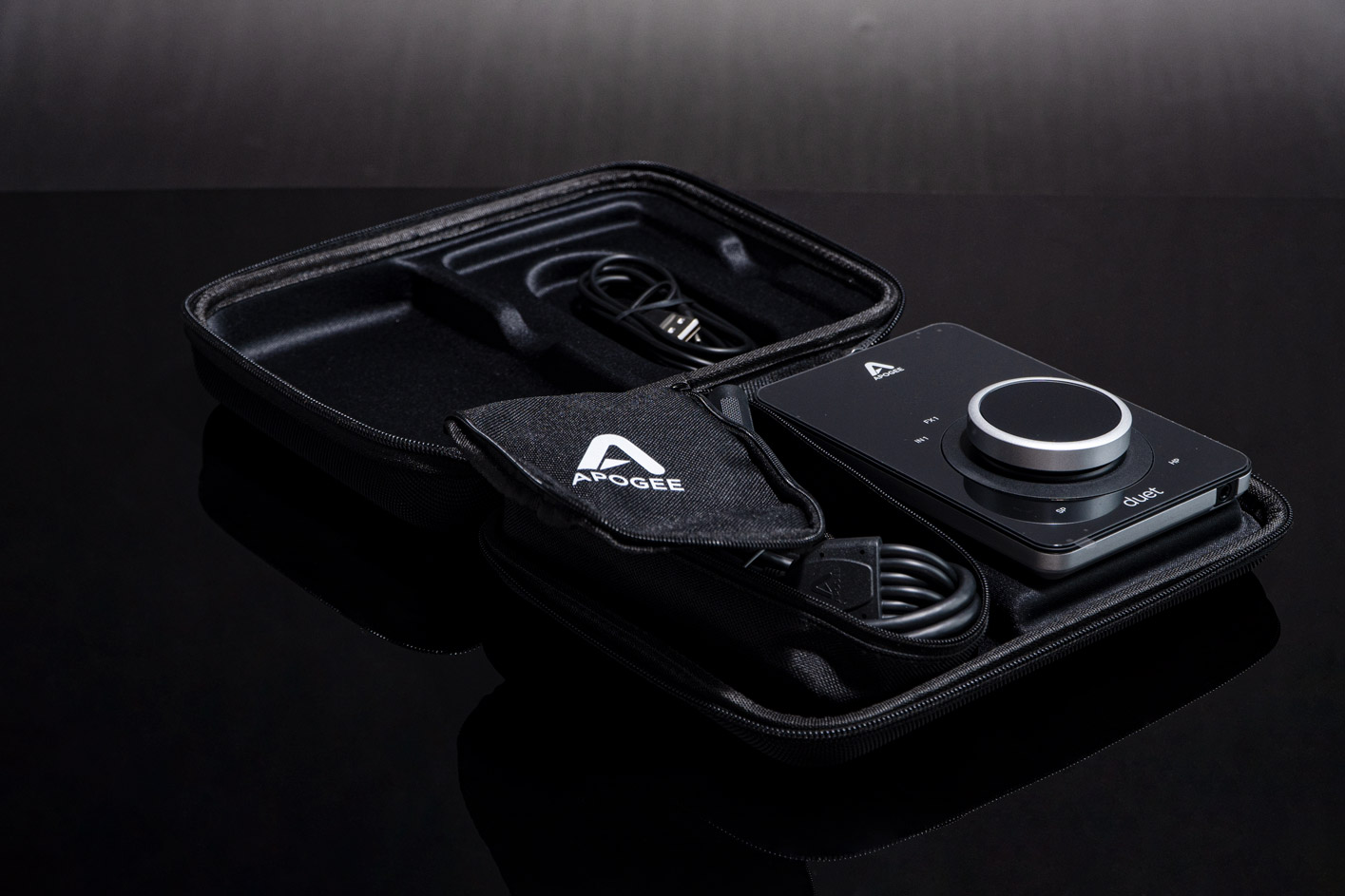

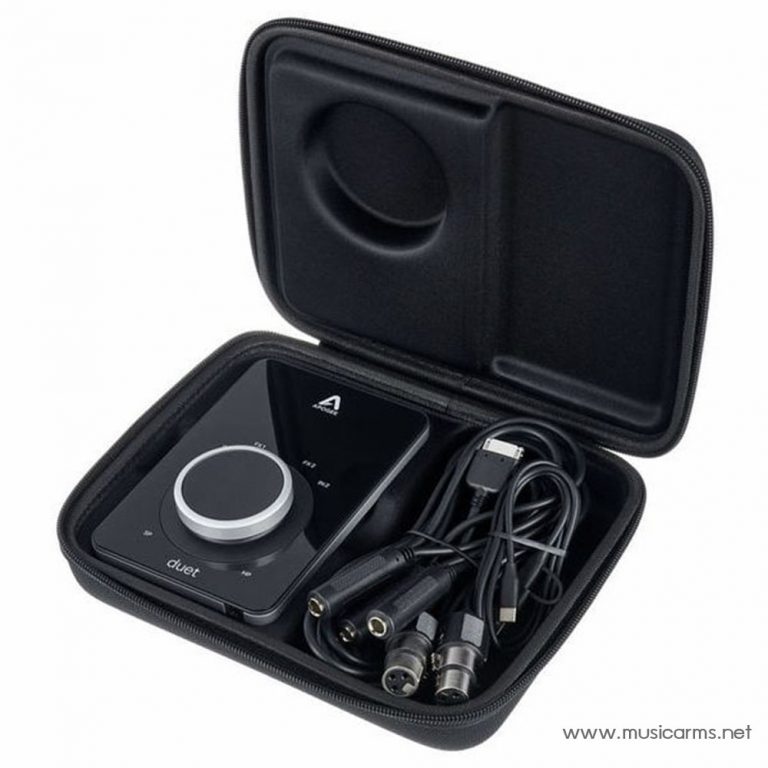

| 🧳 | Included Accessories | Breakout Cable Transport Case USB-C Cable |
| 🪟 | Construction | Aluminium Body Gorilla Glass Top Panel |
ข้อมูลสินค้า
Apogee Duet 3
Portable USB-C Audio Interface พร้อม Hardware DSP ระดับมืออาชีพ
Apogee Duet 3 คือวิวัฒนาการล่าสุดของออดิโออินเทอร์เฟซพกพาระดับตำนาน
ที่รวมเอา AD/DA คุณภาพสูง วงจรอะนาล็อกระดับเวิลด์คลาส และ Hardware DSP
มาไว้ในตัวเดียว เหมาะทั้งงานอัดเสียง ดนตรี สตรีมมิ่ง เกม และคอนเทนต์ครีเอเตอร์แบบพกพา
⭐ จุดเด่นสินค้า
- 🎚️ Mic Preamp ระดับเรือธง 2 ช่อง กำลังขยายสูงสุด +65dB
- ⚡ Hardware DSP ในตัว ใช้งานแบบ Zero-Latency
- 🎧 Headphone Output คุณภาพสูง เสียงชัด รายละเอียดครบ
- 🔌 เชื่อมต่อ USB-C ใช้ไฟจากบัส พกพาสะดวก
- 🧠 รองรับ ECS Channel Strip ที่จูนเสียงโดย Bob Clearmountain
- 🪟 ดีไซน์พรีเมียม กระจก Gorilla Glass กันรอยขีดข่วน
🎼 คุณภาพเสียงระดับ Legendary AD/DA
Duet 3 ใช้ AD/DA Converter และ Digital Clocking คุณภาพสูง
พร้อมวงจรอะนาล็อกที่ออกแบบอย่างพิถีพิถัน ทำให้การบันทึกเสียงมีความใส ลึก
และให้มิติสมจริงทั้งในขั้นตอนอัด มอนิเตอร์ และมิกซ์
ซึ่งเป็นเอกลักษณ์ของ Apogee ที่สั่งสมประสบการณ์มากว่า 40 ปี
🎤 Mic Preamps ที่รับมือได้ทุกแหล่งเสียง
ไม่ว่าจะเป็นร้อง กลอง กีตาร์ เครื่องสาย หรือเครื่องเป่า
Duet 3 ใช้ Advanced Stepped Gain Architecture
ซึ่งเป็นวงจรอะนาล็อกที่ปรับการทำงานแบบไดนามิกในช่วง 0–65dB
ให้แบนด์วิดท์กว้าง สัญญาณสะอาด และมี Distortion ต่ำมาก
แม้ต้องเร่ง Gain สูง
🚀 Hardware DSP – ปรับซาวด์แบบ Zero-Latency
จุดเด่นที่สุดของ Duet 3 คือ DSP ในตัว
ที่ช่วยให้คุณปรับ EQ, Compression และ Saturation
ได้ตั้งแต่ต้นทางโดยไม่เกิด Latency
ผ่าน ECS Channel Strip
ซึ่งได้รับการจูนเสียงอย่างพิถีพิถันโดย Bob Clearmountain
- 🎛️ EQ, Compressor และ Saturation คุณภาพสตูดิโอ
- ⏱️ Zero-Latency Monitoring
- 🖥️ ควบคุมผ่าน Apogee Control 2 และ Channel FX Plug-in
- 🎚️ สั่งงาน Preamp, Phantom Power และ Print FX จากใน DAW
🔧 การออกแบบเพื่อการใช้งานจริง
Duet 3 มาพร้อมสาย Breakout รุ่นใหม่
ที่ใช้งานง่าย แข็งแรง และมีความยาวมากขึ้น
ตัวเครื่องใช้ไฟจาก USB-C โดยไม่ต้องต่ออะแดปเตอร์เพิ่ม
ดีไซน์โค้งมนทันสมัย ดูโดดเด่นบนโต๊ะทำงานหรือในกระเป๋าเดินทาง
🎯 เหมาะสำหรับใคร
- 🎶 นักดนตรีและโปรดิวเซอร์ที่ต้องการคุณภาพเสียงระดับโปร
- 🎙️ นักพากย์ พอดแคสเตอร์ และสตรีมเมอร์
- 🎮 เกมเมอร์ที่ต้องการเสียงคมชัดและหน่วงต่ำ
- ✈️ ครีเอเตอร์ที่ต้องการออดิโออินเทอร์เฟซพกพาระดับพรีเมียม
รายละเอียดคุณสมบัติ
📋 ข้อมูลทางเทคนิค Apogee Duet 3
| 🎛️ | ประเภทออดิโออินเทอร์เฟซ | 2 × 4 USB 3.0 Audio Interface พร้อมการเชื่อมต่อ USB-C และ DSP |
| 🎚️ | การแปลงสัญญาณ AD / DA | ความละเอียด 24-bit / 192kHz |
| 🎤 | ช่องสัญญาณขาเข้า | 2 × ช่องอินพุตแบบ Combo • XLR (ไมโครโฟน / ไลน์) • แจ็ค 6.3 มม. TS (เครื่องดนตรี) |
| 🔊 | ไมโครโฟนพรีแอมป์ | กำลังขยายสูงสุด 65dB รองรับไฟ Phantom Power +48V (เปิด/ปิดได้) |
| 🛡️ | การประมวลผลสัญญาณ | Soft Limiter ฟังก์ชันกลับเฟส (Phase Inversion) |
| ⚡ | DSP ภายในเครื่อง | บันทึกเสียงแบบ Low-Latency ด้วย Apogee FX (รวม Symphony ECS Channel Strip) |
| 🔈 | ช่องสัญญาณขาออกไลน์ | เอาต์พุตไลน์แบบสเตอริโอ 2 × แจ็ค 6.3 มม. TRS |
| 🎧 | ช่องหูฟัง | เอาต์พุตหูฟังสเตอริโอ แจ็ค 3.5 มม. TRS |
| 🔌 | แหล่งจ่ายไฟ | รับไฟผ่านพอร์ต USB-C (Bus-Powered) |
| 🖥️ | ซอฟต์แวร์ควบคุม | ควบคุมการทำงานทั้งหมดผ่าน Apogee Control 2 |
| 💻 | ระบบที่รองรับ | macOS 10.15 ขึ้นไป / Windows 10 |
| 📐 | ขนาด (กว้าง × ลึก × สูง) | 103 × 151 × 30 มม. |
| ⚖️ | น้ำหนัก | 1.4 กก. |
| 🧳 | อุปกรณ์ที่ให้มาในกล่อง | สาย Breakout Cable กระเป๋าสำหรับพกพา สาย USB-C |
| 🪟 | วัสดุและโครงสร้าง | ตัวเครื่องอะลูมิเนียม แผงด้านบน Gorilla Glass |
