AUDIO TECHNICA AT4053b ไมโครโฟนคอนเดนเซอร์
วีดีโอ
https://youtu.be/S-2MT3y7r30
https://youtu.be/XO5uYCYsv90
Description
Audio Technica ATM 450
One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone’s sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations. The microphone’s extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
Features
- Unique side-address stick design maximizes placement options with minimal obstructions
- Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
- Integral 80 Hz HPF switch and 10 dB pad
- Durable performance for professional applications
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Rugged, all-metal design and construction for years of trouble-free use
- Includes isolation clamp for shock protection, secure mounting and easy positioning
Specification
ATM 450 Specification
| Element | Fixed-charge back plate permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 40 – 20,000 Hz |
| Open Circuit Sensitivity | -41 dB (8.9 mV) re 1V at 1 Pa |
| Impedance | 200 ohms |
| Maximum Input Sound Level | 152 dB SPL, 1 kHz at 1% T.H.D. 162 dB SPL, with 10 dB pad (nominal) |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Switches | Flat, roll-off; 10 dB pad |
| Dynamic Range | 127 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 69 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 3.5 mA typical |
| Weight | 98g |
| Dimensions | 126.9 mm (5.00″) long, 21.0 mm (0.83″) diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8471 isolation clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; windscreen; soft protective pouch |
ข้อมูลสินค้า

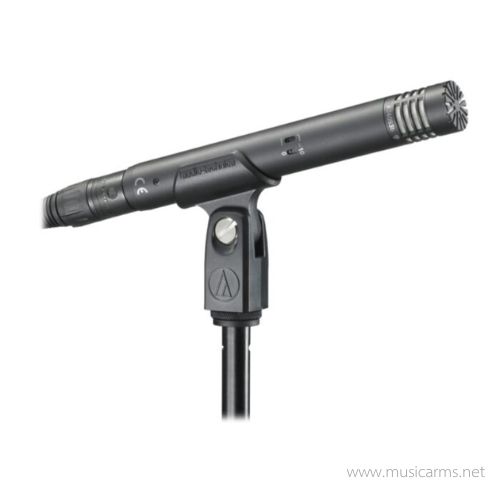

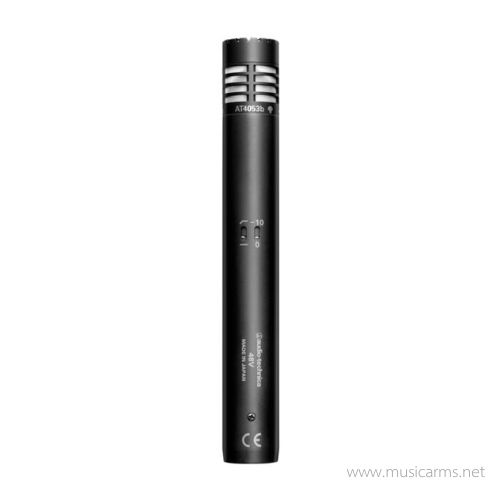

AUDIO TECHNICA AT4053b
ไมโครโฟนคอนเดนเซอร์ขนาดเล็ก AUDIO TECHNICA AT4053b การรับเสียง Hypercardioid ให้เสียงคมชัด ใสสะอาด ประกอบด้วยสองส่วนหลักคือตัวไมโครโฟน (AT4900b-48 body) และหัวไมโครโฟน Hypercardioid (AT4053b-EL capsule) ซึ่งสามารถถอดเปลี่ยนได้กับหัวแคปซูลแบบอื่น (Omnidirectional หรือ Cardioid) ที่มีจำหน่ายแยกต่างหาก เพิ่มความยืดหยุ่นในการใช้งาน ตัวไมโครโฟนถูกสร้างด้วย ทองเหลืองทนทาน เพื่อความแข็งแรงและเชื่อถือได้ยาวนาน พร้อมวงจรไร้หม้อแปลงที่ช่วยลดการบิดเบือนของเสียงความถี่ต่ำ และสามารถจับรายละเอียดเสียงความเร็วสูงได้อย่างยอดเยี่ยม มีสวิตช์สำหรับ Low-cut Filter 80 Hz เพื่อลดเสียงรบกวนความถี่ต่ำ และ -10 dB Pad สำหรับบันทึกแหล่งกำเนิดเสียงที่ดังมากๆ มาในชุดพร้อมอุปกรณ์เสริมที่จำเป็นครบครัน
คุณสมบัติ
- ไมโครโฟนคอนเดนเซอร์
- รูปแบบการรับสัญญาณ Hypercardioid
- ตอบสนองย่านความถี่ 20 Hz – 20 kHz
- มีสวิตช์ลดความเเรงของสัญญาณ -10 dB
- ช่องต่อ Output 3-pin XLR
- หัวไมโครโฟนแบบถอดเปลี่ยนได้
รายละเอียดคุณสมบัติ
| Microphone: Type | Condenser |
|---|---|
| Polar Pattern | Hypercardioid |
| การตอบสนองความถี่ | 20 Hz – 20 kHz |
| Output Impedance | 200 โอห์ม |
| Color/สี | ดำ |
| Connector | XLR |
| ขนาด | N/A |
| ใช้กับเครื่องดนตรี | Hihat, Overhead |
| Type (Microphone) | Condenser |
