Audiocenter PL312 ลำโพง 2 ทาง พาสซีฟ ขนาด 12 นิ้ว 1200 วัตต์
ราคา : 14,900 บาท
Description

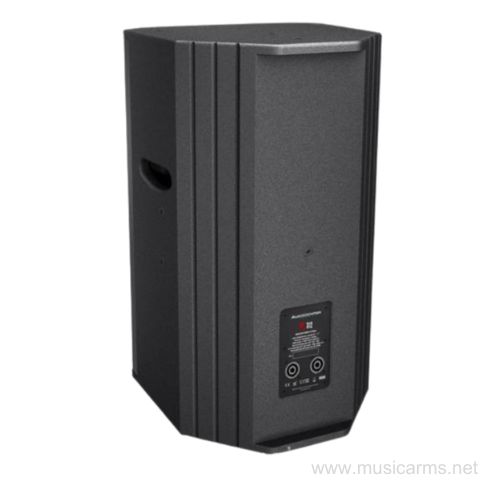

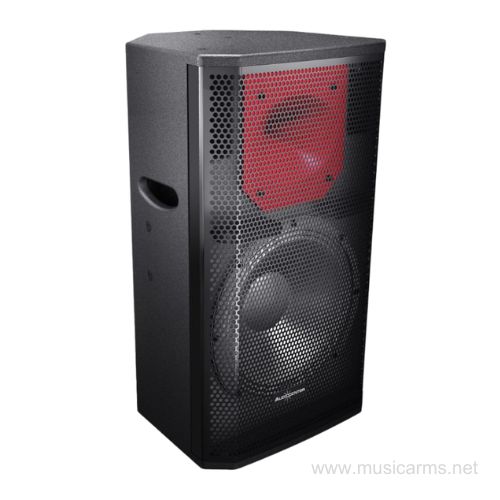

Audiocenter PL312: 12” 2-Way Full-Range PA Speaker for Events and Stage Use
The Audiocenter PL312 is a 12-inch 2-way full-range PA speaker designed for professional audio applications. It delivers warm, powerful, and dynamic sound, thanks to its DMF composite enclosure that reduces resonance and enhances durability. With a 90° x 60° coverage pattern and a rotatable high-frequency horn (90°), it ensures precise sound dispersion whether used vertically or horizontally. Ideal for events, live performances, and stage monitoring.
Key Features
- 12” 2-Way Full-Range Speaker: Delivers full-spectrum sound for PA and live applications
- 1.75” High-Frequency Driver: Provides clear and detailed high frequencies
- 300W AES Power Handling: Suitable for professional, high-demand use
- Frequency Response 57Hz – 19kHz (-6dB): Wide audio coverage from lows to highs
- Max SPL 128 dB: High output for large area coverage
- 90° x 60° Coverage: Controlled and accurate sound dispersion
- Rotatable HF Horn (90°): Flexible orientation for vertical or horizontal use
- DMF Composite Enclosure: Durable construction with reduced resonance and warm sound character
Ideal For
- Events & Concerts: Main PA speaker applications
- Stage Monitoring: Reliable performance as a stage monitor
- Installed Sound Systems: Suitable for halls and venues
Conclusion
The Audiocenter PL312 is a powerful and versatile 12” PA speaker that delivers professional-grade performance. With high output, flexible installation options, and robust construction, it is an excellent choice for live sound and installation applications.
Specification
Product Details |
|
|---|---|
| Speaker Type | 2-Way |
| LF Driver | 1 x 12″ |
| HF Driver | 1″ |
| Mid Driver | None |
| Power Rating (Continuous) | 300 W |
| Peak Power | 1200 W |
| Sensitivity (1W/1m) | 97 dB |
| Maximum SPL | 128 dB |
| Frequency Response | 57 Hz – 19,000 Hz (-6dB) |
| Impedance | 8 ohms |
| Horizontal Coverage | 90° |
| Vertical Coverage | 60° |
| Monitor Use | Supported |
| Rigging / Suspension | Supported |
| Amplification Type | Single-amp |
| Enclosure Material | Wood |
| Weight | 18.5 kg |
| Dimensions | 353 x 341 x 618 mm |
ข้อมูลสินค้า
Audiocenter PL312: ลำโพง PA ฟูลเรนจ์ 12 นิ้ว พลังเสียงสูง สำหรับงานอีเว้นท์และเวที
Audiocenter PL312 เป็นลำโพงฟูลเรนจ์แบบ 2 ทาง ขนาด 12 นิ้ว ที่ออกแบบมาสำหรับงานระบบเสียง PA ระดับมืออาชีพ ให้เสียงที่อบอุ่น หนาแน่น และทรงพลัง ตัวตู้ผลิตจากวัสดุคอมโพสิต DMF ที่ช่วยลดเรโซแนนซ์และเพิ่มความแข็งแรง พร้อมมุมกระจายเสียง 90° x 60° และสามารถหมุนฮอร์นเสียงแหลมได้ 90° เพื่อให้เหมาะกับการติดตั้งทั้งแนวตั้งและแนวนอน เหมาะสำหรับงานอีเว้นท์ เวที หรือใช้เป็นมอนิเตอร์
คุณสมบัติเด่น
- ลำโพงฟูลเรนจ์ 2 ทาง ขนาด 12 นิ้ว: ให้เสียงครบย่าน เหมาะสำหรับงาน PA และงานแสดงสด
- ดอกเสียงแหลม 1.75 นิ้ว: ให้รายละเอียดเสียงสูงคมชัด
- กำลังขับ 300 วัตต์ (AES): รองรับการใช้งานหนักในงานมืออาชีพ
- ตอบสนองความถี่ 57Hz – 19kHz (-6dB): ครอบคลุมทั้งย่านเสียงต่ำถึงสูง
- ความดังสูงสุด 128 dB SPL: ให้พลังเสียงที่ดัง ชัด ครอบคลุมพื้นที่ได้ดี
- มุมกระจายเสียง 90° x 60°: ควบคุมทิศทางเสียงได้แม่นยำ
- ฮอร์นหมุนได้ 90°: รองรับการใช้งานทั้งแนวตั้งและแนวนอน
- ตู้วัสดุ DMF Composite: แข็งแรง ลดการสั่นสะเทือน และให้โทนเสียงที่อบอุ่น
เหมาะสำหรับใคร?
- งานอีเว้นท์ / คอนเสิร์ต: ใช้เป็นลำโพงหลัก (Main PA)
- เวทีการแสดง: ใช้เป็นลำโพงมอนิเตอร์ (Stage Monitor)
- งานติดตั้งถาวร: เช่น หอประชุม หรือสถานที่จัดงาน
สรุป
Audiocenter PL312 เป็นลำโพง PA ขนาด 12 นิ้ว ที่ให้ทั้งพลังเสียงและคุณภาพระดับมืออาชีพ ด้วยกำลังขับสูง ความดังระดับ 128 dB และการออกแบบที่ยืดหยุ่น เหมาะสำหรับงานแสดงสดและงานติดตั้งที่ต้องการความน่าเชื่อถือและประสิทธิภาพสูง
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า |
|
|---|---|
| ชนิดลำโพง | ลำโพง 2 ทาง (2-Way) |
| ดอกลำโพงเสียงต่ำ | ขนาด 12 นิ้ว จำนวน 1 ดอก |
| ดอกลำโพงเสียงแหลม | ขนาด 1 นิ้ว |
| ดอกเสียงกลาง | ไม่มี |
| กำลังวัตต์ (ต่อเนื่อง) | 300 วัตต์ |
| กำลังวัตต์สูงสุด | 1200 วัตต์ (Peak) |
| ความไว (1W/1m) | 97 dB |
| ความดังสูงสุด (Max SPL) | 128 dB |
| การตอบสนองความถี่ | 57 Hz – 19,000 Hz (-6dB) |
| ความต้านทาน (Impedance) | 8 โอห์ม |
| มุมกระจายเสียง (แนวนอน) | 90° |
| มุมกระจายเสียง (แนวตั้ง) | 60° |
| การใช้งานแบบมอนิเตอร์ | รองรับ |
| การติดตั้งแขวน | รองรับ |
| ลักษณะแอมป์ | Single-amp |
| วัสดุตู้ลำโพง | ไม้ |
| น้ำหนัก | 18.5 กก. |
| ขนาด | 353 x 341 x 618 มม. |
