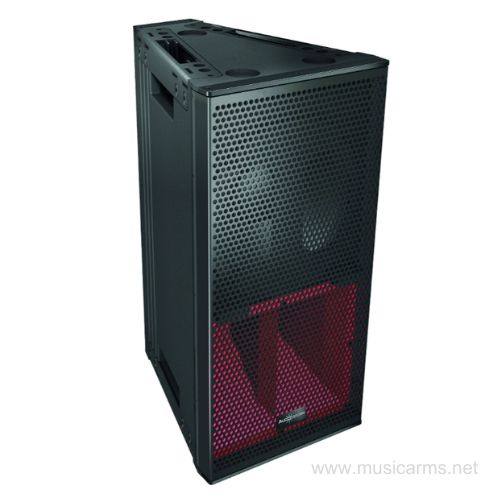

Audiocenter V-HLA12 MKII ลำโพง Line array ขนาด 12 นิ้ว พาสซีฟ
ราคา : 62,000 บาท
Description
Audiocenter V-HLA12 MKII: High-Power 2-Way Line Array Speaker for Professional Use
The Audiocenter V-HLA12 MKII is a 2-way line array speaker designed to meet the demands of professional audio applications, including rental services and fixed installations. Delivering 770 watts at 8 ohms, it combines high output performance with a lightweight and compact cabinet design, making it easy to transport and install while maintaining excellent sound coverage and clarity.
Key Features
- 2-Way Line Array Design: Optimized for long-throw sound coverage and even distribution
- 12” Mid Driver: Provides powerful and clear midrange performance
- 1” High-Frequency Driver: Ensures crisp and detailed high frequencies
- 770W Power Handling: Suitable for medium to large-scale sound systems
- 8 Ohm Impedance: Compatible with a wide range of power amplifiers
- Frequency Response 54 Hz – 20 kHz: Wide range for full-spectrum audio reproduction
- Driver Protection Circuit: Enhances reliability and protects components
- Efficient Cooling System: Maintains stable performance during extended use
- Lightweight Compact Cabinet: Easy to handle, transport, and install
Who is it for?
- Rental Companies: Ideal for concerts, live events, and touring systems
- Fixed Installations: Suitable for halls, conference rooms, and venues
- Medium to Large Sound Systems: Where long-distance coverage and clarity are required
Conclusion
The Audiocenter V-HLA12 MKII is a reliable and powerful line array solution that delivers excellent sound performance and flexibility. Its robust design, efficient cooling, and professional-grade features make it a strong choice for both live sound and permanent installations.
Specification
Product Details |
|
|---|---|
| Type | Line Array Speaker |
| Speaker Type | 2-Way |
| Amplification | Bi-amp |
| Frequency Response | 54 Hz – 20 kHz (-6 dB) |
| Maximum SPL | 135 dB |
| Peak Power Handling | 2800 W (Peak) |
| Continuous Power Handling | 700 W (Continuous) |
| Low Frequency Driver | 1 x 12” |
| Mid Frequency Driver | X |
| High Frequency Driver | 1 x 1.4” |
| Horizontal Coverage | 30° |
| Vertical Coverage | 12° |
| Array Configuration | Adjustable Splay Angles |
| Impedance | 8 Ohms |
| Cabinet Material | Wood |
| Rigging | Supported |
| Dimensions | 331 x 437 x 700 mm |
| Weight | 29 kg |
ข้อมูลสินค้า
Audiocenter V-HLA12 MKII: ลำโพง Line Array 2 ทาง พลังสูง สำหรับงานโปร
Audiocenter V-HLA12 MKII เป็นลำโพง Line Array แบบ 2 ทาง ที่ออกแบบมาเพื่อตอบโจทย์งานระบบเสียงระดับมืออาชีพ ทั้งงานให้เช่า (Rental) และงานติดตั้งถาวร ให้กำลังขับสูงถึง 770 วัตต์ ที่ความต้านทาน 8 โอห์ม พร้อมโครงสร้างตู้ที่น้ำหนักเบาและกะทัดรัด ช่วยให้ติดตั้งและขนย้ายได้สะดวก โดยยังคงคุณภาพเสียงที่ชัดเจน ครอบคลุมพื้นที่ได้อย่างมีประสิทธิภาพ
คุณสมบัติเด่น
- ลำโพง Line Array 2 ทาง: ออกแบบเพื่อการกระจายเสียงในระยะไกลและครอบคลุมพื้นที่ได้อย่างทั่วถึง
- ดอกลำโพง 12 นิ้ว: ให้เสียงย่านกลางที่ชัดเจนและมีพลัง
- ดอกแหลม 1 นิ้ว: ให้รายละเอียดเสียงสูงคมชัด
- กำลังขับ 770 วัตต์: รองรับงานเสียงขนาดกลางถึงใหญ่
- ความต้านทาน 8 โอห์ม: ใช้งานร่วมกับเพาเวอร์แอมป์ได้หลากหลาย
- ตอบสนองความถี่ 54 Hz – 20 kHz: ครอบคลุมย่านเสียงกว้าง ให้เสียงครบถ้วน
- ระบบป้องกันไดรเวอร์: ช่วยยืดอายุการใช้งานและเพิ่มความเสถียรในการทำงาน
- ระบบระบายความร้อนประสิทธิภาพสูง: ลดความร้อนสะสม รองรับการใช้งานต่อเนื่อง
- ดีไซน์ตู้กะทัดรัด น้ำหนักเบา: เหมาะกับงานติดตั้งและงานเคลื่อนย้าย
เหมาะสำหรับใคร?
- งานเช่าเครื่องเสียง (Rental): ใช้งานคอนเสิร์ต งานอีเวนต์ และเวทีต่าง ๆ
- งานติดตั้งถาวร: เช่น ฮอลล์ ห้องประชุม หรือสถานที่จัดงาน
- ระบบเสียงกลางถึงใหญ่: ที่ต้องการการกระจายเสียงระยะไกลอย่างมีประสิทธิภาพ
สรุป
Audiocenter V-HLA12 MKII เป็นลำโพง Line Array ที่ให้ทั้งพลังเสียง ความคมชัด และความยืดหยุ่นในการใช้งาน เหมาะสำหรับมืออาชีพที่ต้องการระบบเสียงที่เชื่อถือได้ ทั้งในงานแสดงสดและงานติดตั้ง ด้วยดีไซน์ที่แข็งแรง น้ำหนักเบา และระบบป้องกันที่ครบครัน
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า |
|
|---|---|
| ประเภท | ลำโพงไลน์อาเรย์ (Line Array) |
| ชนิดลำโพง | 2-Way |
| ระบบแอมป์ | Bi-amp |
| การตอบสนองความถี่ | 54 Hz – 20 kHz (-6 dB) |
| ความดังสูงสุด | 135 dB |
| กำลังขับสูงสุด | 2800 วัตต์ (Peak) |
| กำลังขับต่อเนื่อง | 700 วัตต์ (Continuous) |
| ดอกลำโพงเสียงต่ำ | ขนาด 12 นิ้ว จำนวน 1 ดอก |
| ดอกลำโพงเสียงกลาง | X |
| ดอกลำโพงเสียงแหลม | ขนาด 1.4 นิ้ว จำนวน 1 ดอก |
| มุมกระจายเสียง (แนวนอน) | 30° |
| มุมกระจายเสียง (แนวตั้ง) | 12° |
| ระบบปรับมุมไลน์อาเรย์ | ปรับองศาอิสระ |
| ความต้านทาน (Impedance) | 8 โอห์ม |
| วัสดุตู้ | ไม้ |
| การติดตั้งแขวน | รองรับ |
| ขนาด | 331 x 437 x 700 มม. |
| น้ำหนัก | 29 กก. |
