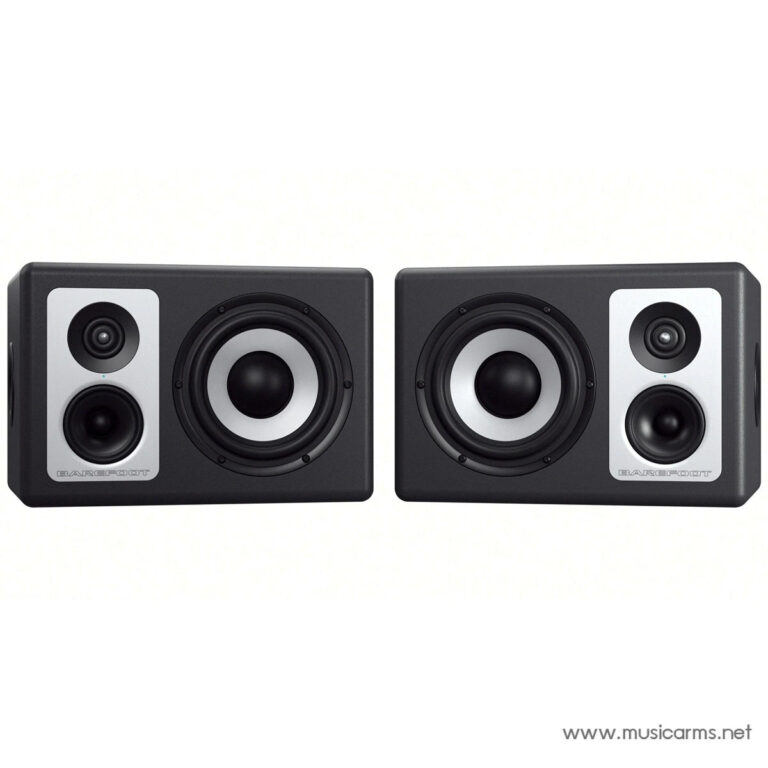

Barefoot Sound Footprint03 3-way Powered Studio Monitors – Pair
ราคา : 79,000 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Barefoot Sound Footprint03 Powered Studio Monitors: Accessible Power and Sonic Excellence
The Footprint03™ is the latest addition to Barefoot Sound’s acclaimed Footprint series. Carrying forward the sonic excellence and design hallmarks of the Footprint01 and Footprint02, the Footprint03 offers a more compact form factor and accessible price point.
Unlike its sealed-cabinet predecessors, the Footprint03 adopts a fast transient ported design, delivering impressive low-frequency extension while maintaining Barefoot’s industry-leading cabinet construction standards. The cabinet’s **Footprint Gray polyester coating**, rigid stress assembly, and weight ensure superior stability and damping for an unmatched listening experience.
Key Features
- Fast Transient Ported Design: Features a ported cabinet design, a departure from predecessors, providing deeper, more powerful low-frequency extension while retaining Barefoot’s characteristic clarity.
- High-Performance 3-Way System: Includes a **1″ ring radiator tweeter**, a **3.5″ aluminum cone midrange**, and a **forward-facing 6.5″ aluminum cone woofer**, with advanced magnet systems for reduced distortion.
- SPOC™ Technology and Advanced DSP: Incorporates **SPOC™ (Spectrally Optimized Conversion)** technology and advanced DSP for higher resolution, reduced latency, and an optimized frequency response.
- Integrated MEME™ Technology: Equipped with **MEME™ Technology** for switching between different monitor voices, offering versatility across recording, mixing, and mastering applications.
A Compact Yet Powerful Monitoring Solution
The Footprint03 encapsulates Barefoot Sound’s sonic excellence in a more compact and attainable form factor. By combining advanced technologies like SPOC™ and MEME™ with superior cabinet design, the Footprint03 stands as a powerful and versatile monitoring solution for any professional studio need.
Specification
Technical Specifications: Barefoot Sound [Monitor Model] |
|
|---|---|
| Type | Tri-amplified 3-way studio monitor with MEME™ Technology |
| Controls | Input level stepped attenuator, MEME™ voice select |
| Performance & Frequency | |
| Frequency Response (±3 dB) | 45 Hz – 40 kHz |
| Frequency Response (±1 dB) | 50 Hz – 22 kHz |
| Bass Response (-3 dB) | @ 46 Hz, Q = 0.707, Slope = 18 dB/oct |
| Max SPL (Continuous) | 101 dB |
| Drivers & Amplification (Per Speaker) | |
| Tweeter (HF) | 1″ Ring Radiator, 60W Amplifier |
| Midrange (MF) | 3.5″ Aluminum Cone (±3.5 mm excursion), 100W Amplifier |
| Woofer (LF) | 6.5″ Aluminum Cone (±9.5 mm excursion), 100W Amplifier |
| Total Amplifier Power | 260W (HF: 60W / MF: 100W / LF: 100W) |
| Connectivity & Digital Conversion | |
| Analog Inputs | XLR Female, TRS Male |
| Input Impedance | 20k Ohms |
| A/D Word Length | 28-bit (56-bit High Precision) |
| A/D Sample Rate / S/N | 96 kHz / 100 dB |
| Cabinet & Crossover | |
| Internal Volume | 10.5 liters |
| Baffle Plate | Solid aluminum |
| Crossover Frequencies | 400 Hz / 3900 Hz (Active) |
| Power and Physical | |
| Mains Voltage (Universal) | 85–265 VAC |
| Max Power Consumption | 340W |
| Weight (Per Speaker) | 8.1 kg (17.9 lbs) |
| Dimensions (HxWxD) | 229 x 337 x 235 mm (9 x 13.25 x 9.25 in) |
ข้อมูลสินค้า
Barefoot Sound Footprint03 Powered Studio Monitors: สุดยอดประสิทธิภาพในดีไซน์ที่เข้าถึงได้
Footprint03™ คือสมาชิกใหม่ล่าสุดในซีรีส์ Footprint ที่ได้รับการยกย่องของ Barefoot Sound โดยสืบทอดความเป็นเลิศด้านเสียงและจุดเด่นของการออกแบบจาก Footprint01 และ Footprint02 มาสู่รูปลักษณ์ที่กะทัดรัดยิ่งขึ้นและราคาที่เข้าถึงได้ง่ายขึ้น
แตกต่างจากรุ่นก่อนหน้าที่เป็นตู้แบบปิด Footprint03 ได้นำดีไซน์ตู้แบบมีพอร์ตที่ตอบสนองทรานเซียนท์ได้รวดเร็ว (fast transient ported design) มาใช้ ซึ่งให้เสียงเบสที่ลงลึกน่าประทับใจ ในขณะที่ยังคงรักษามาตรฐานการสร้างตู้ลำโพงชั้นนำของ Barefoot ไว้ ตัวตู้เคลือบด้วยสี **Footprint Gray** พร้อมการประกอบที่แข็งแรงและน้ำหนักที่มั่นคง ช่วยให้มีเสถียรภาพและการลดแรงสั่นสะเทือนที่เหนือกว่า เพื่อประสบการณ์การฟังที่ไม่มีใครเทียบได้
คุณสมบัติเด่น
- ดีไซน์ตู้แบบมีพอร์ตที่ตอบสนองรวดเร็ว: นำเสนอ **fast transient ported design** ที่แตกต่างจากรุ่นก่อนหน้า ช่วยให้ได้เสียงเบสที่ขยายตัวได้ลึกและทรงพลังยิ่งขึ้น โดยยังคงรักษาความชัดเจนของ Barefoot
- ระบบไดรเวอร์ 3 ทางคุณภาพสูง: ประกอบด้วย **ทวีตเตอร์ 1″ Ring Radiator**, **เสียงกลาง 3.5″ Aluminum Cone**, และ **วูฟเฟอร์ 6.5″ Aluminum Cone แบบยิงตรงด้านหน้า** พร้อมระบบแม่เหล็กและมอเตอร์ขั้นสูงเพื่อลดความเพี้ยน
- เทคโนโลยี SPOC™ และ DSP ขั้นสูง: ด้วยเทคโนโลยี **SPOC™ (Spectrally Optimized Conversion)** และ DSP ขั้นสูง มอบความละเอียดสูงขึ้น ความหน่วงต่ำลง และการตอบสนองความถี่ที่ได้รับการปรับให้เหมาะสม
- เทคโนโลยี MEME™ ในตัว: รองรับ **MEME™ Technology** เพื่อความยืดหยุ่นในการสลับเสียงมอนิเตอร์ระหว่างโหมดการบันทึก, มิกซ์, และมาสเตอร์ริ่ง เพื่อการตรวจสอบที่ครอบคลุม
โซลูชันการมอนิเตอร์ที่ทรงพลังและกะทัดรัด
Footprint03 รวบรวมความเป็นเลิศทางเสียงของ Barefoot Sound ไว้ในฟอร์มแฟกเตอร์ที่กะทัดรัดและราคาที่เข้าถึงได้ง่าย ด้วยการรวมเอาเทคโนโลยีขั้นสูง เช่น SPOC™ และ MEME™ เข้ากับการออกแบบตู้ที่เหนือกว่า Footprint03 จึงเป็นโซลูชันการมอนิเตอร์ที่ทรงพลังและหลากหลายสำหรับทุกความต้องการของสตูดิโอระดับมืออาชีพ
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค: Barefoot Sound [รุ่นมอนิเตอร์] |
|
|---|---|
| ประเภท (Type) | มอนิเตอร์สตูดิโอ 3 ทางแบบไตร-แอมพลิฟายด์ พร้อม MEME™ Technology |
| ส่วนควบคุม (Controls) | ปุ่มลดทอนระดับอินพุตแบบสเต็ป, ปุ่มเลือกเสียง MEME™ |
| ประสิทธิภาพและการตอบสนองความถี่ | |
| ช่วงความถี่ (±3 dB) | 45 Hz – 40 kHz |
| ช่วงความถี่ (±1 dB) | 50 Hz – 22 kHz |
| การตอบสนองเสียงเบส (-3 dB) | @ 46 Hz, Q = 0.707, ความชัน = 18 dB/oct |
| ระดับความดังสูงสุด (Max SPL) | 101 dB (ต่อเนื่อง) |
| ไดรเวอร์และแอมพลิฟายเออร์ (ต่อลำโพง) | |
| ทวีตเตอร์ (HF) | 1″ Ring Radiator, แอมป์ 60W |
| เสียงกลาง (MF) | 3.5″ Aluminum Cone (ระยะเคลื่อนที่ ±3.5 มม.), แอมป์ 100W |
| วูฟเฟอร์ (LF) | 6.5″ Aluminum Cone (ระยะเคลื่อนที่ ±9.5 มม.), แอมป์ 100W |
| กำลังแอมป์รวม (Total Power) | 260W (HF: 60W / MF: 100W / LF: 100W) |
| การเชื่อมต่อและการแปลงสัญญาณดิจิทัล | |
| อินพุตอนาล็อก | XLR Female, TRS Male |
| อิมพีแดนซ์อินพุต | 20k โอห์ม |
| A/D Word Length | 28-bit (ความแม่นยำสูง 56-bit) |
| A/D Sample Rate / S/N | 96 kHz / 100 dB |
| ตู้และครอสโอเวอร์ | |
| ปริมาตรภายในตู้ | 10.5 ลิตร |
| แผงหน้า (Baffle Plate) | อลูมิเนียมตัน |
| ความถี่ครอสโอเวอร์ | 400 Hz / 3900 Hz (Active) |
| พลังงานและขนาด | |
| อินพุต AC (Universal) | 85–265 VAC |
| การใช้พลังงาน (สูงสุด) | 340W |
| น้ำหนัก (ต่อลำโพง) | 8.1 กก. (17.9 lbs) |
| ขนาด (สูง x กว้าง x ลึก) | 229 x 337 x 235 มม. (9 x 13.25 x 9.25 นิ้ว) |
