Behringer BM-14M เอฟเฟคกีตาร์

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Behringer

ราคา : (กรุณาสอบถาม)

รุ่น :  Behringer BM-14M เอฟเฟคก้อน Strombox
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Behringer BM-14M เอฟเฟคกีตาร์ผ่านline สั่งซื้อ Behringer BM-14M เอฟเฟคกีตาร์ผ่าน messenger

Description

Behringer BM-14M: The ultimate tool for shaping your ultimate delay

Based on one of the most unique and creative Delay pedals of the early 2000s, the Behringer BM-14 is the ultimate tool for shaping your ultimate delay, from subtle echo right through to ambient delay from another dimension. Its classic analogue sound in combination with its unique delay LFO control easily makes this one of the most versatile delays ever created. With 6 LFO shapes on tap, the modulated delay sounds can easily go from everything from chorus to vibrato and even pitch shifting. With its thoughtful I/O, tap-tempo, switchable normal and spillover bypass, and timeless aesthetic, the Behringer BM-14 is perfect for guitars, synths, and everything in-between and is built ready for the road.

Behringer BM-14M

Key Features

  • Analogue Circuitry: The Behringer BM-14 Analogue Delay is an authentic recreation, featuring analogue circuitry for a truly vintage-voiced sound design workstation, built for the modern world.
  • Classic Aesthetics: Constructed in a tried and tested roadworthy solid metal enclosure and beautifully finished with wooden side panels, the BM-14 is built to withstand life on the road.
  • Modular Style I/O: This delay’s versatile I/O allows you to push your creativity to the limits by controlling its parameters via an external expression pedal. Furthermore, the BM-14 can be combined with other CV pedals and devices or used with MIDI for nearly endless amounts of delay possibilities.

Conclusion

The Behringer BM-14M offers a perfect blend of classic analogue delay sounds and modern flexibility. With its versatile features and durable construction, it’s an essential tool for any musician looking to explore new sonic dimensions.

Specification

Behringer BM-14M Specs

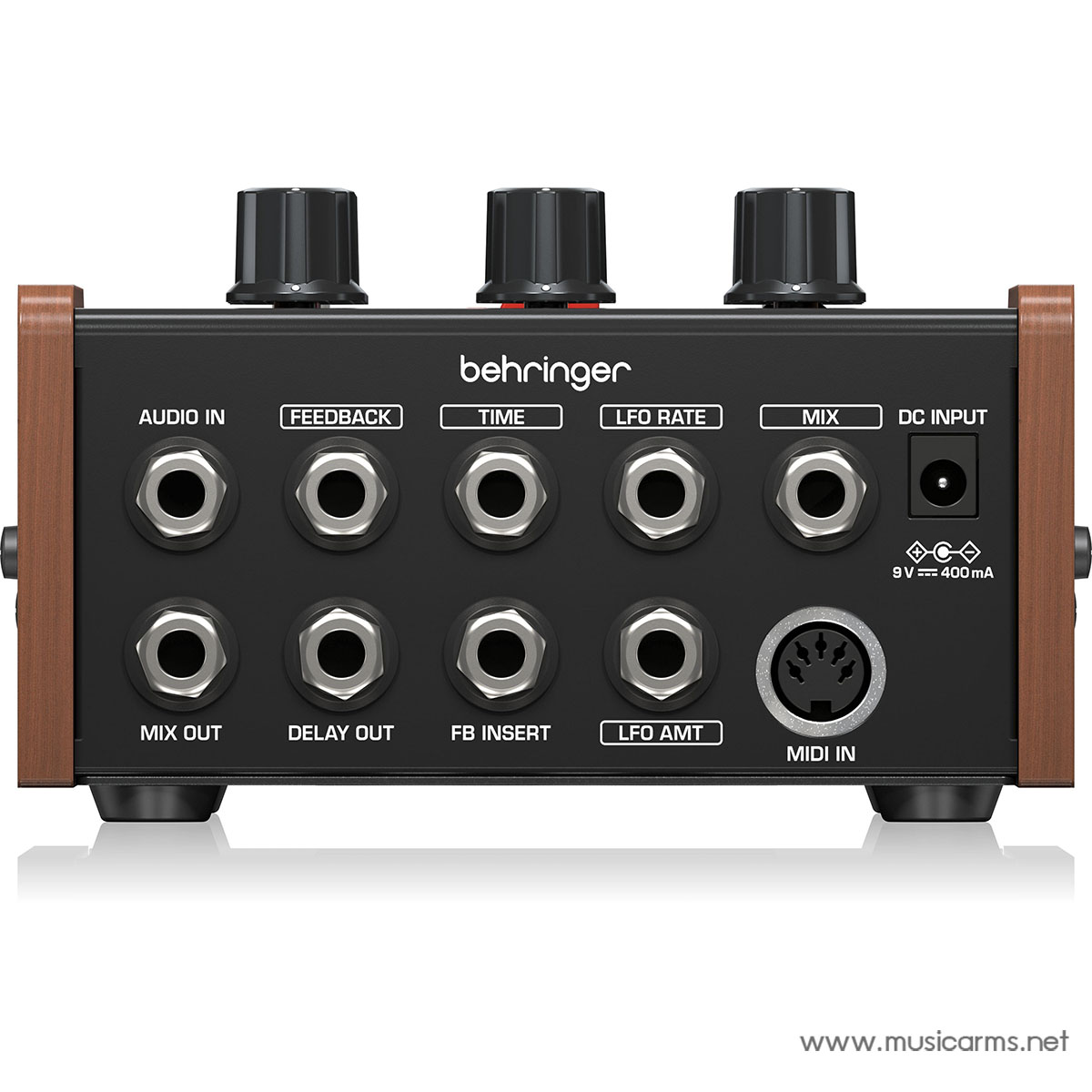

Audio Connections

Audio In
  • Connector: 1 x 1/4″ TS, unbalanced
  • Impedance: 1 MΩ
Mix Out
  • Connector: 1 x 1/4″ TS, unbalanced
  • Output Impedance: 600 Ω
Delay Out
  • Connector: 1 x 1/4″ TS, unbalanced
  • Output Impedance: 600 Ω
FB Insert (Send/Return)
  • Connector: 1 x 1/4″ TRS, unbalanced
  • Impedance: 440 Ω
  • Input Impedance: 140 kΩ

Control Connections

CV Connections
  • Feedback: 1 x 1/4″ TRS, 180 kΩ, unbalanced
  • Time: 1 x 1/4″ TRS, 34 kΩ, unbalanced
  • LFO Rate: 1 x 1/4″ TRS, 34 kΩ, unbalanced
  • LFO Amt: 1 x 1/4″ TRS, 34 kΩ, unbalanced
  • Mix: 1 x 1/4″ TRS, 180 kΩ, unbalanced
  • CV Input Range: 0 V to +5 V
MIDI In 2 x 5-pin DIN, 16 channels

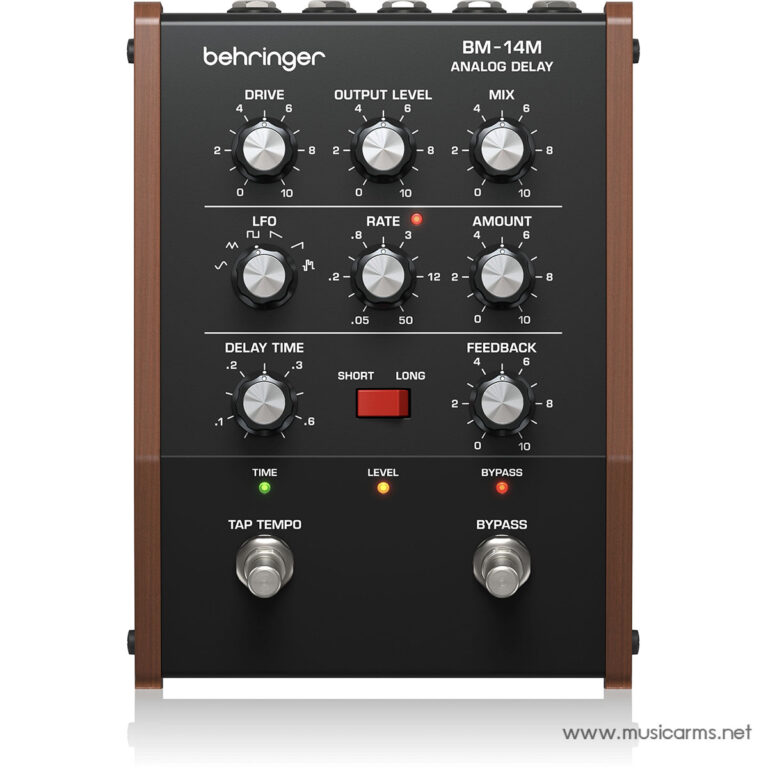

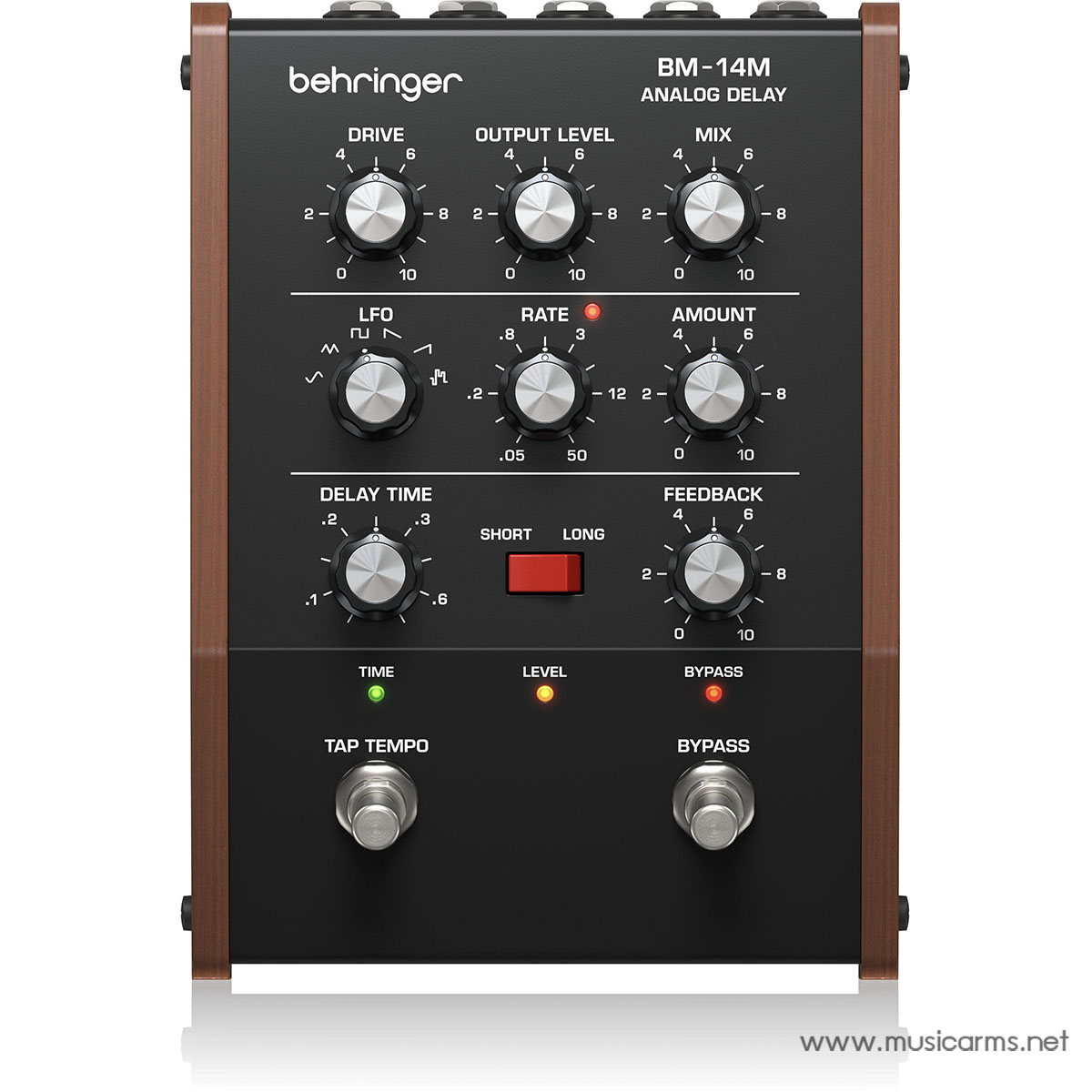

Controls

Rotary Knobs Drive, Output level, Mix, LFO, Rate, Amount, Delay time, Feedback
Switches Short/long (rocker switch), Tap tempo (footswitch), Bypass (footswitch)

System

Frequency Response 20 Hz to 20 kHz (+0 / -2 dB)
Dynamic Range > 83 dB
Signal-to-Noise Ratio > 73 dB
Overall Gain +33 Db

Power Supply / Voltage

Power Input Standard 9 V DC, centre negative, > 400 mA (power supply not included)
Power Consumption 1.8 W

Dimensions / Weight

Dimensions (H x W x D) 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75″)
Weight 1,100 g (38.8 oz)

ข้อมูลสินค้า

Behringer BM-14M: เครื่องมือสุดยอดในการสร้างเสียงดีเลย์ที่ไร้ขีดจำกัด

Behringer BM-14 สร้างขึ้นจากแรงบันดาลใจของเอฟเฟกต์ Delay ที่ไม่เหมือนใครและสร้างสรรค์ที่สุดในยุค 2000s ซึ่งเป็นเครื่องมือสุดยอดสำหรับการสร้างเสียงดีเลย์ของคุณ ตั้งแต่เสียงสะท้อนที่นุ่มนวลไปจนถึงเสียงดีเลย์ในบรรยากาศจากอีกมิติหนึ่ง ด้วยเสียงแบบอะนาล็อกคลาสสิกผสมผสานกับการควบคุม Delay LFO ที่เป็นเอกลักษณ์ ทำให้เป็นหนึ่งในดีเลย์ที่หลากหลายที่สุดเท่าที่เคยมีมา ด้วยรูปทรง LFO 6 รูปแบบ ทำให้เสียงดีเลย์แบบโมดูเลตสามารถทำได้ตั้งแต่เสียง Chorus, Vibrato และแม้แต่ Pitch Shifting พร้อมด้วย I/O ที่คิดมาอย่างดี, Tap-tempo, ปุ่ม Bypass แบบ Normal และ Spillover, ปุ่มควบคุม Drive และ Output รวมถึงดีไซน์ที่ดูเหนือกาลเวลา Behringer BM-14 จึงเหมาะสำหรับกีตาร์, ซินธิไซเซอร์ และอื่นๆ อีกมากมาย พร้อมสำหรับการใช้งานบนถนน

Behringer BM-14M

คุณสมบัติเด่น

  • วงจรแบบอะนาล็อก: Behringer BM-14 Analogue Delay เป็นการสร้างสรรค์ขึ้นใหม่ที่ใกล้เคียงกับต้นฉบับมากที่สุด โดยมีวงจรแบบอะนาล็อกเพื่อเสียงสไตล์วินเทจที่แท้จริง สร้างขึ้นสำหรับโลกยุคใหม่
  • ดีไซน์คลาสสิก: ตัวเครื่องสร้างขึ้นจากโลหะแข็งแรงทนทานต่อการใช้งานบนถนน พร้อมแผงไม้ด้านข้างที่สวยงาม
  • อินพุต/เอาต์พุตสไตล์โมดูลาร์: I/O ที่หลากหลายของเอฟเฟกต์ดีเลย์นี้ช่วยให้คุณสามารถผลักดันความคิดสร้างสรรค์ได้สูงสุดด้วยการควบคุมพารามิเตอร์แต่ละตัวผ่าน Expression Pedal ภายนอก นอกจากนี้ BM-14 ยังสามารถใช้ร่วมกับ CV Pedal และอุปกรณ์อื่น ๆ หรือ MIDI เพื่อความเป็นไปได้ในการสร้างเสียงดีเลย์ที่ไร้ขีดจำกัด

สรุป

Behringer BM-14M มอบการผสมผสานที่ลงตัวระหว่างเสียงดีเลย์แบบอะนาล็อกคลาสสิกและความยืดหยุ่นสมัยใหม่ ด้วยคุณสมบัติที่หลากหลายและโครงสร้างที่ทนทาน ทำให้มันเป็นเครื่องมือที่จำเป็นสำหรับนักดนตรีที่ต้องการสำรวจมิติใหม่ของเสียง

รายละเอียดคุณสมบัติ

ข้อมูลจำเพาะ Behringer BM-14M

การเชื่อมต่อเสียง

อินพุตเสียง
  • ช่องเชื่อมต่อ: 1 x 1/4″ TS, ไม่บาลานซ์
  • ความต้านทาน: 1 MΩ
เอาต์พุต Mix
  • ช่องเชื่อมต่อ: 1 x 1/4″ TS, ไม่บาลานซ์
  • ความต้านทานเอาต์พุต: 600 Ω
เอาต์พุต Delay
  • ช่องเชื่อมต่อ: 1 x 1/4″ TS, ไม่บาลานซ์
  • ความต้านทานเอาต์พุต: 600 Ω
FB insert (ส่ง/รับ)
  • ช่องเชื่อมต่อ: 1 x 1/4″ TRS, ไม่บาลานซ์
  • ความต้านทาน: 440 Ω
  • ความต้านทานอินพุต: 140 kΩ

การเชื่อมต่อควบคุม

ช่องเชื่อมต่อ CV
  • ฟีดแบ็ค: 1 x 1/4″ TRS, 180 kΩ, ไม่บาลานซ์
  • เวลา: 1 x 1/4″ TRS, 34 kΩ, ไม่บาลานซ์
  • อัตรา LFO: 1 x 1/4″ TRS, 34 kΩ, ไม่บาลานซ์
  • ปริมาณ LFO: 1 x 1/4″ TRS, 34 kΩ, ไม่บาลานซ์
  • มิกซ์: 1 x 1/4″ TRS, 180 kΩ, ไม่บาลานซ์
  • ช่วงอินพุต CV: 0 V ถึง +5 V
อินพุต MIDI 2 x 5-pin DIN, 16 ช่อง

แผงควบคุม

ปุ่มหมุน Drive, Output level, Mix, LFO, Rate, Amount, Delay time, Feedback
สวิตช์ Short/long (สวิตช์โยก), Tap tempo (ฟุตสวิตช์), Bypass (ฟุตสวิตช์)

ระบบ

การตอบสนองความถี่ 20 Hz ถึง 20 kHz (+0 / -2 dB)
ช่วงไดนามิก > 83 dB
อัตราส่วนสัญญาณต่อเสียงรบกวน > 73 dB
อัตราขยายโดยรวม +33 Db

แหล่งจ่ายไฟ / แรงดันไฟฟ้า

อินพุตไฟ มาตรฐาน 9 V DC, ขั้วลบอยู่ตรงกลาง, > 400 mA (ไม่รวมอะแดปเตอร์)
การใช้พลังงาน 1.8 W

ขนาด / น้ำหนัก

ขนาด (สูง x กว้าง x ลึก) 85.9 x 147.6 x 196.9 มม.
น้ำหนัก 1,100 กรัม
