Behringer BM-15M MURF เอฟเฟคก้อน

he Behringer MURF Box (BM-15M) is a filter and sequencer effect developed as a successor to one of the most unique and creative pedals of the early 2000s, the Moog MF-105 MuRF. It is a true analog recreation designed to produce distinctive sounds by combining elements of a rhythmic tremolo, a phaser, and a step-filter. It is suitable for use with guitars, basses, and synthesizers.

Features & Functions

• Analog Circuitry: Just like the original, the Behringer MURF Box is a faithful recreation with an all-analog circuit for a truly vintage sound design workstation, built for the modern world.

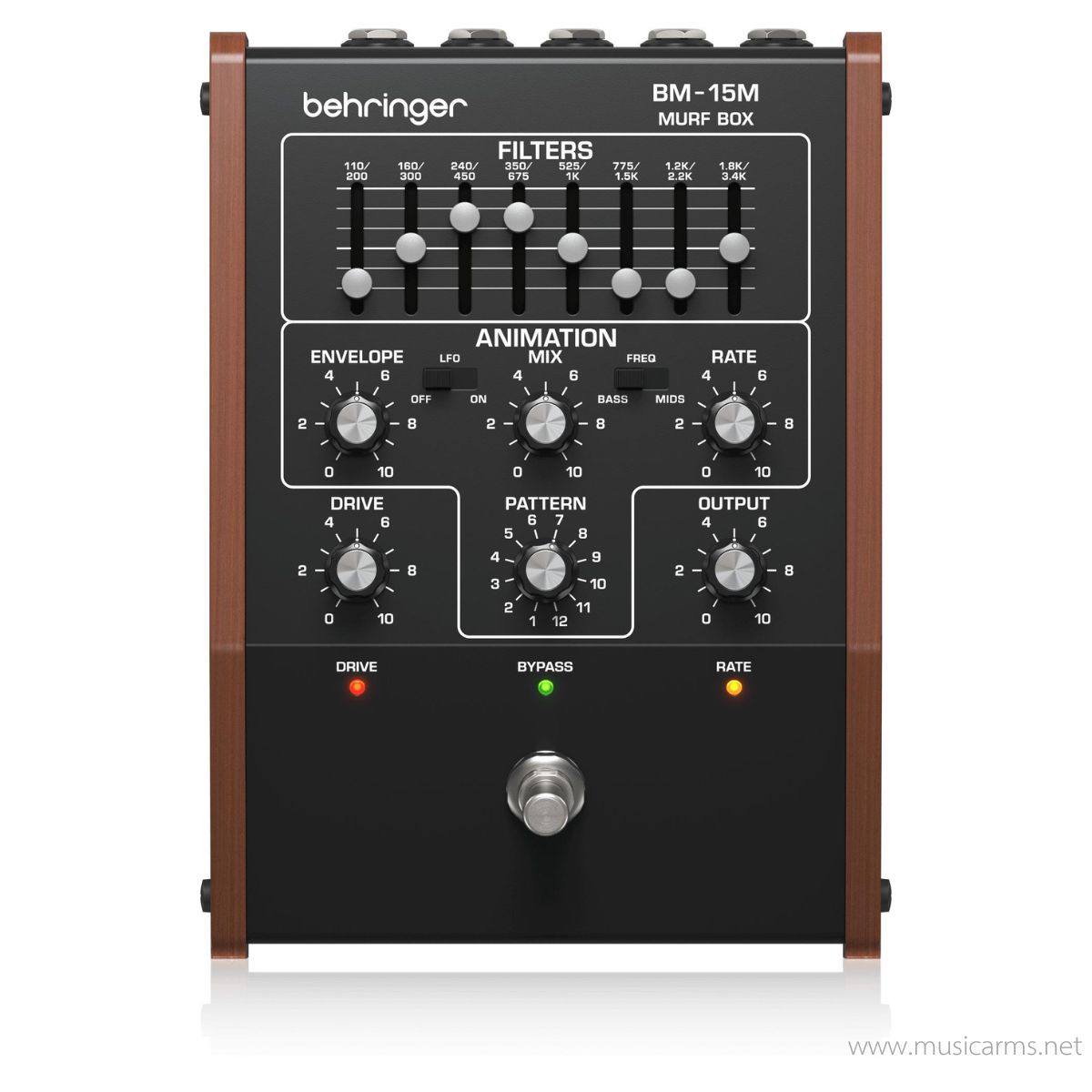

• 8-Band Filter: Features 8 resonance filter sliders, with a switch to select between Bass and Mid frequency ranges.
• Pattern Generator: A rotary knob provides access to various interesting patterns, allowing for the creation of complex and engaging rhythms.
• Versatile Controls:
  • Envelope: Adjusts the filter’s response to your playing dynamics.
  • LFO: Creates a sweeping modulation effect, which can be switched on or off.
  • Drive: Adds saturation and grit to the input signal.
  • Mix: Blends the dry (unaffected) and wet (effected) signals.
• Modern Connectivity:
  • USB-C: Connects to a computer for use with the Guitar Tribe app, enabling pattern customization and personal preset creation.
  • CV Inputs: Allows for external control of parameters like Rate, Mix, Envelope, and LFO/Sweep.
  • MIDI In: Receives MIDI commands for tempo syncing and control.
  • Tap/Step Input: For setting the tempo manually.
  • Stereo Output: Features separate Left/Mono and Right outputs for stereo setups.

Highlights & Strengths

• Highly Creative Tone: Capable of generating unique, dimensional, and signature rhythmic effects.
• Robust Build: Housed in a road-tested solid metal chassis with classic wooden side panels for durability and a vintage aesthetic.
• High Flexibility: Ideal for both studio and live use thanks to its comprehensive connectivity, including CV, MIDI, and USB.
• Deep Customization: The ability to create and save custom patterns via the companion app extends the pedal beyond its original hardware limitations.
• Accessible: Offers musicians the chance to experience a legendary sound at Behringer’s typically affordable price point.

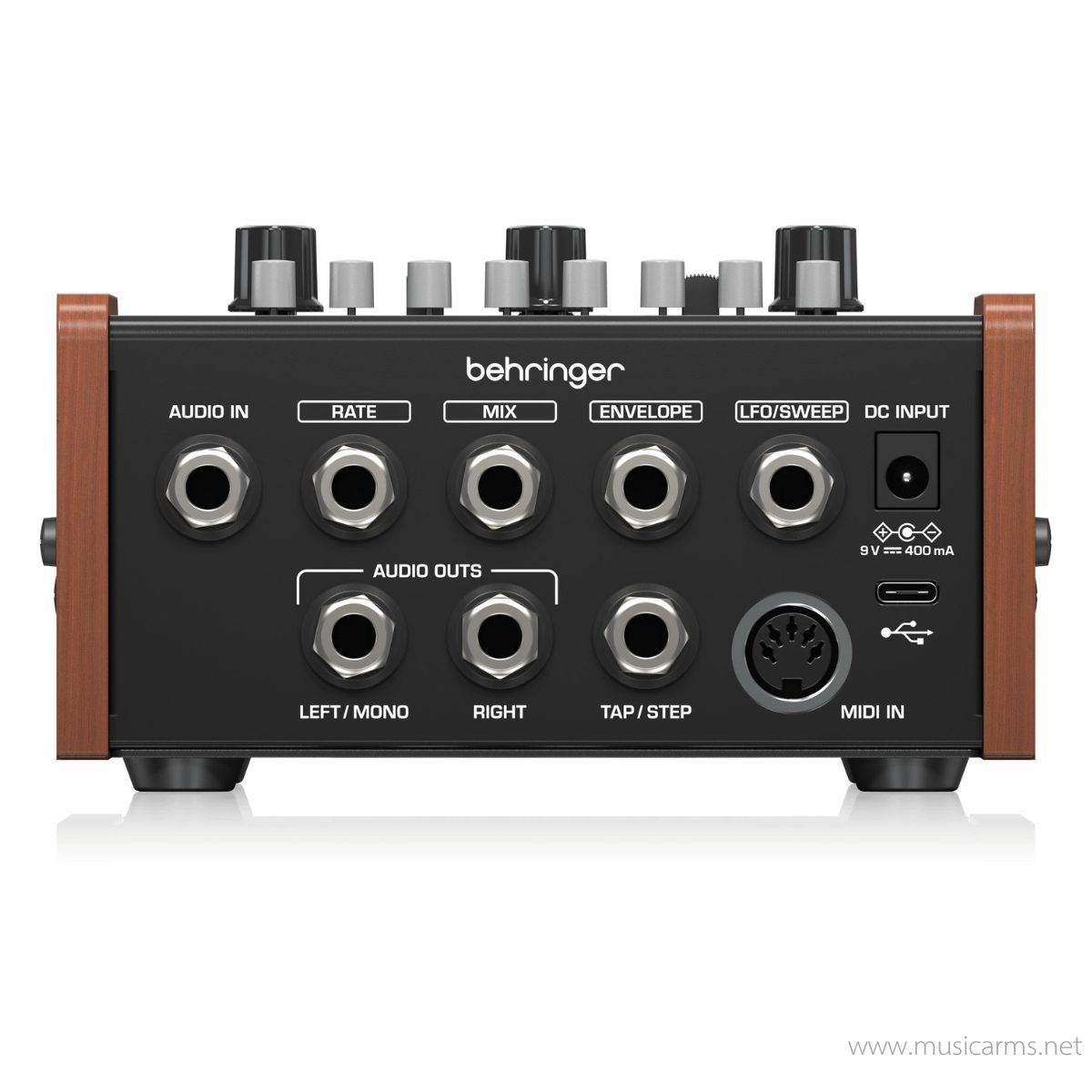

• Audio I/O:
  • Input: 1 x 1/4″ TS, Impedance 238 kΩ
  • Left/Mono Output: 1 x 1/4″ TS, Impedance 1 kΩ
  • Right Output: 1 x 1/4″ TS, Impedance 1 kΩ
• Control Connectivity:
  • CV Inputs (Rate, Mix, Envelope, LFO/Sweep): 1/4″ TRS, 0V to +5V
  • Tap/Step: 1 x 1/4″ TRS
  • MIDI: 2 x 5-Pin DIN (MIDI In)
  • USB: 1 x Type-C
• Frequency Response: 20 Hz to 20 kHz (+0 / -2 dB)
• Power Supply: Standard 9V DC, center-negative, > 400 mA (Power supply not included)
• Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75 inches)
• Weight: 1,108 g (39.1 oz)

• ภาคสัญญาณเสียง:
  • Input: 1 x 1/4″ TS, Impedance 238 kΩ
  • Left/Mono Output: 1 x 1/4″ TS, Impedance 1 kΩ
  • Right Output: 1 x 1/4″ TS, Impedance 1 kΩ
• ภาคควบคุม:
  • CV Inputs (Rate, Mix, Envelope, LFO/Sweep): 1/4″ TRS, 0V to +5V
  • Tap/Step: 1 x 1/4″ TRS
  • MIDI: 2 x 5-Pin DIN (MIDI In)
  • USB: 1 x Type-C
• การตอบสนองความถี่: 20 Hz ถึง 20 kHz (+0 / -2 dB)
• แหล่งจ่ายไฟ: 9V DC, Center Negative, > 400 mA (ไม่รวมในแพ็คเกจ)
• ขนาด (สูง x กว้าง x ลึก): 85.9 x 147.6 x 196.9 มม.
• น้ำหนัก: 1,108 กรัม
