Behringer DI600P

Hook Your Guitar or Amp Up to the PA

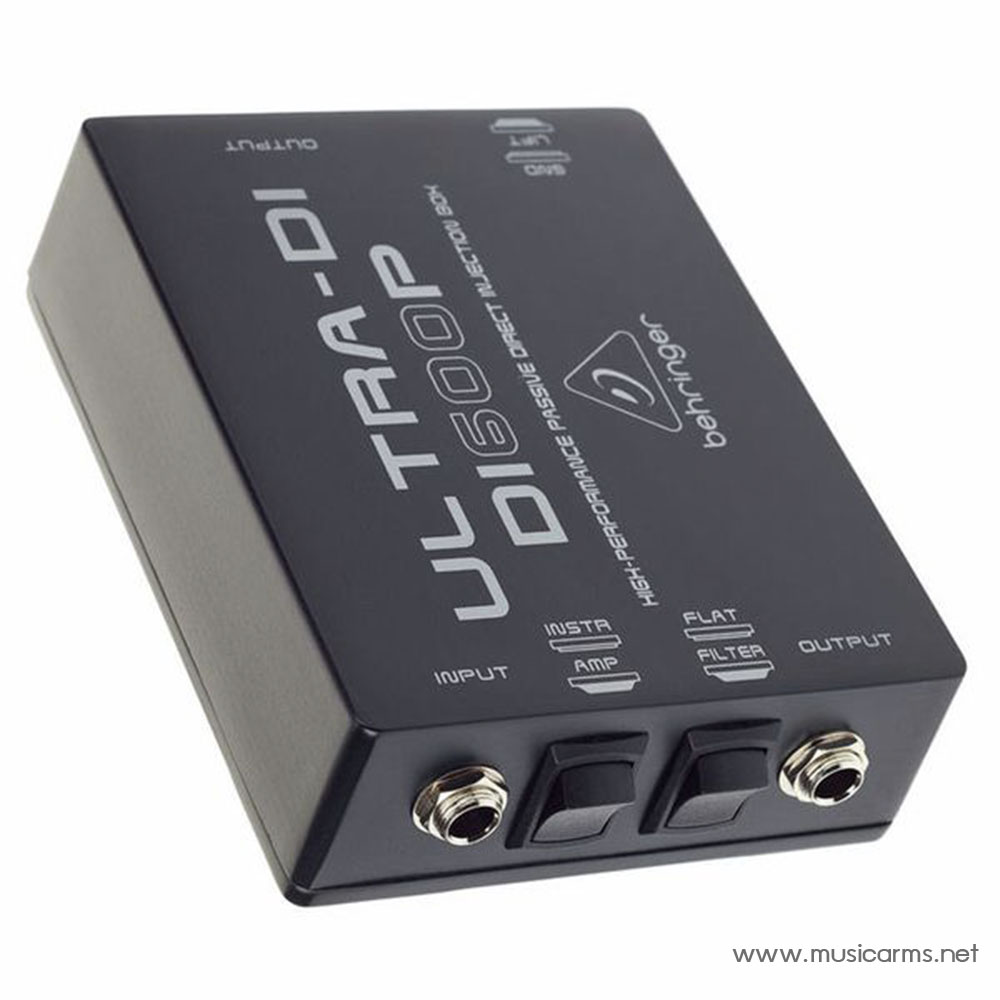

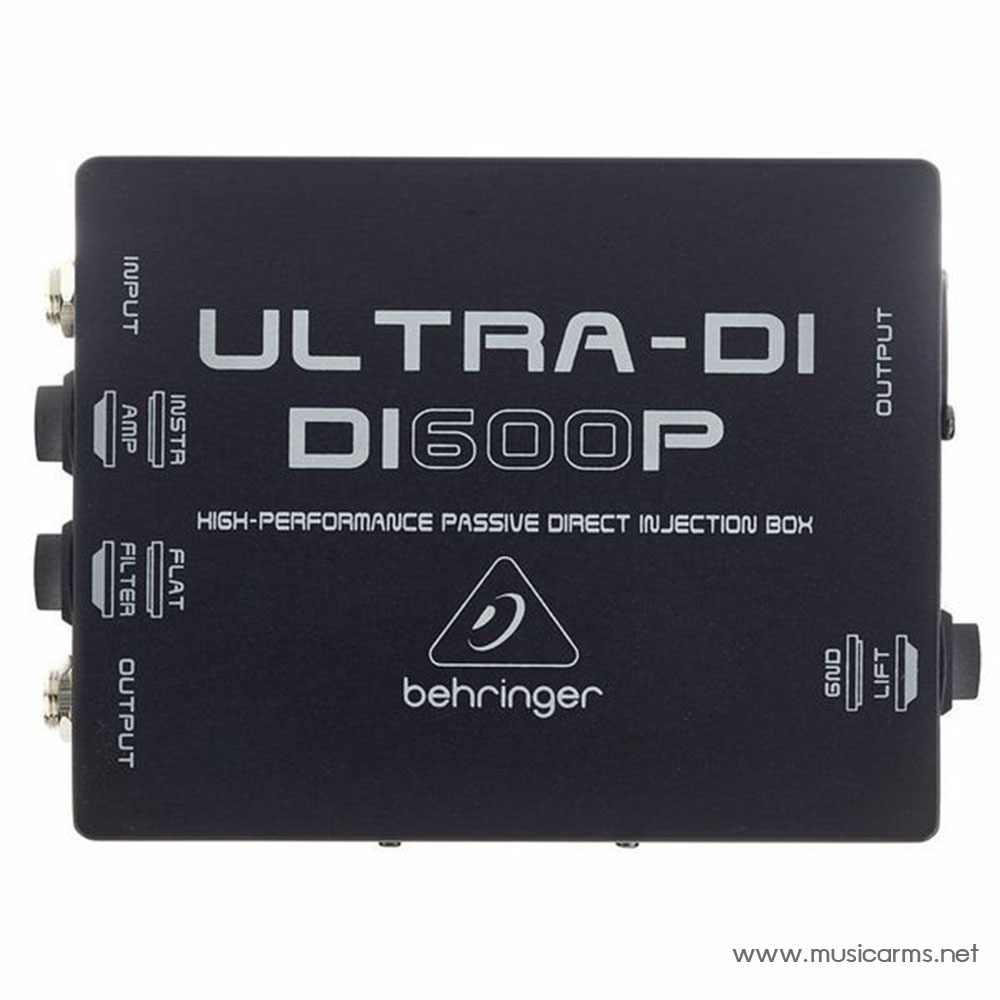

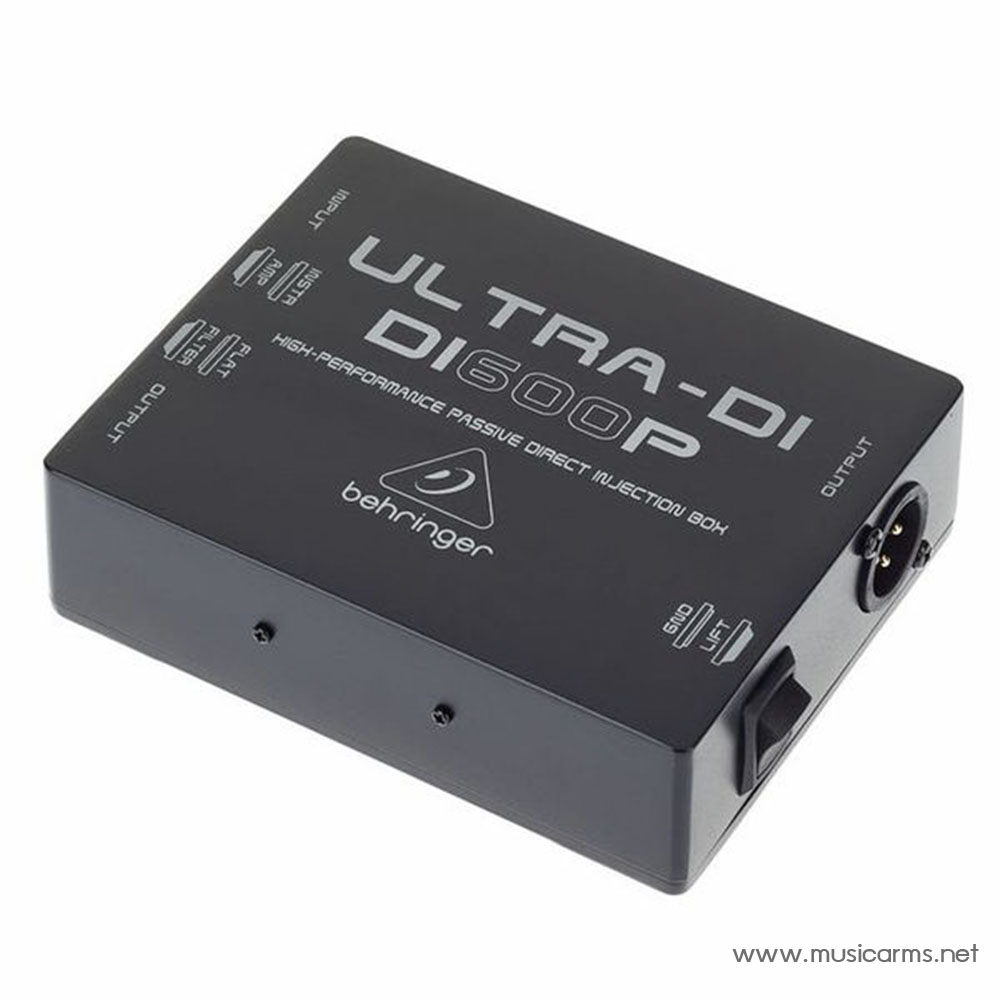

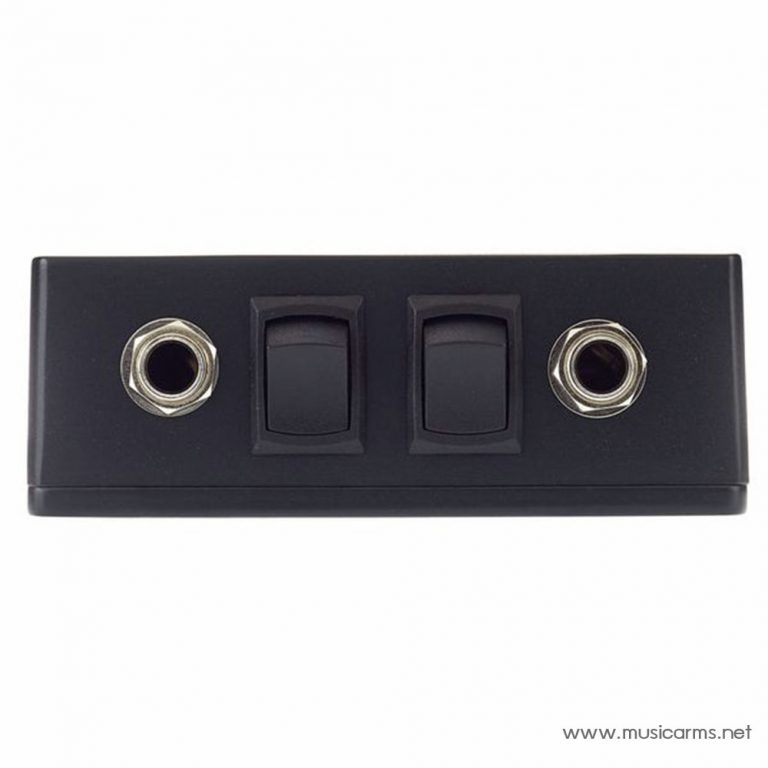

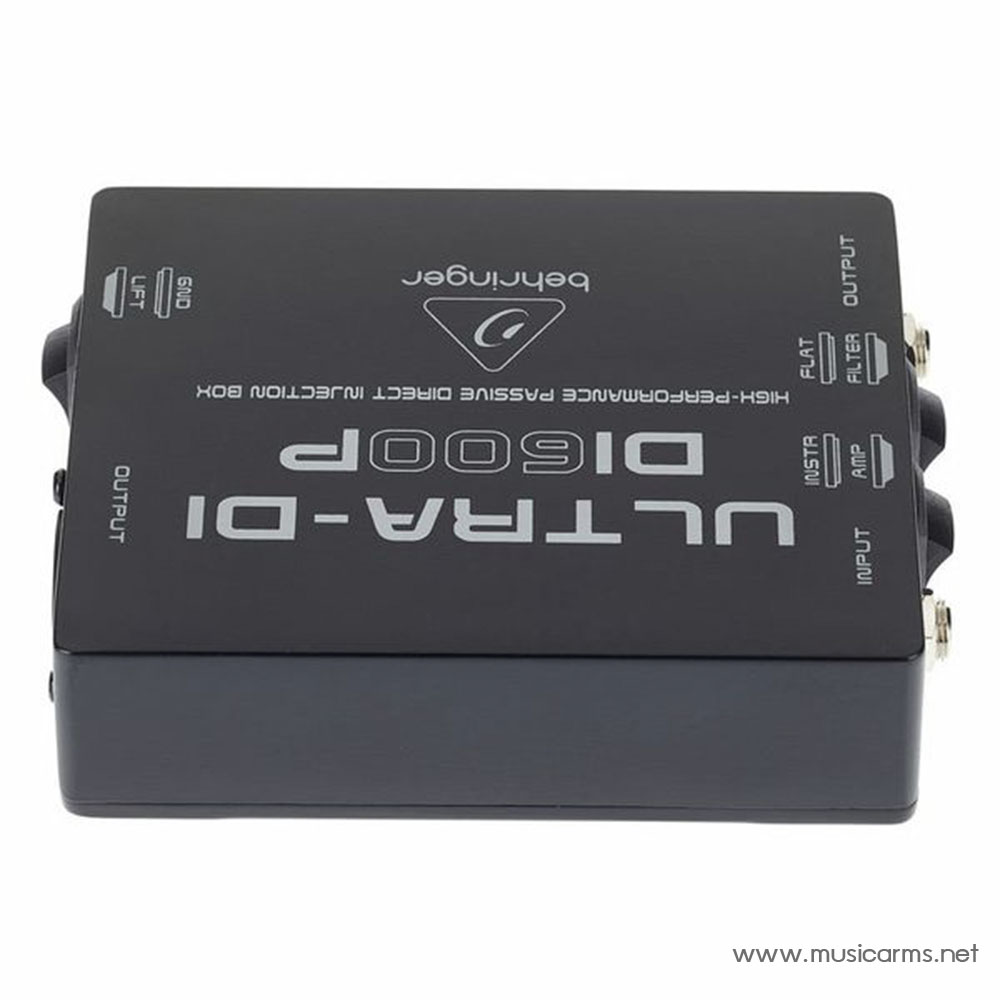

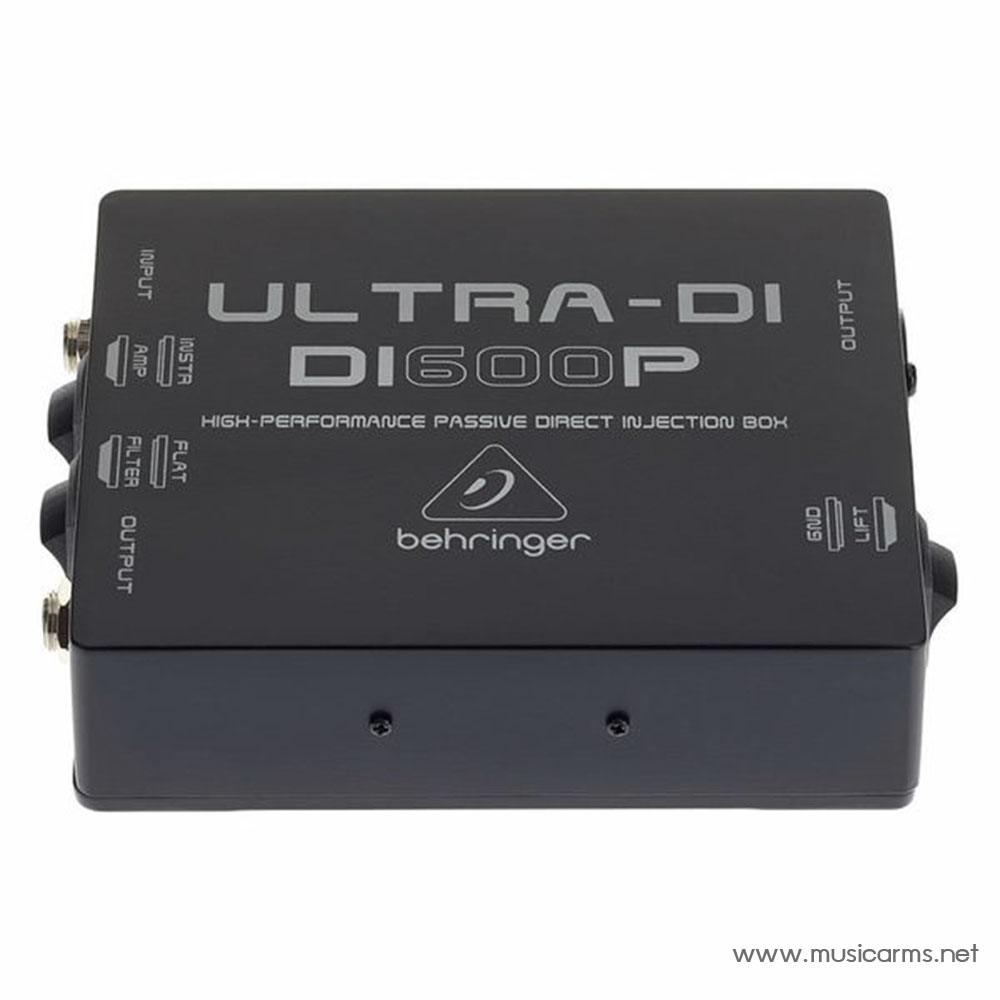

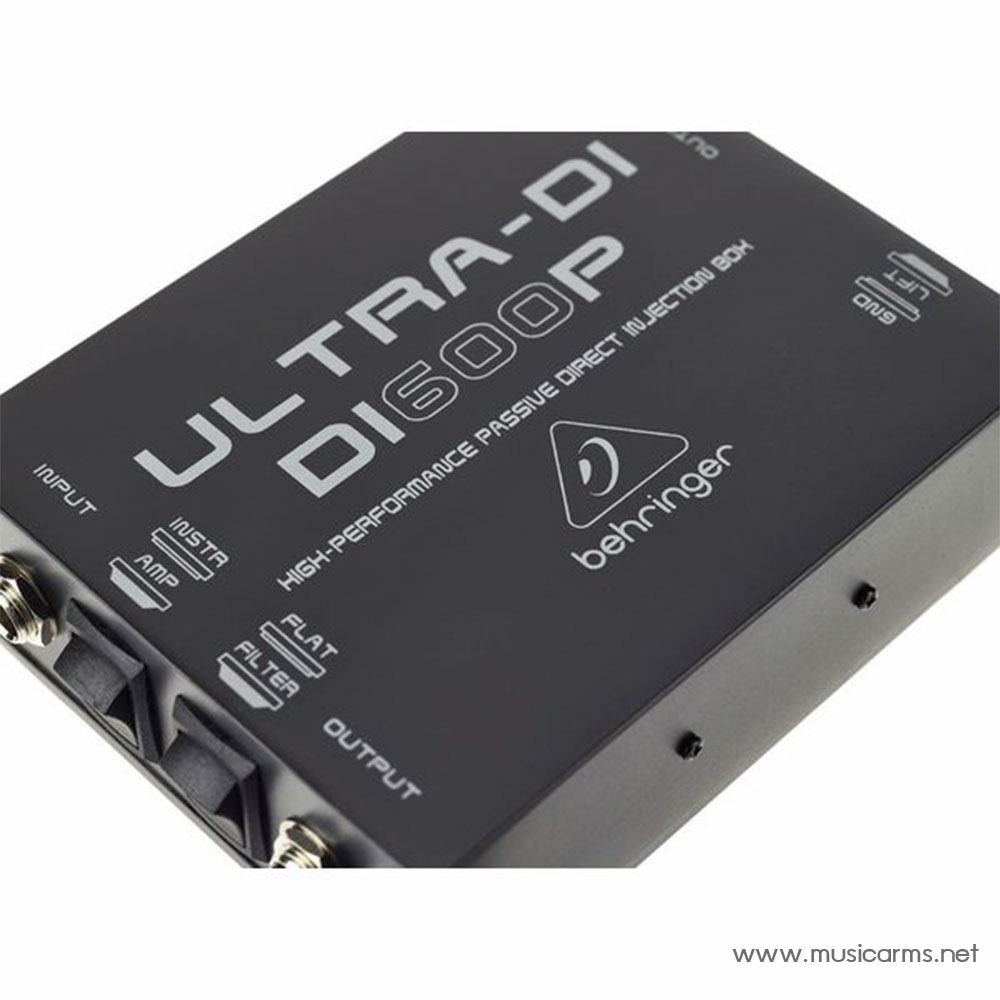

Be ready for your next gig with the Behringer Ultra-DI DI600P direct box. Designed to send instrument or amplifier signals to the main mixing board, the DI600P is a high-performance passive DI is a useful tool in any gig rig or studio. Dual 1/4″ TS jacks are wired in parallel let you plug your instrument into one and use the other as an output to your amp. The balanced XLR mic-level output feeds your mixer a clean and super-flat signal that is true to the source. Sweetwater knows that grounding issues and hum can be a problem at live gigs. The DI600P sports a ground lift switch to kill unwanted ground loops and hum. It also has a filter switch for optimal guitar tone and an instrument/amp switch with a 30dB input level drop. The Behringer Ultra-DI DI600P direct box is an extremely useful tool for any stage rig!

ULTRA-DI DI600P Passive Direct Box Specifications:

• Frequency response 40 Hz (-3) to 20 Khz
• THD +N (distortion) 0.0003% @ 1kHz input level +4dBu
• Input 1/4″ TS (unbalanced)
• Level change (input to output) -20 dB

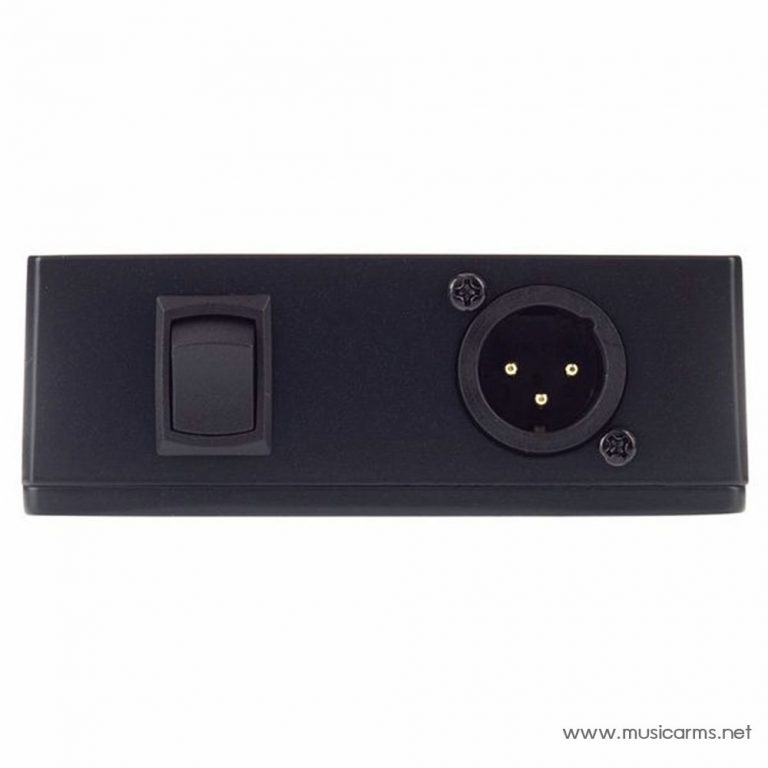

• Output Balanced XLR
• Impedence ratio (input to output) 110:1
• Inst/amp switch 30 dB pad
• Filter switch low pass @ 7.5 kHz (-3 dB)
• Dimensions (HxWxD) 1.4″ x 5″ x 3.75 “(35mm x 128mm x 95mm)
• Weight Approx. 0.66 lbs (0.03 kg)

รายละเอียด Behringer DI600P

• การตอบสนองความถี่ 40 Hz (-3) ถึง 20 Khz
• THD +N (distortion) 0.0003% ที่ระดับอินพุต 1kHz +4dBu
• อินพุต 1/4 นิ้วTS (unbalanced)
• การเปลี่ยนแปลงระดับ (อินพุตเป็นเอาต์พุต) -20 dB
• เอาต์พุต XLR (Balanced)
• อัตราส่วนความต้านทาน (อินพุตไปยังเอาต์พุต) 110:1
• สวิตช์ Inst/amp 30 dB pad
• สวิตช์กรองความถี่ต่ำ @ 7.5 kHz (-3 dB)
• ขนาด 35 x 128 x 95 มม.
• น้ำหนัก 0.03 กก.
