Bose Forum FC108 ลำโพงติดผนังพาสซีฟ 8 นิ้ว 1200 วัตต์ ความดัง 122 dB

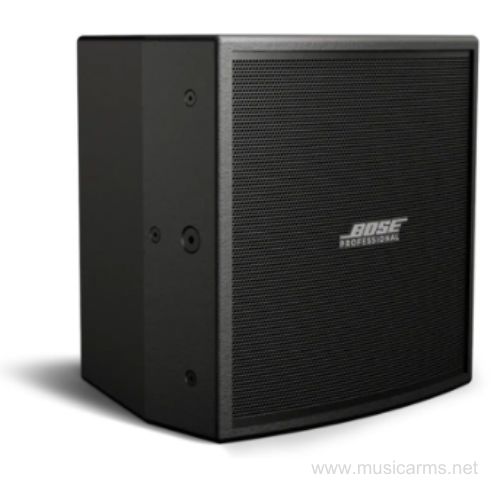

Bose Forum FC108: 8-Inch Passive Coaxial Wall Speaker for Professional Installations

The Bose Forum FC108 is a passive wall-mounted loudspeaker designed for commercial and professional installed sound systems. It features a coaxial 2-way point-source design consisting of an 8-inch woofer and a 1.7-inch compression driver, delivering balanced and detailed sound across lows, mids, and highs. With a wide frequency response of 53 Hz – 20 kHz and a maximum output of 122 dB SPL, the FC108 provides clear and powerful sound suitable for small to medium-sized venues.

This speaker incorporates Beamwidth Matching Waveguide technology, ensuring consistent sound distribution with a coverage pattern of 110° × 60° (horizontal × vertical). A factory-tuned passive crossover simplifies installation by eliminating the need for additional DSP processing. Simply connect the speaker to an amplifier and it is ready for operation.

Key Features

• Coaxial 2-Way Design: Combines an 8-inch woofer with a 1.7-inch compression driver for balanced full-range sound.
• Wide Frequency Response: Covers 53 Hz – 20 kHz for detailed and accurate audio reproduction.
• High Power Handling: Supports up to 1200 watts at 8 ohms with a maximum SPL of 122 dB.
• Beamwidth Matching Waveguide: Ensures even sound distribution with a 110° × 60° coverage pattern.

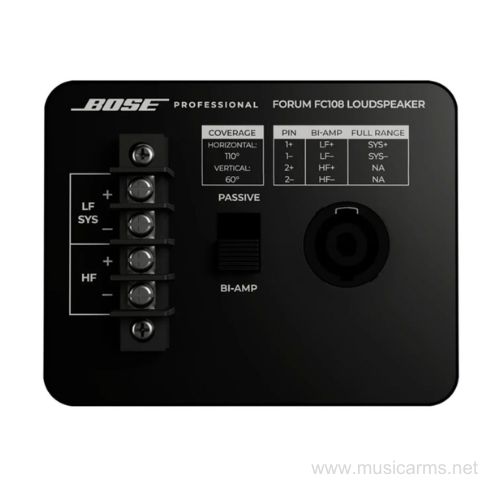

• Factory-Tuned Passive Crossover: Simplifies installation without requiring additional DSP equipment.
• Durable Cabinet Construction: Built from Baltic birch plywood with a black PU coating and rated IP43 for indoor and outdoor use.

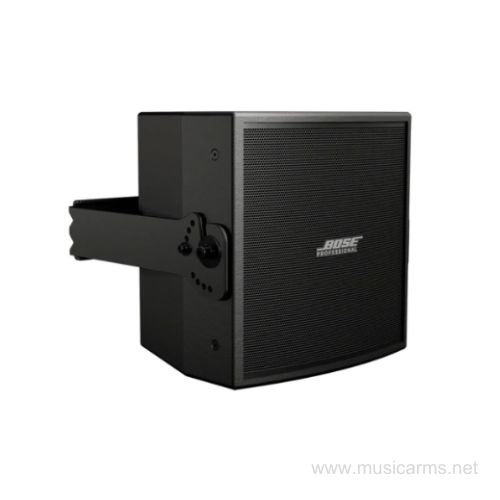

• Flexible Mounting Options: Compatible with U-bracket, pan-and-tilt bracket, suspension rail, and eyebolt suspension.
• Rotatable Grille and Logo: Allows the speaker orientation to match horizontal or vertical installation.

Ideal Applications

• Restaurants and Cafés: Provides clear background music and speech throughout the venue.
• Hotels and Hospitality Spaces: Suitable for lobbies, reception areas, and banquet spaces.
• Retail Stores and Showrooms: Creates an immersive and evenly distributed sound environment.
• Public Areas: Ideal for commercial spaces and gathering venues.
• Semi-Outdoor Installations: Perfect for terraces, garden seating areas, and outdoor dining spaces.

Conclusion

The Bose Forum FC108 delivers powerful performance in a compact installation speaker. Its coaxial point-source design, Beamwidth Matching Waveguide technology, and flexible mounting options make it an excellent choice for professional audio installations in small to medium commercial spaces, both indoors and outdoors.
