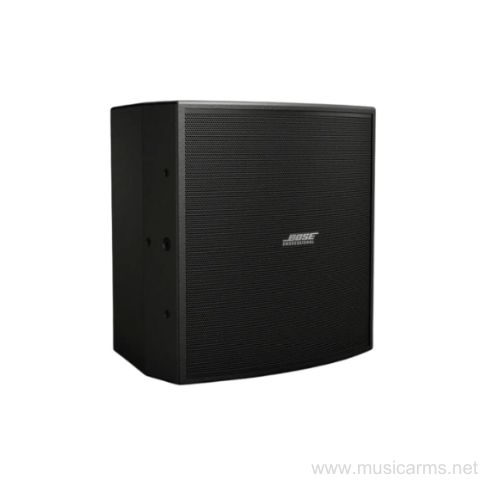

Bose Forum FC112: 12-Inch Passive Coaxial Wall Speaker for Professional Installations

The Bose Forum FC112 is a high-performance passive wall-mount speaker designed for professional installed sound systems. It features a coaxial 2-way point-source design with a 12-inch woofer and a 3-inch compression driver, delivering clear and balanced sound across lows, mids, and highs. With a wide frequency response of 48 Hz – 20 kHz and a maximum output of 132 dB SPL, the FC112 provides powerful and articulate audio performance suitable for a variety of commercial environments.

The speaker incorporates Beamwidth Matching Waveguide technology, ensuring consistent sound coverage across a wide 110° × 60° dispersion pattern (horizontal × vertical). A factory-tuned passive crossover simplifies installation by eliminating the need for additional DSP processing. Simply connect it to an amplifier and the system is ready to operate.

Key Features

• Coaxial 2-Way Speaker Design: Combines a 12-inch woofer with a 3-inch compression driver for balanced and detailed sound.
• Wide Frequency Response: Covers 48 Hz – 20 kHz for full-range audio reproduction.
• High Output Capability: Supports up to 2400 watts at 8 ohms and delivers a maximum SPL of 132 dB.
• Beamwidth Matching Waveguide: Provides consistent sound coverage with a 110° × 60° dispersion pattern.

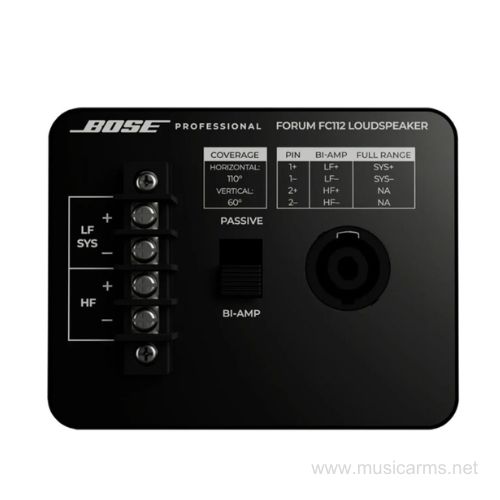

• Factory-Tuned Passive Crossover: Simplifies installation without requiring additional DSP processing.
• Durable Cabinet Construction: Made from Baltic birch plywood with a black PU coating and rated IP43 for indoor and outdoor use.
• Flexible Installation Options: Compatible with U-bracket, pan-and-tilt bracket, suspension rail, and eyebolt suspension.
• Rotatable Grille and Logo: Allows adjustment to match horizontal or vertical mounting orientations.

Ideal Applications

• Restaurants and Cafés: Provides clear background music and speech across the entire venue.
• Hotels and Hospitality Spaces: Ideal for lobbies, banquet rooms, and reception areas.
• Retail Stores and Showrooms: Enhances the customer experience with evenly distributed sound.
• Public Spaces: Suitable for commercial venues, event areas, and gathering spaces.
• Semi-Outdoor Installations: Perfect for terraces, garden areas, and outdoor dining spaces.

Conclusion

The Bose Forum FC112 delivers powerful performance, excellent clarity, and consistent coverage in a durable installation speaker. Its coaxial point-source design, Beamwidth Matching Waveguide technology, and flexible mounting options make it a versatile solution for commercial audio installations in both indoor and outdoor environments.
