Bose FreeSpace 360P Series II

ราคา : 15,390 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description

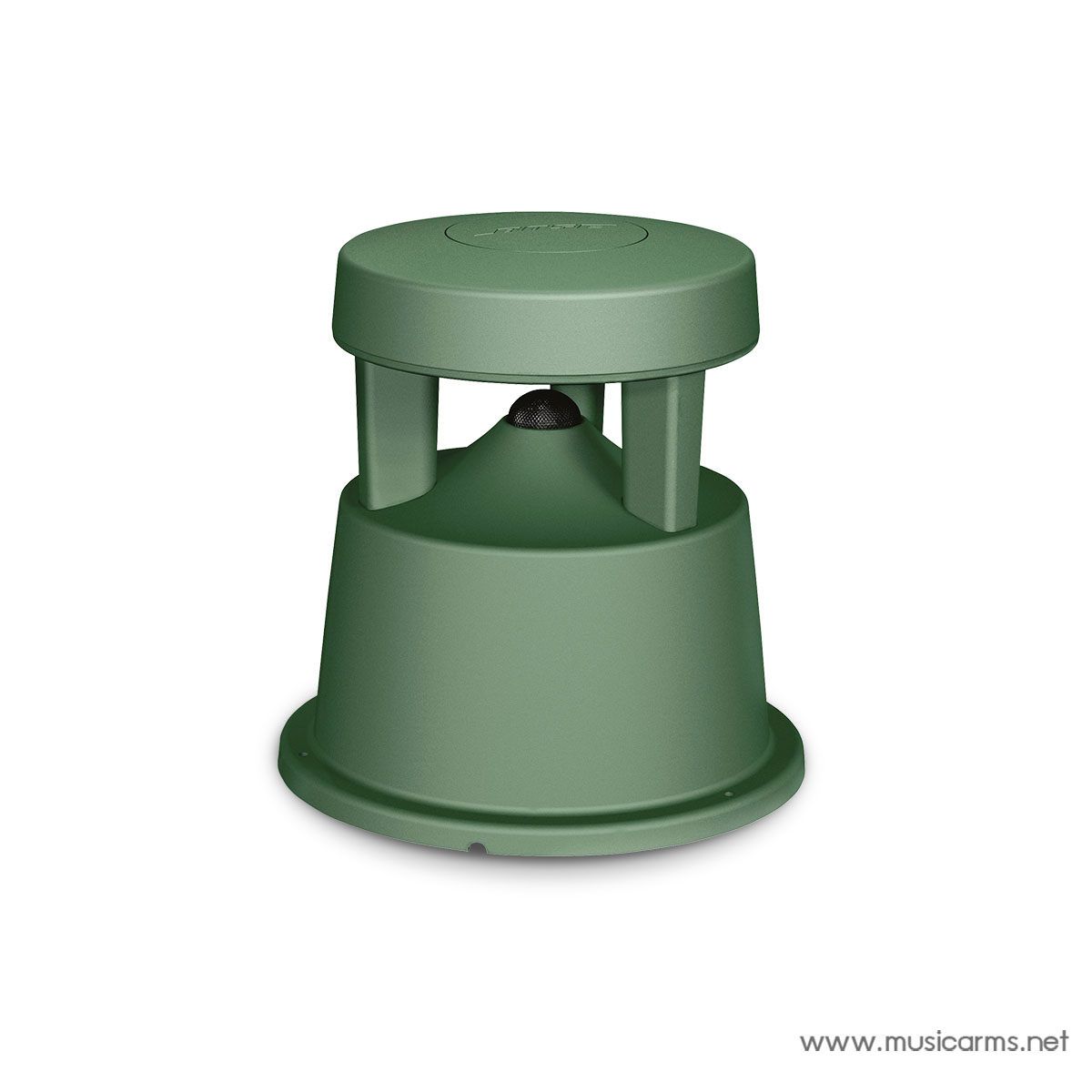

Bose FreeSpace 360P Series II: Full-Range Environmental Landscape Loudspeaker
The Bose FreeSpace 360P Series II is a full-range environmental loudspeaker cleverly engineered to blend seamlessly with landscaping for both in-ground or above-ground applications. It is the ideal audio solution for diverse commercial outdoor settings, including shopping malls, al fresco restaurants, expansive resorts, and immersive theme parks. This speaker delivers uniform and consistent sound coverage across a wide area thanks to its 360° horizontal dispersion pattern, with a broad frequency range that extends down to 60 Hz for rich, full-bodied audio performance. Designed to withstand the elements, its robust construction and acoustic innovations ensure high-quality sound reinforcement whether used indoors in large atriums or outdoors in demanding environmental conditions, providing a reliable and visually unobtrusive system.
Key Features
- Optimized Full-Range Driver: Features one downward-firing 4.5-inch (114 mm) advanced composite environmental full-range driver, optimized for in-ground or above-ground mounting configurations.
- 360° Horizontal Coverage: A domed port grille reflects sound into the listening area, ensuring clear, consistent, and wide 360-degree performance across the entire listening zone.
- Advanced Acoustic Design: The cabinet shape functions as an acoustic diffuser, directing mid- and high-frequency energy outwards, while the base acts as a tuned, multi-chambered ported enclosure for deep bass response.
- Integrated Protection and Installation Ease: Includes an internal speaker protection circuit to safeguard the drivers, a tamper-resistant design, and a multi-tap line transformer for easy changes to tap settings.
Invisible Sound, Exceptional Performance
The Bose FreeSpace 360P Series II delivers the perfect combination of Bose sound quality, environmental resilience, and discreet installation capability. With its excellent 360° coverage and built-in protection features, it is the premier choice for delivering compelling audio experiences in large outdoor spaces. If you need a loudspeaker that provides clear, full-range sound without cluttering your beautiful landscaping at your resort, mall, or theme park, the 360P Series II is the definitive solution.
Specification
Bose FreeSpace 360P Series II Technical Specifications |
|
|---|---|
PHYSICAL |
|
| Ingress Protection (IP Rating) | IP55 |
| Suspension/Mounting | 3 × #10 (M4) holes in base, 3 × #10 (M4) screws required |
| Product Dimensions (Diameter × Height) | 379 mm × 368 mm (14.9 in × 14.5 in) |
| Net Weight | 6.6 kg (14.5 lb) |
| Shipping Weight | 6.8 kg (14.9 lb) |
PERFORMANCE |
|
| Frequency Range (-10 dB) | 60 Hz – 15,000 Hz |
| Coverage, Horizontal | 360° |
| Coverage, Vertical | 50° |
| Calculated Maximum SPL @ 1 m | 107 dB |
| Nominal Impedance | 8Ω (transformer bypassed) |
| Power Handling, Continuous | 70/100V: 80 W / 8Ω: 30 W |
| Power Handling, Peak | 70/100V: 320 W / 8Ω: 120 W |
| Sensitivity (SPL/1 W at 1 m) | 87 dB |
| Transformer Taps, 100V | 10, 20, 40, 80 W, bypass |
| Transformer Taps, 70V | 10 W, 20 W, 40 W, 80 W, bypass |
| Recommended Signal Processing | No Bose Professional EQ required. Presets available for best performance. |
TRANSDUCERS |
|
| Low-Frequency Driver | 1 × Bose Professional 4.5 in (114 mm) environmental driver |
| Driver Protection | Recommended high-pass filter 60 Hz with min. 24-dB/octave filter. Presets available. |
ข้อมูลสินค้า
Bose FreeSpace 360P Series II: ลำโพงสำหรับติดตั้งภายนอกอาคารที่กลมกลืนกับสภาพแวดล้อม
Bose FreeSpace 360P Series II คือลำโพง Full-Range สำหรับสภาพแวดล้อมภายนอกอาคารที่ได้รับการออกแบบทางวิศวกรรมมาอย่างชาญฉลาด เพื่อให้สามารถกลมกลืนไปกับภูมิทัศน์ได้อย่างลงตัว ไม่ว่าจะเป็นการติดตั้งแบบฝังดิน (in-ground) หรือการวางบนพื้น (above-ground) ลำโพงรุ่นนี้มอบการกระจายเสียงแนวนอนแบบ 360 องศาที่สม่ำเสมอและครอบคลุมพื้นที่กว้างขวาง ด้วยช่วงความถี่ที่ลงได้ต่ำถึง 60 Hz ทำให้เสียงมีความเต็มอิ่มและสมบูรณ์ เหมาะอย่างยิ่งสำหรับการใช้งานในพื้นที่เปิดโล่งขนาดใหญ่ เช่น ศูนย์การค้า, ร้านอาหารกลางแจ้ง, รีสอร์ท, สวนสนุก, และพื้นที่ต้อนรับอื่น ๆ ทั้งภายในและภายนอกอาคาร โครงสร้างที่แข็งแรงทนทานต่อสภาพอากาศและฟังก์ชันการออกแบบที่ช่วยเพิ่มประสิทธิภาพเสียง ทำให้ FreeSpace 360P Series II เป็นโซลูชันด้านเสียงที่เชื่อถือได้และมีคุณภาพสูงในทุกสภาพแวดล้อม
คุณสมบัติเด่น
- Full-Range Environmental Driver: ใช้ไดรเวอร์ Full-Range Advanced Composite ขนาด 4.5 นิ้ว (114 มม.) แบบยิงลงด้านล่าง เพื่อประสิทธิภาพเสียงที่ครอบคลุมและติดตั้งได้ทั้งแบบฝังดินหรือวางบนพื้น
- การกระจายเสียง 360 องศาที่สม่ำเสมอ: ตะแกรงพอร์ตแบบโดม (Domed Port Grille) ช่วยสะท้อนเสียงออกไปยังพื้นที่รับฟัง ให้ประสิทธิภาพเสียงที่ชัดเจนและคงที่ในทุกทิศทาง
- ดีไซน์ตัวเครื่องที่ทำหน้าที่เป็น Acoustic Diffuser: รูปทรงของตัวตู้ทำหน้าที่เป็นตัวกระจายเสียงทางอะคูสติก (Acoustic Diffuser) ที่นำพลังงานความถี่กลางและความถี่สูงออกไปสู่ผู้ฟังอย่างแม่นยำ ขณะที่ฐานลำโพงทำหน้าที่เป็นตู้พอร์ตแบบหลายช่อง (Multi-Chambered Ported Enclosure)
- ความปลอดภัยและความสะดวกในการติดตั้ง: มีวงจรป้องกันลำโพงภายในเพื่อปกป้องไดรเวอร์, การออกแบบที่ทนทานต่อการงัดแงะ, และมีหม้อแปลงไฟฟ้าแบบ Multi-tap ที่เปลี่ยนการตั้งค่า Tap ได้ง่าย
โซลูชันเสียงภายนอกอาคารที่ทรงประสิทธิภาพ
Bose FreeSpace 360P Series II มอบการผสมผสานที่ลงตัวระหว่างคุณภาพเสียงระดับ Bose, ความทนทานต่อสภาพแวดล้อม, และความสามารถในการติดตั้งที่แนบเนียน ด้วยการกระจายเสียง 360 องศาที่ยอดเยี่ยมและคุณสมบัติการป้องกันต่าง ๆ ทำให้ลำโพงนี้เป็นตัวเลือกที่ดีที่สุดสำหรับการส่งมอบประสบการณ์เสียงที่น่าประทับใจในพื้นที่กลางแจ้ง หากคุณต้องการลำโพงที่ให้เสียงที่ชัดเจนและสมบูรณ์แบบโดยไม่รบกวนภูมิทัศน์ ลำโพงรุ่นนี้คือคำตอบสำหรับศูนย์การค้า, รีสอร์ท, หรือสวนสนุกของคุณ
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค Bose FreeSpace 360P Series II |
|
|---|---|
PHYSICAL (คุณสมบัติทางกายภาพ) |
|
| ระดับการป้องกัน (Ingress Protection) | IP55 |
| การแขวน/การติดตั้ง | 3 × รู #10 (M4) ที่ฐาน, ต้องใช้สกรู 3 × #10 (M4) |
| ขนาดผลิตภัณฑ์ (เส้นผ่านศูนย์กลาง × สูง) | 379 มม. × 368 มม. (14.9 นิ้ว × 14.5 นิ้ว) |
| น้ำหนักสุทธิ | 6.6 กก. (14.5 ปอนด์) |
| น้ำหนักรวมกล่อง | 6.8 กก. (14.9 ปอนด์) |
PERFORMANCE (ประสิทธิภาพ) |
|
| ช่วงความถี่ (-10 dB) | 60 Hz – 15,000 Hz |
| การครอบคลุมแนวนอน (Horizontal Coverage) | 360° |
| การครอบคลุมแนวตั้ง (Vertical Coverage) | 50° |
| SPL สูงสุดที่คำนวณได้ @ 1 ม. | 107 dB |
| ความต้านทานที่กำหนด (Nominal Impedance) | 8Ω (เมื่อ Bypass หม้อแปลง) |
| การจัดการพลังงาน (ต่อเนื่องระยะยาว) | 70/100V: 80 W / 8Ω: 30 W |
| การจัดการพลังงาน (สูงสุด) | 70/100V: 320 W / 8Ω: 120 W |
| ความไว (Sensitivity) (SPL/1 W @ 1 ม.) | 87 dB |
| Tap หม้อแปลง 100V | 10, 20, 40, 80 W, bypass |
| Tap หม้อแปลง 70V | 10 W, 20 W, 40 W, 80 W, bypass |
| การประมวลผลสัญญาณที่แนะนำ | ไม่จำเป็นต้องใช้ Bose Professional EQ / มี Presets ของ Bose Professional EQ ให้เลือกใช้เพื่อประสิทธิภาพสูงสุด |
TRANSDUCERS (ตัวขับเสียง) |
|
| ตัวขับเสียงความถี่ต่ำ (Low-Frequency) | 1 × Bose Professional 4.5 นิ้ว (114 มม.) Environmental Driver |
| การป้องกันไดรเวอร์ | แนะนำ High-pass filter 60 Hz พร้อมฟิลเตอร์ขั้นต่ำ 24-dB/octave / มี Presets ให้เลือกใช้ |
