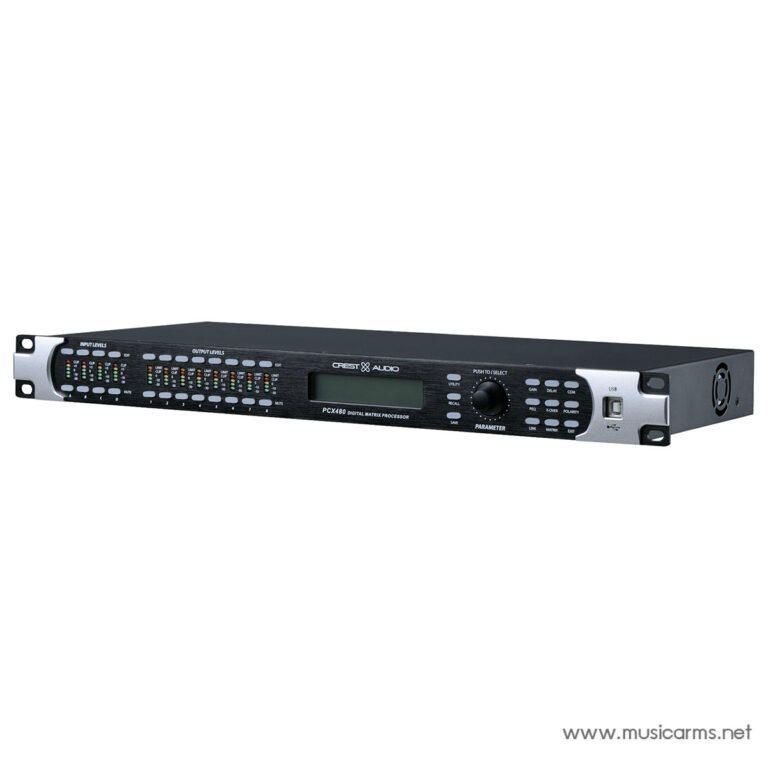

Crest Audio PCX 480
ราคา : 25,900 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Crest Audio PCX 480: The Ultimate 4-Input, 8-Output Digital Matrix Speaker Management Processor
The Crest Audio® PCX® 480 is a sophisticated digital matrix speaker management processor, featuring an expanded 4-input, 8-output configuration and boasting pristine 96 kHz sample rate processing. This high-specification architecture delivers an exceptionally quiet and accurate filter response, complemented by equally precise AD/DA interfaces. The unit’s four balanced line XLR input channels can be freely routed to any or all of the eight output channels, offering immense flexibility via the fully adjustable digital matrix system to cater to any complex speaker management cabinet configuration. Leveraging advanced DSP algorithms and dedicated software, the PCX 480 provides professional audio-grade signal processing and comprehensive control features designed to manage, optimize, and protect FoH, monitor, and multi-zone speaker systems, all while ensuring exceptional audio signal clarity and integrity without any loss or coloration.
Key Features
- Comprehensive 4×8 Digital Matrix: Features four inputs and eight outputs, allowing any input to be routed to any/all outputs for highly flexible and complex system configuration and zoning.
- High-Resolution 96 kHz Processing: Operates at a 96 kHz sample rate with exceptionally quiet and accurate AD/DA interfaces, ensuring the highest level of audio signal clarity and integrity.
- Deep Signal Control: Inputs offer Gain, Mute, HP/LP Filters, 8-band PEQ, Polarity, and Delay (up to 680ms). Outputs add 9-band PEQ, Compressor/Limiter, Polarity, Delay, and Mute for fine-tuning.
- Advanced Crossover and EQ Flexibility: Crossover/Band-pass filters are selectable between Butterworth, Bessel, or Linkwitz-Riley, with slopes up to 8th order (48 dB/Oct). Includes multiple EQ filter types (PEQ, Low-Shelf, Hi-Pass, All-Pass, etc.).
- Dual Interface Control: Allows quick local configuration via a front panel LCD and rotary encoder, or detailed, high-resolution remote control via the Ethernet port using the Crest Audio PCX Editor Software on a PC.
Precision Management for Large-Scale Audio Systems
The Crest Audio PCX 480 is the definitive tool for audio professionals managing large or intricate sound systems. Its expanded 4×8 matrix and 96 kHz processing power enable engineers to precisely tailor every element of their speaker arrays. With its full suite of DSP functions, including a versatile internal signal generator, the PCX 480 ensures that your FoH, monitor, and multi-zone systems are optimally tuned, protected, and deliver uncompromised audio excellence. Invest in the PCX 480 for unparalleled control and reliable, high-fidelity sound management.
Specification
Crest Audio PCX 480: Technical Specifications |
|
|---|---|
| Balanced Inputs | 4 x XLR |
| Balanced Outputs | 8 x XLR |
| Sample Rate | 96 kHz |
| A/D and D/A Converters | 24-bit Delta-Sigma |
| Dynamic Range | Greater than 109 dB (A-weighted) or 107 dB (unweighted) |
| Maximum Input & Output Level | +20 dBu (XLR Balanced) |
| Key Input Features | Gain, Mute, HP/LP filters, 8-band PEQ, Polarity, Delay (680 ms) |
| Key Output Features | 9-band PEQ, Gain, Compressor/Limiter, Polarity, Delay (680 ms), Mute, Crossover/Band-pass filters |
| EQ Filter Types | PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2 |
| Crossover Filter Types | Butterworth, Bessel or Linkwitz-Riley (Slopes from 6 dB/Oct to 48 dB/Oct) |
| Signal Generator | Sine, White Noise, Pink Noise |
| Setup and Control | Ethernet & USB “B” port with PC Editor Software |
| Level Metering | 5-segment LED meters with Limit Indication on each output; 5-segment LED meters on each input |
| Channel Linking | Channels can be linked for simplified stereo operation |
| Security | Security Lock |
ข้อมูลสินค้า
Crest Audio PCX 480: โปรเซสเซอร์จัดการลำโพงดิจิทัล 4 อินพุต 8 เอาต์พุต ประสิทธิภาพสูงสุด
Crest Audio® PCX® 480 คือโปรเซสเซอร์จัดการลำโพงแบบดิจิทัลเมทริกซ์ที่ทรงพลังและยืดหยุ่นกว่ารุ่นก่อนหน้า โดยมาพร้อมกับการกำหนดค่า 4 อินพุตและ 8 เอาต์พุต พร้อมการประมวลผลที่อัตราแซมปลิง 96 kHz ซึ่งให้ผลลัพธ์คือการตอบสนองฟิลเตอร์ที่แม่นยำและอินเทอร์เฟซ AD/DA ที่เงียบเป็นพิเศษ ช่องอินพุต XLR แบบบาลานซ์ทั้ง 4 ช่อง สามารถถูกกำหนดเส้นทางไปยังเอาต์พุตใด ๆ หรือทั้งหมดจาก 8 ช่องได้อย่างอิสระผ่านระบบดิจิทัลเมทริกซ์ที่ปรับแต่งได้เต็มที่ทั้งฝั่งอินพุตและเอาต์พุต เทคโนโลยีซอฟต์แวร์และอัลกอริทึม DSP ขั้นสูงของ PCX 480 มอบคุณสมบัติการประมวลผลและการควบคุมสัญญาณเสียงระดับมืออาชีพ เพื่อจัดการ ปรับปรุง และปกป้องระบบลำโพงหลัก (FoH), มอนิเตอร์ และระบบหลายโซน โดยรับประกันความชัดเจนและความสมบูรณ์ของสัญญาณเสียงที่ยอดเยี่ยมโดยปราศจากการสูญเสียหรือการเปลี่ยนสีของเสียง
คุณสมบัติเด่น
- ดิจิทัลเมทริกซ์ 4×8 ที่ครอบคลุม: สามารถกำหนดเส้นทางอินพุตใด ๆ จาก 4 ช่อง ไปยังเอาต์พุตใด ๆ หรือทั้งหมดจาก 8 ช่อง เพื่อการกำหนดค่าระบบลำโพงที่ซับซ้อนและมีความยืดหยุ่นสูง
- การประมวลผลเสียงระดับสตูดิโอ 96 kHz: ใช้อัตราแซมปลิง 96 kHz พร้อมอินเทอร์เฟซ AD/DA ที่แม่นยำและเงียบเป็นพิเศษ เพื่อให้ได้ความชัดเจนของสัญญาณเสียงสูงสุด
- การควบคุมสัญญาณอินพุต/เอาต์พุตเชิงลึก: อินพุตมีฟังก์ชัน Gain, Mute, HP/LP Filters, 8-band PEQ, Polarity และ Delay (สูงสุด 680ms) ส่วนเอาต์พุตมี 9-band PEQ, Compressor/Limiter และ Delay เพิ่มเติม
- ฟิลเตอร์ครอสโอเวอร์และ EQ ขั้นสูง: มีตัวเลือกครอสโอเวอร์ (Butterworth, Bessel, Linkwitz-Riley) ความชันตั้งแต่ 6 dB/Oct ถึง 48 dB/Oct และประเภท EQ ฟิลเตอร์ที่หลากหลาย เช่น PEQ, Low-Shelf, High-Pass, All-Pass1 และ All-Pass2
- การควบคุมผ่านฮาร์ดแวร์และซอฟต์แวร์: สามารถตั้งค่าอย่างรวดเร็วผ่านแผงด้านหน้าด้วยจอ LCD และโรตารีเอนโค้ดเดอร์ หรือการควบคุมกราฟิกความละเอียดสูงจาก PC ผ่านพอร์ต Ethernet โดยใช้ซอฟต์แวร์ PCX Editor
ความแม่นยำและพลังในการจัดการระบบเสียงขนาดใหญ่
Crest Audio PCX 480 คือคำตอบสำหรับระบบเสียงที่ต้องการการจัดการที่ซับซ้อนและประสิทธิภาพเสียงระดับสูงสุด ด้วยเมทริกซ์ 4×8 และการประมวลผล 96 kHz มันช่วยให้วิศวกรเสียงสามารถปรับแต่งทุกองค์ประกอบของระบบลำโพงได้อย่างแม่นยำและมีประสิทธิภาพ ฟังก์ชัน DSP ที่สมบูรณ์แบบพร้อมเครื่องกำเนิดสัญญาณในตัว ทำให้ PCX 480 เป็นศูนย์กลางการควบคุมที่ขาดไม่ได้ในการรับรองคุณภาพเสียงที่ยอดเยี่ยมและการปกป้องอุปกรณ์ในระบบ FoH, มอนิเตอร์ และมัลติโซน
รายละเอียดคุณสมบัติ
Crest Audio PCX 480: ข้อมูลจำเพาะทางเทคนิค |
|
|---|---|
| อินพุต (Balanced) | 4 x XLR |
| เอาต์พุต (Balanced) | 8 x XLR |
| อัตราแซมปลิง | 96 kHz |
| ตัวแปลง A/D และ D/A | 24-bit Delta-Sigma |
| ช่วงไดนามิก (Dynamic Range) | มากกว่า 109 dB (A-weighted) หรือ 107 dB (unweighted) |
| ระดับอินพุต/เอาต์พุตสูงสุด | +20 dBu (XLR Balanced) |
| คุณสมบัติอินพุตหลัก | Gain, Mute, HP/LP filters, 8-band PEQ, Polarity, Delay (680 ms) |
| คุณสมบัติเอาต์พุตหลัก | 9-band PEQ, Gain, Compressor/Limiter, Polarity, Delay (680 ms), Mute, Crossover/Band-pass filters |
| ประเภท EQ ฟิลเตอร์ | PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 และ All-Pass2 |
| ประเภท Crossover ฟิลเตอร์ | Butterworth, Bessel หรือ Linkwitz-Riley (ความชัน 6 dB/Oct ถึง 48 dB/Oct) |
| เครื่องกำเนิดสัญญาณ (Signal Generator) | Sine, White Noise, Pink Noise |
| การควบคุมและตั้งค่า | Ethernet & USB “B” port พร้อม PC Editor Software |
| มาตรวัดระดับ | มาตรวัด LED 5-segment พร้อม Limit Indication ในทุกเอาต์พุต และมาตรวัด LED 5-segment ในทุกอินพุต |
| การเชื่อมโยงแชนเนล | สามารถเชื่อมโยงแชนเนลเพื่อการทำงานแบบสเตอริโอที่ง่ายขึ้น |
| ระบบรักษาความปลอดภัย | Security Lock |
