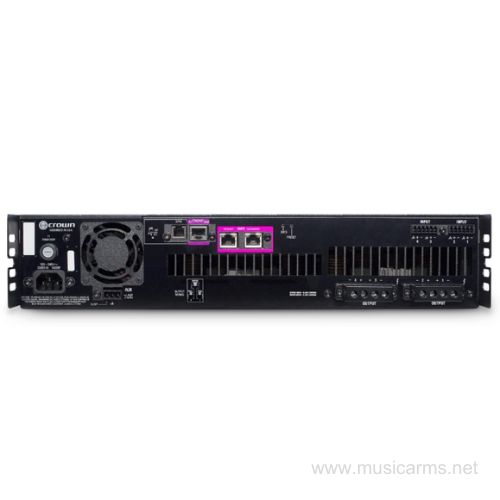

Crown DCi 4|300DA เพาเวอร์แอมป์ 4 แชนแนล
Description
Crown DCi 4|300DA: 4-Channel Class D Amplifier with Dante and 70V/100V Capability
The Crown DCi 4|300DA is a 4-channel Class D power amplifier designed for professional installation applications. It supports both low-impedance operation for high audio quality and high-impedance 70V/100V systems for long-distance signal distribution. With integrated Dante™ / AES67 networked audio over LAN, it offers seamless digital audio integration for modern sound systems. Its compact design makes it ideal for installations where space is limited.
Key Features
- 4-Channel Class D Amplifier: High efficiency and low power consumption
- Dante™ / AES67 Support: Networked digital audio over LAN
- Low-Z and High-Z Operation: Supports both ohm loads and 70V/100V systems
- Flexible Power Output:
- 4 x 150W @ 16Ω
- 4 x 300W @ 8Ω / 4Ω
- 4 x 150W @ 2Ω
- Bridge Mode:
- 600W @ 16Ω / 8Ω
- 300W @ 4Ω
- 70V/100V Capability: 300W (70Vrms / 100Vrms) and 600W in bridge mode (140Vrms / 200Vrms)
- Stereo and Mono Modes: Flexible system configuration
- Professional Connectivity: Terminal block inputs and binding post outputs
- Compact Design: Ideal for space-constrained installations
Who is it for?
- Installed Sound Systems: Conference rooms, hotels, and educational facilities
- PA / BGM Systems: Long-distance 70V/100V audio distribution
- Entertainment Venues: Clubs and cinemas requiring high-quality sound
- System Integrators: Dante-based networked audio solutions
Conclusion
The Crown DCi 4|300DA is a versatile and powerful installation amplifier that supports both analog and networked digital audio. With flexible impedance options, Dante integration, and a compact design, it is an excellent choice for modern professional audio systems.
Specification
[Product Name] Details |
|
|---|---|
| Type | Power Amplifier |
| Amplifier Class | Class D |
| Channels | 4 Channels |
| Power Output @ 8 Ohm | 300 W x 4 |
| Power Output @ 4 Ohm | 300 W x 4 |
| Power Output @ 2 Ohm | 150 W x 4 |
| Bridge Power @ 8 Ohm | 600 W x 2 |
| Bridge Power @ 4 Ohm | 300 W x 2 |
| Input Connectors | Terminal Block |
| Output Connectors | Binding Post |
| Power Supply | Switching Power Supply |
| Power Connector | 15A IEC |
| Rack Size | 2U |
| Power Requirement | 220 – 240V, 50 / 60 Hz |
| Dimensions | 483 x 362 x 89 mm |
| Weight | 9.12 kg |
ข้อมูลสินค้า
Crown DCi 4|300DA: เพาเวอร์แอมป์ 4 แชนแนล Class D รองรับ Dante และระบบ Volt Line
Crown DCi 4|300DA เป็นเพาเวอร์แอมป์ Class D แบบ 4 แชนแนล ที่ออกแบบมาสำหรับงานติดตั้งระดับมืออาชีพ รองรับทั้งการต่อแบบโอห์มสำหรับคุณภาพเสียงสูง และระบบโวลต์ไลน์ 70V / 100V สำหรับการเดินสายระยะไกล พร้อมรองรับการส่งสัญญาณเสียงแบบดิจิตอลผ่านระบบ Dante™ / AES67 ผ่านสาย LAN เหมาะสำหรับห้องประชุม ระบบเสียงตามสาย สถานบันเทิง และโรงภาพยนตร์ ด้วยดีไซน์ขนาดกะทัดรัด ช่วยประหยัดพื้นที่ในการติดตั้ง
คุณสมบัติเด่น
- เพาเวอร์แอมป์ Class D 4 แชนแนล: ประสิทธิภาพสูง ประหยัดพลังงาน
- รองรับ Dante™ / AES67: ส่งสัญญาณเสียงดิจิตอลผ่านเครือข่าย LAN
- รองรับทั้ง Low-Z และ High-Z: ใช้งานได้ทั้งแบบโอห์มและ Volt Line (70V / 100V)
- กำลังขับหลากหลาย:
- 4 x 150W @ 16Ω
- 4 x 300W @ 8Ω / 4Ω
- 4 x 150W @ 2Ω
- Bridge Mode:
- 600W @ 16Ω / 8Ω
- 300W @ 4Ω
- Volt Line: 70Vrms / 100Vrms (300W) และ Bridge 140Vrms / 200Vrms (600W)
- โหมด Stereo และ Mono: ยืดหยุ่นต่อการใช้งาน
- การเชื่อมต่อมืออาชีพ: Input แบบ Terminal Block และ Output แบบ Binding Post
- ดีไซน์กะทัดรัด: เหมาะกับพื้นที่ติดตั้งจำกัด
เหมาะกับใคร?
- งานติดตั้งระบบเสียง: ห้องประชุม โรงแรม โรงเรียน
- ระบบเสียงตามสาย (PA / BGM): รองรับ Volt Line ระยะไกล
- สถานบันเทิง / โรงภาพยนตร์: รองรับเสียงคุณภาพสูง
- System Integrator: ต้องการระบบเสียงผ่านเครือข่าย Dante
สรุป
Crown DCi 4|300DA เป็นเพาเวอร์แอมป์สำหรับงานติดตั้งที่ครบเครื่อง รองรับทั้งระบบเสียงแบบอะนาล็อกและดิจิตอลผ่าน Dante พร้อมความสามารถในการใช้งานทั้งแบบโอห์มและโวลต์ไลน์ ให้ความยืดหยุ่นสูง เหมาะสำหรับระบบเสียงยุคใหม่ที่ต้องการความเสถียรและคุณภาพระดับมืออาชีพ
รายละเอียดคุณสมบัติ
[ชื่อสินค้า] รายละเอียด |
|
|---|---|
| ประเภท | เพาเวอร์แอมป์ |
| คลาสแอมป์ | Class D |
| จำนวนแชนแนล | 4 แชนแนล |
| กำลังขับที่ 8 โอห์ม | 300 วัตต์ x 4 |
| กำลังขับที่ 4 โอห์ม | 300 วัตต์ x 4 |
| กำลังขับที่ 2 โอห์ม | 150 วัตต์ x 4 |
| กำลังขับแบบบริดจ์ที่ 8 โอห์ม | 600 วัตต์ x 2 |
| กำลังขับแบบบริดจ์ที่ 4 โอห์ม | 300 วัตต์ x 2 |
| ช่องสัญญาณเข้า | Terminal Block |
| ช่องสัญญาณออก | Binding Post |
| ภาคจ่ายไฟ | Switching Power Supply |
| Power Connector | 15A IEC |
| รูปแบบติดตั้ง | Rack 2U |
| แหล่งจ่ายไฟ | 220 – 240V, 50 / 60 Hz |
| ขนาด | 483 x 362 x 89 มม. |
| น้ำหนัก | 9.12 กก. |
