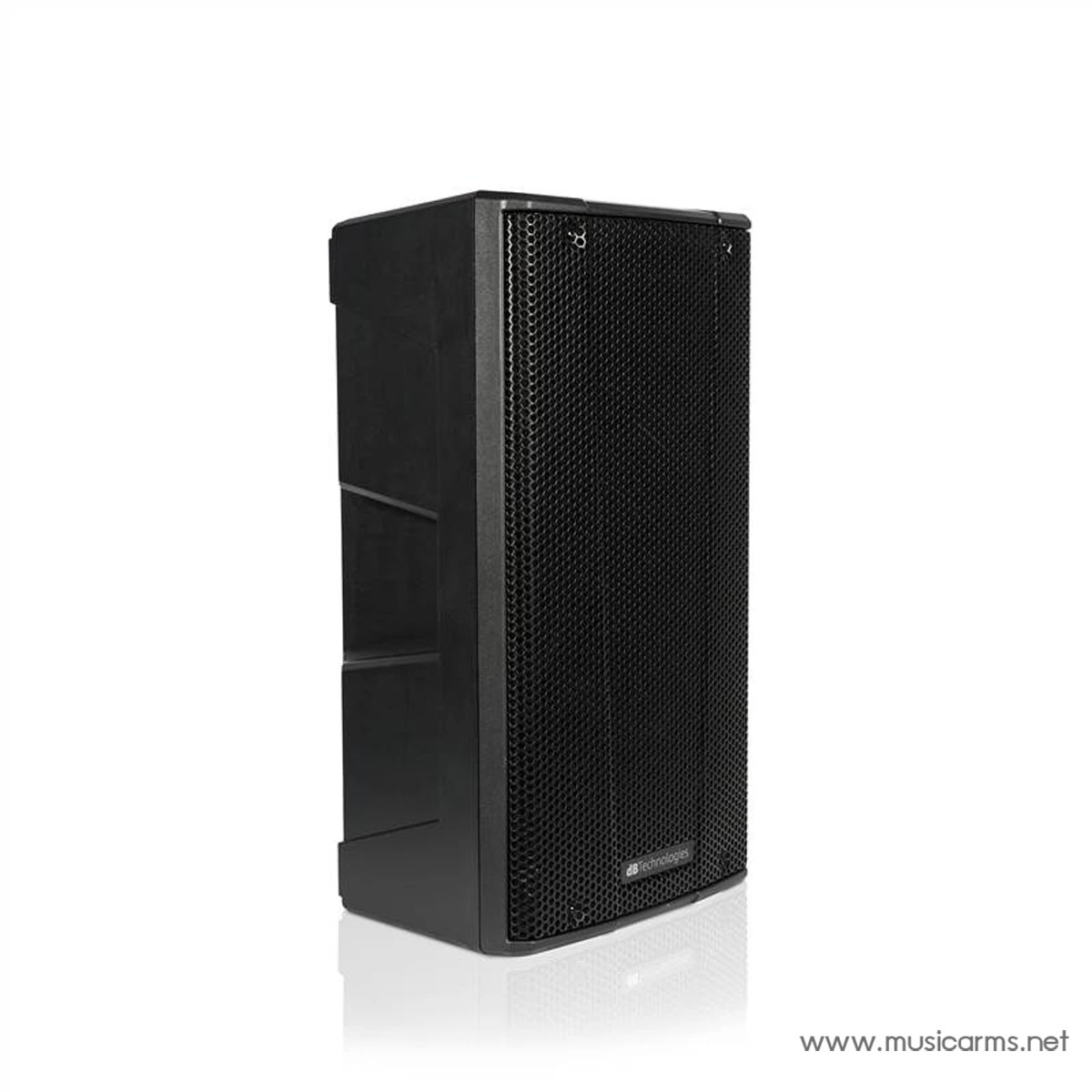

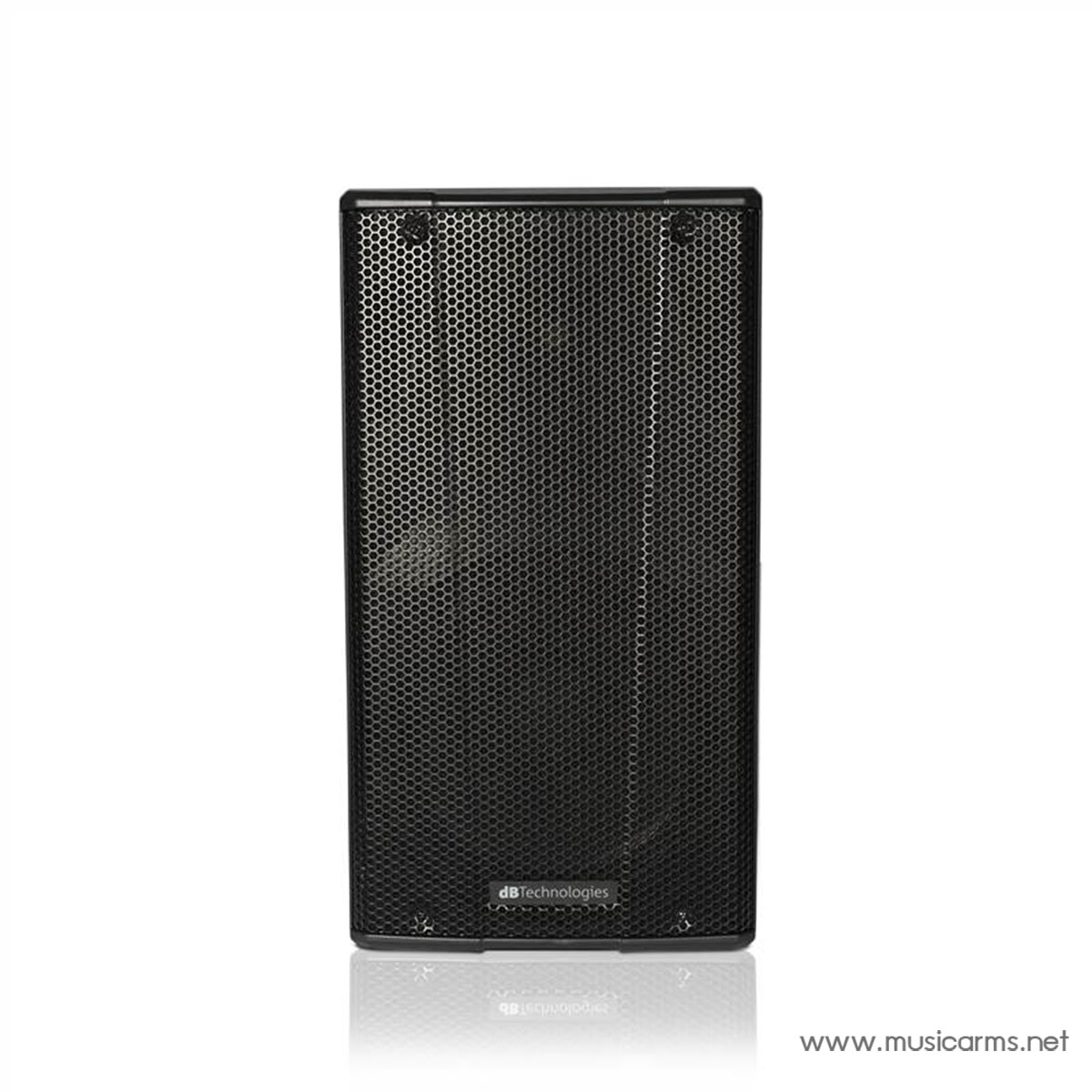

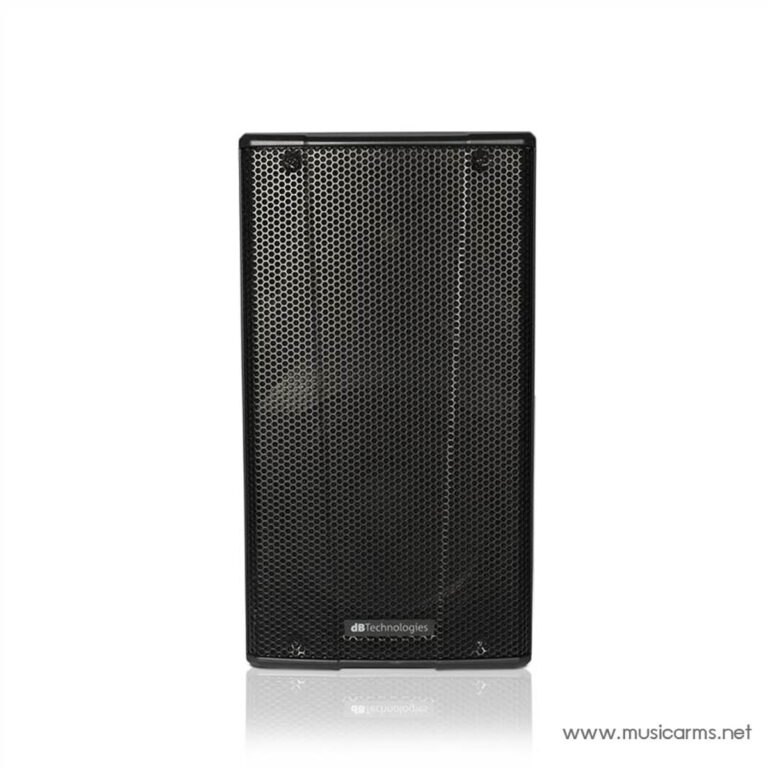

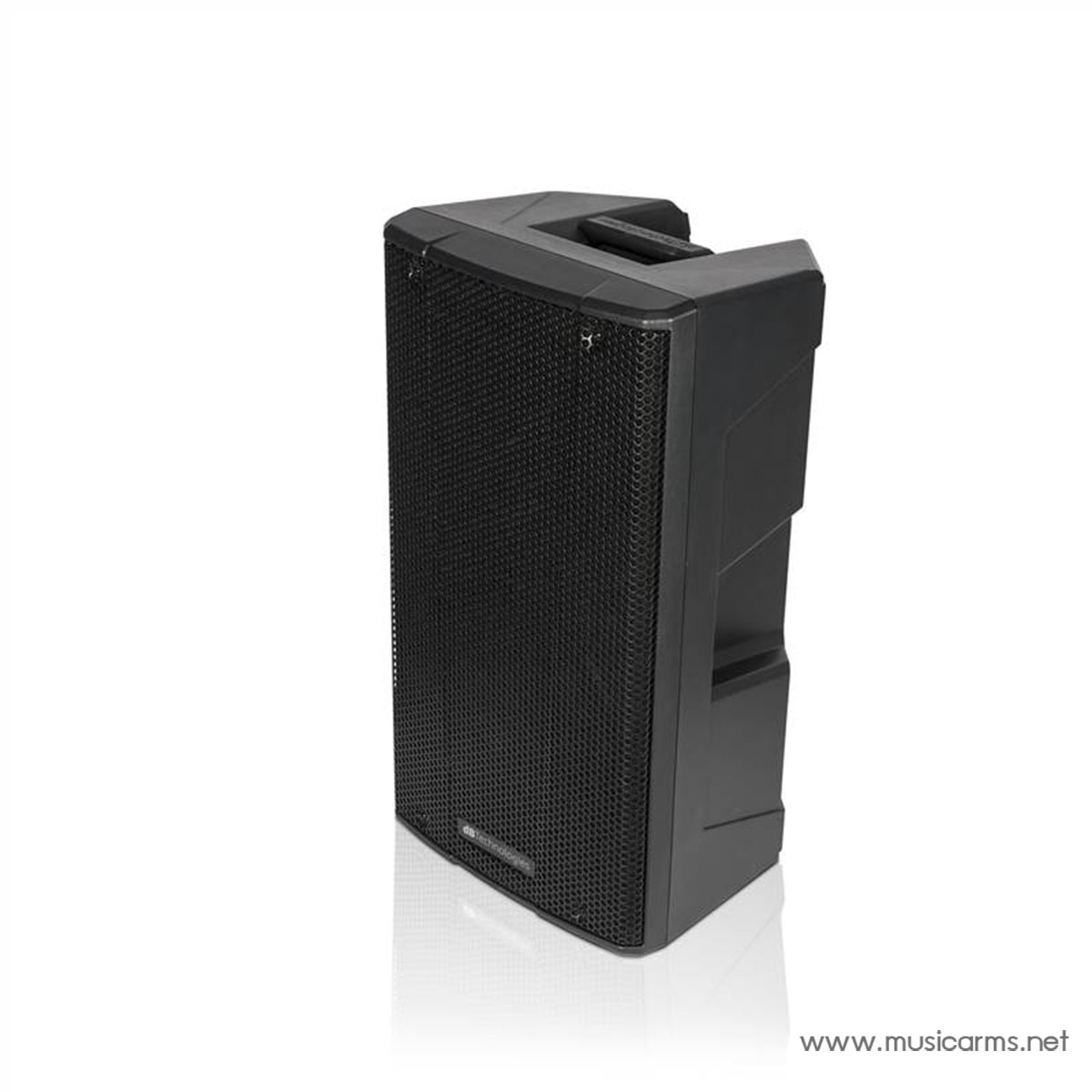

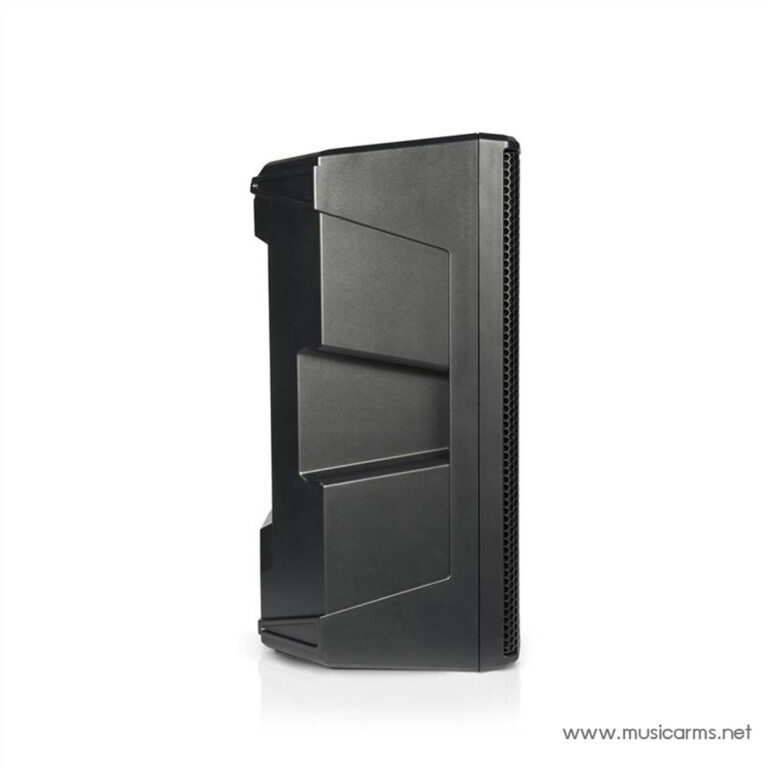

dB Technologies B-Hype 12 ลำโพง 2 ทาง 12 นิ้ว แอมป์ในตัว 400 วัตต์ ความดัง 126 dB

ราคา : 15,900 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ

Description
dB Technologies B-Hype 12: Professional Sonic Performance in a Versatile Design
The B·H series from dB Technologies aims to provide a professional yet efficient sonic performance for all types of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126.5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.
Key Features
- Customizable Sound Dispersion: The dispersion pattern is asymmetrical on the vertical axis and diversified (top and bottom) on the horizontal one, allowing for narrower and more efficient sound coverage and better performance in reverberant environments.
- Versatile Connectivity: The combo input (with source type selection) allows for easy and versatile use, suitable for a dynamic microphone and standard line input. A balanced link output also allows for audio connection to a second loudspeaker.
- DSP Preset Function: Users can easily enhance lower and upper frequencies with the convenient DSP preset function.

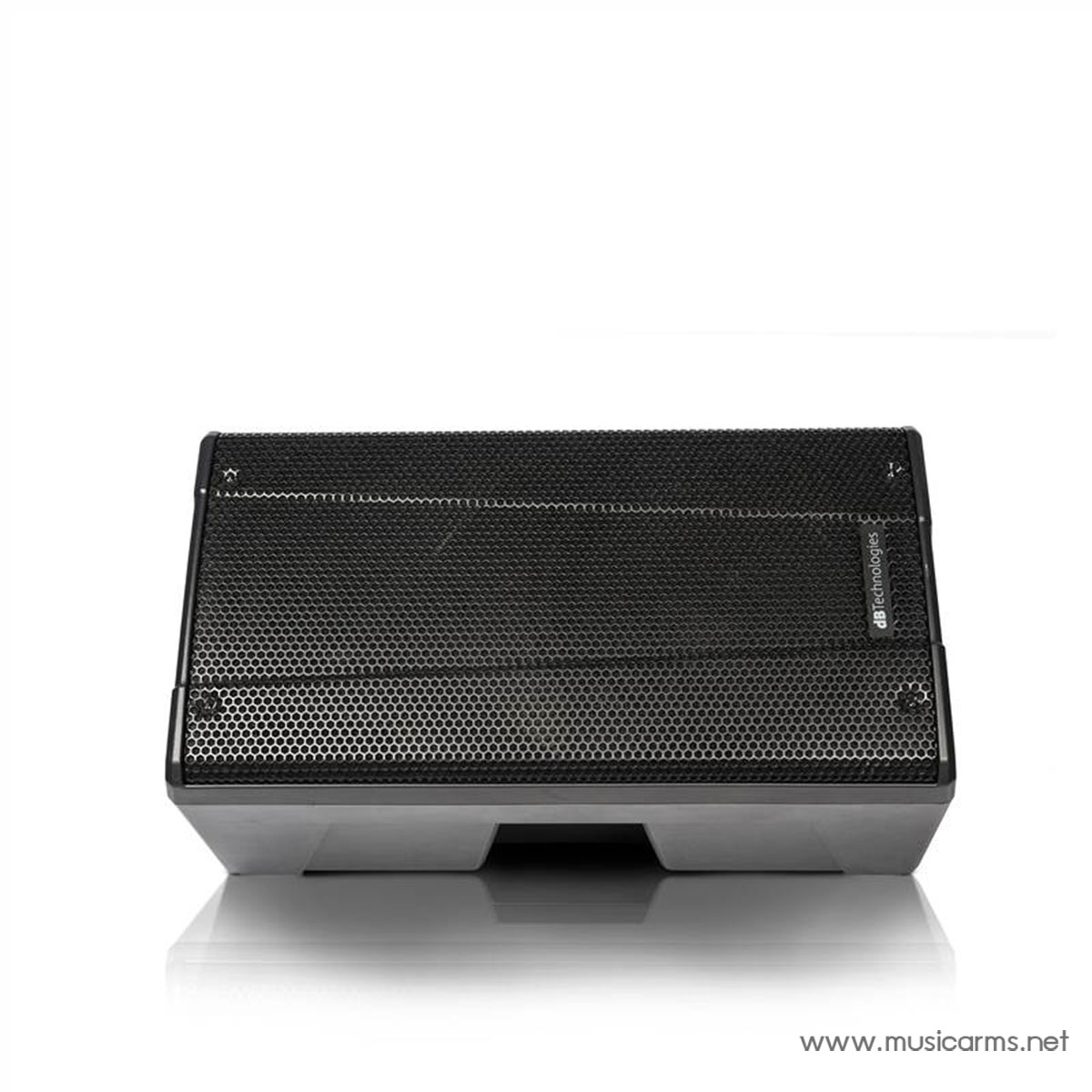

- Lightweight and Multifunctional Design: The featherweight cabinets come with a clean and contemporary full grille design, enhancing both portability (3 handles – 1x side and 1 on top) and functionality. Each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup for use on tripods or stacked on dBTechnologies Subs.
Conclusion
The dB Technologies B-Hype 12 is a versatile active speaker packed with impressive features. With its remarkable power and flexible features, it is perfect for gigging musicians as well as small venue installations. It’s built to meet your audio needs in a professional manner.
Specification
dB Technologies B-Hype 12 Technical Data |
|
|---|---|
| Speaker Type | 2-Way Active Speaker |
| Acoustical Data | |
| Usable Bandwidth [-10dB] | 55 – 20,000 Hz |
| Frequency Response [-6 dB] | 61 – 19,500 Hz |
| Max SPL | 126 dB |
| HF (High Frequency) Type | Compression Driver |
| HF Voice Coil | 1 “ |
| LF (Low Frequency) | 12 “ |
| LF Voice Coil | 2 “ |
| Crossover Frequency | 2100 Hz (24 dB/oct.) |
| Horizontal Dispersion | Asymmetrical 85° up / 120° down |
| Vertical Dispersion | 85° (+25 / -60°) |
| Amplifier | |
| Amp Technology | Custom Made |
| Amp Class | Class D – Passive Cooling (Convection) |
| Power Peak | 400 W |
| Processor | |
| Controller | DSP 28/56 bit- 48 kHz |
| Limiter | Peak, RMS, Thermal |
| Controls | Volume, Audio Input Sensitivity, DSP Preset |

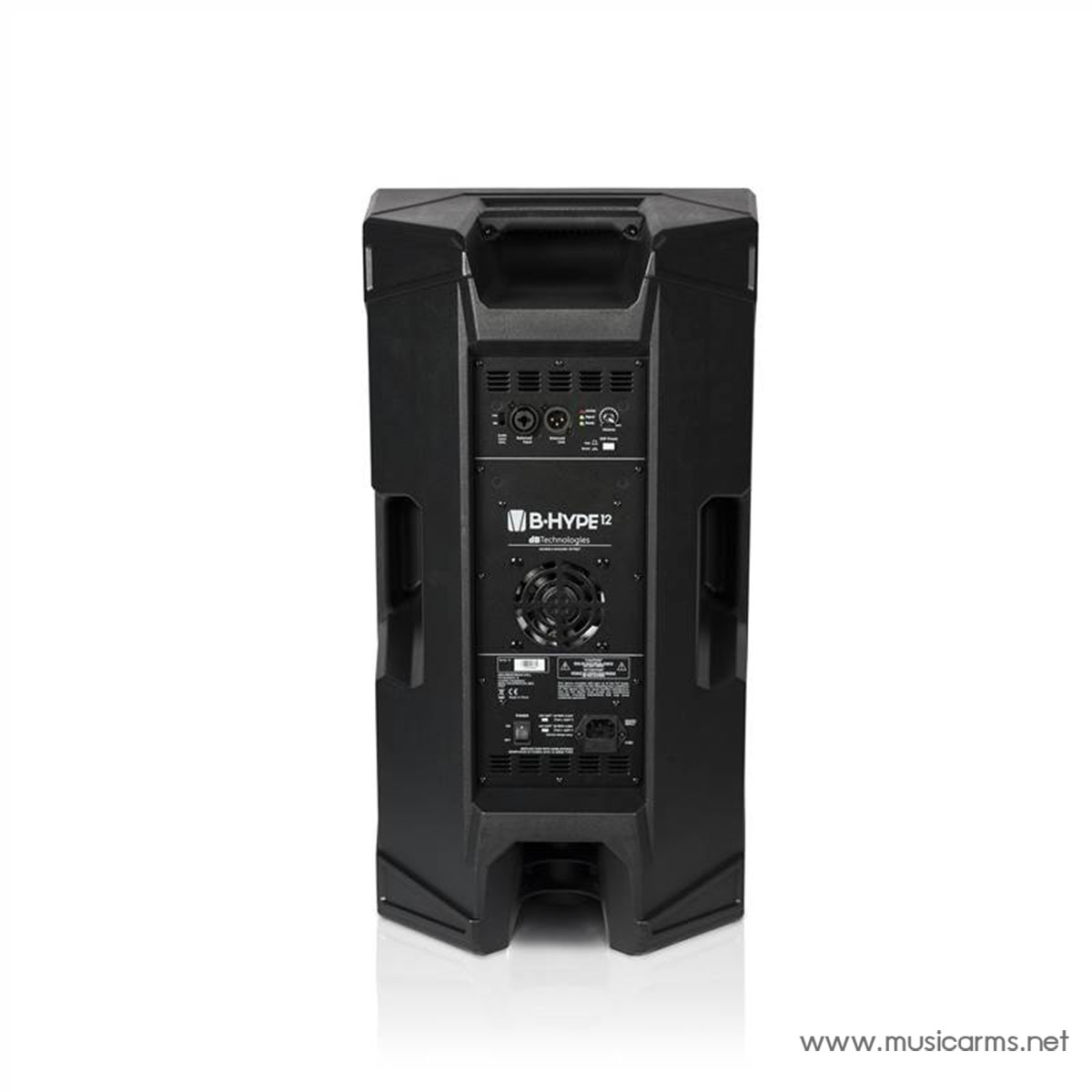

| Input / Output | |
| Main Connection | VDE |
| Signal Input | Balanced 1xCombo IN (MIC/LINE) |
| Signal Out | (Balanced) 1xXLR OUT (LINK) |
| Mechanics | |
| Housing | Polypropylene |
| Grille | Full Metal Grille |
| Handles | 3 (2 on side 1 on top) |
| Pole Mount | 36 mm |
| Width | 350 mm (13.77 in) |
| Height | 645 mm (25.40 in) |
| Depth | 330 mm (12.99 in) |
| Weight | 13.9 kg (30.46 lbs) |
| Angles Up (for monitor use) | Double wedge angle 45° |
ข้อมูลสินค้า
dB Technologies B-Hype 12: ประสิทธิภาพเสียงระดับมืออาชีพในดีไซน์ที่หลากหลาย
ลำโพงซีรีส์ B-Hype จาก dB Technologies มุ่งมั่นที่จะมอบประสิทธิภาพเสียงระดับมืออาชีพที่มีประสิทธิภาพสูงสำหรับผู้ใช้ทุกประเภท ด้วยการผสมผสานแอมพลิฟายเออร์ CLASS D ที่มีประสิทธิภาพสูงเข้ากับระดับความดันเสียงที่ทรงพลัง (สูงสุด 126.5 dB สำหรับตู้ลำโพงขนาด 15 นิ้ว) ในขณะเดียวกันก็ให้การสร้างเสียงที่แม่นยำที่สุด
คุณสมบัติเด่น
- การกระจายเสียงที่ปรับได้: มีรูปแบบการกระจายเสียงแบบไม่สมมาตรในแนวตั้ง และมีการกระจายที่แตกต่างกัน (บนและล่าง) ในแนวนอน ช่วยให้ครอบคลุมเสียงได้แคบและมีประสิทธิภาพมากขึ้น และมีประสิทธิภาพที่ดีขึ้นในสภาพแวดล้อมที่มีเสียงก้องกังวาน
- การเชื่อมต่อที่หลากหลาย: อินพุตแบบ Combo (พร้อมตัวเลือกประเภทแหล่งที่มา) ช่วยให้ใช้งานได้ง่ายและหลากหลาย เหมาะสำหรับไมโครโฟนไดนามิกและอินพุตไลน์มาตรฐาน นอกจากนี้ยังมีเอาต์พุต Balanced link สำหรับเชื่อมต่อกับลำโพงตัวที่สอง
- การปรับแต่งเสียงด้วย DSP: ผู้ใช้สามารถเพิ่มความถี่ต่ำและสูงได้ด้วยฟังก์ชัน DSP preset ที่ใช้งานง่าย
- ดีไซน์น้ำหนักเบาและใช้งานได้หลายฟังก์ชัน: ตู้ลำโพงมีน้ำหนักเบา มาพร้อมดีไซน์ตะแกรงเต็มรูปแบบที่ดูสะอาดตาและทันสมัย และยังเพิ่มความสะดวกในการพกพาด้วยหูจับ 3 อัน (1 ข้างและ 1 ด้านบน) ตัวตู้สามารถวางในแนวนอนเพื่อใช้เป็นมอนิเตอร์บนเวที (ได้ทั้งสองด้าน) และมีช่องเสียบเสาสำหรับใช้งานบนขาตั้งสามขาหรือวางซ้อนบนซับวูฟเฟอร์ของ dBTechnologies
สรุป
dB Technologies B-Hype 12 เป็นลำโพงแอคทีฟที่มีความหลากหลายและอัดแน่นไปด้วยคุณสมบัติที่น่าประทับใจ ด้วยกำลังขับที่โดดเด่นและคุณสมบัติที่ยืดหยุ่น ทำให้เหมาะสำหรับทั้งนักดนตรีที่ต้องแสดงสดและสำหรับการติดตั้งในสถานที่ขนาดเล็ก ตอบโจทย์ทุกความต้องการด้านเสียงของคุณได้อย่างมืออาชีพ
รายละเอียดคุณสมบัติ
ข้อมูลทางเทคนิค dB Technologies B-Hype 12 |
|
|---|---|
| ประเภทลำโพง | ลำโพงแอคทีฟ 2 ทาง |
| ข้อมูลเสียง | |
| ช่วงความถี่ที่ใช้งาน [-10dB] | 55 – 20,000 Hz |
| การตอบสนองความถี่ [-6 dB] | 61 – 19,500 Hz |
| ความดังสูงสุด (Max SPL) | 126 dB |
| ประเภท HF (High Frequency) | Compression Driver |
| วอยซ์คอยล์ HF | 1 นิ้ว |
| ประเภท LF (Low Frequency) | 12 นิ้ว |
| วอยซ์คอยล์ LF | 2 นิ้ว |
| ความถี่ครอสโอเวอร์ | 2100 Hz (24 dB/oct.) |
| การกระจายเสียงแนวนอน | ไม่สมมาตร 85° ขึ้น / 120° ลง |
| การกระจายเสียงแนวตั้ง | 85° (+25 / -60°) |
| แอมพลิฟายเออร์ | |
| เทคโนโลยีแอมป์ | Custom Made |
| ประเภทแอมป์ | Class D – ระบบระบายความร้อนแบบ Passive (การพาความร้อน) |
| กำลังขับสูงสุด (Power Peak) | 400 W |
| โปรเซสเซอร์ | |
| คอนโทรลเลอร์ | DSP 28/56 bit- 48 kHz |
| ลิมิตเตอร์ | Peak, RMS, Thermal |
| การควบคุม | Volume, Audio Input Sensitivity, DSP Preset |
| อินพุต / เอาต์พุต | |
| การเชื่อมต่อหลัก | VDE |
| อินพุตสัญญาณ | Balanced 1xCombo IN (MIC/LINE) |
| เอาต์พุตสัญญาณ | (Balanced) 1xXLR OUT (LINK) |
| คุณสมบัติทางกล | |
| วัสดุตัวเครื่อง | Polypropylene |
| ตะแกรง | ตะแกรงโลหะเต็มแผ่น |
| หูจับ | 3 (2 ด้านข้าง 1 ด้านบน) |
| รูเสียบขาตั้ง | 36 มม. |
| ความกว้าง | 350 มม. (13.77 นิ้ว) |
| ความสูง | 645 มม. (25.40 นิ้ว) |
| ความลึก | 330 มม. (12.99 นิ้ว) |
| น้ำหนัก | 13.9 กก. (30.46 ปอนด์) |
| องศามุมเอียง (สำหรับมอนิเตอร์) | Double wedge angle 45° |
