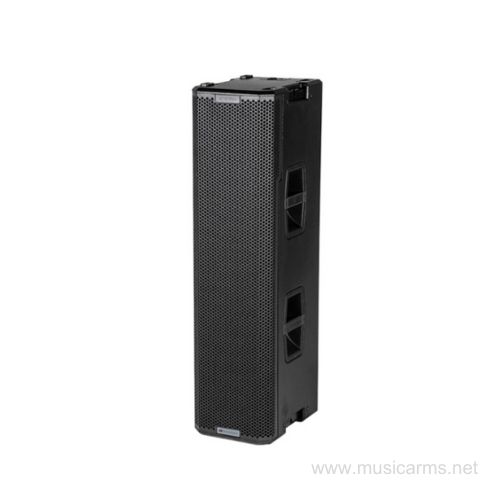

dBTechnologies INGENIA IG5TR ลําโพงคอลัมน์ 3×10 นิ้ว 2 ทาง 3200 วัตต์
ราคา : 187,000 บาท
Description
dBTechnologies INGENIA IG5TR: Advanced Active Column Speaker with Precision Sound Control
The dBTechnologies INGENIA IG5TR is a professional 2-way active column loudspeaker designed for high-end events and fixed installations. Featuring a Quad-Amplified Class-D power section with up to 3200 watts peak output, built-in 32-bit DSP, and advanced Beam Steering and Beam Forming technology, it delivers precise and consistent sound coverage in any listening environment.
Key Features
- Powerful Multi-Driver Configuration: Three 10-inch neodymium woofers combined with a 1.4-inch compression driver (3-inch voice coil) provide deep low frequencies and crystal-clear high-frequency reproduction
- Up to 3200W Peak Power: Quad-amplified Class-D design delivers a maximum SPL of 135.5 dB, ideal for large-scale professional applications
- Built-in 32-bit DSP with OLED Display: Real-time system monitoring and intuitive control via a high-brightness OLED screen
- Advanced Beam Steering Technology: Vertical sound dispersion can be adjusted in 7 steps, allowing precise control of sound direction and coverage
- RDNet and Aurora Net Compatibility: Full remote control, system tuning, and monitoring through dBTechnologies Aurora Net software
- SPD (Speaker Position Detection): Automatically detects and synchronizes speaker positioning when multiple units are used
- Rugged Cabinet for Touring and Installation: Plywood enclosure with durable Polyurea coating and integrated raincover for outdoor use
Who Is the INGENIA IG5TR For?
- Live Events and Productions: Ideal for concerts and events requiring precise sound coverage and high output
- Fixed Installations: Perfect for theaters, houses of worship, auditoriums, and large venues
- Professional Audio Engineers: Users who demand network control, advanced DSP, and flexible deployment options
Conclusion: A High-End Column Speaker for Ultimate Sound Control
The dBTechnologies INGENIA IG5TR combines powerful performance, intelligent digital processing, and advanced beam control into a single professional loudspeaker system. It is the ideal choice for applications where sound precision, reliability, and system scalability are essential.
Specification
Speaker Specifications |
|
|---|---|
| Subwoofer Drivers | 3 x 10-inch subwoofers |
| High Frequency Driver | 1 x 1.4-inch HF driver |
| Frequency Response | 55 Hz – 20 kHz (-10 dB) |
| Maximum SPL | 135.5 dB |
| Horizontal Coverage | 90° |
| Vertical Coverage | 75° |
| Amplifier Power | 3200 W (Peak) |
| Filter Type | FIR Filter |
| Sound Presets | Yes |
| AC Power Connector | PowerCON |
| Power Requirement | 220 – 240 VAC, 50 / 60 Hz |
| Speaker Output | External speaker connection |
| Cabinet Material | Plywood |
| Weight | 35 kg |
| Dimensions (W x D x H) | 280 x 380 x 1100 mm |
ข้อมูลสินค้า
dBTechnologies INGENIA IG5TR: ลำโพงคอลัมน์แอคทีฟอัจฉริยะ ควบคุมทิศทางเสียงได้อย่างแม่นยำ
dBTechnologies INGENIA IG5TR คือ ลำโพงคอลัมน์แอคทีฟ 2 ทาง ระดับมืออาชีพที่ออกแบบมาเพื่อตอบโจทย์งานอีเวนต์และงานติดตั้งถาวรโดยเฉพาะ โดดเด่นด้วยภาคขยายเสียง Class-D แบบ Quad-Amplified กำลังขับสูงสุด 3200 วัตต์ พร้อม DSP 32-bit ในตัว และเทคโนโลยี Beam Steering / Beam Forming ที่ช่วยควบคุมการกระจายเสียงให้ครอบคลุมพื้นที่ฟังได้อย่างแม่นยำและสม่ำเสมอ
Key Features
- ระบบลำโพงทรงพลัง: วูฟเฟอร์ขนาด 10 นิ้ว จำนวน 3 ดอก (Neodymium) และไดรเวอร์เสียงแหลม Compression Driver ขนาด 1.4 นิ้ว Voice Coil 3 นิ้ว ให้พลังเสียงที่ชัดเจนและหนักแน่น
- กำลังขับสูงสุด 3200 วัตต์: แอมป์ Class-D แบบ Quad-Amplified ให้ความดังสูงสุดถึง 135.5 dB รองรับงานขนาดใหญ่ได้สบาย
- DSP 32-bit พร้อมจอ OLED: ตรวจสอบและปรับแต่งค่าต่าง ๆ ได้แบบเรียลไทม์ ผ่านจอแสดงผล OLED ความสว่างสูง
- Beam Steering ปรับทิศทางเสียง: ควบคุมมุมกระจายเสียงแนวตั้งได้ 7 ระดับ ช่วยกระจายเสียงอย่างแม่นยำ ลดปัญหาเสียงสะท้อนและเสียงทับซ้อน
- ควบคุมผ่านเครือข่าย RDNet: รองรับซอฟต์แวร์ Aurora Net สำหรับตั้งค่า ตรวจสอบ และบริหารจัดการระบบลำโพงทั้งระบบ
- เซนเซอร์ SPD อัจฉริยะ: ตรวจจับตำแหน่งลำโพงและซิงก์การทำงานอัตโนมัติเมื่อติดตั้งหลายใบ
- โครงสร้างแข็งแรง พร้อมใช้งานกลางแจ้ง: ตู้ไม้ Plywood เคลือบ Polyurea แข็งแรงทนทาน มาพร้อม Raincover สำหรับงาน Outdoor
เหมาะสำหรับใคร?
- งานอีเวนต์และคอนเสิร์ต: ให้พลังเสียงครอบคลุมพื้นที่กว้าง และควบคุมทิศทางเสียงได้อย่างมืออาชีพ
- งานติดตั้งถาวร: เหมาะสำหรับฮอลล์, โรงละคร, ศาสนสถาน หรือพื้นที่ที่ต้องการคุณภาพเสียงสม่ำเสมอ
- ผู้ดูแลระบบเสียงมืออาชีพ: ต้องการลำโพงที่สามารถควบคุมและตรวจสอบผ่านเครือข่ายได้แบบครบวงจร
สรุป: ลำโพงคอลัมน์ระดับไฮเอนด์ สำหรับงานที่ต้องการความแม่นยำสูง
dBTechnologies INGENIA IG5TR คือโซลูชันลำโพงคอลัมน์ที่ผสานพลังเสียง เทคโนโลยีดิจิทัล และการควบคุมอัจฉริยะไว้ในตัวเดียว เหมาะสำหรับงานระดับมืออาชีพที่ต้องการคุณภาพเสียงสูง การกระจายเสียงที่แม่นยำ และความยืดหยุ่นในการติดตั้งทั้งภายในและภายนอกอาคาร
รายละเอียดคุณสมบัติ
รายละเอียดลำโพง (Speaker Specifications) |
|
|---|---|
| ดอกซับวูฟเฟอร์ | ขนาด 10 นิ้ว จำนวน 3 ดอก |
| ดอกเสียงแหลม | ขนาด 1.4 นิ้ว จำนวน 1 ดอก |
| ตอบสนองความถี่ | 55 Hz – 20 kHz (-10 dB) |
| ความดังสูงสุด (Max SPL) | 135.5 dB |
| มุมกระจายเสียงแนวนอน | 90 องศา |
| มุมกระจายเสียงแนวตั้ง | 75 องศา |
| กำลังขยายแอมป์ (Amplifier Power) | 3200 วัตต์ (Peak) |
| ชนิดฟิลเตอร์ | FIR Filter |
| พรีเซ็ตเลือกเสียง | มี |
| ช่องเสียบไฟ AC | PowerCON |
| แรงดันไฟฟ้า | 220 – 240 VAC, 50 / 60 Hz |
| การเชื่อมต่อลำโพง | เชื่อมต่อลำโพงภายนอกตู้ |
| วัสดุ | ไม้อัด (Plywood) |
| น้ำหนัก | 35 กิโลกรัม |
| ขนาด (กว้าง x ลึก x สูง) | 280 x 380 x 1100 มม. |
