DiGiCo Quantum 326 มิกเซอร์ดิจิตอล

DiGiCo Quantum 326: Flagship Digital Mixing Console for Live & Broadcast

The DiGiCo Quantum 326 is a high-performance digital mixing console designed for live sound, broadcast, and advanced audio system applications. It supports up to 128 input channels, 64 busses, and a fully processed 24 x 24 matrix (expandable with the Theatre Option). Every channel features full signal processing, delivering exceptional power and flexibility in a compact console format.

The console includes 8 onboard mic/line inputs and 8 line outputs equipped with 32-bit “Ultimate Stadius” converters, ensuring pristine audio quality, excellent dynamic range, and precise signal integrity.

Professional Control and Workflow

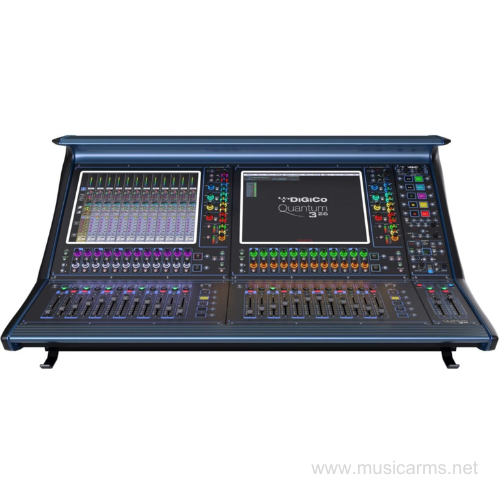

Quantum 326 features dual 17-inch high-brightness multitouch screens (1000 nits), capable of displaying the Meter Bridge and Soft Quick Select functions on each screen for fast and intuitive operation.

The surface provides 26 faders arranged in two main banks of 12 faders each, plus two dedicated master faders. Each bank offers 3 layers with 4 banks per layer, and all faders are freely assignable to any channel type.

Key Features

• Maximum Input Channels: 128/156 channels
• Aux / Sub-group Busses: 64/72 busses
• Master Buss Formats: LR / LCR / LCRS / 5.1
• Control Groups: 24 VCA or Mute Groups
• Solo Busses: 2 busses
• Matrix: 24 x 24 full processing (expandable to 36 x 36 with Theatre Option)
• Internal FX Rack: Up to 34 effect types
• Stereo Effects: Up to 24 instances
• Floating Point Reverbs: Up to 16, plus Delay, Chorus, Pitch, and Enhancer combinations
• 32-Band Graphic EQ: 24 instances
• Spice Rack: Up to 8 mono effects
• Mustard Processing Strip: 36/48 insertable channel strips
• Flexible Insert Points: Pre-Processing, Pre-EQ/Dynamics, Mid-EQ/Dynamics, Pre-Fader, and Post-Fader
• Nodal Processing: 64/72 instances for EQ and dynamics at Aux Nodes
• Waves SoundGrid or Fourier Audio Interface Support: 64 inputs / 64 outputs (SoundGrid or Dante)

Who Is It For?

• Professional Live Productions: Concert tours and large-scale events
• Broadcast Facilities: TV studios and live streaming production
• Advanced Audio Installations: Theatres and complex system environments

Conclusion

The DiGiCo Quantum 326 combines exceptional processing power, flexibility, and world-class audio quality in one advanced digital console. It is built for professionals who demand reliability and performance at the highest level.
