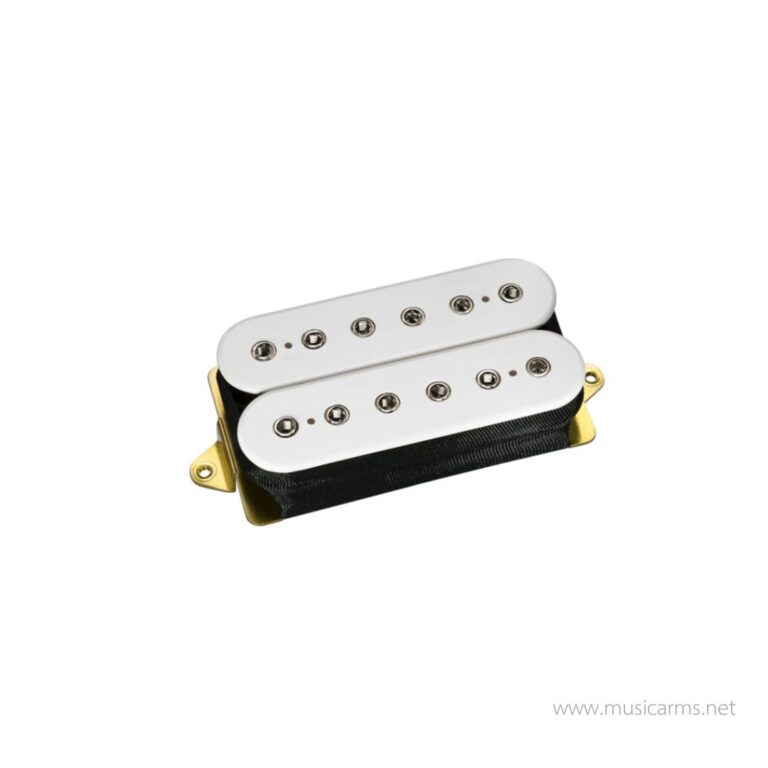

Dimarzio Super 2 DP104 – F Spaced

DiMarzio Super 2 DP104

is a humbucker pickup designed to deliver a powerful, articulate, and highly responsive tone. It works well in both neck and bridge positions.

Tone Characteristics

• Produces a bright and clear sound

• Emphasizes the treble frequencies, helping the guitar cut through the mix

• Slightly reduced bass response compared to the Super Distortion

• Ideal for guitars with naturally dark or thick tones, such as 24¾” scale or 25½” bolt-on guitars, helping achieve a more balanced overall tone

Specifications

• Magnet: Alnico 5

• Wiring: 4-conductor (supports coil splitting / phase reversal)

• DC Resistance: approx. 8.28 kΩ

• Output: 400 mV

Application

• Well-suited for hard rock and high-gain styles

• Neck position: Produces a thick, powerful tone

• Bridge position: Clear and bright, cuts through the mix without sounding harsh

• Pairs well with other high-output pickups such as PAF Pro, FRED, or Evolution Neck

Key Features

• Balanced, articulate, and highly dynamic tone

• Great for both lead lines and chords requiring clarity

• Adjustable tone response through pole-piece screws

• Made in the USA

Recommended For

Musicians seeking a pickup with a bright, clear, and powerful tonal character—especially for rock and metal styles.

Specifications – DiMarzio Super 2 DP104

Recommended Position: Suitable for all positions (Neck / Bridge)
Magnet: Alnico 5
DC Resistance: 8.7 kΩ
Output: 400 mV

Tone Guide

• Bass: 4.0

• Mid: 6.0

• Treble: 8.0

Wiring: 4-conductor (supports coil-splitting and phase reversal)

Specifications – DiMarzio Super 2 DP104

• ตำแหน่งที่แนะนำ: ใช้งานได้ทุกตำแหน่ง (Neck / Bridge)

• แม่เหล็ก: Alnico 5

• DC Resistance: 8.7 kΩ

• Output: 400 mV

• Tone Guide:

  • Bass: 4.0

  • Mid: 6.0

  • Treble: 8.0

• การเดินสาย: 4 Conductor (รองรับการตัดคอยล์ / กลับเฟส)
