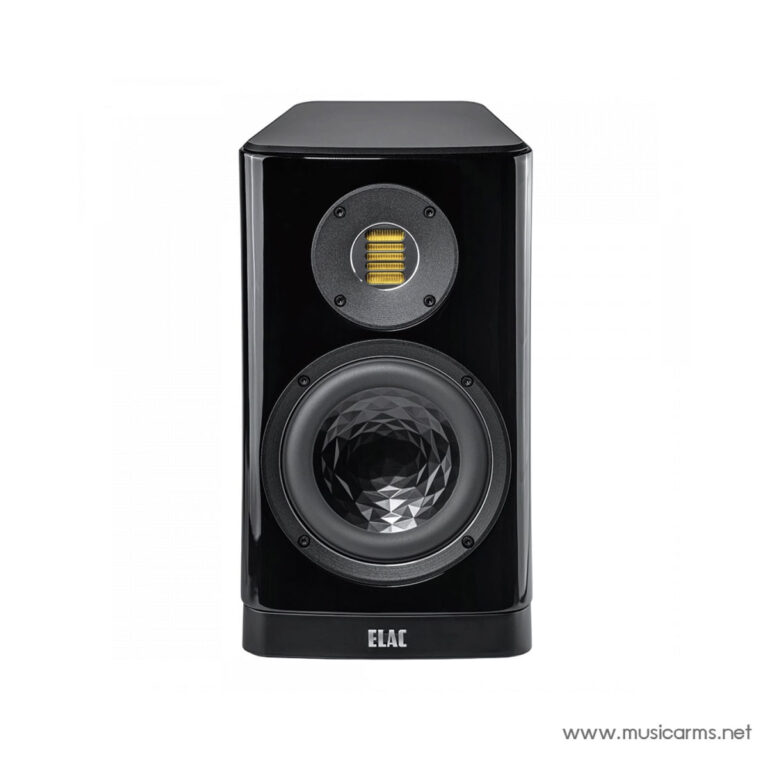

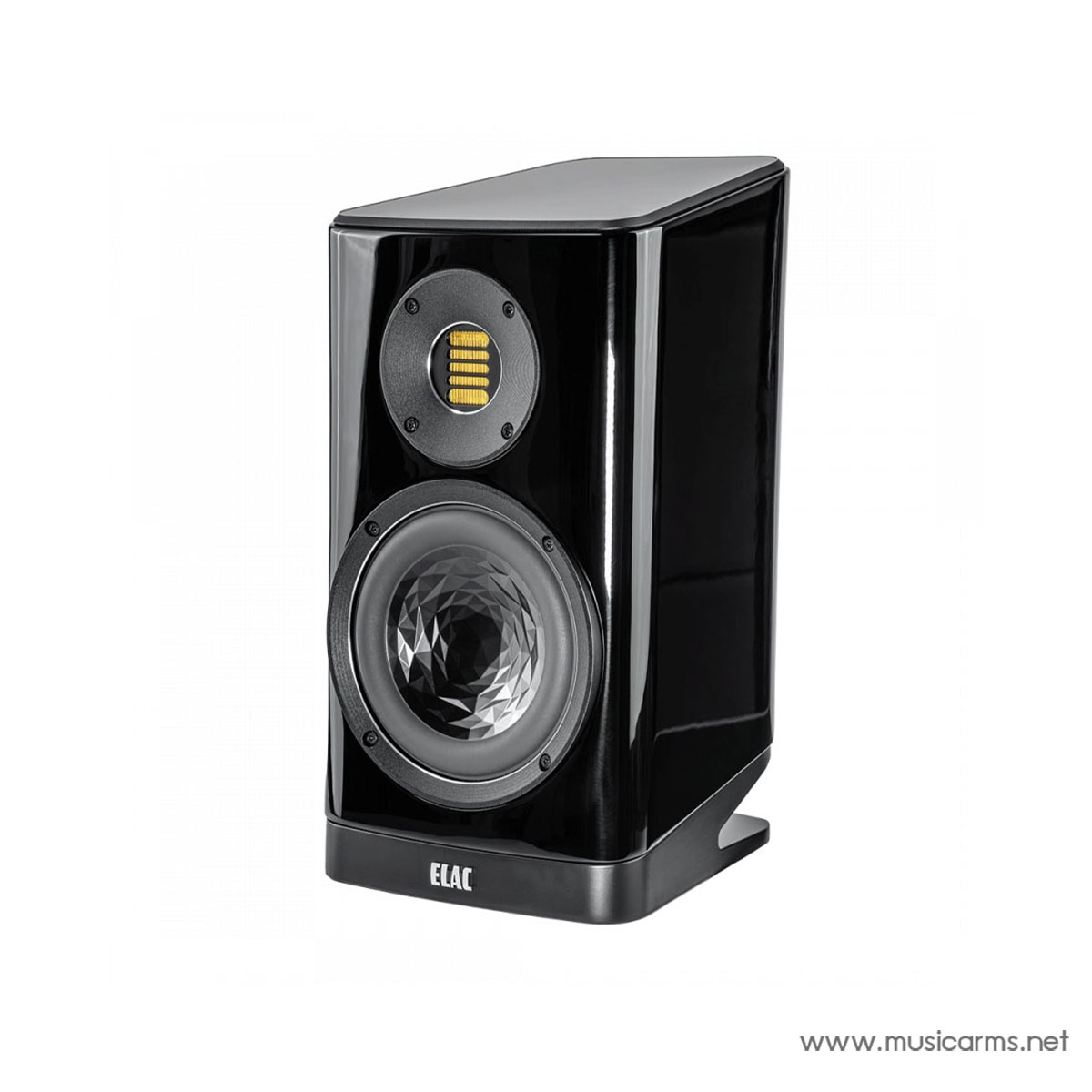

Elac Vela BS-403.2 ลำโพง Bookshelf 2 ทาง

คลิ๊กที่ภาพเพื่อขยาย

ราคา : 65,050 บาท

รุ่น :  Elac Vela BS-403.2 ตู้ลำโพง Active Speaker
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ Elac Vela BS-403.2 ลำโพง Bookshelf 2 ทางผ่านline สั่งซื้อ Elac Vela BS-403.2 ลำโพง Bookshelf 2 ทางผ่าน messenger

Description

Elac Vela BS-403.2: 6″ 2-Way Bookshelf Speakers with JET 6 Tweeter for High-Fidelity Sound in a Compact Form 🔊

The Elac Vela BS-403.2 (Black Highgloss) is a 2-way bookshelf speaker that masterfully illustrates the harmony between stunning design and acoustic function within a compact form factor. The speaker retains the VELA line’s signature visually stunning trapezoid shape and high-gloss finish, which not only provides a profound visual impact but also acoustically improves performance by reducing internal reflections. At its core, the BS-403.2 leverages 95 years of ELAC acoustic engineering, featuring the famed **JET 6 Air Motion Transformer tweeter** for lightning-fast, detailed high frequencies (up to 50kHz). Combined with a newly developed **Crystal Membrane aluminum-sandwich woofer** and a custom designed cast chassis, the Vela BS-403.2 delivers exceptional stereo definition and a dynamic, low-distortion sound that belies its size.

Key Features and Core Technologies

  • Inimitable JET 6 Tweeter: Designed and engineered in Germany, the JET 6 provides ultra-fast transient response and extended linear frequency response (> 50 kHz), ensuring breathtaking detail resolution and minimal distortion in the high-frequency spectrum.
  • AS-XR Crystal Membrane Woofer: This proprietary aluminum sandwich cone, reinforced by its crystal shape, offers increased stiffness and excellent large signal behavior, enabling powerful, clear bass extension even from the smaller cabinet.

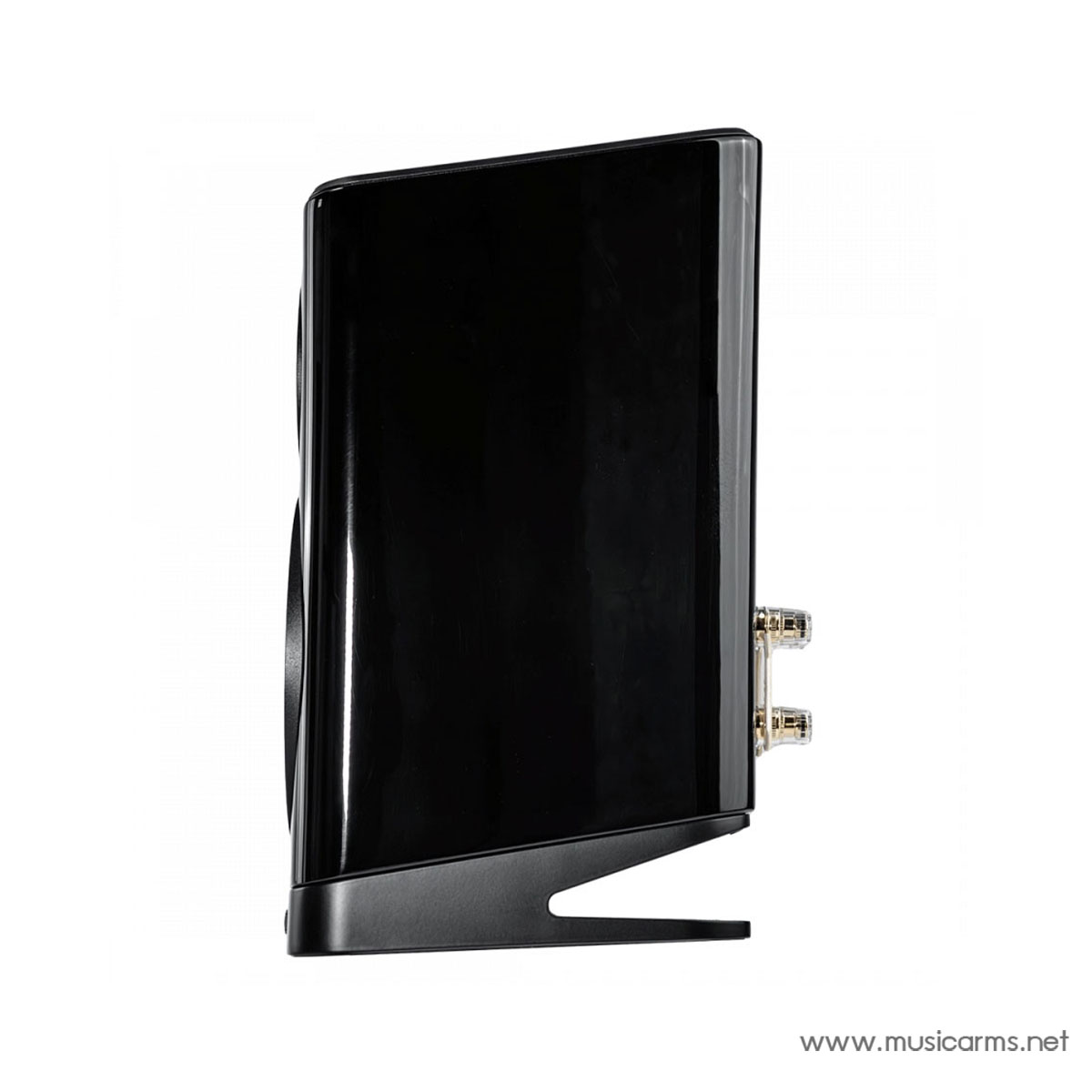

  • Downward Firing Bass Port: The bass reflex port exits downward from the speaker’s base plate. This design provides greater flexibility in placement (on shelves or stands) and reduces the potential for chuffing noise.
  • Acoustically Optimized Cabinet: The trapezoidal profile and convex baffle shape work together to reduce internal standing waves and external reflections, resulting in improved stereo image accuracy and sonic clarity.
  • Premium Build Quality: High-gloss lacquered cabinets combined with decorative aluminum elements highlight the meticulous German craftsmanship and visual appeal of the VELA line.

Summary: Audiophile Sound in a Bookshelf Design

The Elac Vela BS-403.2 offers a high-fidelity experience without requiring floorstanding space. By incorporating the flagship JET 6 tweeter and the innovative Crystal Membrane woofer into a meticulously designed cabinet, this speaker delivers transparent, dynamic, and musically engaging sound. For audiophiles looking for compact elegance and serious performance, the BS-403.2 is an essential listening choice.

Specification

Technical Specifications: Elac Vela BS-403.2

Type 2-Way, Bass Reflex
Woofer 1 × 150 mm Ø, AS-XR Cone
Tweeter JET 6
Magnetic Shielding No
Crossover Frequency 2400 Hz
Frequency Range (IEC 268-5) 41 – 50000 Hz
Sensitivity 86 dB at 2.83 V/m
Suitable for amplifiers from 4Ω – 8Ω
Recommended Amplifier Power 40 – 200 W/channel
Nominal | Peak Power Handling 70 W | 100 W
Nominal | Minimum Impedance 4Ω | 3.2Ω at 260 Hz
Finishes Black High Gloss, White High Gloss, Walnut High Gloss
Optional Accessory Speaker Grilles
Dimensions (H x W x D) 362 × 191 × 240 mm
Weight 7.1 kg

ข้อมูลสินค้า

Elac Vela BS-403.2: ลำโพง Bookshelf 2 ทาง ขนาด 6 นิ้ว ที่ให้เสียงรายละเอียดสูงและเบสเต็มพลัง 🔊

Elac Vela BS-403.2 (Black Highgloss) เป็นลำโพงวางหิ้ง (Bookshelf) แบบ 2 ทาง ที่ผสมผสานความกะทัดรัดเข้ากับประสิทธิภาพเสียงระดับไฮเอนด์ได้อย่างโดดเด่น ด้วยรูปทรงสี่เหลี่ยมคางหมูอันเป็นเอกลักษณ์และพื้นผิวเคลือบเงา ลำโพงรุ่นนี้จึงไม่เพียงแต่มีรูปลักษณ์ที่สวยงามเท่านั้น แต่ดีไซน์นี้ยังช่วยเพิ่มคุณสมบัติทางอะคูสติกด้วย หัวใจหลักของ BS-403.2 คือเทคโนโลยีที่สืบทอดมาจากประสบการณ์กว่า 95 ปีของ Elac ได้แก่ **JET 6 Tweeter** ที่ให้การตอบสนองความถี่สูงที่รวดเร็วและบริสุทธิ์ถึง 50kHz ผสานกับวูฟเฟอร์ **Crystal Membrane** ที่ออกแบบใหม่พร้อมโครงแชสซีอะลูมิเนียมหล่อขึ้นรูป ทำให้ Vela BS-403.2 มอบความละเอียดเสียงสเตอริโอที่คมชัดและเบสที่ลึกเกินตัวสำหรับลำโพงขนาดกะทัดรัด

คุณสมบัติเด่นและเทคโนโลยีหลัก

  • JET 6 Tweeter ระดับตำนาน: ออกแบบในเยอรมนี มอบการตอบสนองความถี่สูงที่รวดเร็วและกว้างถึง 50kHz ด้วยหลักการ Air Motion Transformer ให้รายละเอียดเสียงที่คมชัดและมี Distortion ต่ำอย่างน่าทึ่ง
  • วูฟเฟอร์ Crystal Membrane (AS-XR): ใช้กรวยอะลูมิเนียมแซนด์วิชรูปทรงคริสตัลที่แข็งแกร่ง ให้การตอบสนองความถี่ที่กว้างขึ้นและเบสที่ทรงพลังแม้จากตู้ขนาดเล็ก เนื่องจากความสามารถในการลด VAS (Volume of Air Stored)
  • พอร์ตเบสยิงลงพื้น (Downward Firing Port): พอร์ตสะท้อนเสียงเบสอยู่ด้านล่างของตู้ลำโพง ช่วยให้การจัดวางลำโพงมีความยืดหยุ่นสูงบนชั้นวางหรือขาตั้ง และช่วยลดเสียงลมรบกวน
  • ดีไซน์ตัวตู้ลดการสะท้อน: รูปทรงสี่เหลี่ยมคางหมูพร้อมแผ่นกั้นหน้าแบบนูน (Convex Baffle) ช่วยลดการสะท้อนของเสียง ปรับปรุงความแม่นยำของภาพเสียงสเตอริโอ
  • โครงสร้างระดับพรีเมียม: ตัวตู้เคลือบเงาแบบ High-gloss พร้อมองค์ประกอบอะลูมิเนียมตกแต่ง สร้างความหรูหรา และความทนทานตามมาตรฐานวิศวกรรมของ Elac

สรุป: ประสิทธิภาพ Hi-Fi เต็มรูปแบบในดีไซน์ Bookshelf

Elac Vela BS-403.2 เป็นทางเลือกที่สมบูรณ์แบบสำหรับผู้ที่ต้องการคุณภาพเสียงระดับตั้งพื้น แต่มีข้อจำกัดด้านพื้นที่ ด้วยการนำเทคโนโลยีระดับสูงอย่าง JET 6 และ Crystal Membrane มาใส่ในตู้ขนาดกะทัดรัด ลำโพงนี้จึงให้เสียงที่โปร่งใส มีไดนามิก และเบสที่ชัดเจน พร้อมการจัดวางที่ยืดหยุ่นด้วยพอร์ตยิงลงด้านล่าง การลงทุนใน BS-403.2 คือการลงทุนในรายละเอียดและความประณีตของเสียงในทุกการรับฟัง

รายละเอียดคุณสมบัติ

ข้อมูลจำเพาะทางเทคนิค: Elac Vela BS-403.2

ประเภท 2 ทาง, Bass Reflex (พอร์ตเสียงเบสสะท้อน)
วูฟเฟอร์ (Woofer) กรวย AS-XR Cone ขนาด 1 × 150 มม. Ø
ทวีตเตอร์ (Tweeter) JET 6
การป้องกันสนามแม่เหล็ก (Magnetic Shielding) ไม่มี (No)
ความถี่ครอสโอเวอร์ (Crossover Frequency) 2400 Hz
ช่วงความถี่ (Frequency Range – IEC 268-5) 41 – 50000 Hz
ความไว (Sensitivity) 86 dB ที่ 2.83 V/m
เหมาะสำหรับแอมพลิฟายเออร์ 4Ω – 8Ω
กำลังขับแอมพลิฟายเออร์ที่แนะนำ 40 – 200 W/channel
การรองรับกำลังขับ (ต่อเนื่อง | สูงสุด) 70 W | 100 W
ความต้านทาน (ปกติ | ต่ำสุด) 4Ω | 3.2Ω ที่ 260 Hz
สี (Finishes) Black High Gloss, White High Gloss, Walnut High Gloss
อุปกรณ์เสริมทางเลือก ตะแกรง/หน้ากากลำโพง (Speaker Grilles)
ขนาด (สูง x กว้าง x ลึก) 362 × 191 × 240 มม.
น้ำหนัก 7.1 กก.
