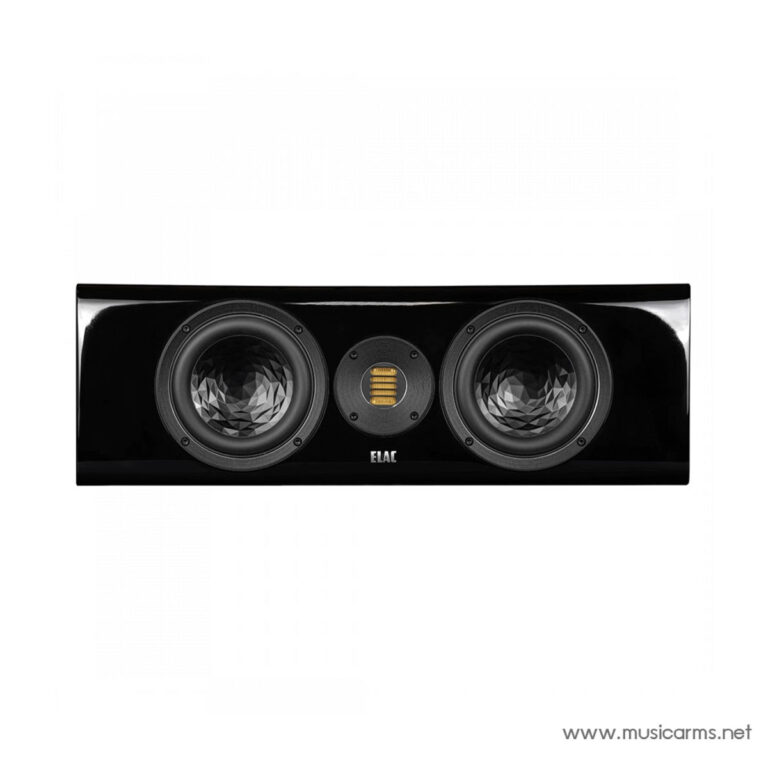

Elac Vela CC-401.2 ลำโพง Center 2.5 ทาง
ราคา : 65,050 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Elac Vela CC-401.2: 6″ 2.5-Way Center Speaker for Impeccable Dialogue and Detail in Multi-Channel Audio 🎬
The Elac Vela CC-401.2 (Black Highgloss) is the dedicated 2.5-way center channel speaker designed to anchor the high-performing VELA series multi-channel setup. Its purpose is to deliver articulate dialogue, accurate center imaging, and seamless tonal integration with the main Vela speakers. Featuring the visually striking trapezoid cabinet and high-gloss finish, the CC-401.2 embodies the fusion of design and acoustic function. Building on 95 years of ELAC engineering excellence, this speaker integrates the renowned **JET 6 Air Motion Transformer tweeter**, celebrated for its fast, detailed, and extended high-frequency response (up to 50kHz). Paired with two **Crystal Membrane aluminum-sandwich woofers** with custom cast chassis, the CC-401.2 ensures every word, effect, and musical note passing through the center channel is reproduced with remarkable clarity and dynamic accuracy.
Key Features and Core Technologies
- JET 6 Tweeter Fidelity: Engineered and designed in Kiel, Germany, the JET 6 offers an exceptionally wide frequency response (Up to 50kHz) and ultra-fast transient response, providing crucial clarity and detail for critical dialogue reproduction.
- Dual AS-XR Crystal Membrane Woofers: The crystal-shaped aluminum sandwich cones provide increased stiffness and minimize unwanted resonances, ensuring highly accurate midrange performance and tight, focused bass for cinematic effects.
- Acoustically Optimized Cabinet Design: The convex baffle and visually stunning trapezoid shape are crafted to reduce external reflections and internal standing waves, significantly improving sound definition and staging.

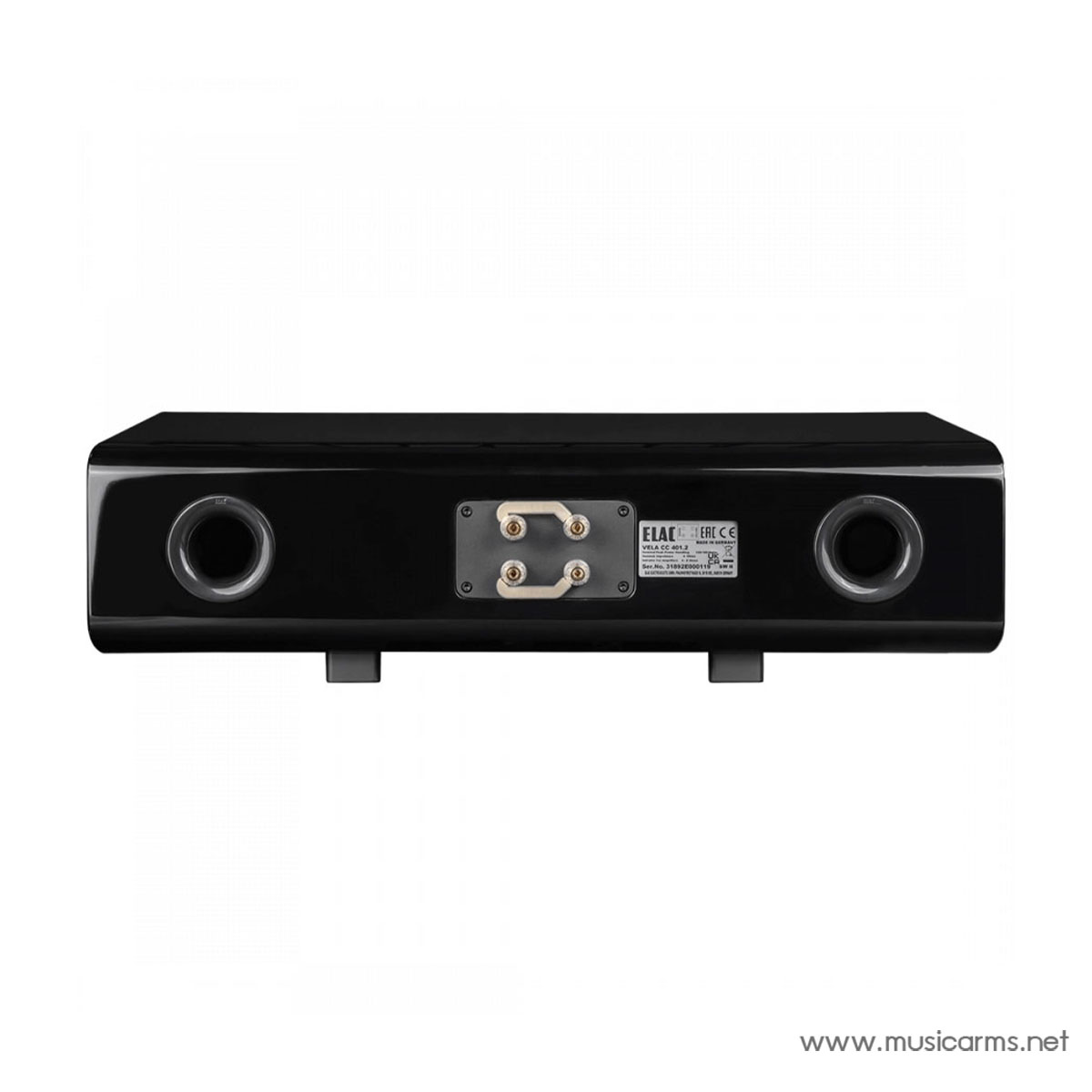

- Downward Firing Bass Port: Features a bass reflex port designed to exit downwards, allowing for more flexible placement within AV furniture while reducing port noise and ensuring cleaner low-frequency delivery.
- Premium Aesthetics and Build Quality: High-gloss lacquered cabinet and decorative aluminum elements make this speaker a visual highlight in any modern home theater setup.
Summary: The Clear Voice of Your Home Cinema
The Elac Vela CC-401.2 is the definitive center speaker for those seeking no compromise in multi-channel audio performance. Its integration of proprietary JET 6 and Crystal Membrane technologies guarantees that dialogue is crisp, intelligible, and perfectly integrated into the sound field. By anchoring your system with the CC-401.2, you ensure a truly immersive and detailed cinematic experience that brings every movie soundtrack to life with precision and power.
Specification
Technical Specifications: Elac Vela CC-401.2 |
|
|---|---|
| Type | 2 ½-Way, Bass Reflex |
| Woofer | 2 × 150 mm Ø, AS-XR Cone |
| Tweeter | JET 6 |
| Magnetic Shielding | No |
| Crossover Frequency | 450 Hz | 2400 Hz |
| Frequency Range (IEC 268-5) | 32 – 50000 Hz |
| Sensitivity | 88.5 dB at 2.83 V/m |
| Suitable for amplifiers from | 4Ω – 8Ω |
| Recommended Amplifier Power | 40 – 250 W/channel |
| Nominal | Peak Power Handling | 120 W | 160 W |
| Nominal | Minimum Impedance | 4Ω | 3.6Ω at 180 Hz |
| Finishes | Black High Gloss, White High Gloss, Walnut High Gloss |
| Dimensions (H x W x D) | 191 x 653 x 233 mm |
| Weight | 11.8 kg |
ข้อมูลสินค้า
Elac Vela CC-401.2: ลำโพง Center 2.5 ทาง ที่มอบความคมชัดและรายละเอียดสูงสุดสำหรับระบบ Multi-Channel 🎬
Elac Vela CC-401.2 (Black Highgloss) คือลำโพงเซ็นเตอร์แบบ 2.5 ทางที่ออกแบบมาเพื่อเติมเต็มระบบเสียง Vela ด้วยการมอบบทสนทนา (Dialogue) ที่ชัดเจนและมีมิติเสียงกลางที่เที่ยงตรง รูปทรงสี่เหลี่ยมคางหมูอันเป็นเอกลักษณ์และพื้นผิวเคลือบเงาไม่เพียงแต่สวยงามเท่านั้น แต่ยังถูกออกแบบมาเพื่อปรับปรุงคุณสมบัติทางอะคูสติกด้วย การออกแบบนี้สร้างขึ้นบนประสบการณ์ 95 ปีของ Elac ซึ่งมีการรวมเอาเทคโนโลยีเรือธงอย่าง **JET 6 Tweeter** ที่ให้การตอบสนองความถี่สูงที่รวดเร็วและละเอียดถึง 50kHz เข้ากับวูฟเฟอร์ **Crystal Membrane** ที่มาพร้อมโครงแชสซีอะลูมิเนียมหล่อขึ้นรูป ทำให้ Vela CC-401.2 เป็นศูนย์กลางที่เชื่อถือได้และมีประสิทธิภาพสูงสำหรับภาพยนตร์และเสียงเพลงในระบบโฮมเธียเตอร์
คุณสมบัติเด่นและเทคโนโลยีหลัก
- JET 6 Tweeter ที่ให้เสียงเหนือกว่า: ออกแบบและผลิตในประเทศเยอรมนี มอบการตอบสนองความถี่สูงที่กว้างขวาง (สูงสุด 50kHz) พร้อม Distortion ต่ำสุด ให้ความชัดเจนและความละเอียดที่จำเป็นสำหรับเสียงพูดและรายละเอียดเสียงในภาพยนตร์
- วูฟเฟอร์ Crystal Membrane (AS-XR) คู่: ใช้กรวยอะลูมิเนียมแซนด์วิชรูปทรงคริสตัลที่แข็งแกร่งเป็นพิเศษ ช่วยลด Resonance และมอบเสียงกลางที่แม่นยำและเบสที่กระชับ เหมาะอย่างยิ่งสำหรับการถ่ายทอดบทสนทนาที่เที่ยงตรง
- การออกแบบตู้ลดการสะท้อน: รูปทรงสี่เหลี่ยมคางหมูและแผงกั้นหน้าแบบนูน (Convex Baffle) ช่วยลดการสะท้อนของเสียงภายนอกและภายในตู้ลำโพง ปรับปรุงมิติความชัดเจนของเสียง
- พอร์ตเบสยิงลงด้านล่าง (Downward Firing Port): พอร์ตสะท้อนเสียงเบสถูกจัดวางให้ยิงลงด้านล่าง (แม้ในลำโพง Center) เพื่อช่วยให้การจัดวางลำโพงมีความยืดหยุ่นมากขึ้นและให้เสียงเบสที่สะอาดขึ้น
- โครงสร้างและวัสดุระดับพรีเมียม: ตัวตู้เคลือบเงาแบบ High-gloss และองค์ประกอบอะลูมิเนียมช่วยยกระดับรูปลักษณ์ให้หรูหรา พร้อมสร้างความทนทานในระยะยาว
สรุป: ศูนย์กลางของระบบโฮมเธียเตอร์ที่สมบูรณ์แบบ
Elac Vela CC-401.2 เป็นมากกว่าลำโพงเซ็นเตอร์ แต่เป็นองค์ประกอบสำคัญที่จะทำให้ระบบโฮมเธียเตอร์ของคุณสมบูรณ์แบบ ด้วยเทคโนโลยี JET 6 และวูฟเฟอร์ AS-XR ที่ให้เสียงที่มีความแม่นยำสูง ลำโพงนี้จึงรับประกันได้ว่าทุกบทสนทนาในภาพยนตร์จะถูกถ่ายทอดอย่างชัดเจนและเต็มเปี่ยมด้วยรายละเอียด การลงทุนใน Vela CC-401.2 คือการยกระดับประสบการณ์มัลติมีเดียและเสียงรอบทิศทางของคุณให้เหนือกว่ามาตรฐานทั่วไป
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิค: Elac Vela CC-401.2 |
|
|---|---|
| ประเภท | 2 ½ ทาง, Bass Reflex (พอร์ตเสียงเบสสะท้อน) |
| วูฟเฟอร์ (Woofer) | กรวย AS-XR Cone ขนาด 2 × 150 มม. Ø |
| ทวีตเตอร์ (Tweeter) | JET 6 |
| การป้องกันสนามแม่เหล็ก (Magnetic Shielding) | ไม่มี (No) |
| ความถี่ครอสโอเวอร์ (Crossover Frequency) | 450 Hz | 2400 Hz |
| ช่วงความถี่ (Frequency Range – IEC 268-5) | 32 – 50000 Hz |
| ความไว (Sensitivity) | 88.5 dB ที่ 2.83 V/m |
| เหมาะสำหรับแอมพลิฟายเออร์ | 4Ω – 8Ω |
| กำลังขับแอมพลิฟายเออร์ที่แนะนำ | 40 – 250 W/channel |
| การรองรับกำลังขับ (ต่อเนื่อง | สูงสุด) | 120 W | 160 W |
| ความต้านทาน (ปกติ | ต่ำสุด) | 4Ω | 3.6Ω ที่ 180 Hz |
| สี (Finishes) | Black High Gloss, White High Gloss, Walnut High Gloss |
| ขนาด (สูง x กว้าง x ลึก) | 191 x 653 x 233 มม. |
| น้ำหนัก | 11.8 กก. |
