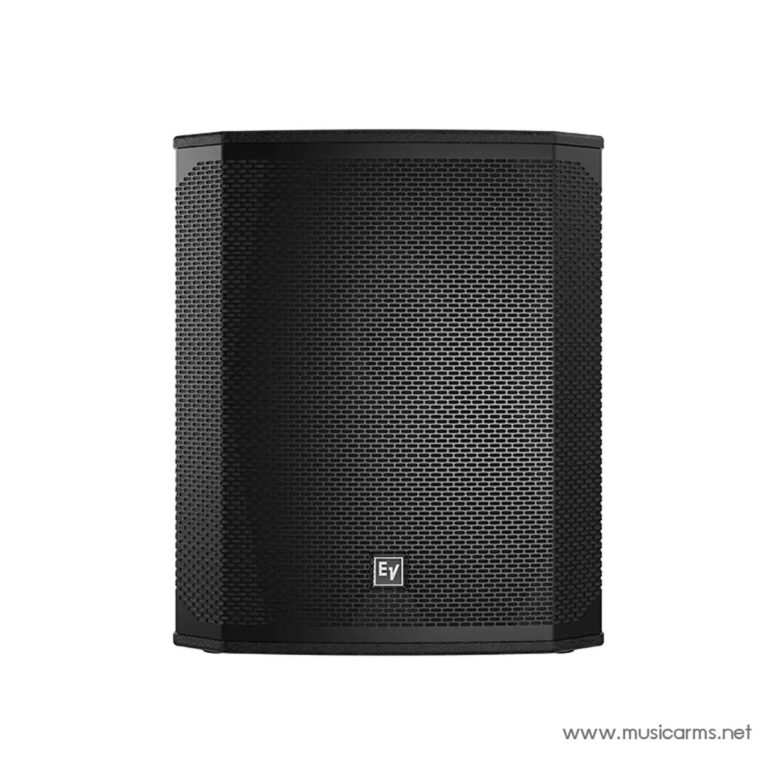

Electro-Voice EV ELX200-18S

ราคา : 38,300 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Electro-Voice ELX200-18S: Professional 18-inch Passive Subwoofer for High-Impact Bass Performance
The Electro-Voice ELX200-18S is a high-output passive subwoofer designed to deliver thunderous low-frequency reinforcement in a surprisingly compact package. As a pivotal member of the ELX200 series, this 18-inch subwoofer is engineered for those who demand deep, punchy bass without compromising on portability or durability. Constructed with a 15 mm thick wood cabinet and protected by a professional-grade Polyurea finish, it is built to withstand the most demanding environments, from mobile DJ setups and live stages to permanent venue installations. Every component of the ELX200-18S has been meticulously tuned and tested for over 500 hours to ensure a linear and precise sonic response, providing professional vocalists and sound engineers with the legendary Electro-Voice clarity and power at even the highest volume levels.
Key Features
- High-Sensitivity EVS-18L Woofer: Features a custom-designed 18-inch transducer that provides exceptional low-end clarity and power, capable of reaching down to 28 Hz.
- 1600W Peak Power Handling: Delivering a massive 1600 Watts of Peak power (400 Watts Continuous), achieving a maximum sound pressure level of 129 dB.
- Rugged 15 mm Wood Enclosure: A robust, internally braced wooden cabinet finished in a durable Polyurea top-coat, designed for both sonic warmth and road-ready toughness.
- Proven Reliability: Tested beyond industry standards for over 500 hours of continuous high-load use, ensuring long-term operational stability.
- Integrated Professional Mounting: Includes a heavy-duty M20 threaded pole-mount plate for stacking full-range speakers and ergonomic handles for efficient transport and setup.
The Foundation of Your Professional Sound System
Elevate your audio experience with the unmatched authority of the Electro-Voice ELX200-18S. Combining cutting-edge acoustic engineering with a tour-ready build, this subwoofer provides the solid low-frequency foundation required for any high-performance sound system. Trust in the power, trust in the clarity—experience the bass as it was meant to be heard.
Specification
Electro-Voice ELX200-18S Specifications |
|
|---|---|
| Speaker Type | Subwoofer, Passive |
| Frequency Response (-3 dB) | 45 Hz – 200 Hz |
| Frequency Range (-10 dB) | 28 Hz – 300 Hz |
| Power Handling | 400 W Continuous, 1600 W Peak |
| Maximum SPL | 133 dB @ 1 m |
| Axial Sensitivity (1 W @ 1 m) | 94 dB |
| Nominal Impedance | 8 Ohms (Minimum 7.2 Ohms) |
| Recommended High-Pass Frequency | 35 Hz |
| LF Transducer | EVS-18L, 18 in (457 mm) Woofer |
| Connector Type | Dual NL4 speakON |
| Enclosure Material | 15 mm Plywood with Polyurea Top-Coat |
| Grille | 18 AWG Steel with Powder Coat |
| Available Color | Black |
| Dimensions (H x W x D) | 600 mm x 507 mm x 574 mm (23.62 in x 19.96 in x 22.6 in) |
| Net Weight | 26.6 kg (58.64 lbs) |
ข้อมูลสินค้า
Electro-Voice ELX200-18S: พลังเสียงซับเบส 18 นิ้ว ที่หนักแน่นและทรงพลัง สำหรับมืออาชีพตัวจริง
Electro-Voice ELX200-18S คือลำโพงซับวูฟเฟอร์แบบพาสซีฟ (Passive Subwoofer) ประสิทธิภาพสูงที่ถูกสร้างมาเพื่อเขย่าทุกพื้นที่รับฟังด้วยย่านความถี่ต่ำที่ลึกและหนักแน่น ในฐานะที่เป็นส่วนหนึ่งของตระกูล ELX200 Series ซับวูฟเฟอร์รุ่นนี้โดดเด่นด้วยการผสมผสานระหว่างพลังเสียงที่เกินตัวและความกะทัดรัดของตู้ลำโพงที่ผลิตจากไม้หนา 15 มม. พร้อมเคลือบผิวด้วย Polyurea Top-Coat เพื่อความทนทานสูงสุดในทุกสถานการณ์ ไม่ว่าจะเป็นการใช้งานร่วมกับระบบเสียงเคลื่อนที่สำหรับงานดีเจ งานแสดงสด หรือการติดตั้งถาวรในคลับและสถานประกอบการ ELX200-18S พร้อมส่งมอบแรงปะทะของเสียงเบสที่สะอาดและแม่นยำ ภายใต้การทดสอบความทนทานอย่างเข้มงวดมากกว่า 500 ชั่วโมง เพื่อให้มั่นใจว่าเสียงเบสของคุณจะทรงพลังและคงที่เสมอจนถึงขีดจำกัดสูงสุด
คุณสมบัติเด่น
- High-Performance 18-inch EVS-18L Woofer: ดอกวูฟเฟอร์ที่พัฒนาโดย EV เพื่อการตอบสนองย่านความถี่ต่ำที่รวดเร็วและแม่นยำ พร้อมถ่ายทอดพลังเบสที่ลึกถึง 28 Hz
- Massive Power Handling: รองรับกำลังขับสูงสุดถึง 1600 วัตต์ (Peak) และ 400 วัตต์ (Continuous) ให้ระดับความดังสูงสุดถึง 129 dB SPL
- Tour-Grade Wood Enclosure: ตัวตู้ผลิตจากไม้หนา 15 มม. เสริมโครงสร้างภายในเพื่อความแข็งแรงและลดการสั่นสะท้อน เคลือบผิวด้วยวัสดุ Polyurea ป้องกันรอยขีดข่วนและการกระแทก
- Rigorous Endurance Testing: ผ่านการทดสอบการใช้งานหนักเกินมาตรฐานอุตสาหกรรม มั่นใจได้ในความน่าเชื่อถือสำหรับการใช้งานระยะยาว
- Professional Hardware Integration: มาพร้อมจุดเชื่อมต่อเสาแบบเกลียว M20 สำหรับติดตั้งลำโพงฟูลเรนจ์ด้านบน และมือจับโลหะ 2 จุดที่ออกแบบมาให้สะดวกต่อการขนย้าย
เติมเต็มย่านเสียงต่ำให้ระบบเสียงของคุณอย่างสมบูรณ์แบบ
หากคุณกำลังมองหาซับวูฟเฟอร์ที่ให้มากกว่าแค่เสียงดัง แต่ต้องการความหนักแน่น ความลึก และความทนทานในระดับมาตรฐานโลก Electro-Voice ELX200-18S คือชิ้นส่วนสำคัญที่จะยกระดับชุดลำโพงของคุณให้สมบูรณ์แบบ ด้วยเทคโนโลยีอะคูสติกขั้นสูงที่ผสานเข้ากับงานประกอบที่ยอดเยี่ยม นี่คือซับวูฟเฟอร์ที่จะไม่ทำให้คุณผิดหวังในทุกการแสดง
รายละเอียดคุณสมบัติ
รายละเอียดสเปค Electro-Voice ELX200-18S |
|
|---|---|
| ประเภทลำโพง (Speaker Type) | ซับวูฟเฟอร์ (Subwoofer), พาสซีฟ |
| การตอบสนองความถี่ (-3 dB) | 45 Hz – 200 Hz |
| ช่วงความถี่ (-10 dB) | 28 Hz – 300 Hz |
| กำลังขับ (Power Handling) | 400 W (Continuous), 1600 W (Peak) |
| ความดังสูงสุด (Max SPL) | 133 dB @ 1 เมตร |
| ความไว (Sensitivity) | 94 dB SPL (1 W @ 1 m) |
| ค่าอิมพีแดนซ์ (Nominal Impedance) | 8 โอห์ม (ต่ำสุด 7.2 โอห์ม) |
| ไฮพาสฟิลเตอร์ที่แนะนำ (Recommended HPF) | 35 Hz |
| ดอกลำโพงเสียงต่ำ (LF Transducer) | EVS-18L ขนาด 18 นิ้ว (457 มม.) |
| ขั้วต่อสัญญาณ (Connectors) | Dual NL4 speakON |
| วัสดุตัวตู้ (Enclosure Material) | ไม้อัดหนา 15 มม. เคลือบผิว Polyurea Top-Coat |
| ตะแกรงหน้า (Grille) | เหล็ก 18 AWG เคลือบผงสี (Powder Coated Steel) |
| สี (Color) | สีดำ (Black) |
| ขนาด (สูง x กว้าง x ลึก) | 600 x 507 x 574 มม. (23.62 x 19.96 x 22.6 นิ้ว) |
| น้ำหนักสุทธิ (Net Weight) | 26.6 กก. (58.64 ปอนด์) |
