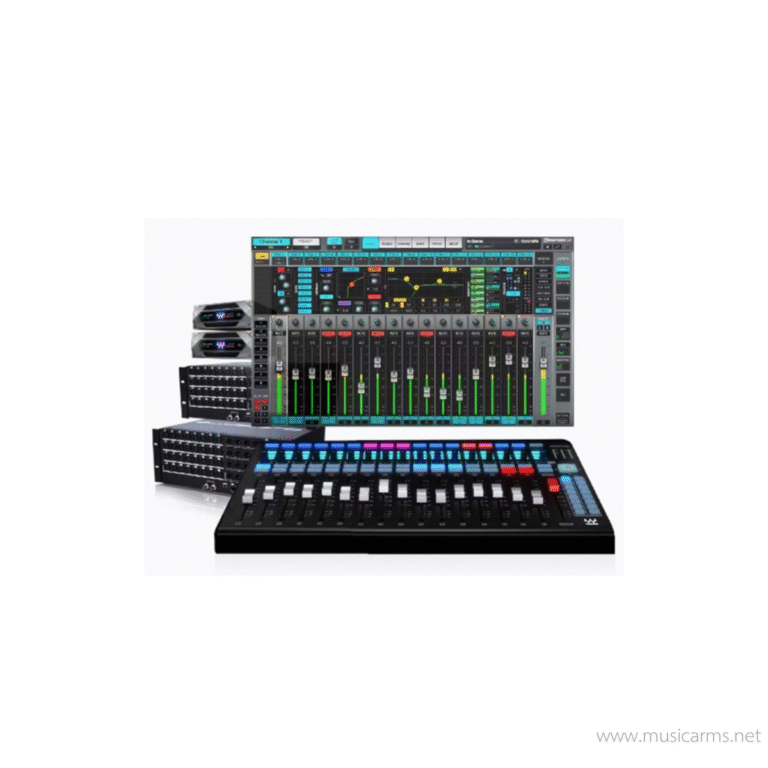

eMotion LV1+FIT Controller+Extreme Server-C+64-Preamp Stagebox

eMotion LV1+FIT Controller+Extreme Server-C+64-Preamp Stagebox
64-channel live sound mixing set from WAVES, ready to use (excluding monitor)
The 64-channel live sound mixing package eMotion LV1+FIT Controller+Extreme Server-C+64-Preamp Stagebox from WAVES is an all-in-one combo set ready to use (excluding monitor). It operates on a computer system compatible with Waves plug-ins and is designed for professional high-quality live sound mixing. It is suitable for concerts, live recording, or live broadcasting.

The set includes:

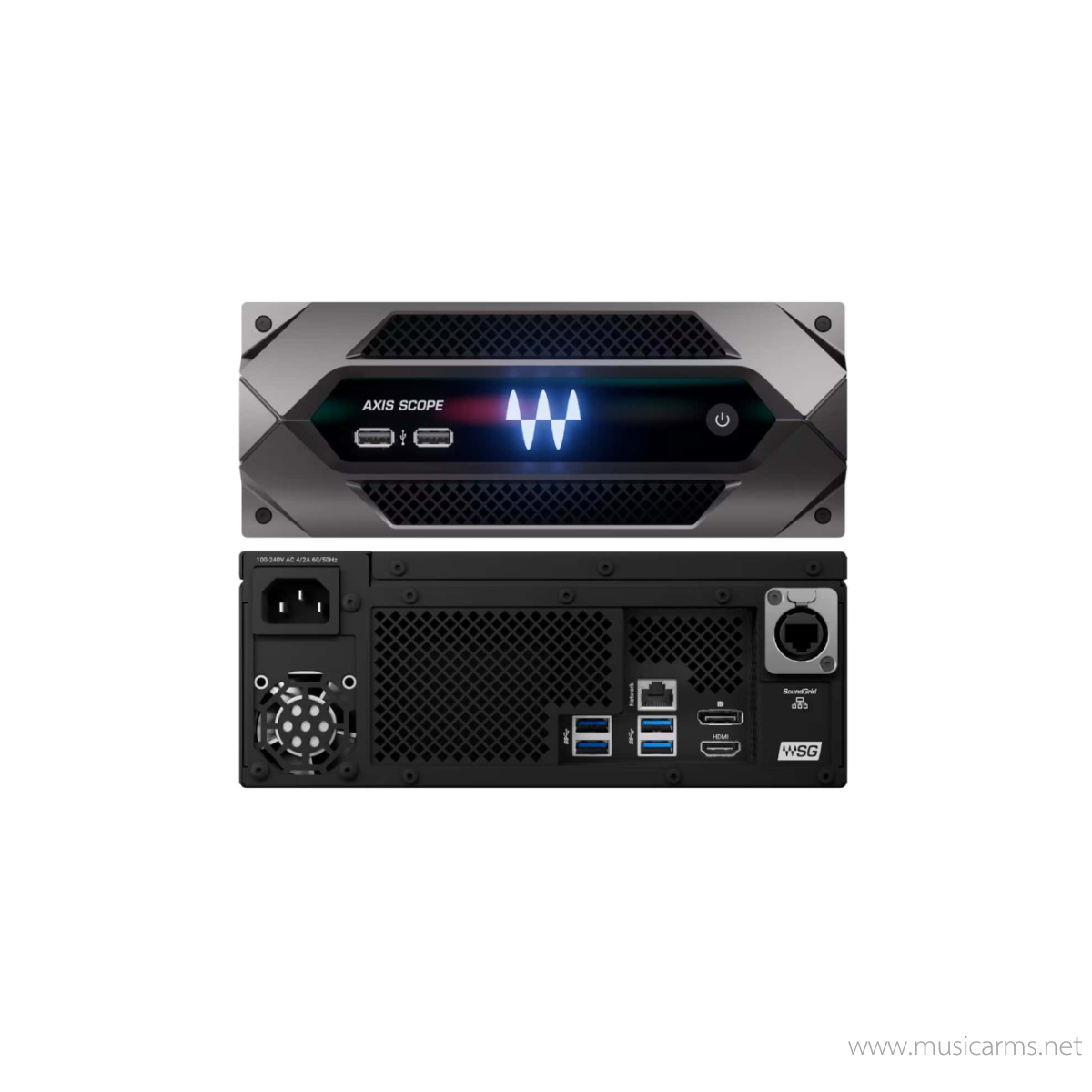

Axis Scope
DSPRO StageGrid 4000 x 2
Extreme-C SoundGrid Server
eMotion LV1 Live Mixer
FIT Controller for eMotion LV1

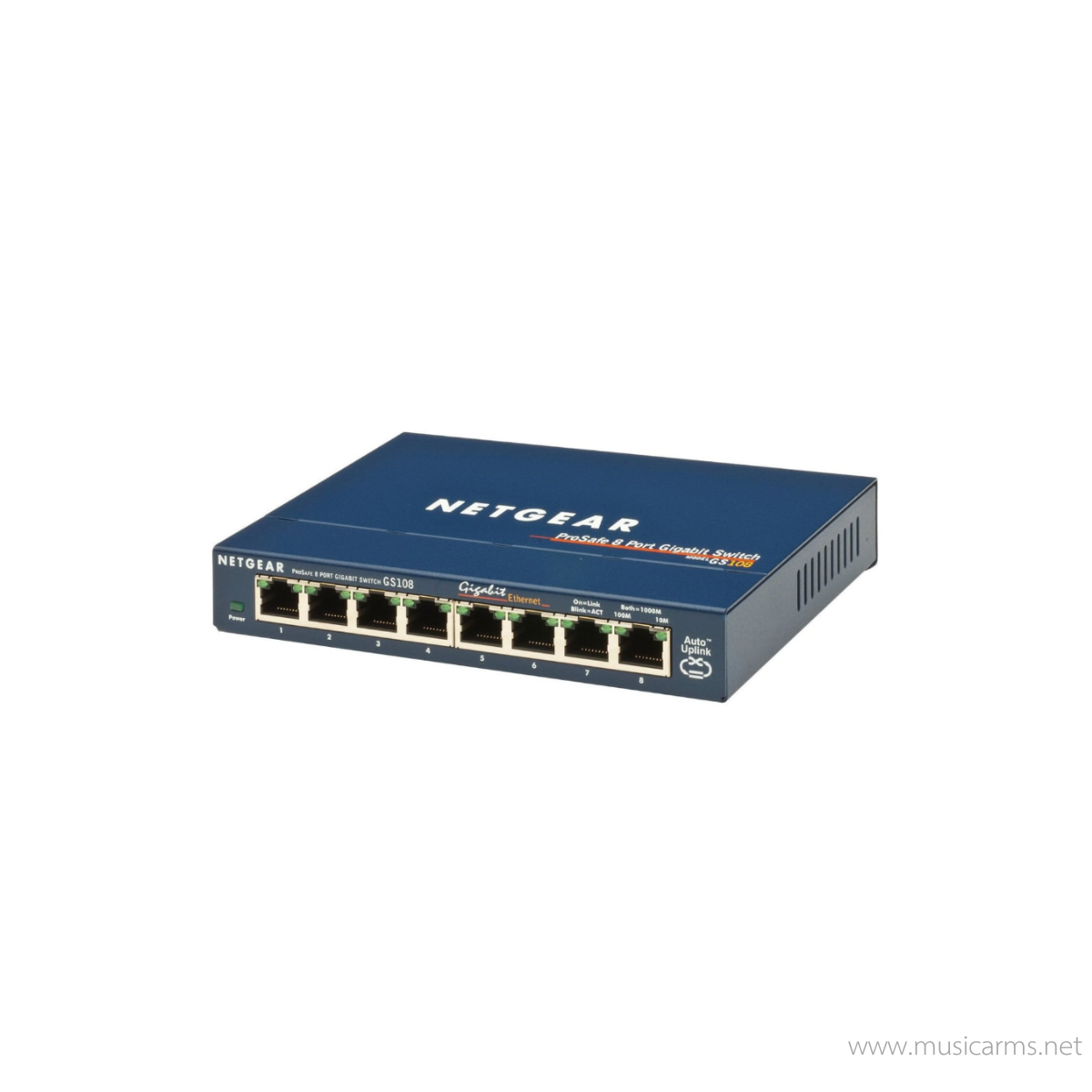

NETGEAR GS108 V4

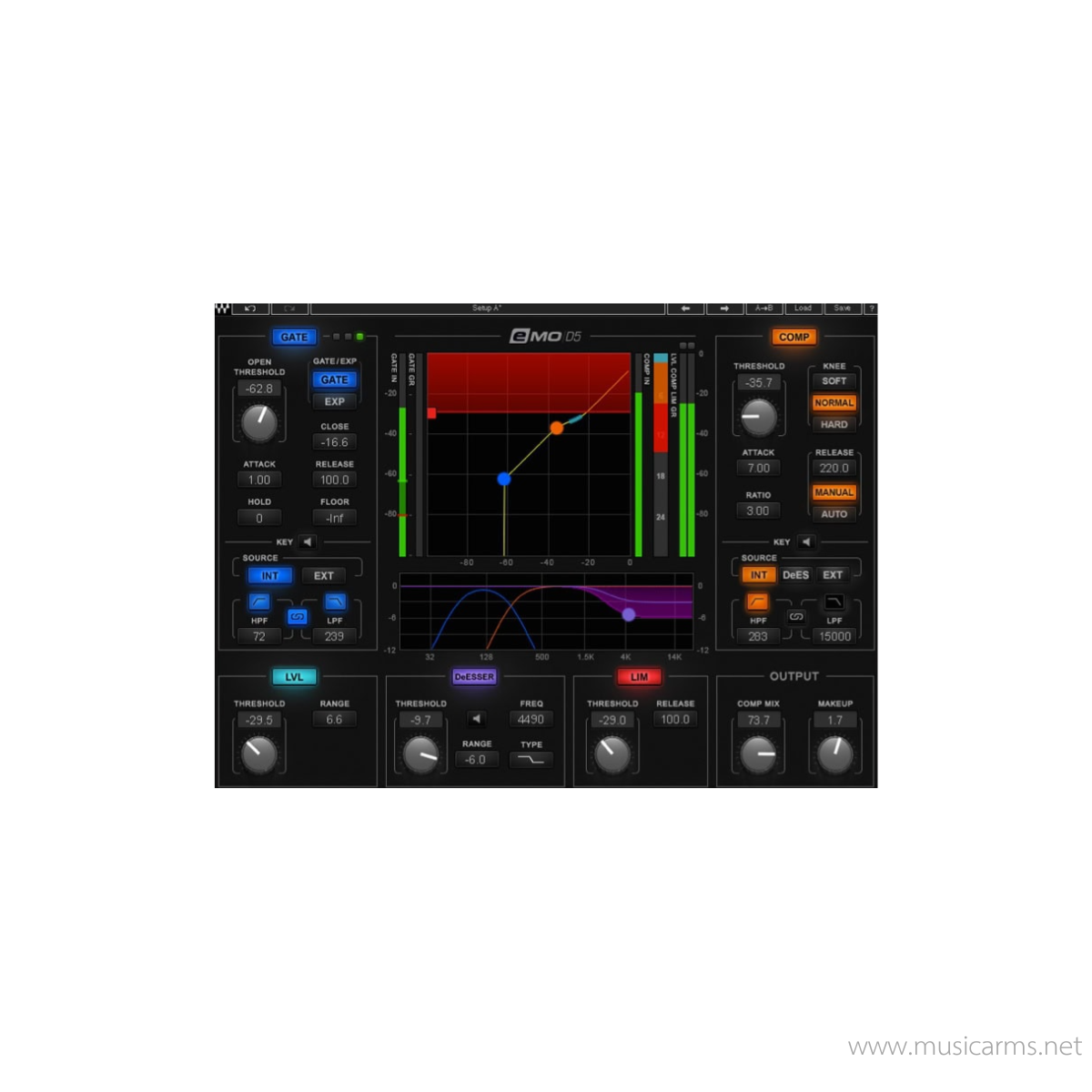

eMo D5 Dynamics

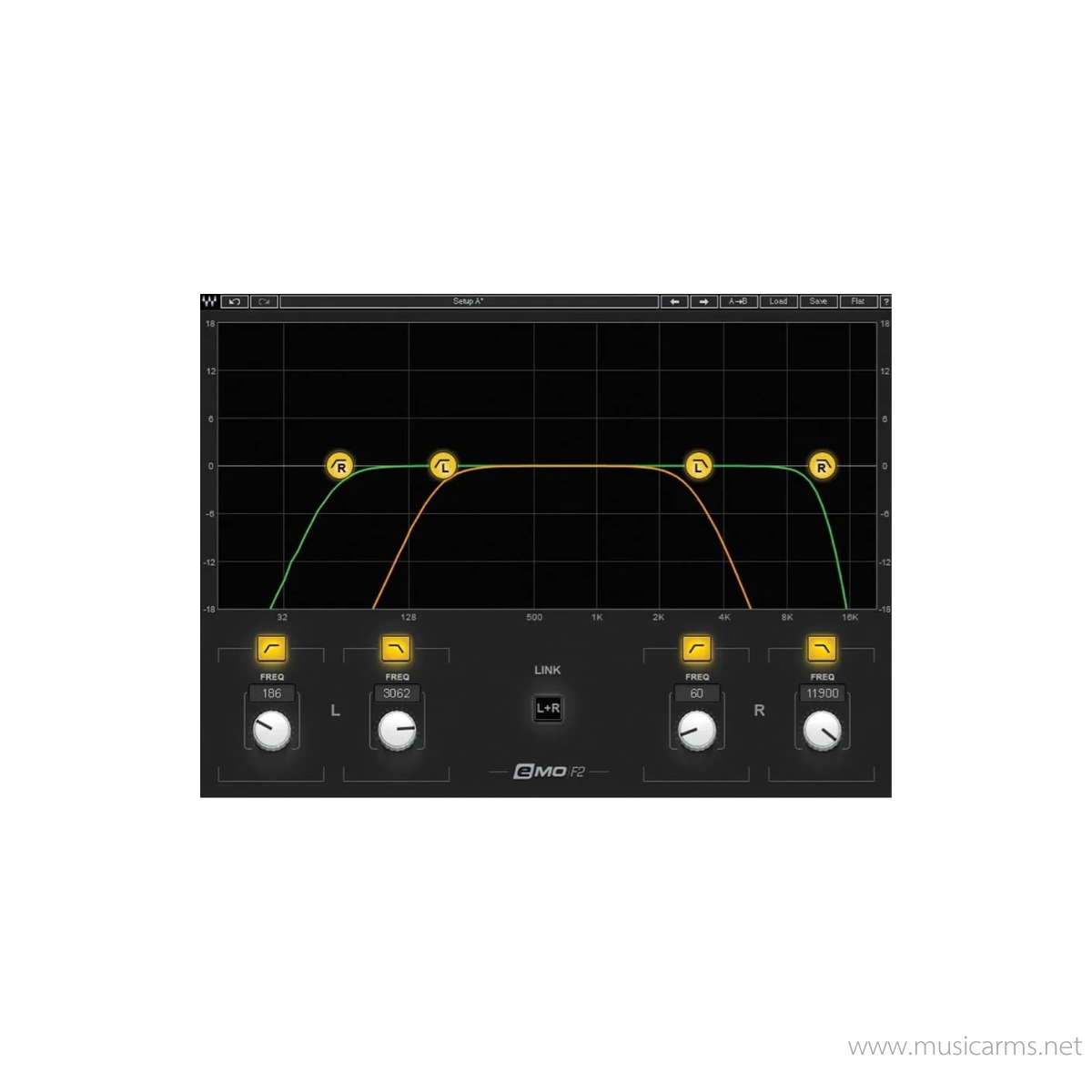

eMo F2 Filter

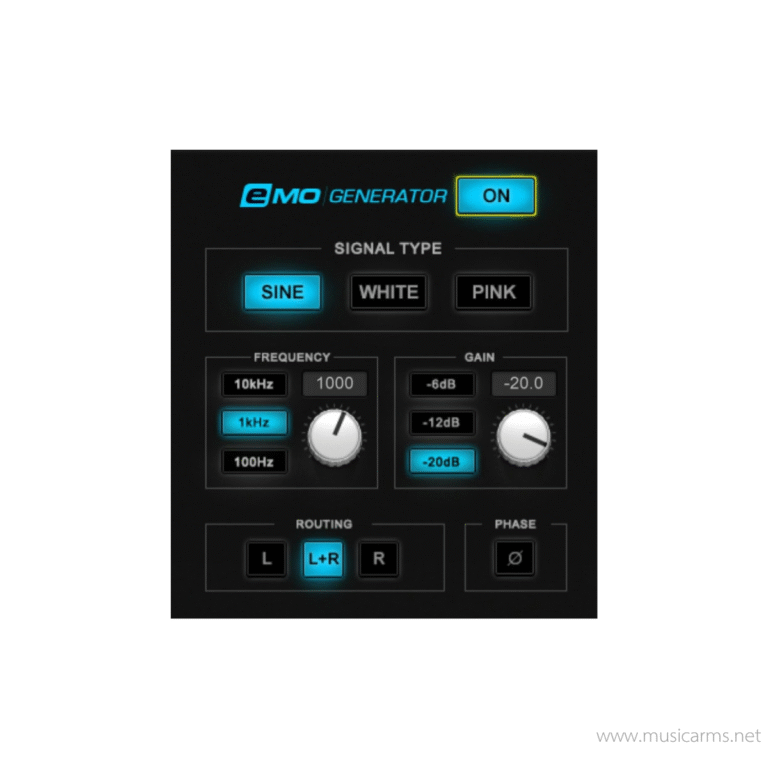

eMo Generator

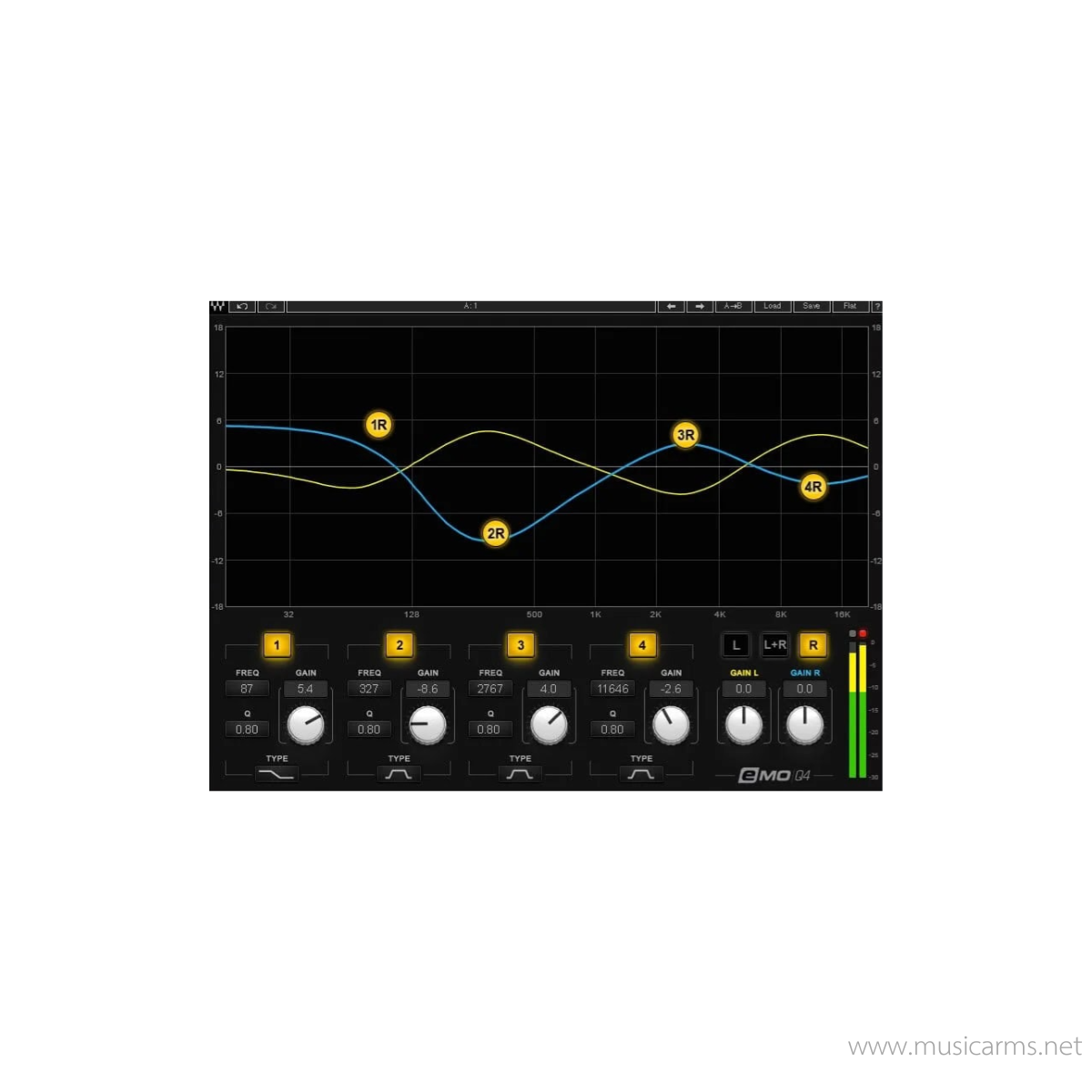

eMo Q4 Equalizer
Half-rack shelf for SoundGrid server

eMotion LV1 also includes the following features:

High performance, easily portable (software on computer)
eMotion LV1 is a mixer that fully benefits from Waves plugins, as the mixer runs on a computer using DSP from the Waves Server, allowing direct plugin adjustments.

Supports up to 64 channels
High resolution 32-bit / 96 kHz
Comprehensive EQ, Dynamics, and Effects
8 FX buses, 8 groups, 8 matrices, and LRCM masters

Capabilities and flexibility of eMotion LV1
eMotion LV1 live mixer supports the SoundGrid protocol for audio signal transmission over a network and can work with various models of SoundGrid audio interfaces.

Can record and recall settings
Supports additional Waves plugins
Compatible with operating systems

Supports Windows and macOS operating systems and can be controlled via external control devices. The FIT Controller also includes the following features: 16 + 1 Master Faders with independent control. The Waves FIT Controller for eMotion LV1 mixer, a digital mixer that uses Waves Plug-ins for mixing audio, provides 16 + 1 Master Faders with 100 mm length. Each fader has a display, rotary knobs that can be assigned to preamp gain or pan. Up to 8 layers can be set, allowing more convenient and faster control than using a mouse alone. Control audio mixing with high-quality hardware. The Waves FIT Controller hardware control device can connect via USB 2.0 to a computer and a 12-volt adapter. It has a USB port for board lighting. A tap tempo pad helps control rhythm. There are buttons and faders for mixing control. The Extreme Server-C also includes the following features: a high-performance DSP server for audio processing, Waves Extreme-C updated with Intel® Core™ 10th-generation CPU, modern design, powerful DSP, plugin processing.

Hundreds of plugins compatible with SoundGrid can be used in real-time, with a low latency of just 0.8 milliseconds. The DSP audio processing server handles all audio processing instead of the computer’s CPU, providing high processing power and supporting a large number of plugins and effects. It connects to the computer via Ethernet. The compact design makes it easy to rack-mount. The new Extreme server computer is luxuriously designed in a strong and durable 2U size. The Extreme Server-C is half the width of a standard 19-inch rack, allowing one server to be installed in the rack using rack ears, or two units can be installed side by side for redundancy. Easy-to-read LEDs monitor network status and temperature. Durable Neutrik etherCon connectors process plugins in real-time by adding a SoundGrid interface. CPU: Intel® Core™ i7-10700 10th generation, RAM 8 GB. The 64-Preamp Stagebox also includes the following features: DSPRO StageGrid 4000, a high-quality 64-channel stagebox, analog-to-digital conversion device, the 64-Preamp Stagebox is the DSPRO StageGrid 4000 stagebox.

It has 32 inputs and 16 outputs, but this set comes with 2 units, so it can support up to 64 inputs with high-quality preamps. It connects to the Extreme Server-C via Cat 5e/Cat 6 cables. It has 4 channels of digital stereo AES/EBU inputs and outputs. Digital XLR I/O: Word Clock installed on stage to receive audio signals directly. Features: Live sound mixing package by WAVES is ready to use (screen not included). The DSPRO StageGrid 4000 stage box has 32 inputs and 16 outputs. An Axis Scope computer customized for Waves comes with the SoundGrid Extreme-C server. The FIT Controller touch controller works conveniently and quickly with eMotion LV1. Includes 1 year free use of Waves Essential Plugin (110 plugins). Low latency at 0.8 milliseconds. Audio resolution of 44.1 kHz – 96 kHz. 2U rackmount installation compatible with 19-inch rack frames.
