Fedyco XT12000A เพาเวอร์แอมป์ 4 แชนแนล

FEDYCO XT12000A: High-Performance 4-Channel Class H Power Amplifier

The FEDYCO XT12000A is a high-power professional power amplifier designed for large-scale audio systems. It features a second-generation Class H amplifier circuit, a technology developed by Fedyco to deliver excellent efficiency, strong output power, and reliable performance. The amplifier supports a 4-channel configuration, providing flexible power distribution for a wide range of speaker systems.

This amplifier supports multiple operating modes including Stereo, Parallel, and Bridge, allowing it to adapt easily to different speaker setups such as full-range speakers, line array systems, and subwoofers. It also features a 2.4-inch display screen that allows users to monitor the amplifier’s operating status in real time, including signal levels, protection status, and channel performance, ensuring precise and safe control of the sound system.

Key Features

• 4-Channel Class H Power Amplifier: High-efficiency design delivering powerful and stable performance for professional audio systems.
• High Power Output: 1000W x 4 at 8 ohms, 1200W x 4 at 4 ohms, and 1600W x 4 at 2 ohms.
• Bridge Mode Capability: Provides 2000W x 2 at 8 ohms and 2400W x 2 at 4 ohms for higher power output.
• Multiple Operating Modes: Supports Stereo, Parallel, and Bridge modes for flexible speaker configurations.

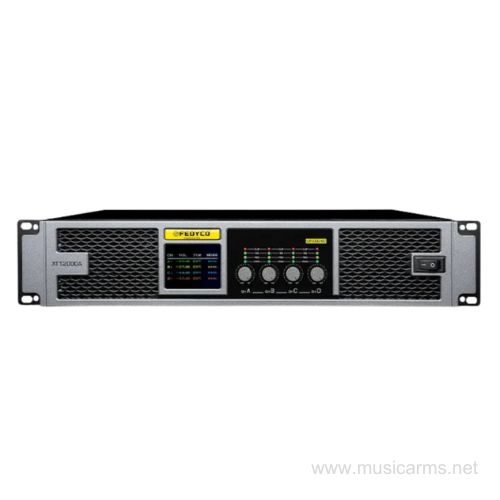

• 2.4-Inch Display Screen: Allows real-time monitoring of system status and signal levels.
• Independent Channel Volume Control: Enables separate adjustment of each channel for flexible system management.
• Over-current Protection: Prevents damage caused by excessive electrical current.
• Short Circuit Protection: Quickly shuts down the amplifier if a short circuit occurs.
• Output Voltage Limiter: Prevents square wave signals that could potentially damage speakers.
• Dual Cooling Fan System: Maintains optimal internal temperature for stable and continuous operation.

Who is the FEDYCO XT12000A For?

• Large Event Sound Systems: Ideal for stage productions and large event audio setups.
• Hotel, Conference, and Auditorium Installations: Designed for professional fixed-installation sound systems.
• Banquet Halls and Large Venues: Suitable for venues that require powerful and reliable audio amplification.

Conclusion

The FEDYCO XT12000A is a powerful and versatile professional amplifier designed for demanding sound systems. With its 4-channel architecture, flexible operating modes, and high output power, it is an excellent solution for professional installations and large-scale audio environments.
