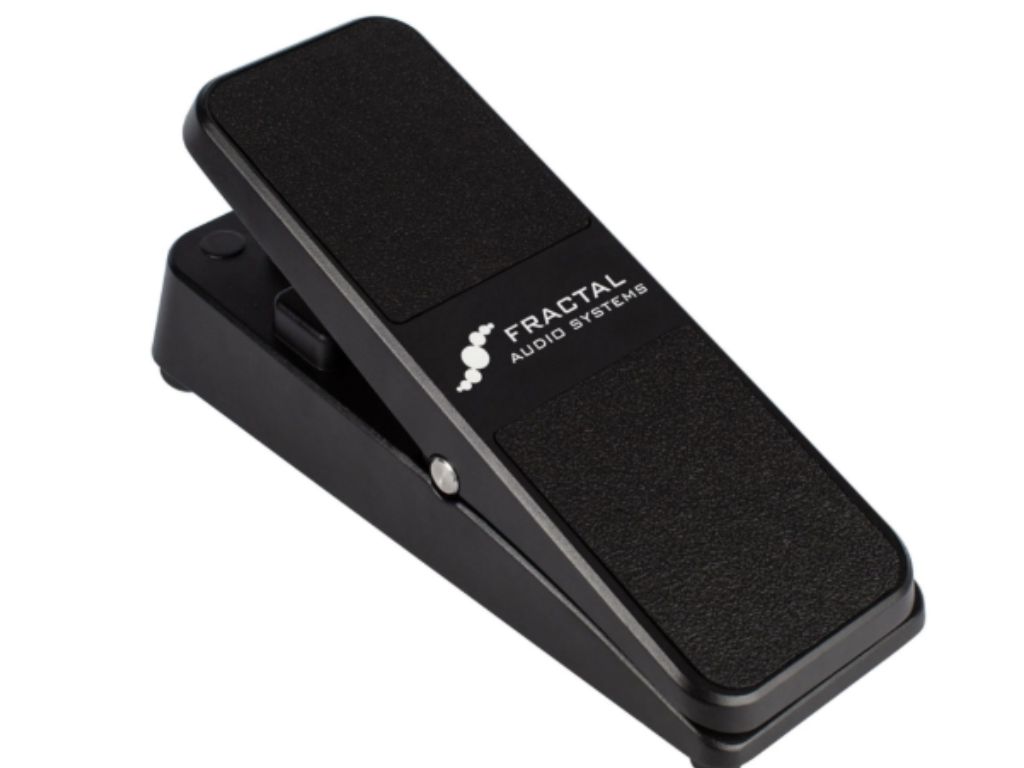

FRACTAL AUDIO EV 1 BLACK

The Fractal Audio EV-1 is a premium, tour-grade pedal that combines the functionality of a high-quality expression pedal and an analog volume pedal into a single, rugged unit. It is built with a durable cast aluminum housing, a non-slip rubber tread, and features advanced planetary gearing. This mechanism provides a long, smooth, and exceptionally precise pedal “throw” with a truly linear response.

Designed for seamless integration with all Fractal Audio Systems products (like the Axe-Fx, FM9, and FM3), the EV-1 also functions as a high-impedance 500K analog volume pedal and a 100K expression pedal, making it compatible with a wide variety of third-party devices.

• Perfectly Linear Response: At the core of the EV-1 is a patented planetary gearing mechanism. This provides a perfectly smooth and linear response across the entire sweep of the pedal, allowing for precise and natural control over parameters like wah, volume, whammy, or effect blends.
• Dual Functionality: The EV-1 serves as both an expression pedal and a high-fidelity analog volume pedal. It features a separate, isolated circuit for volume control, utilizing a 500kΩ audio-taper potentiometer to preserve your guitar’s tone (preventing “tone suck”) when used as a volume pedal.
• Road-Ready Construction: It features a robust cast aluminum housing with a high-quality, non-slip rubber tread. It is built to withstand the rigors of touring and heavy use, providing a stable and solid feel underfoot.
• Long-Throw & Adjustable Tension: The pedal has a long “throw,” which allows for detailed and nuanced dynamic control. The tension of the pedal’s sweep can be easily adjusted with an Allen key to match the user’s personal preference for feel and resistance.
• Broad Compatibility: While designed for seamless integration with all Fractal Audio Systems products (Axe-Fx III, FM9, FM3, etc.), the EV-1 is also compatible with a wide range of third-party devices that accept an expression pedal via a 1/4″ TRS cable.

• Type: Expression Pedal and Analog Volume Pedal
• Potentiometer (Expression): 100 kΩ, Linear Taper, accessed via the “EXP” (TRS) jack.
• Potentiometer (Volume): 500 kΩ, Audio Taper, accessed via the “IN” and “OUT” (TS) jacks.
• Mechanism: Planetary Gearing
• Material: Cast Aluminum Housing, Non-slip Rubber Tread
• Dimensions (Approximate):
  • Length: 11.5 in (292 mm)
  • Width: 4.1 in (104 mm)
  • Height: 2.85 in (72 mm)
• Weight (Approximate): 3.7 lbs (1.68 kg)

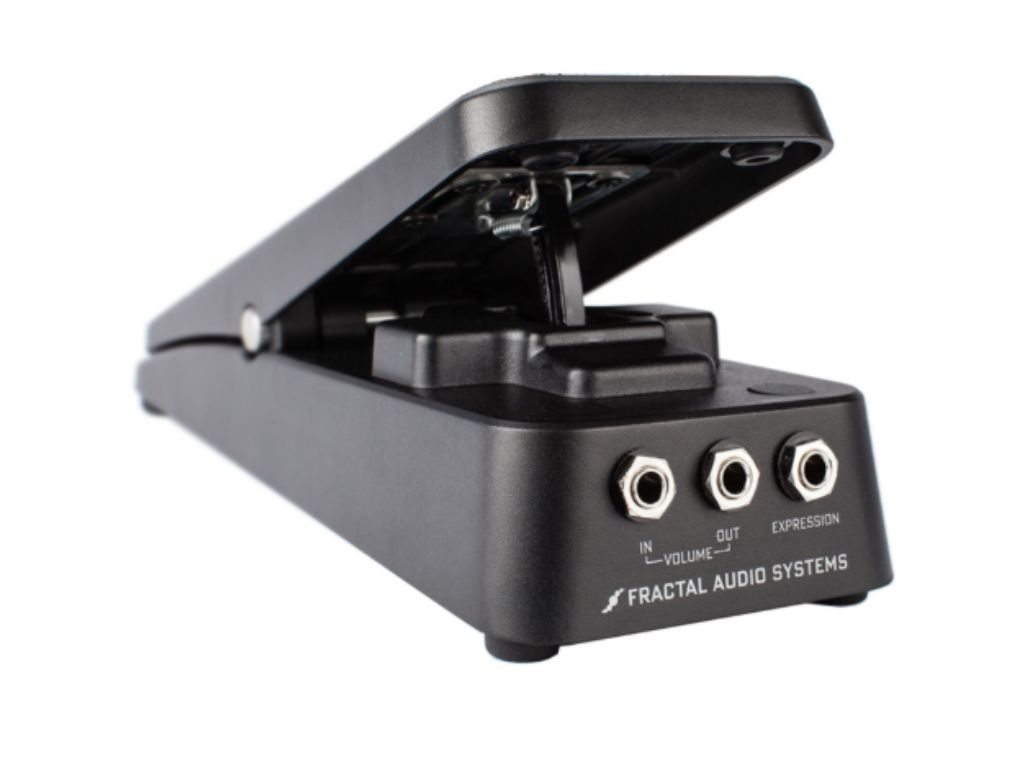

• Jacks:
  • 1 x 1/4″ TRS for Expression Output
  • 1 x 1/4″ TS for Volume Input
  • 1 x 1/4″ TS for Volume Output

• ประเภท: Expression Pedal และ Analog Volume Pedal
• Potentiometer (สำหรับ Expression): 100 kΩ, Linear Taper, เชื่อมต่อผ่านช่อง “EXP” (TRS)
• Potentiometer (สำหรับ Volume): 500 kΩ, Audio Taper, เชื่อมต่อผ่านช่อง “IN” และ “OUT” (TS)
• กลไก: Planetary Gearing
• วัสดุ: ตัวถังอลูมิเนียมหล่อ, พื้นผิวยางกันลื่น
• ขนาด (โดยประมาณ):
  • ความยาว: 292 มม. (11.5 นิ้ว)
  • ความกว้าง: 104 มม. (4.1 นิ้ว)
  • ความสูง: 72 มม. (2.85 นิ้ว)
• น้ำหนัก (โดยประมาณ): 1.68 กก. (3.7 ปอนด์)
• ช่องเชื่อมต่อ:
  • 1 x 1/4″ TRS สำหรับ Expression Output
  • 1 x 1/4″ TS สำหรับ Volume Input
  • 1 x 1/4″ TS สำหรับ Volume Output
