HH audio MZ-140Q
Description

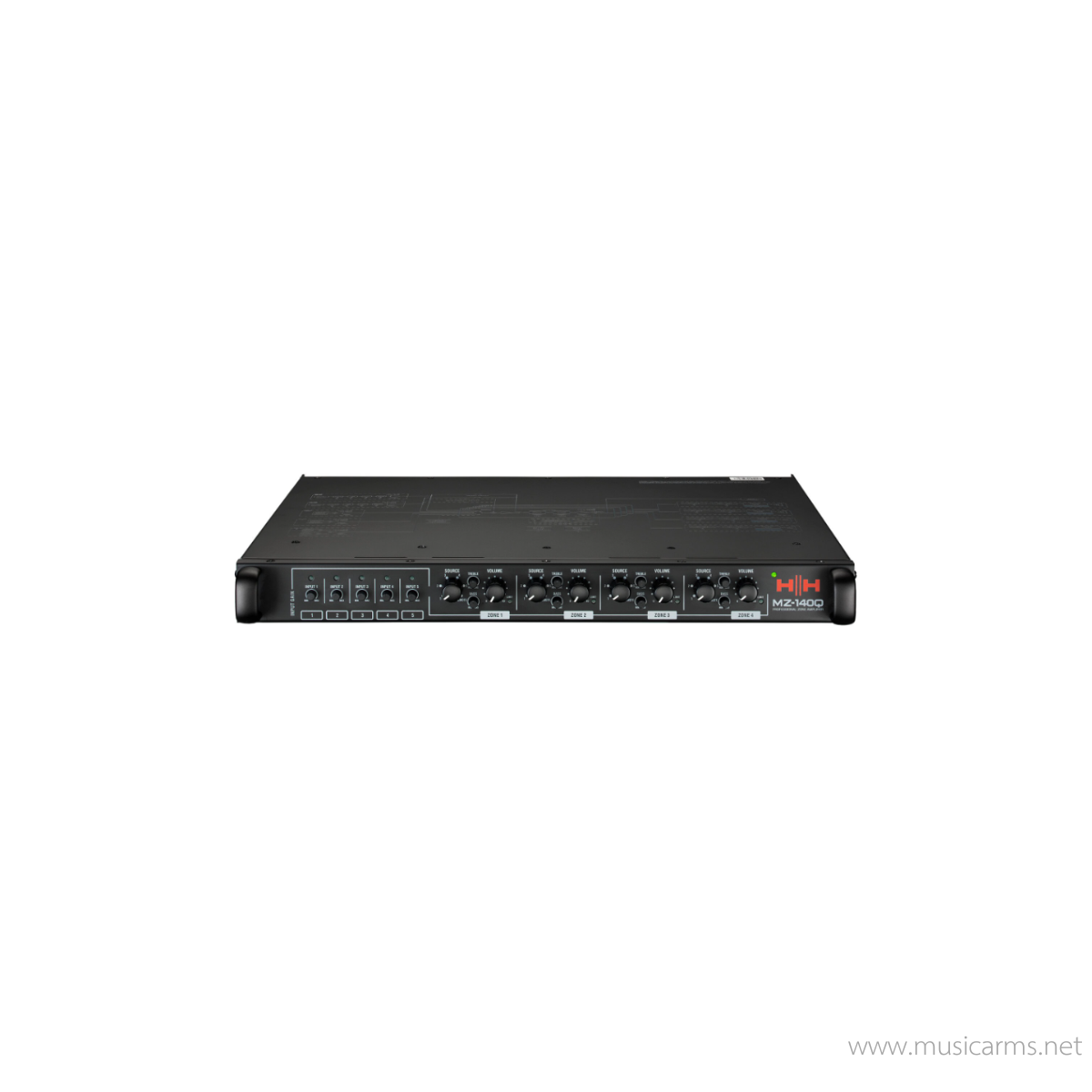

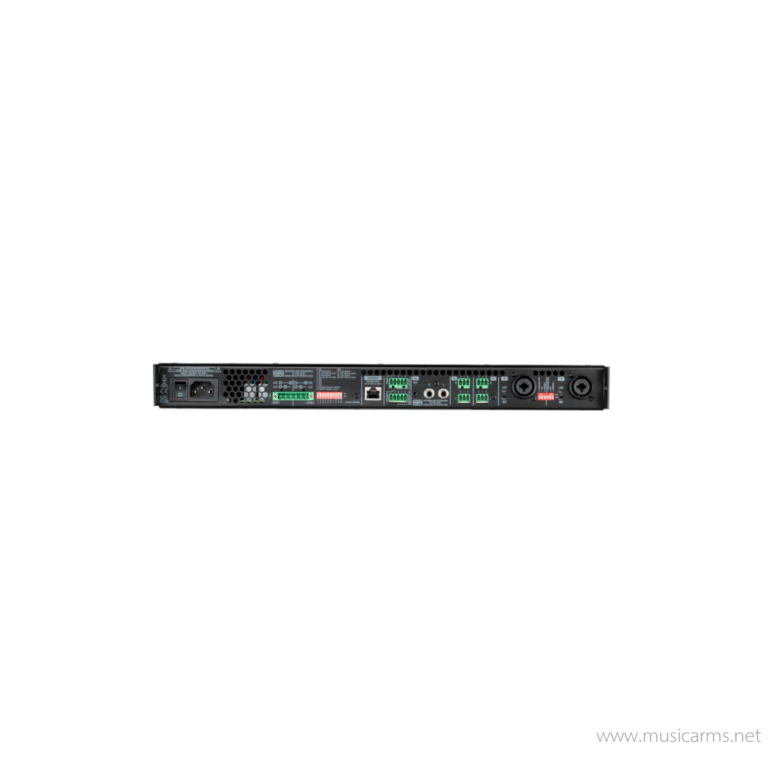

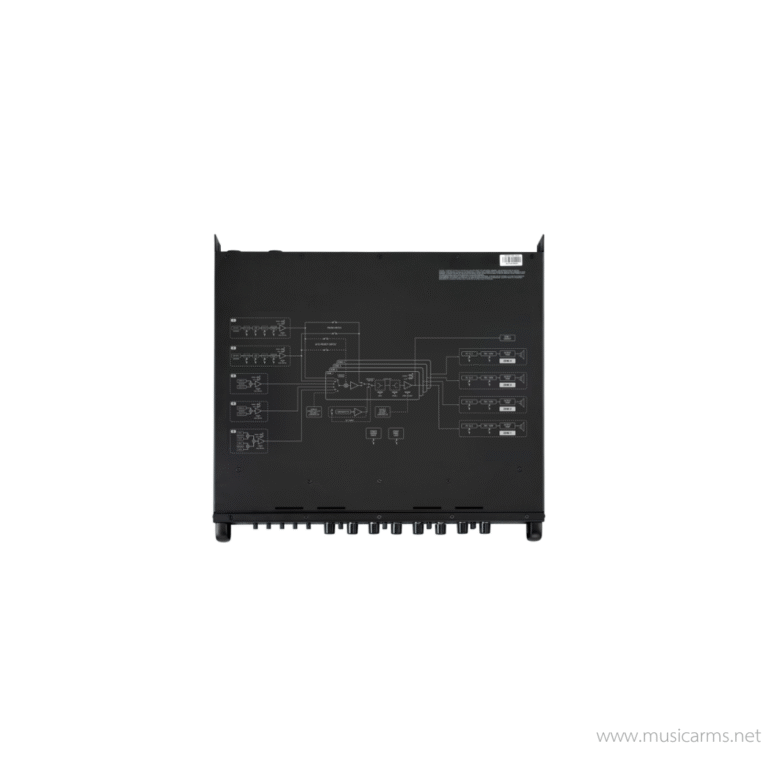

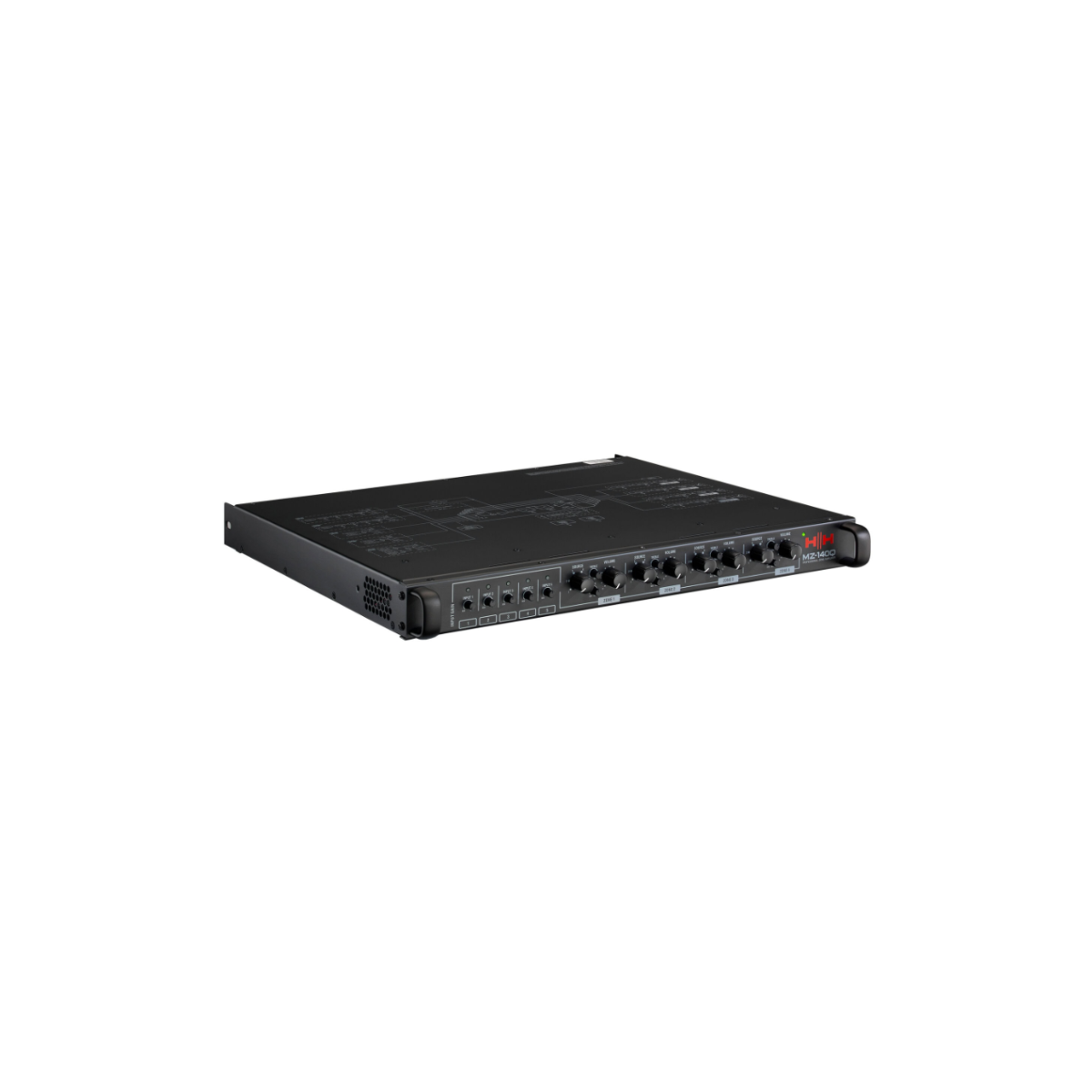

HH Audio MZ-140Q
The HH Audio MZ-140Q is a 4-zone amplifier delivering 140W RMS per zone. It independently supports both 70/100V and low-impedance 4Ω speakers per zone. It features 5 front-panel gain-adjustable input channels, as well as two microphone inputs with automatic and manual priority settings. The robust 1U design saves space. It includes separate zone-specific bass/treble EQ and supports remote volume control via the HH MZ-C2. Ideal for shops, cafes, bars, recreational areas, and all types of commercial sound system installations.
Specification
Features
4-zone amplifier with 4×140W RMS power output
Supports 70V/100V or 4Ω speakers (selectable per zone)
5 inputs: XLR/Jack, Euroblock L/R, 3.5mm AUX, RCA
Zone-by-zone control: Source Select, Volume, Bass/Treble EQ
CH1/2 supports Mic/Line, Phantom Power, and Priority Mode
Frequency response: 20–20kHz (LoZ) / 80–20kHz (HiZ)
THD+N less than 0.01%, S/N >110dB, Crosstalk < -95dB
Euroblock Line Out for Zone 1 for system expansion
Emergency Override via Euroblock
DSP ORIGIN Advanced Multicore Platform with HPF and LPF filters
Supports Remote Volume Control via MZ-C2
Power consumption: 27W Idle / 300W Typical / 450W Max / 0.4W Standby
1U structure, weight 4.5 kg.
Supplies: Rack Kit, Euroblock, IEC power cable.
ข้อมูลสินค้า
HH audio MZ-140Q
HH Audio MZ-140Q เป็นแอมป์จัดโซน 4 โซนที่ให้กำลังขับ 140W RMS ต่อโซน รองรับทั้งลำโพง 70/100V และลำโพงความต้านทานต่ำ 4Ω ต่อโซนอย่างอิสระ มาพร้อมอินพุต 5 แชนแนลที่ปรับ Gain ได้จากด้านหน้า รวมถึงอินพุตไมค์ สองช่องที่รองรับระบบ Priority ทั้งแบบอัตโนมัติและแบบ Manual ตัวเครื่องแข็งแรงในขนาด 1U ประหยัดพื้นที่ พร้อม EQ Bass/Treble แยกแต่ละโซน และรองรับการควบคุม Volume ระยะไกลผ่าน HH MZ-C2 เหมาะอย่างยิ่งสำหรับร้านค้า คาเฟ่ บาร์ พื้นที่สันทนาการ และงานติดตั้งระบบเสียงเชิงพาณิชย์ทุกรูปแบบ
รายละเอียดคุณสมบัติ
คุณสมบัติ
- แอมป์ 4 โซน กำลังขับ 4×140W RMS
- รองรับลำโพง 70V / 100V หรือ 4Ω (เลือกได้แต่ละโซน)
- อินพุต 5 ช่อง: XLR/Jack , Euroblock L/R, AUX 3.5mm, RCA
- ควบคุมแยกต่อโซน: Source Select, Volume, Bass/Treble EQ
- CH1/2 รองรับ Mic/Line, Phantom Power และ Priority Mode
- การตอบสนองความถี่ 20–20kHz (LoZ) / 80–20kHz (HiZ)
- THD+N ต่ำกว่า 0.01%, S/N >110dB, Crosstalk < -95dB
- Line Out Euroblock ตาม Zone 1 สำหรับขยายระบบ
- Emergency Override ผ่าน Euroblock
- DSP ORIGIN Advanced Multicore Platform พร้อมฟิลเตอร์ HPF และ LPF
- รองรับ Remote Volume Control ผ่าน MZ-C2
- กินไฟ: 27W Idle / 300W Typical / 450W Max / 0.4W Standby
- โครงสร้าง 1U น้ำหนัก 4.5 กก.
- อุปกรณ์ที่ให้มา: Rack Kit, Euroblock, สายไฟ IEC
