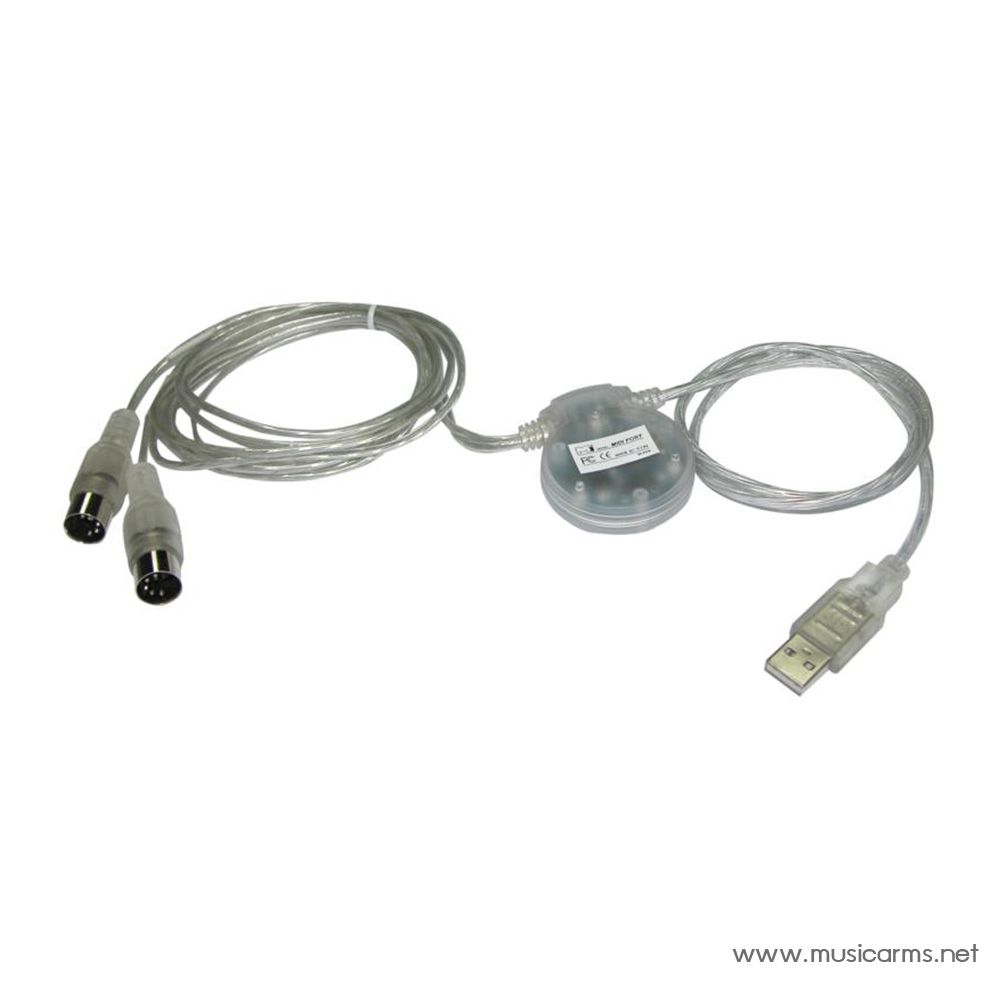

iCon MidiPort

MidiPort

● 1-in / 1-out MIDI interface (16×16 MIDI channels)
● USB 2.0 for high-speed connection
● Plug & play for Mac and Window platforms
● Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit/64-bit) and Mac OS X
● No IRQ, I/O address or DMA channel setup
● Perfect MIDI timing
● USB bus powered, no external power supply required

Connector

• USB: 1 x USB male connector
• MIDI Inputs: 1 x Din 5 male MIDI connector
• MIDI Outputs: 1 x Din 5 male MIDI connector

General

• Power supply: USB bus-powered
• Current consumption: 100mA or less
• Weight: 0.13kg (0.29lbs)
• Dimensions: 56 x 46 x 17 mm
• Dimensions: 2.25” x 1.8” x 0.65”
