Description

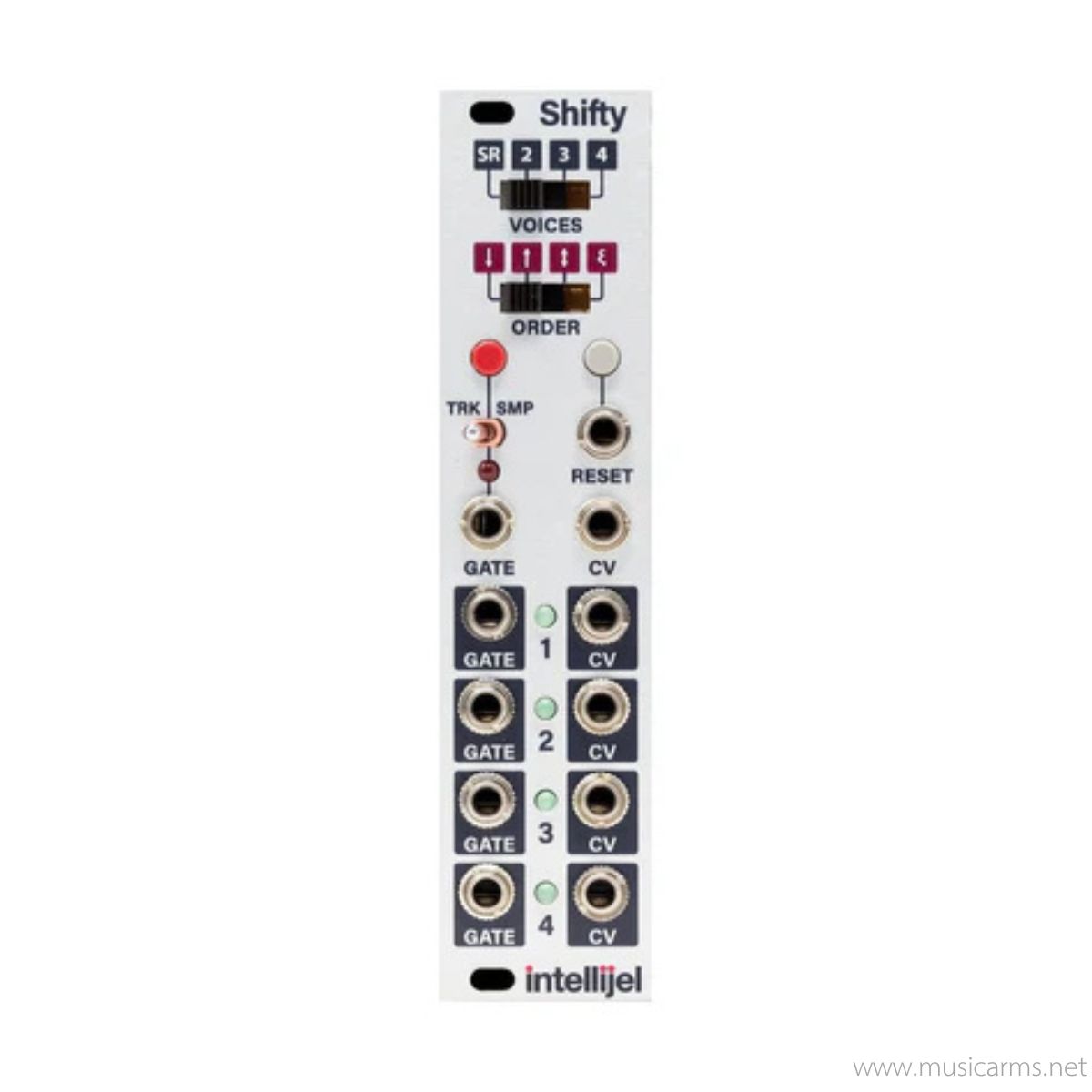

Intellijel Shifty: The Master of Signal Routing
The Shifty operates as a highly creative combination of a Voice Allocator and an Analog Shift Register. Its core concept involves taking a single incoming sequence (pitch and gate) and dynamically routing it across four different outputs. This empowers you to take a simple monophonic melody and distribute it across four different synthesizers (hocketing), or use it to generate cascading, overlapping polyphonic chords from a single sequencer track.
Key Features
- Voice Allocation Mode: Distributes a single melody line sequentially to up to four synth voices, allowing for overlapping decay tails and true polyphonic behavior.
- Shift Register Mode: Stores an incoming CV value and passes it down the chain of outputs with each new gate, perfect for cascading delays or evolving chord structures.
- Direction Control: Dictate the routing behavior with Forward, Reverse, Ping-Pong, or entirely Random playback directions.
Conclusion
The Shifty is the secret to breathing three-dimensional life into simple sequences. It transforms repetitive, single-voice lines into sprawling, multi-timbral tapestries.
Specification
SPECS |
|
|---|---|
| Type | Voice Allocator / Analog Shift Register |
| Width | 6 HP |
| Inputs | 1 x CV (Pitch), 1 x Gate |
OUTPUTS & MODES |
|
| Outputs | 4 x CV Outs, 4 x Gate Outs |
| Modes | Voice Allocate (Polyphony), Shift Register |
| Directions | Forward, Reverse, Ping-Pong, Random |
ข้อมูลสินค้า
Intellijel Shifty: นักสลับสายสัญญาณจอมเวท
Shifty คือโมดูลที่ทำหน้าที่เป็นทั้ง Voice Allocator และ Shift Register แนวคิดของมันคือการรับสัญญาณทำนอง (Sequence) ที่ส่งมาเป็นเส้นเดียว แล้วทำการสลับแจกจ่าย (Route) สัญญาณเหล่านั้นออกไปยัง 4 เอาต์พุตสลับกันไปมา สิ่งนี้ทำให้คุณสามารถนำทำนองแบบ Monophonic ไปควบคุมซินธิไซเซอร์ 4 ตัวให้เล่นต่อกันแบบสลับเสียง (Hocketing) หรือสร้างเป็นคอร์ด 4 เสียง (Polyphony) ได้อย่างน่าอัศจรรย์
คุณสมบัติเด่น
- Voice Allocation Mode: รับสัญญาณโน้ต 1 เส้น และแจกจ่ายสลับไปยัง 4 เอาต์พุต ช่วยให้ซินธิไซเซอร์หลายๆ ตัวช่วยกันเล่นเมโลดี้เดียวกันแต่มีหางเสียงยาวทับซ้อนกันได้
- Shift Register Mode: เก็บค่าโน้ตที่เข้ามาแล้วเลื่อน (Shift) ไปยังแชนแนลถัดไปเรื่อยๆ คล้ายกับเอฟเฟกต์เสียงสะท้อนแบบหน่วงเวลา หรือสร้างคอร์ดที่เปลี่ยนแปลงตลอดเวลา
- Direction Control: เลือกลำดับการแจกจ่ายสัญญาณได้ทั้งแบบเดินหน้า, ถอยหลัง, สุ่ม, หรือสลับไปมา (Ping-Pong)
สรุป
Shifty คือความลับในการสร้างทำนองที่ซับซ้อนและมีมิติ มันเปลี่ยน Sequence เดิมๆ ที่น่าเบื่อ ให้กลายเป็นท่วงทำนองที่วิ่งวนไปรอบๆ ลำโพงซ้าย-ขวาของคุณ
รายละเอียดคุณสมบัติ
SPECS |
|
|---|---|
| ประเภท | Voice Allocator / Analog Shift Register |
| ความกว้าง (Width) | 6 HP |
| Inputs | 1 x CV (Pitch), 1 x Gate |
OUTPUTS & MODES |
|
| Outputs | 4 x CV Outs, 4 x Gate Outs |
| โหมดทำงาน | Voice Allocate (Polyphony), Shift Register |
| ทิศทาง (Directions) | Forward, Reverse, Ping-Pong, Random |
