JBL AW526 ลำโพงติดผนังพาสซีฟ 15 นิ้ว 2400 วัตต์ที่ 8 โอห์ม

ราคา : 294,700 บาท
Description
JBL AW526: High-Power All-Weather Passive Loudspeaker for Large-Scale Sound Systems

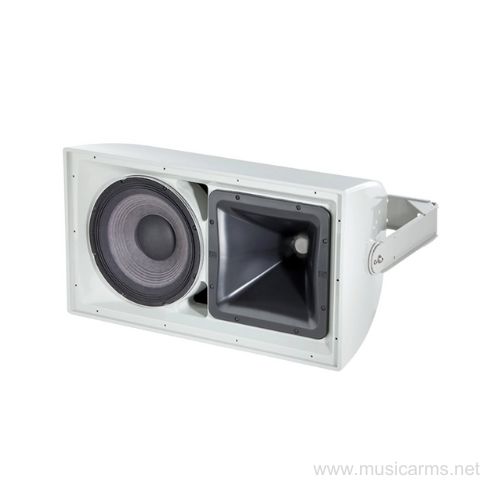

The JBL AW526 is a high-performance passive wall-mounted loudspeaker engineered for
large-area sound reinforcement applications. Featuring a 2-way coaxial design with a 15-inch woofer
and a 1.5-inch compression driver, it delivers powerful output with consistent clarity across wide

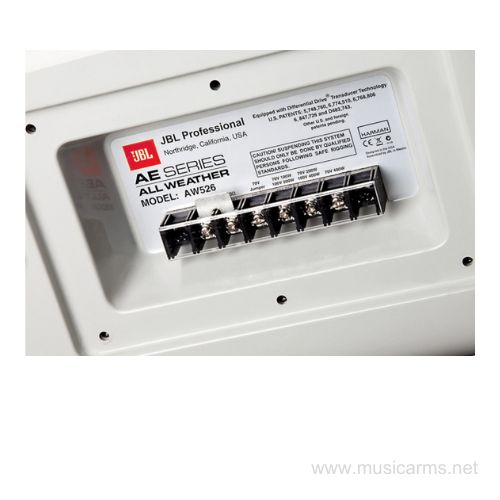

listening areas. With support for both low-impedance and 70V/100V distributed systems via a built-in
transformer, the AW526 is well suited for complex and large-scale audio installations.
Key Features
- 2-Way Coaxial Driver Design:
Combines a 15-inch 2265H-1 low-frequency driver with a 1.5-inch 2432H high-frequency compression driver
to ensure coherent sound and uniform coverage. - High Power Handling:
Supports up to 2400 watts at 8 ohms, or 400 watts in 70V/100V line operation, making it suitable for
high-demand sound reinforcement systems. - Wide Coverage and High SPL:
Delivers a maximum peak SPL of 134 dB with a coverage pattern of 120° x 60°, ensuring clear sound
distribution across large spaces. - All-Weather Construction:
Fiberglass enclosure with a weather-resistant grille, rated IP55C, designed for reliable performance
in harsh outdoor environments. - Flexible Installation:
Supplied with a U-type mounting bracket, allowing both vertical and horizontal installation.
Who Is the JBL AW526 For?
- Large Outdoor Venues:
Ideal for stadiums, amusement parks, public parks, and outdoor event spaces. - Commercial Facilities:
Suitable for shopping malls, transportation hubs, and large public areas requiring reliable audio coverage. - Professional Sound System Integrators:
Designed for installations that demand durability, scalability, and consistent audio performance.
Conclusion
The JBL AW526 is a powerful and dependable all-weather loudspeaker built for demanding
professional applications. With its high output capability, wide coverage, and robust environmental
protection, it is an excellent solution for large-scale outdoor and distributed sound systems that
require long-term reliability and clear audio performance.
Specification
[Product Name] Details |
|
|---|---|
| Product Type | Loudspeaker |
| Frequency Response | 35 Hz – 20 kHz |
| Sensitivity | 98 dB |
| Low Frequency Driver | 15 inch woofer |
| High Frequency Driver | 1.5 inch compression driver |
| Weight | 28.3 kg |
ข้อมูลสินค้า
JBL AW526: ลำโพง Passive ติดผนังสำหรับงานระบบเสียงกลางแจ้งกำลังขับสูง
JBL AW526 เป็นลำโพง Passive ติดผนังระดับมืออาชีพ ที่ออกแบบมาสำหรับงานระบบเสียง
ในพื้นที่ขนาดใหญ่ ด้วยโครงสร้างลำโพงแบบ 2 ทาง โคแอกเชียล ใช้วูฟเฟอร์ขนาด 15 นิ้ว
ทำงานร่วมกับคอมเพรสชั่นไดรเวอร์ขนาด 1.5 นิ้ว ให้พลังเสียงสูง พร้อมความคมชัดที่สม่ำเสมอทั่วทั้งพื้นที่รับฟัง
นอกจากนี้ยังรองรับการใช้งานทั้งระบบ Low Impedance และระบบกระจายเสียง 70V/100V ผ่านหม้อแปลงในตัว
ช่วยให้การออกแบบและติดตั้งระบบเสียงขนาดใหญ่ทำได้ง่ายยิ่งขึ้น
คุณสมบัติเด่น
- ลำโพง 2 ทาง โคแอกเชียล:
ประกอบด้วยดอกเสียงต่ำรุ่น 2265H-1 ขนาด 15 นิ้ว และดอกเสียงสูงรุ่น 2432H ขนาด 1.5 นิ้ว
ให้การกระจายเสียงที่ต่อเนื่องและมีความสมดุล - รองรับกำลังขับสูง:
รองรับกำลังขับสูงสุดถึง 2400 วัตต์ ที่ 8 โอห์ม และ 400 วัตต์ สำหรับระบบ 70V/100V
เหมาะสำหรับงานระบบเสียงที่ต้องการพลังเสียงสูง - ให้ระดับเสียงดังสูงและกระจายเสียงกว้าง:
ให้ระดับความดังสูงสุด 134 dB Peak พร้อมมุมกระจายเสียง 120° x 60°
ครอบคลุมพื้นที่ใช้งานขนาดใหญ่ได้อย่างมีประสิทธิภาพ - โครงสร้างทนทุกสภาพอากาศ:
ตัวตู้ผลิตจากไฟเบอร์กลาส แข็งแรง พร้อมตะแกรงหน้าป้องกันน้ำและฝุ่น
มาตรฐาน IP55C รองรับการใช้งานกลางแจ้งในสภาพแวดล้อมที่หลากหลาย - ติดตั้งได้ยืดหยุ่น:
มาพร้อมขายึดแบบ U-Type สามารถติดตั้งได้ทั้งแนวตั้งและแนวนอน
เหมาะกับการใช้งานประเภทใด
- สถานที่กลางแจ้งขนาดใหญ่:
เช่น สนามกีฬา สวนสนุก สวนสาธารณะ และพื้นที่จัดกิจกรรมกลางแจ้ง - อาคารและพื้นที่เชิงพาณิชย์:
ศูนย์การค้า สถานีขนส่ง หรือพื้นที่สาธารณะที่ต้องการระบบเสียงที่มีความเสถียร - งานติดตั้งระบบเสียงระดับมืออาชีพ:
เหมาะสำหรับงานที่ต้องการความทนทานสูงและรองรับการใช้งานระยะยาว
สรุป
JBL AW526 เป็นลำโพงติดผนังสำหรับทุกสภาพอากาศที่ออกแบบมาเพื่องานระบบเสียงระดับมืออาชีพ
ให้พลังเสียงสูง การกระจายเสียงที่ครอบคลุม และโครงสร้างที่ทนทานต่อสภาพแวดล้อม
เหมาะสำหรับโครงการติดตั้งระบบเสียงกลางแจ้งและพื้นที่ขนาดใหญ่ที่ต้องการคุณภาพเสียงที่เชื่อถือได้ในระยะยาว
รายละเอียดคุณสมบัติ
[ชื่อสินค้า] รายละเอียดสินค้า |
|
|---|---|
| ประเภทสินค้า | ตู้ลำโพง |
| การตอบสนองความถี่ | 35 Hz – 20 kHz |
| ความไว (Sensitivity) | 98 dB |
| ขนาดดอกเสียงต่ำ | 15 นิ้ว |
| ขนาดดอกเสียงแหลม | 1.5 นิ้ว |
| น้ำหนัก | 28.3 กิโลกรัม |
