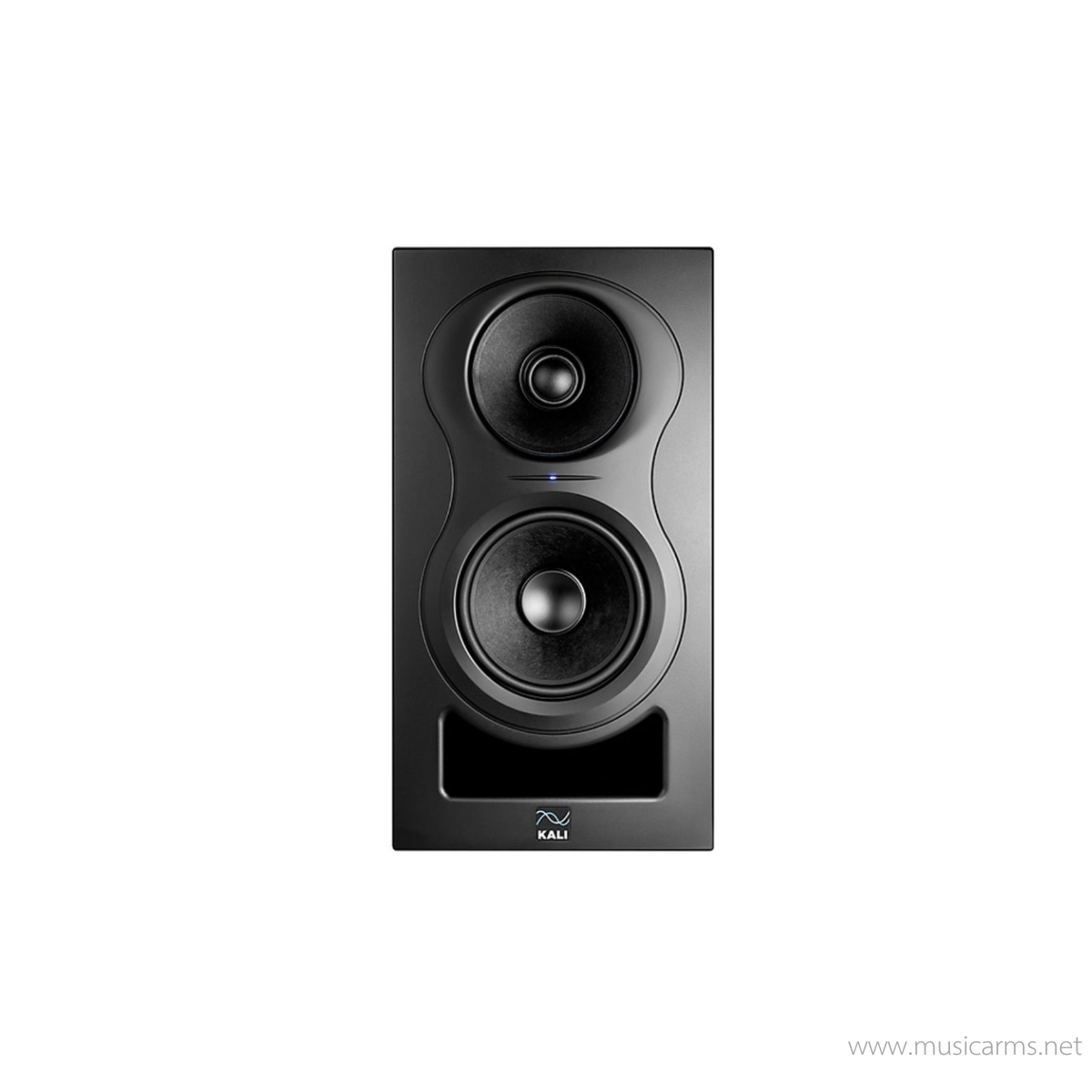

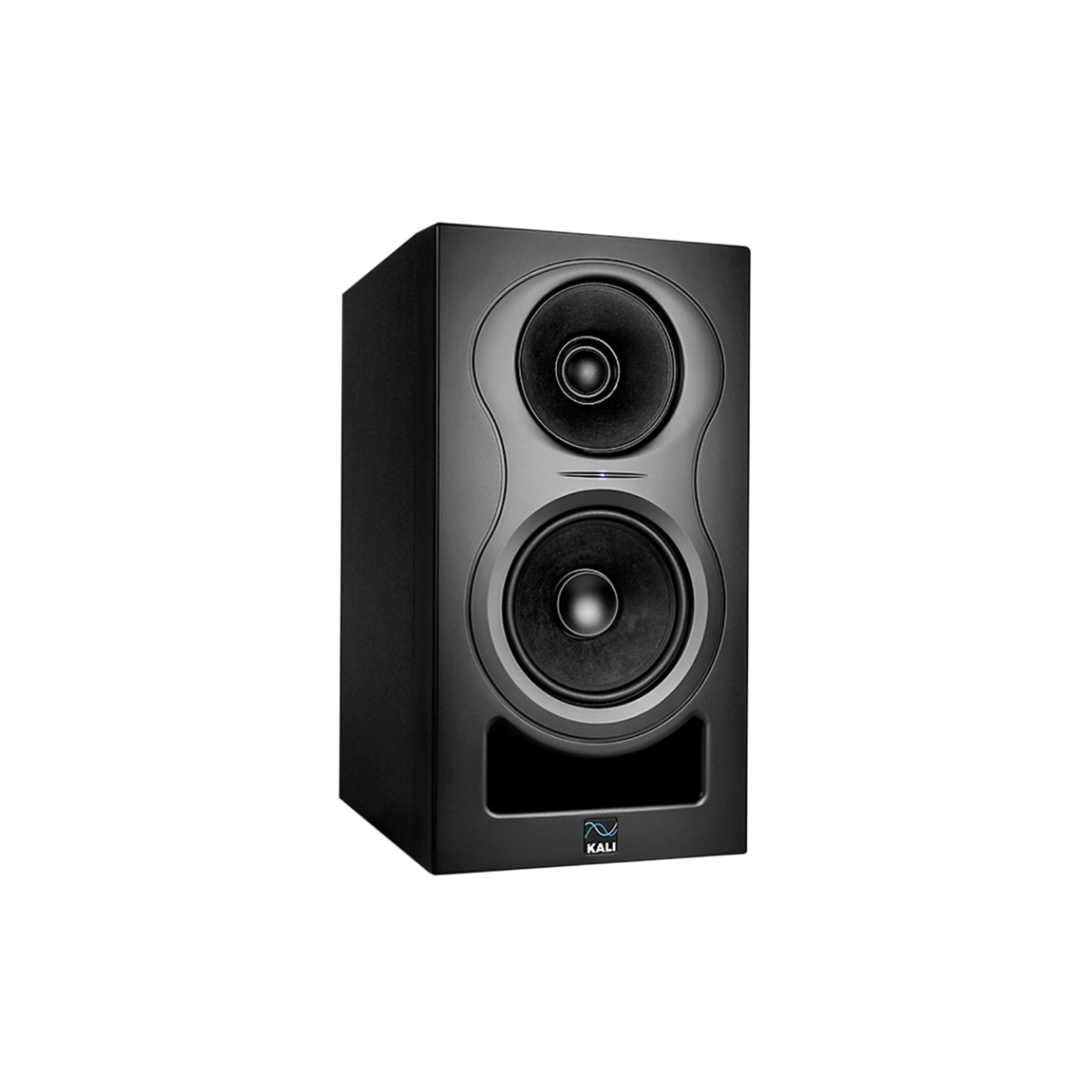

Kali Audio IN-5 (Single)

Transparent sound reproduction for mixes you can trust

The IN-5 offers ultra-transparent sound reproduction, enabling you to hear every detail of your mix. This starts with an exceptionally accurate frequency response — there’s nothing hyped about this speaker. Its dual-layer, large-diameter voice coil exhibits a crystal-clear sound with negligible distortion — a full 6dB lower than its nearest competitor. At continuous reference-level output, the IN-5 boasts at least 20dB of headroom to allow for transient spikes. What’s more, this studio monitor employs larger magnets and voice coils than others in its class, resulting in super-accurate low-end response and impressive low-frequency extension. At Sweetwater, we’ve found that the IN-5 empowers you to mix with confidence.

Coaxial design yields rock-solid imaging

With a typical 2-way studio monitor, its woofer and tweeter produce energy at the same time, creating an interference pattern at the speaker’s crossover point. Waveguides are generally employed to reduce the interference; however, the speaker still produces a directivity anomaly because the two drivers are in two separate positions. The Kali Audio IN-5’s coaxial high- and mid-frequency drivers, on the other hand, occupy the same space. This puts them within a quarter wavelength of one another, thereby eliminating this interference pattern. The IN-5 exhibits superb directivity — better than any non-coaxial design — and covers your entire room uniformly. What’s more, the IN-5’s optimized-profile midrange driver boasts more radiating surface than a standard waveguide, ensuring minimum distortion and maximum dynamic range.

Low-noise port tube exhibits clean, punchy low end

One of the IN-5’s most novel features is its low-noise port tube. Many port tubes emit turbulence, as air leaves the tube at different speeds from different points of the opening. This turbulence produces chuffing — a noisy sound that obscures the low-end details of your mix. The IN-5’s port tube, on the other hand, ensures that all of the air exits at the same velocity. The end result is clean, punchy bass with zero added noise.

Boundary EQ ensures optimal sound in any environment

A speaker’s position in a room drastically affects its frequency response. Even if your room is acoustically treated, your studio monitor’s sound will change if you place it near a wall or on a desk. Additionally, hard surfaces like walls and the top of your console will skew your monitor’s frequency response, degrade its sound, and give you false auditory information. The engineers at Kali Audio understand this, and that’s why they baked a solution directly into the IN-5: its Boundary EQ. Tuned to perfection at The Village Studios in Los Angeles, the IN-5’s Boundary EQ supplies you with presets that are tailored to eight common speaker placements. You also get LF/HF trims for fine-tuning the speaker’s response. With the IN-5, you’ll be able to optimize its response, no matter what environment you’re mixing in.

Kali Audio IN-5 Studio Monitor Features:

• 5-inch powered studio monitor with coaxial 1-inch textile-dome tweeter and 4-inch optimized-profile midrange driver
• Tri-amped design with integrated Class D power amp
• Ruler-flat frequency response — there’s nothing hyped about this speaker
• Exhibits negligible levels of distortion — a full 6dB lower than its nearest competitor
• Boasts 20dB of headroom while playing continuously at 85dB
• Large magnets and voice coils produce super-accurate low-end response and impressive low-frequency extension
• Coaxial design exhibits superb directivity — better than any non-coaxial design — covering your entire room uniformly
• Low-noise port tube yields clean, punchy bass with zero chuffing
• Boundary EQ allows you to tailor the speaker to any environment
• LF/HF trims for fine-tuning the speaker’s response
• Balanced XLR and TRS inputs, and an unbalanced RCA input

Tech Specs

• Powered:Yes
• Power Configuration:Tri-amped
• Quantity:Single
• LF Driver Size:5″
• LF Driver Type:Paper
• MF Driver Size:4″
• MF Driver Type:Optimized Profile Paper
• HF Driver Size:1″ Tweeter
• HF Driver Type:Textile Dome
• LF Driver Power Amp:80W
• MF Driver Power Amp:40W
• HF Driver Power Amp:40W
• Total Power:160W Class D
• Frequency Range:47Hz-21kHz (±3 dB)
• Frequency Response:39Hz-25kHz (-10 dB)
• Maximum Peak SPL:115 dB SPL @ 1m
• Input Types:1 x XLR, 1 x RCA, 1 x 1/4″
• Enclosure Type:Front Ported
• Height:15.1″
• Width:8.2″
• Depth:11.2″
• Weight:19 lbs.
• Manufacturer Part Number:IN-5

ข้อมูลจำเพาะทางเทคนิค
มีแอมป์ในตัว: ใช่
การกำหนดค่ากำลังไฟ: ไตรแอมป์
จำนวน: หนึ่งตัว
ขนาดไดร์เวอร์ LF: 5 นิ้ว
ประเภทไดร์เวอร์ LF: กระดาษ
ขนาดไดร์เวอร์ MF: 4 นิ้ว
ประเภทไดร์เวอร์ MF: กระดาษโปรไฟล์ปรับแต่ง
ขนาดไดร์เวอร์ HF: ทวีตเตอร์ 1 นิ้ว
ประเภทไดร์เวอร์ HF: โดมผ้า
กำลังขับแอมป์ไดร์เวอร์ LF: 80 วัตต์
กำลังขับแอมป์ไดร์เวอร์ MF: 40 วัตต์
กำลังขับแอมป์ไดร์เวอร์ HF: 40 วัตต์
กำลังไฟรวม: 160 วัตต์ คลาส D
ช่วงความถี่: 47Hz-21kHz (±3 dB)
การตอบสนองความถี่: 39Hz-25kHz (-10 dB)
ระดับความดังเสียงสูงสุด: 115 dB SPL @ 1 เมตร
ประเภทอินพุต: 1 x XLR, 1 x RCA, 1 x 1/4 นิ้ว
ประเภทตัวเครื่อง: ช่องระบายอากาศด้านหน้า
ความสูง: 15.1 นิ้ว
ความกว้าง: 8.2 นิ้ว
ความลึก: 11.2 นิ้ว
น้ำหนัก: 19 ปอนด์

หมายเลขชิ้นส่วนผู้ผลิต: IN-5
