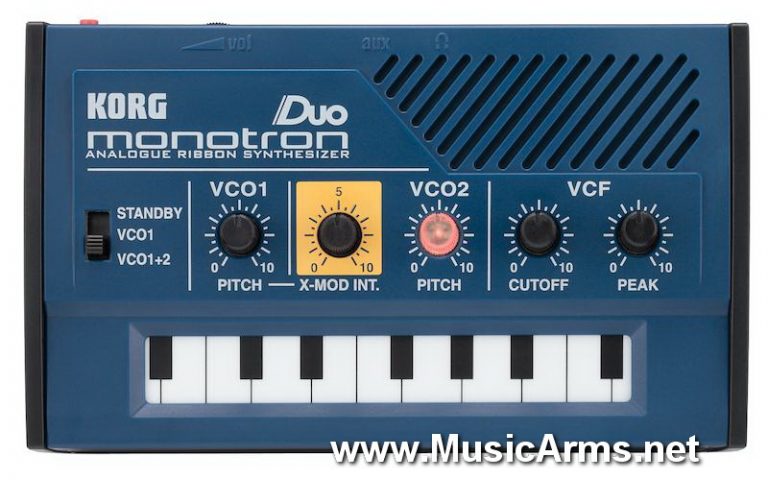

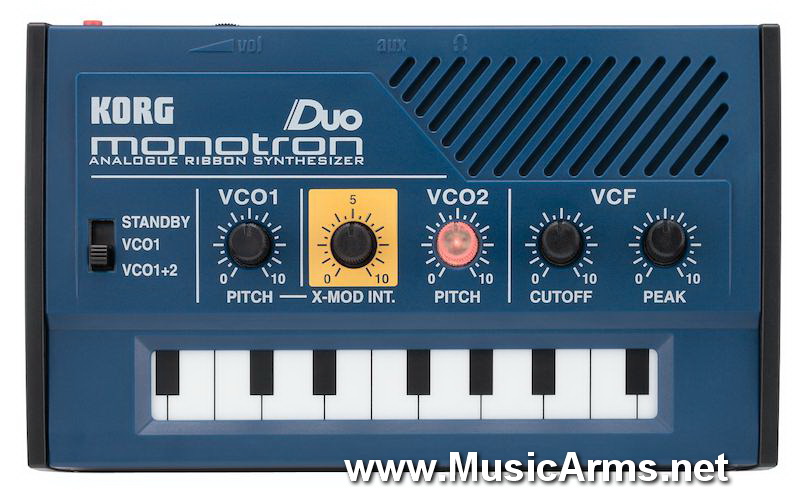

Korg Monotron Duo

Go Anywhere Analog: That was the theme behind the remarkable battery-powered and palm-sized analog synthesizer that Korg dubbed the monotron. Now the powerful and fun-to-play monotron is joined by two new siblings. Each is played from a ribbon controller keyboard with newly added features. The monotrons simple operation and ease of use (5 knobs and switch) is alive and well, inviting hours of enjoyment and musical exploration.

Two analog oscillators (VCO) with individual tunings
Edgy X-MOD circuit borrowed from Korgs classic Mono/Poly
Ribbon controller keyboard with Scale Select
Original Analog (VCF) Filter taken from the classic MS-0 & MS-20
Aux input jack lets you apply filter to any audio source
Built-in speaker and battery power for Go Anywhere Analog sound
Headphone jack for private use

Synthesizer structure
2 VCOs with X-Mod; VCF

Switches
Standby / VCO / VCO+2, Scale Select Button: (Chromatic -> Major -> Minor -> Off)

Knobs
VCO Pitch, X-MOD Int., VCO2 Pitch, VCF Cutoff, VCF Peak

Controller
Ribbon Controller

Volume
Headphone Volume

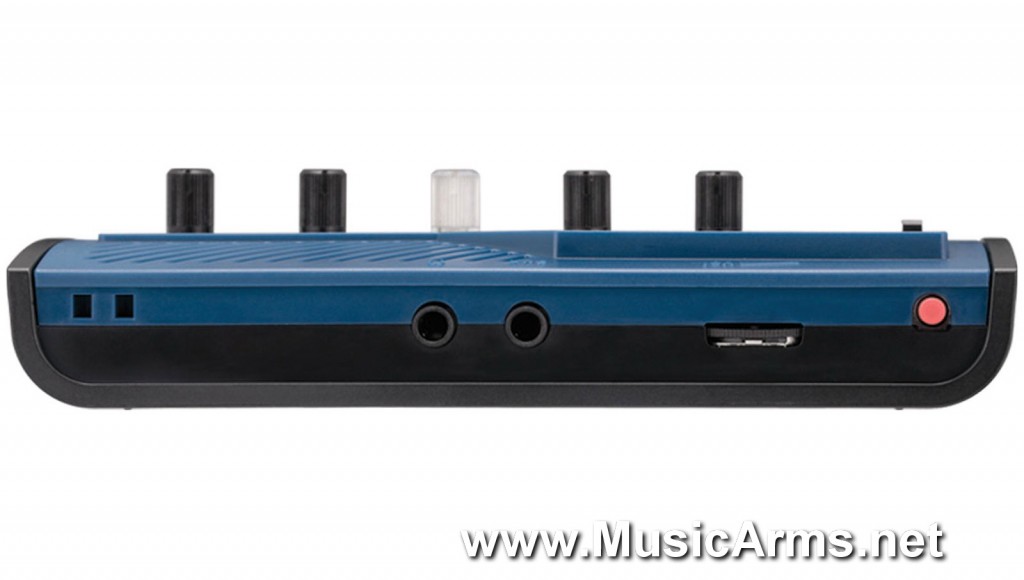

Aux Input
” Stereo Jack

Headphone Output
” Stereo Jack

Speaker
Miniature Internal; Disabled when headphones are in use

Power Supply
AAA batteries (x2), recommended alkaline batteries

Battery Life
Approximately 8 hours (with alkaline batteries)

Dimensions
(W x D x H)
20 mm x 72 mm x 28 mm / 4.72 x 2.83 x .0

Weight
95g / 3.35 oz. (without batteries)

Accessories
AAA batteries x2 (for verifying operation)

– มีสอง oscillators อนาล็อก (VCO) ด้วย individual tunings
– แป้นพิมพ์เป็น Ribbon เพือให้ง่ายต่อการใช้งาน
– มี Original Analog (VCF)
– มีลำโพงให้ในตัว
– มีช่อง Aux input และ jack input
– ช่องเสียบหูฟัง
