Lab Gruppen PLM 12K44 เพาเวอร์แอมป์ 4 แชนแนล
ราคา : 391,400 บาท
Description

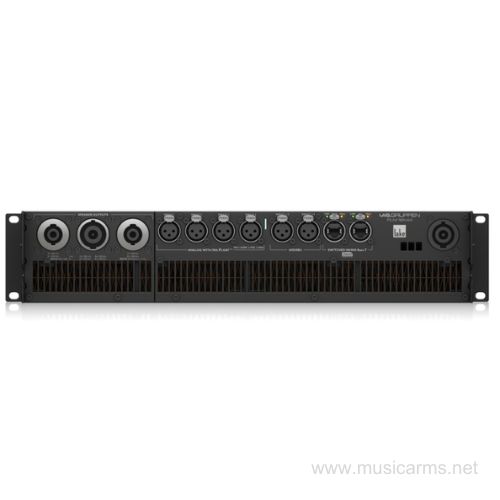

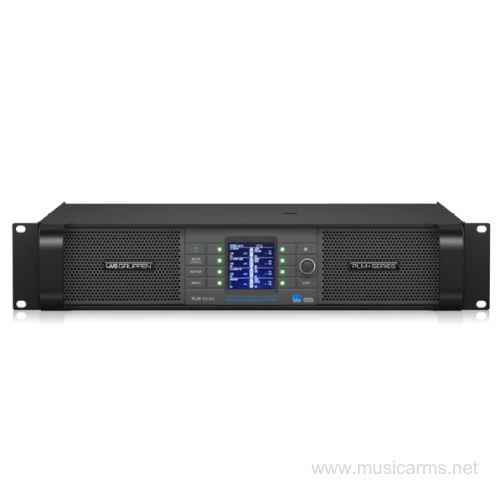

LAB.GRUPPEN PLM 12K44: 4-Channel Class TD Amplifier with Lake DSP (12,000W)
The LAB.GRUPPEN PLM 12K44 is a high-end touring and professional power amplifier designed for large-scale sound systems. Featuring Class TD technology, it delivers a total output of 12,000 watts across four channels, combined with industry-leading Lake Processing DSP for precise audio control.
Developed as an upgrade from the PLM10000Q, this model features enhanced amplification and power supply sections. It supports multiple input formats including Analog, AES/EBU, and Dante (AES67), and is compatible with both Low-Z and Hi-Z systems. Built-in presets from leading loudspeaker brands such as JBL, EAW, Adamson, EV, VUE, and TW Audio allow for fast and accurate system setup.
Highlights
- 12,000W Total Output: 4-channel touring-grade amplifier
- Lake DSP Built-in: FIR filters, EQ, Peak & RMS limiters
- Load Monitoring: Intelligent power distribution
- Speaker Presets: Supports top global brands
- Flexible Inputs: Analog / AES/EBU / Dante (AES67)
- Low-Z / Hi-Z Support: Versatile system integration
- LCD Display: Easy monitoring and control
Professional Features
- Power Factor Correction (PFC): Up to 0.98 efficiency
- R.SMPS Power Supply: Operates from 70–265 VAC
- Network Control: Via CAFÉ software
- Wireless Control: From computer or tablet
Protection Systems
- Current Average Limiter (CAL)
- Current Clip Limiter
- DC Protection
- Short Circuit Protection
- Temperature Protection
- Very High Frequency Protection (VHF)
- Voltage Clip Limiter
Consideration
- Premium Pricing: Designed for professional applications
Who is it for?
- Concerts & Festivals: Large-scale sound systems
- Touring Systems: High reliability and performance
- System Integrators: Professional installations
Conclusion
The LAB.GRUPPEN PLM 12K44 is a flagship-level amplifier combining massive power, advanced DSP processing, and intelligent system control. It is an ideal solution for demanding professional audio environments.
Specification
Product Details |
|
|---|---|
| Channels | 2 Channels |
| Power Output @ 8 Ohms | 2 x 1000 Watts |
| Power Output @ 4 Ohms | 2 x 1750 Watts |
| Power Output @ 2 Ohms | No |
| Bridged Power @ 8 Ohms | 3500 Watts |
| Amplifier Class | Class D |
| Frequency Response | 20 Hz – 20 kHz |
| Input Connectors | XLR |
| Output Connectors | Speakon, XLR Link |
| Rack Size | 2U |
| Power Supply | 50 / 60 Hz, 220 – 240V |
| Dimensions | 483 x 305.5 x 88 mm |
| Weight | 8.6 kg |
ข้อมูลสินค้า
LAB.GRUPPEN PLM 12K44: เพาเวอร์แอมป์ Class TD 4 แชนแนล พร้อม Lake DSP กำลังขับ 12,000 วัตต์
LAB.GRUPPEN PLM 12K44 คือเพาเวอร์แอมป์ระดับทัวริ่งและงานคอนเสิร์ตที่ออกแบบมาเพื่อระบบเสียงมืออาชีพโดยเฉพาะ มาพร้อมเทคโนโลยี Class TD ให้กำลังขับรวมสูงถึง 12,000 วัตต์ (4 แชนแนล) และผสานการทำงานกับ Lake Processing DSP ระดับโลก เพื่อการควบคุมเสียงที่แม่นยำสูงสุด
รุ่นนี้พัฒนาต่อยอดจาก PLM10000Q โดยมีการอัปเกรดภาคขยายและภาคจ่ายไฟใหม่ พร้อมรองรับอินพุตหลากหลายรูปแบบ ทั้ง Analog, AES/EBU และ Dante (AES67) สามารถใช้งานได้ทั้งระบบ Low-Z และ Hi-Z อีกทั้งยังมี Preset ลำโพงจากแบรนด์ชั้นนำระดับโลก เช่น JBL, EAW, Adamson, EV, VUE และ TW Audio ทำให้ติดตั้งและจูนระบบได้รวดเร็วและแม่นยำ
จุดเด่น
- กำลังขับรวม 12,000W: เพาเวอร์แอมป์ 4 แชนแนล ระดับ Touring
- Lake DSP ในตัว: รองรับ FIR, EQ, Peak & RMS Limiters
- Load Monitoring: จัดการพลังงานและโหลดลำโพงอัตโนมัติ
- Preset ลำโพง: จากแบรนด์ชั้นนำระดับโลก
- รองรับอินพุตครบ: Analog / AES/EBU / Dante (AES67)
- รองรับ Low-Z / Hi-Z: ใช้งานได้หลากหลายระบบ
- หน้าจอ LCD: แสดงสถานะและควบคุมได้สะดวก
ฟีเจอร์ระดับมืออาชีพ
- Power Factor Correction (PFC): ประสิทธิภาพสูงถึง 0.98
- R.SMPS Power Supply: รองรับไฟ 70 – 265 VAC
- Network Control: ควบคุมผ่านซอฟต์แวร์ CAFÉ
- Wireless Control: ใช้งานผ่านคอมพิวเตอร์หรือแท็บเล็ต
ระบบป้องกัน
- Current Average Limiter (CAL)
- Current Clip Limiter
- DC Protection
- Short Circuit Protection
- Temperature Protection
- Very High Frequency Protection (VHF)
- Voltage Clip Limiter
ข้อควรพิจารณา
- ราคาสูง: เหมาะกับงานระดับมืออาชีพ
เหมาะกับใคร?
- งานคอนเสิร์ต / เฟสติวัล: ระบบเสียงขนาดใหญ่
- งานทัวริ่ง: ต้องการความเสถียรสูง
- System Integrator: งานติดตั้งระดับโปร
สรุป
LAB.GRUPPEN PLM 12K44 คือสุดยอดเพาเวอร์แอมป์สำหรับงานมืออาชีพ ที่รวมพลังขับมหาศาลเข้ากับ DSP ระดับโลกและระบบควบคุมขั้นสูง เหมาะสำหรับระบบเสียงที่ต้องการความแม่นยำ เสถียร และประสิทธิภาพสูงสุด
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า |
|
|---|---|
| จำนวนแชนแนล | 2 แชนแนล |
| กำลังขับที่ 8 โอห์ม | 2 x 1000 วัตต์ |
| กำลังขับที่ 4 โอห์ม | 2 x 1750 วัตต์ |
| กำลังขับที่ 2 โอห์ม | ไม่มี |
| กำลังขับแบบบริดจ์ที่ 8 โอห์ม | 3500 วัตต์ |
| คลาสแอมป์ | Class D |
| การตอบสนองความถี่ | 20 Hz – 20 kHz |
| ช่องสัญญาณเข้า | XLR |
| ช่องสัญญาณออก | Speakon, XLR Link |
| ขนาดแร็ค | 2U |
| กำลังไฟ | 50 / 60 Hz, 220 – 240V |
| ขนาด | 483 x 305.5 x 88 มม. |
| น้ำหนัก | 8.6 กก. |
