Lab Gruppen PLM 5K44 เพาเวอร์แอมป์ 4 แชนแนล
ราคา : 210,900 บาท
Description

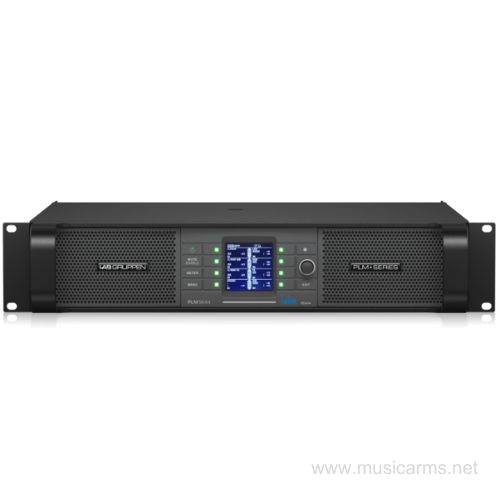

LAB.GRUPPEN PLM 5K44: 4-Channel Class D Amplifier with Lake DSP (5,000W)
The LAB.GRUPPEN PLM 5K44 is a professional-grade power amplifier designed for touring, concerts, and installation systems. It delivers a total output of 5,000 watts across four channels and integrates industry-leading Lake Processing DSP for precise system control.
The amplifier supports multiple input formats including Analog, AES/EBU, and Dante (AES67), and includes built-in presets for leading loudspeaker brands such as JBL, EAW, Adamson, EV, VUE, and TW Audio. This enables fast and accurate system setup for both Low-Z and Hi-Z applications.
Highlights
- 5,000W Total Output: 4-channel professional amplifier
- Lake DSP Built-in: FIR filters, EQ, Peak & RMS limiters
- Load Monitoring: Intelligent power management
- Speaker Presets: Supports leading global brands
- Flexible Inputs: Analog / AES/EBU / Dante (AES67)
- LCD Display: Easy monitoring and control
Professional Features
- Power Factor Correction (PFC): Up to 0.98 efficiency
- R.SMPS Power Supply: Operates from 70–265 VAC
- Network Control: Via CAFÉ software
- Wireless Control: From computer or tablet
Protection Systems
- Current Average Limiter (CAL)
- Current Clip Limiter
- DC Protection
- Short Circuit Protection
- Temperature Protection
- Very High Frequency Protection (VHF)
- Voltage Clip Limiter
Consideration
- Premium Pricing: Designed for professional applications
Who is it for?
- Concerts & Events: Medium to large-scale systems
- Touring Systems: Reliable and efficient performance
- System Integrators: Professional installations
Conclusion
The LAB.GRUPPEN PLM 5K44 delivers professional-grade performance with advanced DSP and network control in a more compact power range. It is an ideal solution for demanding audio environments requiring flexibility and precision.
Specification
Product Details |
|
|---|---|
| Channels | 4 Channels |
| Power Output @ 8 Ohms | 1250 Watts per channel |
| Power Output @ 4 Ohms | 1250 Watts per channel |
| Power Output @ 2 Ohms | 900 Watts per channel |
| Amplifier Class | Class TD |
| DSP | Yes (LAKE Processing) |
| Display | 2.5-inch LCD |

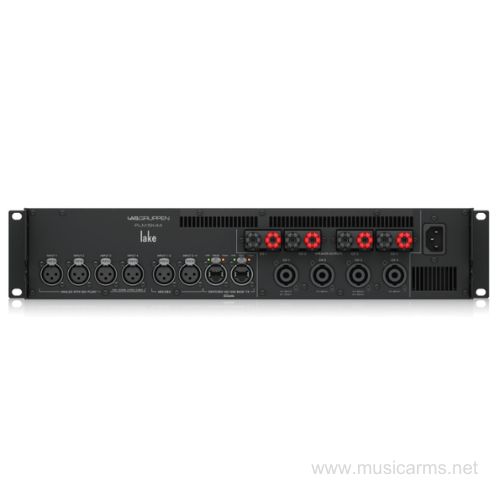

| Input Connectors | AES/EBU, Dante, XLR |
| Digital I/O | Dante, AES/EBU |
| Output Connectors | Binding Post, Speakon |
| Network Control | Supported (LAN) |
| Power Supply | Switching Power Supply |
| Rack Size | 2U |
| Power Supply Input | 50 / 60 Hz, 220 – 240V |
| Dimensions | 483 x 424 x 88 mm |
| Weight | 11.4 kg |
ข้อมูลสินค้า
LAB.GRUPPEN PLM 5K44: เพาเวอร์แอมป์ Class D 4 แชนแนล พร้อม Lake DSP กำลังขับ 5,000 วัตต์
LAB.GRUPPEN PLM 5K44 เป็นเพาเวอร์แอมป์ระดับมืออาชีพในตระกูล PLM Series ที่ออกแบบมาสำหรับงานทัวริ่ง งานคอนเสิร์ต และระบบเสียงติดตั้ง โดยมาพร้อมกำลังขับรวม 5,000 วัตต์ แบบ 4 แชนแนล และรวมเอา Lake Processing DSP ระดับโลกไว้ในตัวเดียว
รองรับอินพุตหลากหลายทั้ง Analog, AES/EBU และ Dante (AES67) พร้อม Preset ลำโพงจากแบรนด์ชั้นนำ เช่น JBL, EAW, Adamson, EV, VUE และ TW Audio ช่วยให้การติดตั้งและจูนระบบทำได้อย่างรวดเร็วและแม่นยำ รองรับทั้งระบบ Low-Z และ Hi-Z เหมาะกับงานมืออาชีพทุกประเภท
จุดเด่น
- กำลังขับรวม 5,000W: เพาเวอร์แอมป์ 4 แชนแนล ระดับ Touring
- Lake DSP ในตัว: รองรับ FIR, EQ, Peak & RMS Limiters
- Load Monitoring: จัดการพลังงานและโหลดลำโพงอัตโนมัติ
- Preset ลำโพง: จากแบรนด์ระดับโลก
- รองรับอินพุตครบ: Analog / AES/EBU / Dante (AES67)
- หน้าจอ LCD: แสดงผลและควบคุมได้สะดวก
ฟีเจอร์ระดับมืออาชีพ
- Power Factor Correction (PFC): ประสิทธิภาพสูงถึง 0.98
- R.SMPS Power Supply: รองรับไฟ 70 – 265 VAC
- Network Control: ควบคุมผ่านซอฟต์แวร์ CAFÉ
- Wireless Control: ใช้งานผ่านคอมพิวเตอร์หรือแท็บเล็ต
ระบบป้องกัน
- Current Average Limiter (CAL)
- Current Clip Limiter
- DC Protection
- Short Circuit Protection
- Temperature Protection
- Very High Frequency Protection (VHF)
- Voltage Clip Limiter
ข้อควรพิจารณา
- ราคาสูง: เหมาะกับงานระดับมืออาชีพ
เหมาะกับใคร?
- งานคอนเสิร์ต / อีเวนต์: ระบบเสียงระดับกลางถึงใหญ่
- งานทัวริ่ง: ต้องการความเสถียรสูง
- System Integrator: งานติดตั้งระดับโปร
สรุป
LAB.GRUPPEN PLM 5K44 เป็นเพาเวอร์แอมป์ระดับมืออาชีพที่รวม DSP ขั้นสูงและระบบควบคุมแบบ Network เข้าไว้ในตัวเดียว เหมาะสำหรับผู้ที่ต้องการคุณภาพเสียงระดับโลกในขนาดที่คล่องตัวกว่า
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า |
|
|---|---|
| จำนวนแชนแนล | 4 แชนแนล |
| กำลังขับที่ 8 โอห์ม | 1250 วัตต์ ต่อแชนแนล |
| กำลังขับที่ 4 โอห์ม | 1250 วัตต์ ต่อแชนแนล |
| กำลังขับที่ 2 โอห์ม | 900 วัตต์ ต่อแชนแนล |
| คลาสแอมป์ | Class TD |
| DSP | มี (LAKE Processing) |
| หน้าจอแสดงผล | LCD ขนาด 2.5 นิ้ว |
| ช่องสัญญาณเข้า | AES/EBU, Dante, XLR |
| Digital I/O | Dante, AES/EBU |
| ช่องสัญญาณออก | Binding Post, Speakon |
| การควบคุมผ่านเครือข่าย | รองรับ (LAN) |
| แหล่งจ่ายไฟ | Switching Power Supply |
| ขนาดแร็ค | 2U |
| กำลังไฟ | 50 / 60 Hz, 220 – 240V |
| ขนาด | 483 x 424 x 88 มม. |
| น้ำหนัก | 11.4 กก. |
