LD System MAUI® i1 ลำโพงคอลัมน์ลำโพงสำหรับงานติดตั้ง

LD Systems MAUI® i1: Premium Installed Column Speaker with Wide Coverage

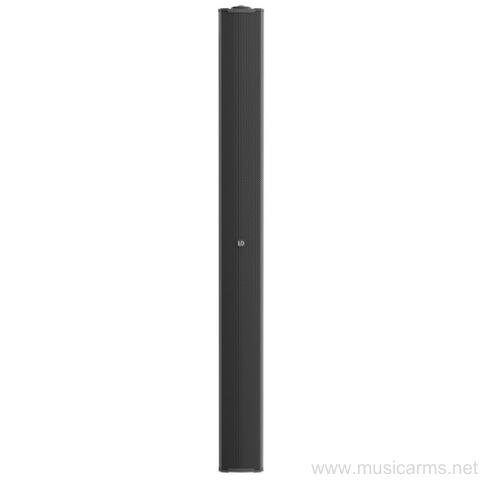

The LD Systems MAUI® i1 is a premium passive column speaker designed for permanent installation in professional sound systems.

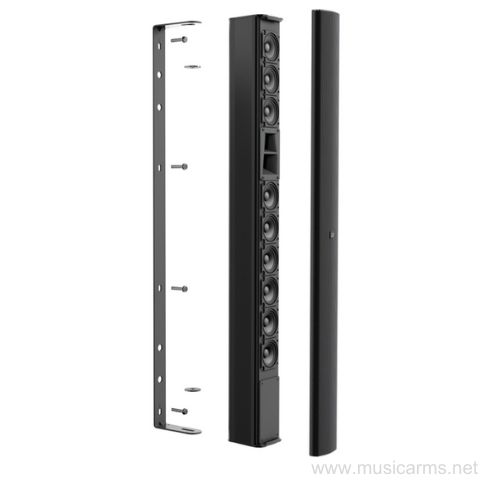

It features nine 3-inch mid-range drivers and two 1-inch neodymium tweeters, delivering clear, detailed, and consistent sound across the entire listening area.

Equipped with BEM-Optimized Waveguide technology, the MAUI® i1 provides precise sound control with a wide horizontal dispersion of 120° and a narrow vertical coverage of 30°.
This design minimizes floor and ceiling reflections while ensuring even sound distribution, making it ideal for acoustically challenging spaces.

Key Features

• High-Performance Column Speaker:
  Passive column loudspeaker with 9 × 3″ mid-range drivers and 2 × 1″ neodymium tweeters.
• BEM-Optimized Waveguide:
  Delivers controlled sound dispersion of 120° × 30° for excellent speech intelligibility.
• Powerful Output:
  Rated at 120 W RMS / 480 W Peak with a maximum SPL of up to 116 dB.
• Flexible System Compatibility:
  Supports 8Ω, 70V, and 100V operation via selectable mode switch.
• Selectable Power Taps:
  Power settings of 60 W / 30 W / 15 W / 7.5 W for distributed sound systems.
• Weather-Resistant Design:
  IP65-rated enclosure with weather-treated speaker cones and waterproof connection cover.
• Durable Aluminum Construction:
  Rust-free aluminum grille and enclosure designed for long-term outdoor use.
• Professional Connectivity:

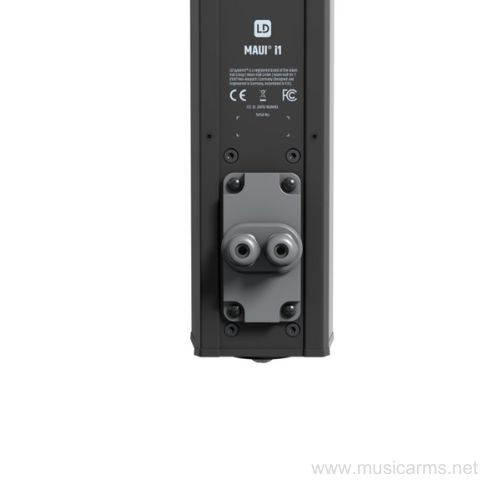

  4-pin Euroblock terminal allows secure connections and daisy-chaining.
• Easy Installation:

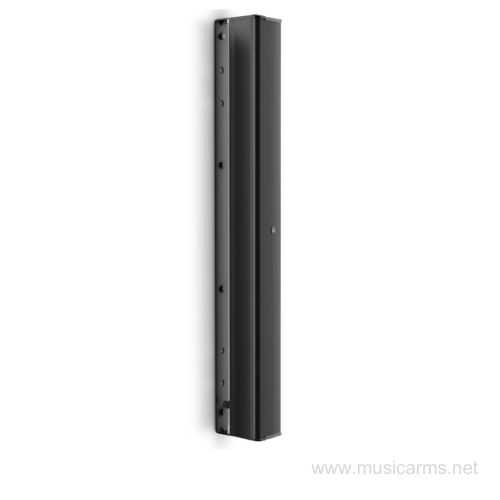

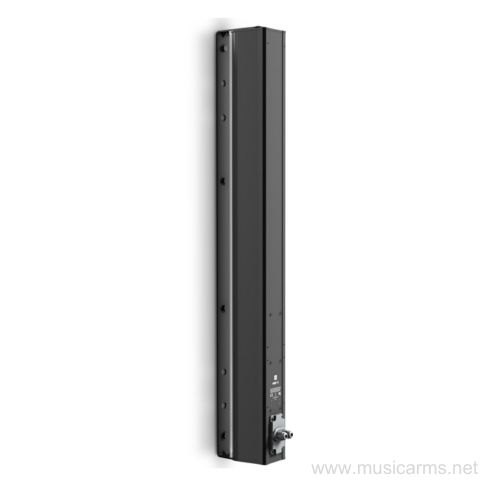

  Supplied with a U-bracket for secure wall mounting.

Applications

• Hotels and resorts
• Restaurants and cafés
• Churches and worship venues
• Conference rooms and auditoriums
• Commercial buildings and outdoor installations

Conclusion

The LD Systems MAUI® i1 is an elegant and powerful column speaker solution for professional installations.
With wide coverage, high output, and IP65 weather protection, it delivers consistent and intelligible sound in both indoor and outdoor environments.
