Matchless Laurel Canyon หัวแอมป์ & คาบิเนต Guitar Amp Head & Cabinet
Description
Description

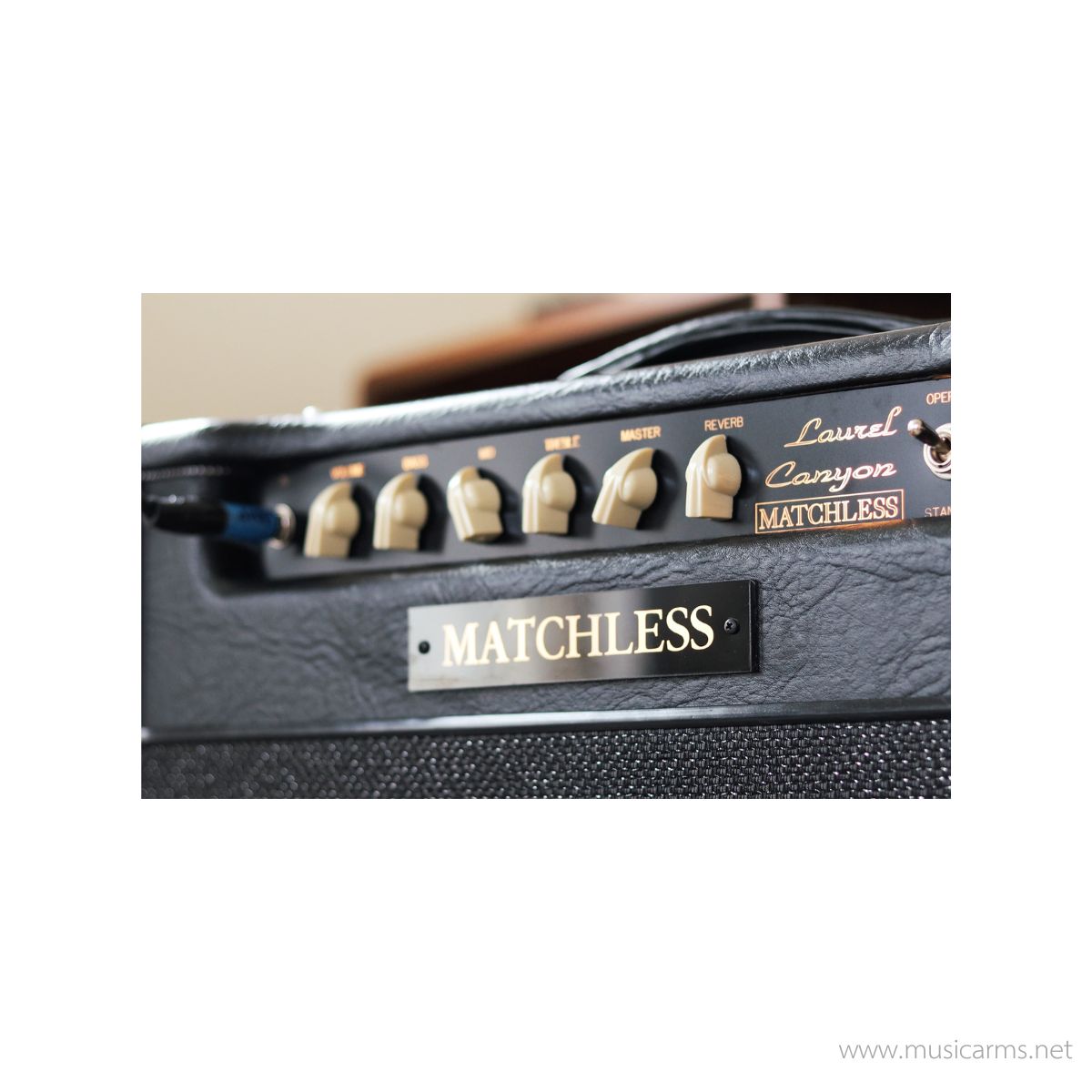

For the Laurel Canyon, we developed a more compact cabinet in consideration of the needs of the on the go musician desiring more portability. We tested several different cabinet sizes until we found the one that hit the sweet spot between portability and ability to showcase the tonal range of the Laurel Canyon to the fullest. Controls are Volume, Bass, Mid, Treble, and Master Volume.

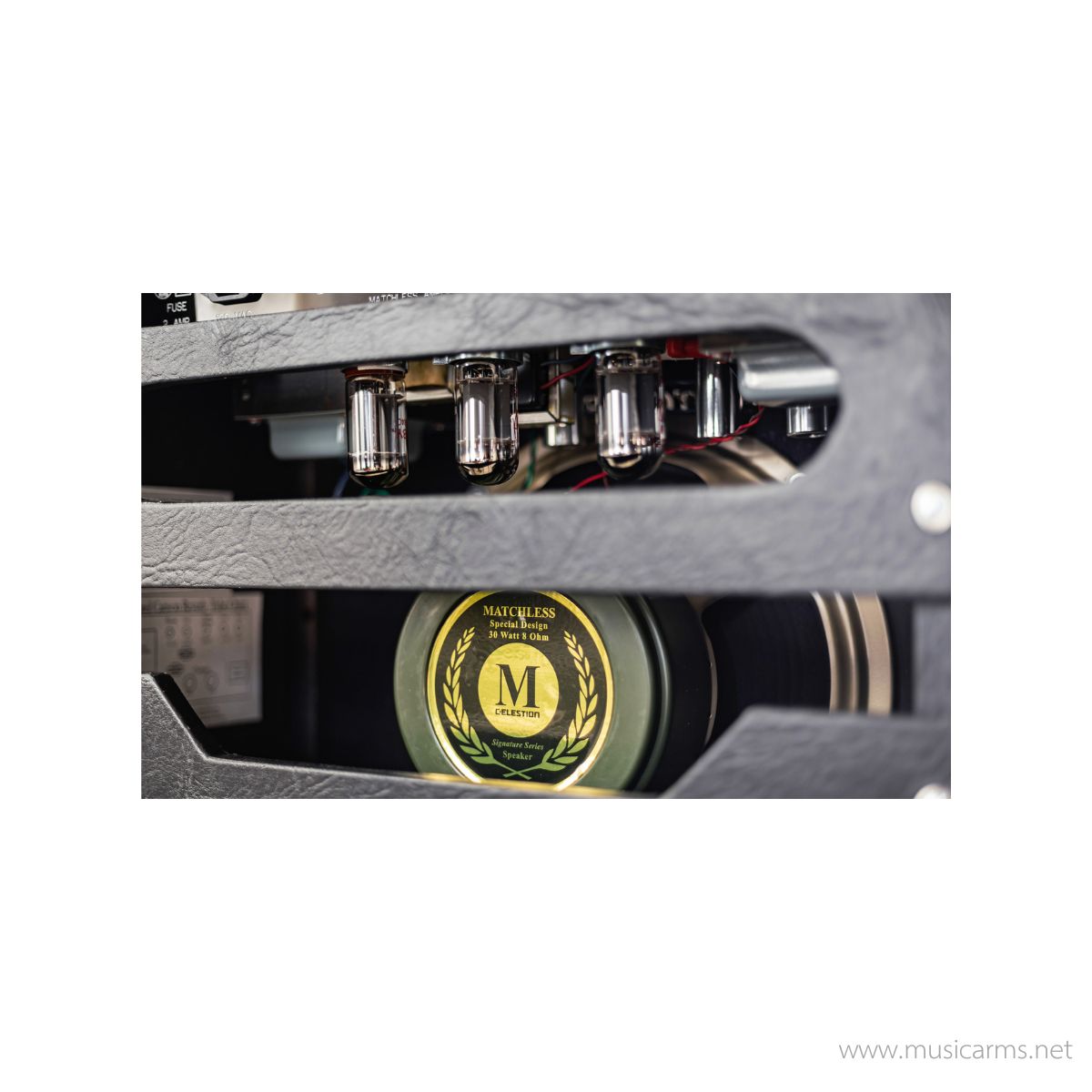

Powered by one 5AR4 rectifier tube, 2 x 6V6s and driven by three 12AX7s. The combination creates an unbelievably robust sound.
The optional reverb is powered by two 12AX7/ECC83’s and drives through a 2 spring reverb tank. The reverb signal is also parallel to the input signal so there is no loss in tone or power when it’s turned up.
The speaker is a made in the UK Celestion G12H-75 Cream Back at 8 ohms. The speaker outs are comprised of a single 4 Ohm out and an 8 Ohm out, which can only be used individually one at a time.
The standard effects loop is a ¼” send and ¼” return non buffered loop. Only time-based effects are recommended such as reverb pedals, delays, chorus, etc. Boost and gain pedals are recommended to be placed in front of the amp to avoid clipping the phase inverter.
A 3 position impedance selector is available as an option for an additional $125.
Like all of the other Matchless amplifiers, the Laurel Canyon is meticulously handcrafted to military-like specifications from start to finish. From the rugged steel chassis to the military spec. parts to the heavy Baltic birch cabinet, only the best materials are used.
The Laurel Canyon is ideal for professional studio work, playing in venues both large and small, and for home practice.
A versatile rock amp, the Laurel Canyon packs a mighty punch. From clean and punchy rhythm to sizzling leads, the Laurel Canyon delivers substantial sound in a more portable package.
Specification
Specifications
ข้อมูลสินค้า
รายละเอียดสินค้า (Description)
Laurel Canyon ถูกออกแบบด้วยตู้แอมป์ขนาดกะทัดรัด เพื่อตอบโจทย์นักดนตรีที่ต้องการความสะดวกในการพกพา ทีมออกแบบได้ทดลองขนาดตู้หลากหลายรูปแบบ จนได้ขนาดที่ลงตัวที่สุด ทั้งในด้านความคล่องตัวและประสิทธิภาพในการถ่ายทอดเสียงของแอมป์รุ่นนี้อย่างเต็มพลัง
การควบคุมประกอบด้วย:
-
วอลุ่ม (Volume)
-
เบส (Bass)
-
มิด (Mid)
-
เทรเบิล (Treble)
-
มาสเตอร์วอลุ่ม (Master Volume)
ภายในใช้หลอดเรกติไฟเออร์ 5AR4 จำนวน 1 หลอด
หลอดภาคขยายกำลัง 6V6 จำนวน 2 หลอด
และหลอดปรีแอมป์ 12AX7 จำนวน 3 หลอด
ส่วนผสมนี้ช่วยให้ได้เสียงที่หนาแน่นและทรงพลังอย่างไม่น่าเชื่อ
รีเวิร์บ (อุปกรณ์เสริม) ขับเคลื่อนด้วยหลอด 12AX7/ECC83 จำนวน 2 หลอด ผ่านถังรีเวิร์บแบบ 2 สปริง โดยสัญญาณรีเวิร์บจะเดินคู่ขนานกับสัญญาณอินพุต ซึ่งช่วยให้เสียงต้นฉบับไม่สูญเสียความชัดหรือพลัง เมื่อเปิดรีเวิร์บในระดับสูง
ลำโพงที่ใช้คือ Celestion G12H-75 Cream Back (ผลิตในสหราชอาณาจักร) ความต้านทาน 8 โอห์ม
ช่องต่อสัญญาณลำโพงประกอบด้วย:
-
ช่องต่อ 4 โอห์ม 1 ช่อง
-
ช่องต่อ 8 โอห์ม 1 ช่อง
*หมายเหตุ: ใช้งานได้ครั้งละช่องเท่านั้น
เอฟเฟกต์ลูปเป็นแบบไม่บัฟเฟอร์ (Non-buffered Loop) โดยใช้หัวต่อขนาด ¼” สำหรับทั้งส่ง (Send) และรับกลับ (Return)
แนะนำให้ใช้งานกับเอฟเฟกต์ประเภท time-based เช่น รีเวิร์บ, ดีเลย์, คอรัส เป็นต้น
เอฟเฟกต์เพิ่มเสียงหรือเกน (Boost/Gain) ควรต่อไว้หน้าปรีแอมป์ เพื่อหลีกเลี่ยงการโอเวอร์โหลดที่ตำแหน่งอินเวอร์เตอร์เฟส
สวิตช์เลือกค่าความต้านทานแบบ 3 ระดับ (Impedance Selector) เป็นอุปกรณ์เสริม ราคาเพิ่ม $125
เช่นเดียวกับแอมป์รุ่นอื่น ๆ ของ Matchless รุ่นนี้ผลิตด้วยมืออย่างประณีตตามมาตรฐานทางทหาร
ตั้งแต่โครงเหล็กแข็งแรง อะไหล่คุณภาพสูง ไปจนถึงตู้ไม้เบิร์ชบอลติกระดับพรีเมียม
Laurel Canyon เหมาะอย่างยิ่งสำหรับการใช้งานในสตูดิโอระดับมืออาชีพ การแสดงทั้งเวทีขนาดเล็กและใหญ่ หรือใช้ซ้อมที่บ้านก็ลงตัว
เป็นแอมป์ร็อกที่เปี่ยมด้วยความยืดหยุ่น Laurel Canyon ให้เสียงที่หนักแน่น ทั้งในจังหวะคลีนที่คมชัด ไปจนถึงโซโล่ที่จัดจ้าน ในขนาดที่พกพาได้สะดวก
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะ (Specifications)
การควบคุมของช่องสัญญาณที่ 1 (Ch1. Controls)
-
วอลุ่ม (Volume)
-
เบส (Bass)
-
มิด (Mid)
-
เทรเบิล (Treble)
-
มาสเตอร์วอลุ่ม (Master Volume)
คุณสมบัติ (Features)
-
ช่องต่อเอฟเฟกต์ (Effects Loop)
-
ช่องต่อสัญญาณลำโพง (Speaker Out)
-
ตัวเลือกสวิตช์เลือกค่าความต้านทาน 3 ระดับ (อุปกรณ์เสริม ราคาเพิ่ม $125)
หลอดภาคขยายกำลัง (Power Tubes)
-
6V6 จำนวน 2 หลอด
หลอดปรีแอมป์ (Preamp Tubes)
-
12AX7 จำนวน 3 หลอด
เรกติไฟเออร์ (Rectifier)
-
5AR4 จำนวน 1 หลอด
ช่องต่อสัญญาณลำโพง (Speaker Outs)
-
ช่องต่อสำหรับลำโพงขนาด 4 โอห์ม
-
ช่องต่อสำหรับลำโพงขนาด 8 โอห์ม
หมายเหตุ: ใช้งานได้ครั้งละหนึ่งช่องเท่านั้น
