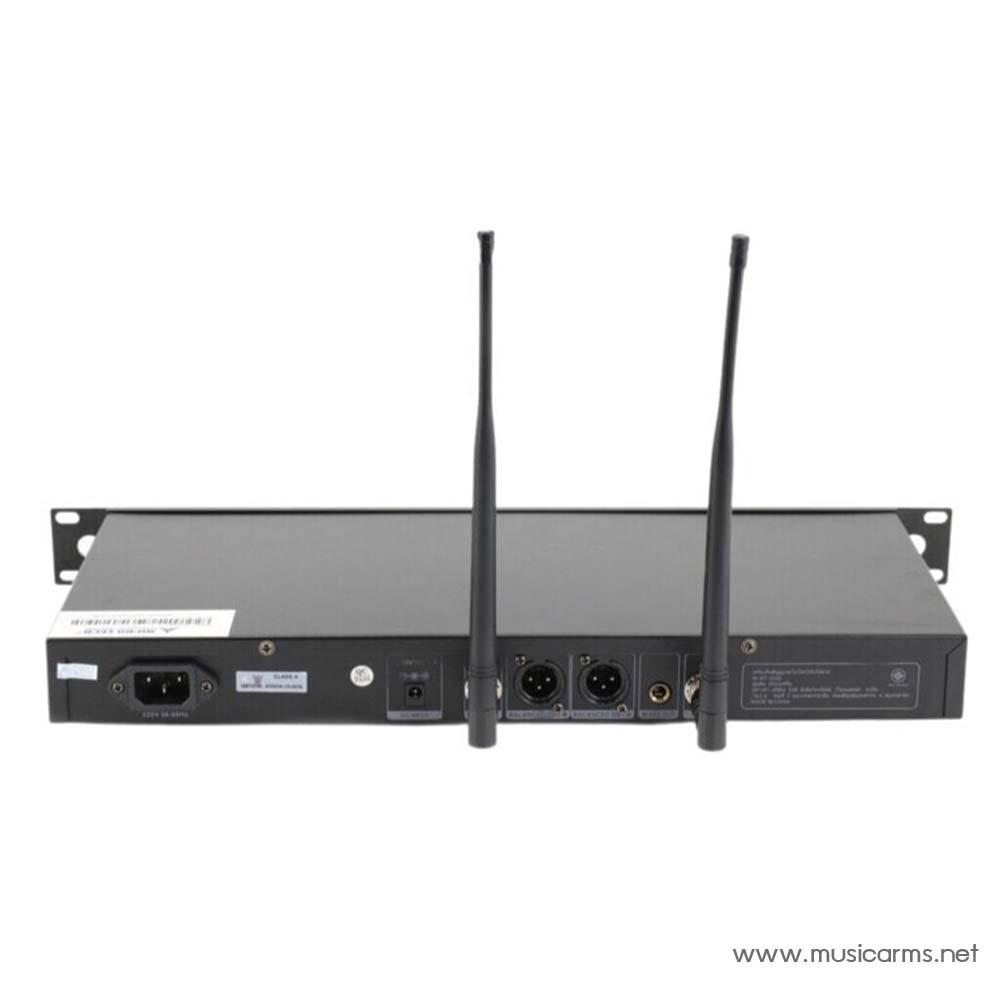

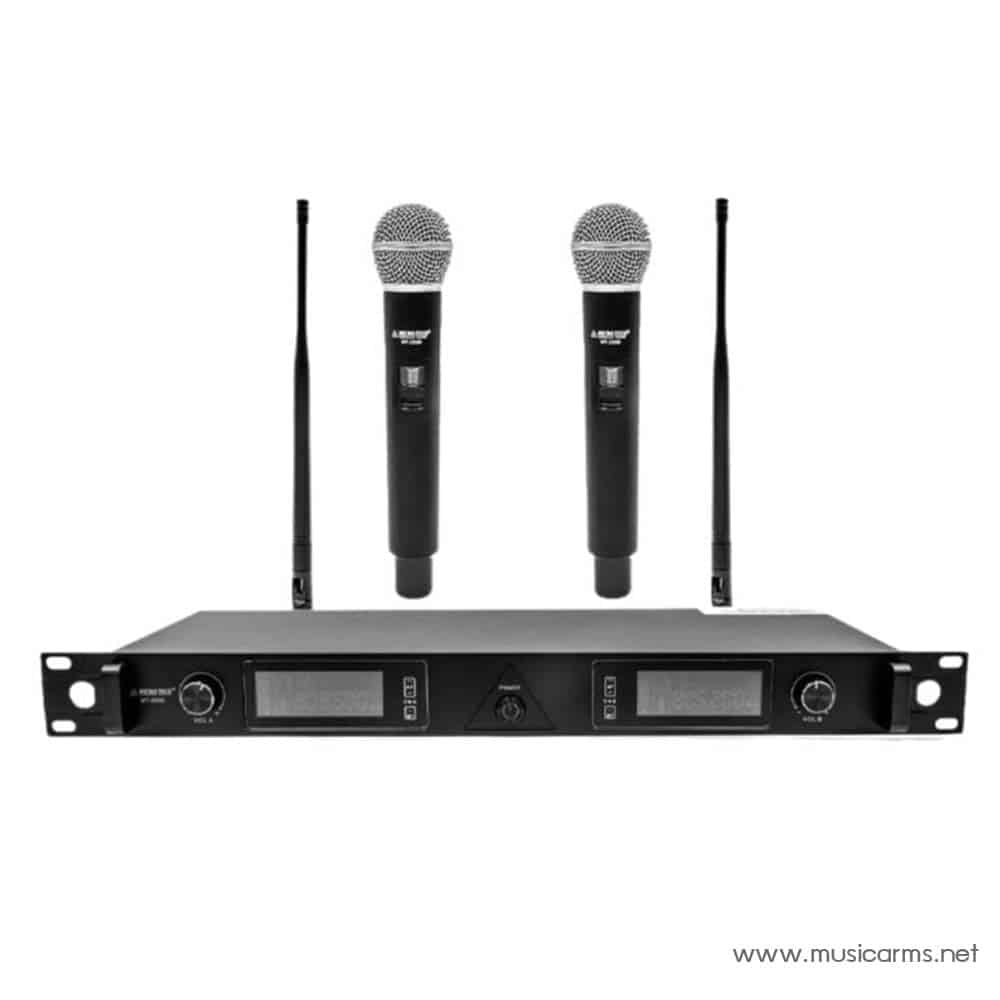

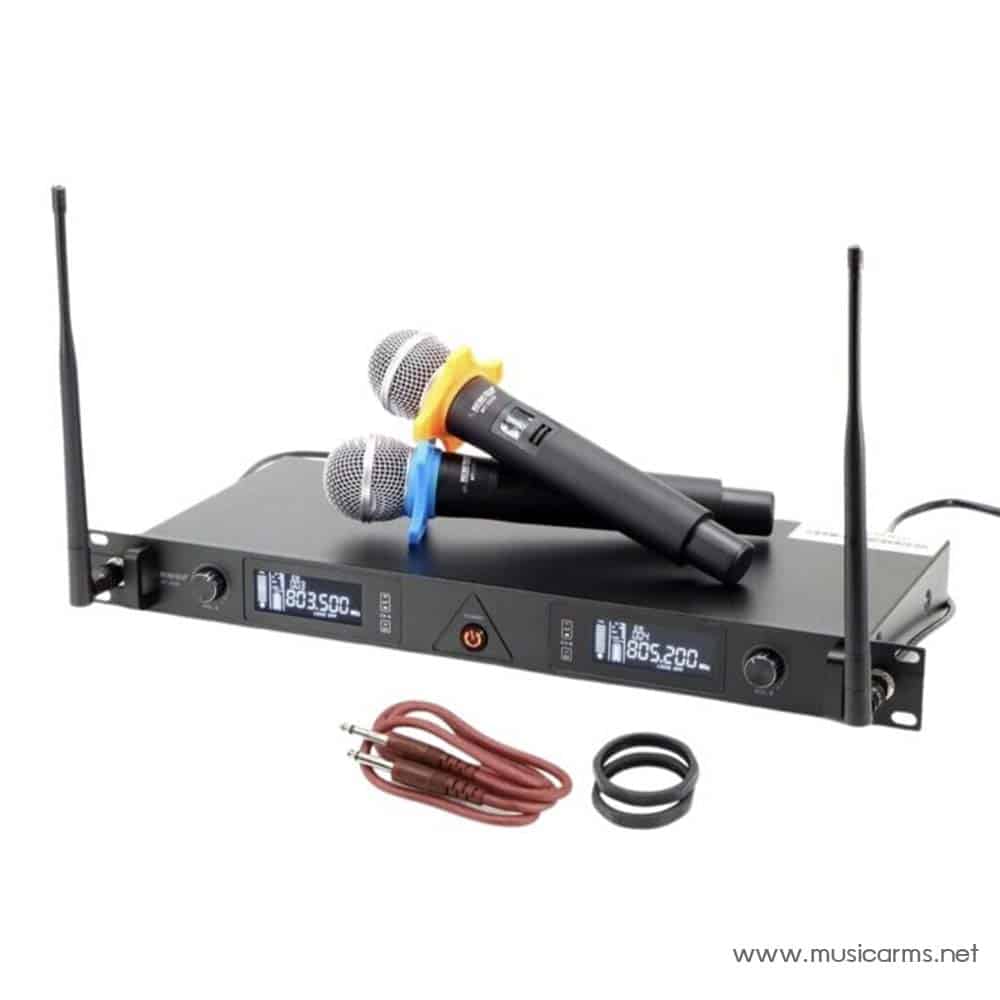

Micro Tech MT-333D

Receiver

• UHF803-806MHz
• Bandwidth 3 MHz
• Quartz Controlled Fixed Frequency
• Sensitivity: 12dBuV (80dBS/N)
• Frequency Response 80Hz – 18KHz(± 3dB)
• Receiver Sensitivity -95dBm
• S/N Rate : >90dB
• Power Supply : DC12V – 15V 1A

Transmiter

• UHF803-806MHz
• Bandwidth 3 MHz
• Spurious suppression : -60dB
• Transmiter Power : 10 mW
• Harmonic Radiation : -75dBm
• Batterry : AA 1.5 x 2
• Battery life : less than 10 hour
• Operating range : 50 – 80 meters
