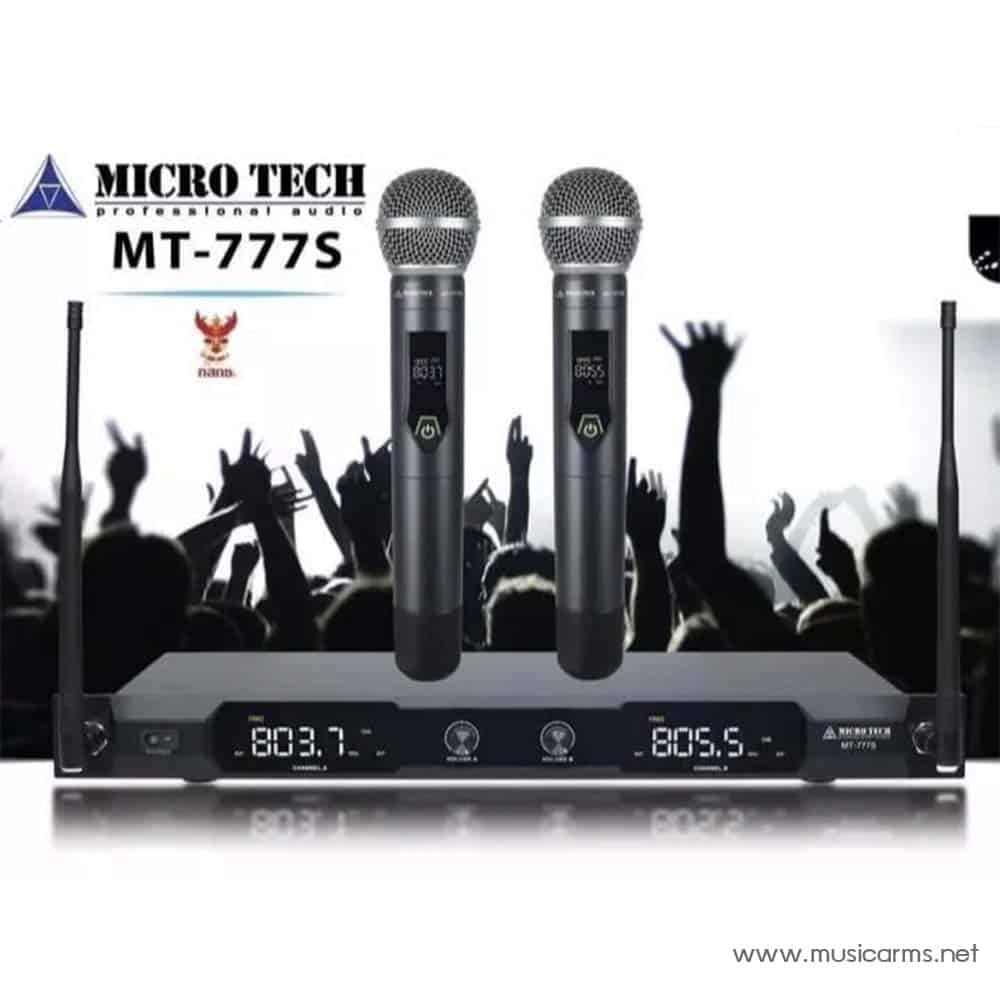

Micro Tech MT-777S

MT-777S

RECEIVER

• UHF803-806MHz
• Bandwidth 3 MHz
• PLL Controlled Frequency
• Sensitivity: 12dBuV (80dBS / N)
• Frequency Response 80Hz-18KHz (+ 3dB)
• Receiver Sensitivity -95dBm
• S/N Rate : >90dB
• Power Supply : DC12V-15V 1 A
• Freatures :
• ㆍ.Battery status
• Select transmiter 0mW or 10mW
• ㆍMore than 15 hours at 3mW

TRANSMITER

• UHF803-806MHz
• Bandwidth 3 MHz
• Spurious suppression: -60dB
• Transmiter Power : 10mW
• Harmonic Radiation : -75dBm
• Batterry : AA 1.5 X2
• Battery life: less than 10 hour
• Operating range: 50-80meters
