Midas Heritage D HD96-24
Description

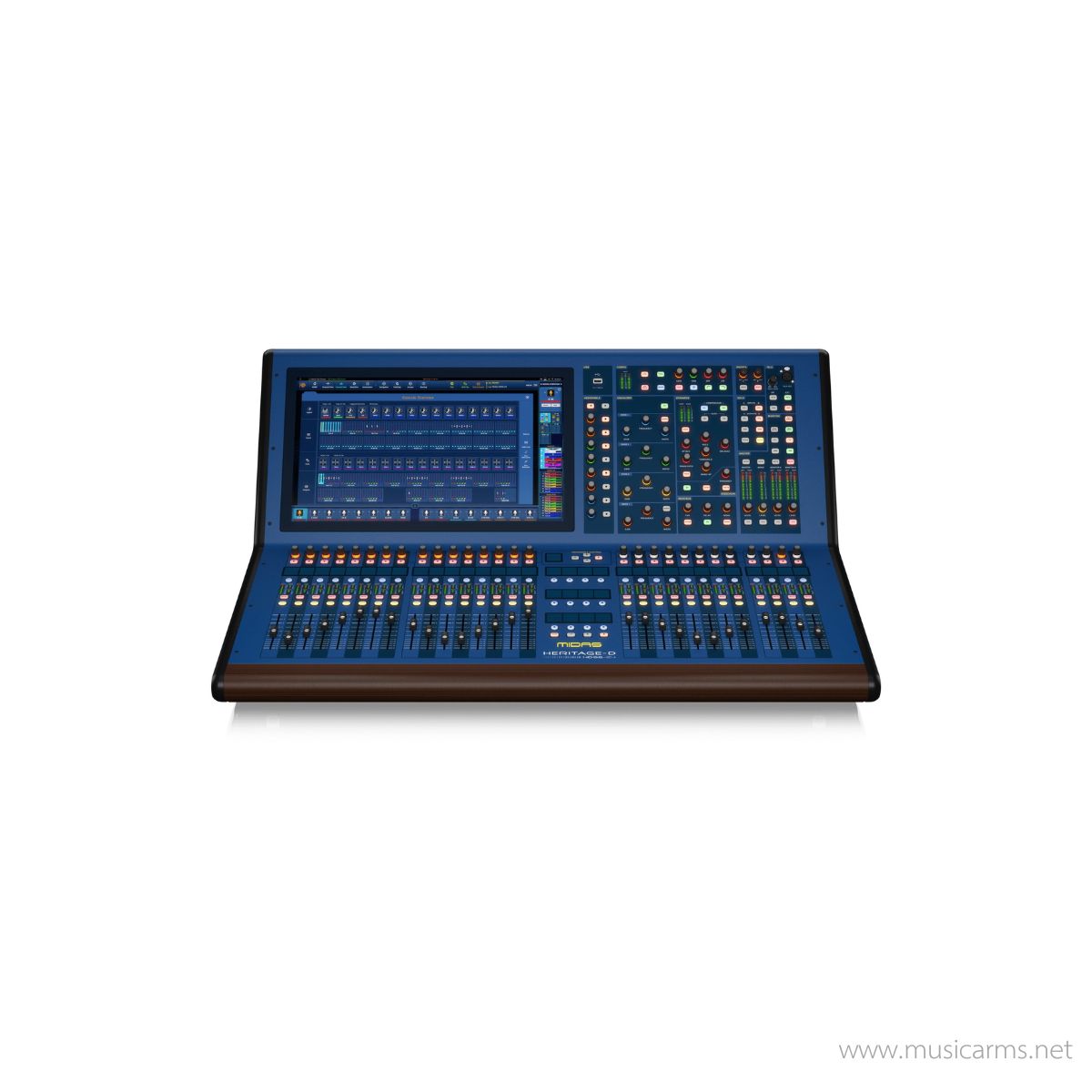

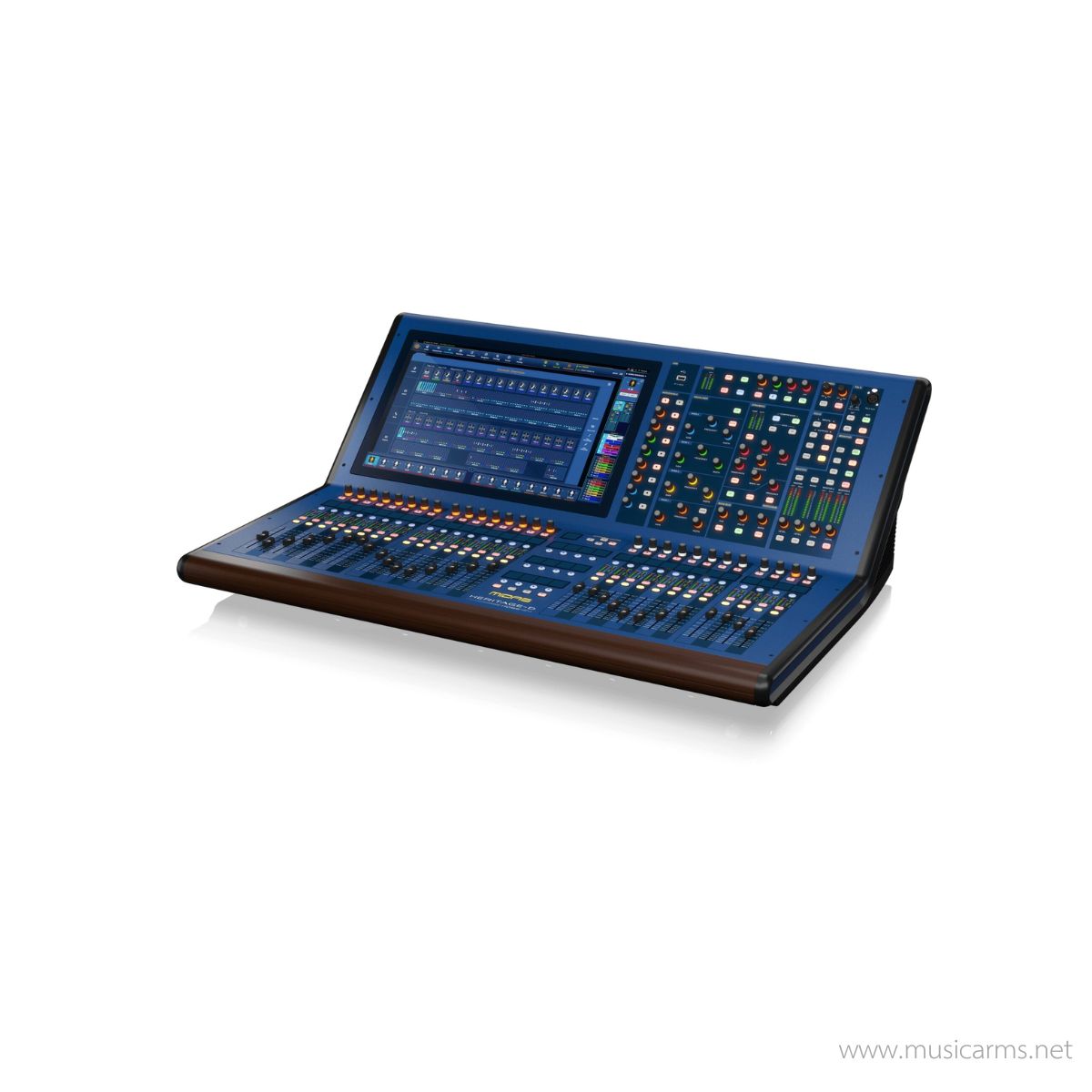

Midas Heritage D HD96-24: Next-Generation Digital Mixing
The Midas Heritage D HD96-24 is a powerful digital mixing console designed for the most demanding live sound applications. It supports up to 144 inputs and 120 outputs, all processed by a 64-bit FPGA engine at a stunning 96 kHz resolution. A standout feature of the Heritage D is its large, intuitive touchscreen, meticulously designed to make accessing and controlling its vast array of functions exceptionally easy.
Key Technologies and Features
- Graviton Mk 2 Processing Engine: The heart of the mixer is its sound, an aspect often overlooked by other manufacturers. The Midas Heritage D features a 64-bit summing mix engine with an unprecedented dynamic range, delivering a signature Midas sound that provides maximum flexibility without compromising audio quality.
- Flexi-Aux System: The innovative Flexi-Aux system provides the unique capability of routing aux to aux, allowing for powerful and flexible group or stem mixing.
- Intuitive Touchscreen Interface: The large touchscreen simplifies complex workflows, making it easy to navigate the mixer’s features and control your sound with precision and speed.
Built for Professionals
The Midas Heritage D HD96-24 is engineered for audio professionals who require uncompromised sound quality, massive I/O capacity, and a workflow that’s both powerful and intuitive. Its combination of advanced processing, flexible routing, and a user-centric interface makes it a top-tier choice for concert halls, theaters, and broadcast environments.
Specification
Midas Heritage D HD96-24 Specifications |
|
|---|---|
Processing |
|
| Input Processing Channels | 144 flexi channels |
| Output Processing Channels | 96 flexi aux outputs, 24 matrices, stereo/mono bus |
| Signal Processing | 64-bit floating point |
| Sampling Frequency | 96 kHz |
| I/O Latency | 1.34 ms |

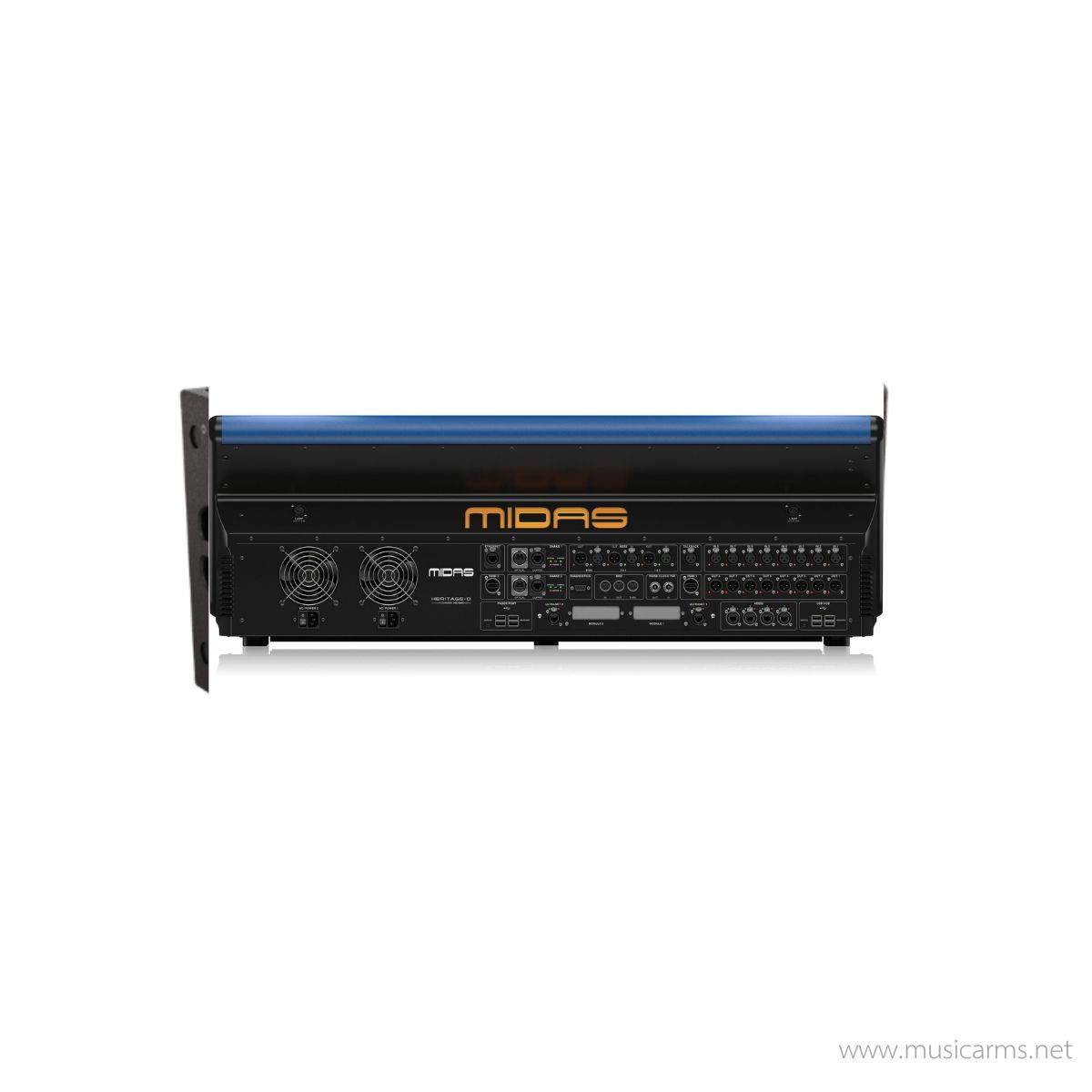

Connectors |
|
| Mic Preamps | 8 x XLR balanced |
| Balanced Outputs | 8 x XLR balanced |
| AES50 Ports | 4 |
| HyperMac Snake (Copper) | 2 x Ethercon XLR (192 channels) |
| CM1 Expansion Slots | 2 |
| Ultranet Ports | 2 |
| USB Ports | 4 x USB 3.0, 1 x USB 2.0 |
I/O Characteristics |
|
| Maximum Input Level | +24 dBu |
| Input Gain | -22.5 dB to +65 dB |
| Phantom Power | +48 V |
| Dynamic Range | 106 dB |
Displays & Controls |
|
| Main Display | 21″ Full HD (1920×1080) captive touchscreen |
| LCD Info Displays | 41 x full color, 240×240 px |
| Motorized Faders | 28 (100 mm) + 4 |
| Touch-sensitive Rotaries | 66 |
ข้อมูลสินค้า
Midas Heritage D HD96-24: มิกเซอร์ดิจิตอลแห่งยุคใหม่
Midas Heritage D HD96-24 คือดิจิตอลมิกเซอร์ที่ทรงพลัง ออกแบบมาสำหรับงานแสดงสดที่ต้องการประสิทธิภาพสูงสุด รองรับอินพุตได้สูงสุดถึง 144 อินพุต และ 120 เอาต์พุต ทั้งหมดนี้ประมวลผลด้วยชิป FPGA แบบ 64 บิต ที่ความละเอียด 96 kHz จุดเด่นที่สำคัญของ Heritage D คือหน้าจอสัมผัสขนาดใหญ่ที่ใช้งานง่าย ซึ่งถูกออกแบบมาเพื่อให้การเข้าถึงและควบคุมฟังก์ชันต่างๆ ทำได้อย่างสะดวกและแม่นยำ
เทคโนโลยีและคุณสมบัติเด่น
- ระบบประมวลผล Graviton Mk 2: หัวใจสำคัญของมิกเซอร์นี้คือคุณภาพเสียง ซึ่งเป็นสิ่งที่ผู้ผลิตรายอื่นมักมองข้ามไป Midas Heritage D มาพร้อม 64-bit summing mix engine ที่มีช่วงไดนามิกกว้างกว่าที่เคย ให้เสียงที่เป็นเอกลักษณ์ของ Midas ที่มอบความยืดหยุ่นสูงสุดโดยไม่ลดทอนคุณภาพเสียงแต่อย่างใด
- ระบบ Flexi-Aux: ระบบ Flexi-Aux ที่เป็นนวัตกรรมใหม่นี้มอบความสามารถพิเศษในการส่งสัญญาณแบบ aux to aux ทำให้สามารถผสมเสียงแบบกลุ่ม (group) หรือ stem ได้อย่างทรงพลังและยืดหยุ่น
- อินเทอร์เฟซหน้าจอสัมผัสที่ใช้งานง่าย: หน้าจอสัมผัสขนาดใหญ่ช่วยลดความซับซ้อนของเวิร์กโฟลว์ ทำให้การนำทางฟีเจอร์ต่างๆ ของมิกเซอร์เป็นเรื่องง่าย และควบคุมเสียงของคุณได้อย่างแม่นยำและรวดเร็ว
สร้างขึ้นเพื่อมืออาชีพ
Midas Heritage D HD96-24 ถูกสร้างขึ้นเพื่อมืออาชีพด้านเสียงที่ต้องการคุณภาพเสียงที่ไม่มีใครเทียบได้, ความจุ I/O ที่มหาศาล, และเวิร์กโฟลว์ที่ทรงพลังและใช้งานง่าย การผสมผสานระหว่างการประมวลผลขั้นสูง, การกำหนดเส้นทางที่ยืดหยุ่น, และอินเทอร์เฟซที่เน้นผู้ใช้เป็นหลัก ทำให้เป็นตัวเลือกอันดับต้นๆ สำหรับห้องแสดงคอนเสิร์ต, โรงละคร, และสตูดิโอออกอากาศ
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะ Midas Heritage D HD96-24 |
|
|---|---|
การประมวลผล (Processing) |
|
| ช่องอินพุตที่ประมวลผล | 144 ช่องแบบ Flexi |
| ช่องเอาต์พุตที่ประมวลผล | 96 Flexi aux outputs, 24 matrices, stereo/mono bus |
| การประมวลผลสัญญาณ | 64-bit floating point |
| ความถี่ในการสุ่มตัวอย่าง | 96 kHz |
| ค่าความหน่วง I/O | 1.34 มิลลิวินาที |
การเชื่อมต่อ (Connectors) |
|
| ปรีไมค์ | 8 ช่อง XLR แบบ Balanced |
| เอาต์พุต Balanced | 8 ช่อง XLR แบบ Balanced |
| พอร์ต AES50 | 4 พอร์ต |
| HyperMac Snake (ทองแดง) | 2 ช่อง Ethercon XLR (192 ช่อง) |
| ช่องใส่โมดูล CM1 | 2 ช่อง |
| พอร์ต Ultranet | 2 พอร์ต |
| พอร์ต USB | USB 3.0 4 ช่อง, USB 2.0 1 ช่อง |
คุณสมบัติ I/O |
|
| ระดับอินพุตสูงสุด | +24 dBu |
| อัตราขยายอินพุต | -22.5 dB ถึง +65 dB |
| แฟนทอมเพาเวอร์ | +48 V |
| ช่วงไดนามิก | 106 dB |
หน้าจอและส่วนควบคุม |
|
| หน้าจอหลัก | 21 นิ้ว Full HD (1920×1080) แบบสัมผัส |
| หน้าจอ LCD แสดงข้อมูล | 41 จอสี, 240×240 พิกเซล |
| เฟดเดอร์มอเตอร์ | 28 ช่อง (100 มม.) + 4 |
| ปุ่มหมุนแบบสัมผัส | 66 ปุ่ม |
