Midas PRO1-IP ดิจิตอลมิกเซอร์ รองรับ 48 อินพุต 27 Aux 96kHz

ราคา : 360,000 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
วีดีโอ

Description

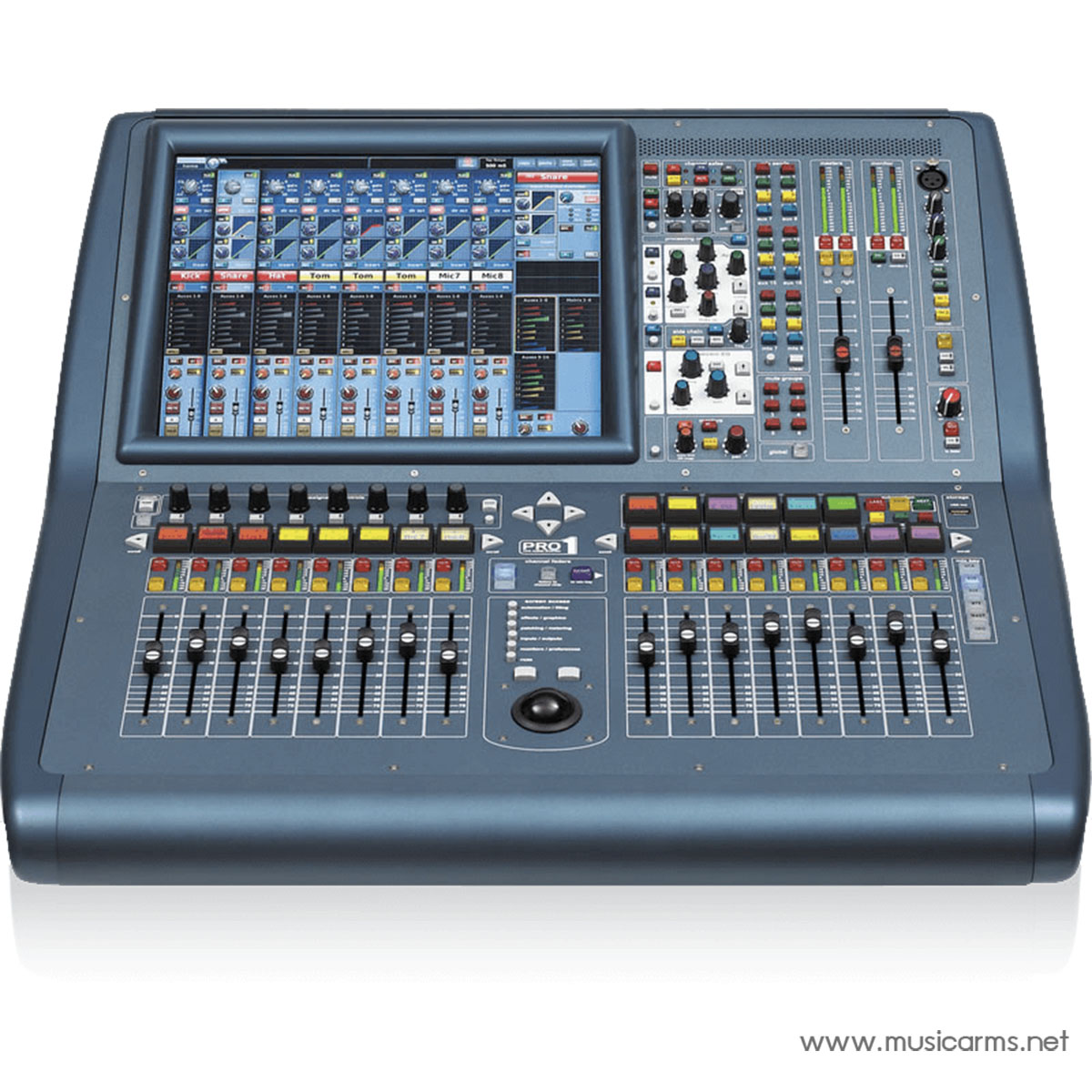

PRO SERIES PRO1-IP
The ground breaking PRO1 features 48 simultaneous input channels with 24 award-winning Midas Microphone Preamplifiers and 27 time-aligned and phase-coherent mix buses in an all-new lightweight aluminium frame. Like all PRO Series consoles, the PRO1 features managed latency and 40 bit floating point processing precision. Designed for use in high-profile live sound applications, the PRO1 sets a new standard of performance and portability in a compact digital console form factor.
AES50 audio networking technology allows the PRO1 to dynamically assign up to 172 inputs and 172 outputs at 96 kHz sample rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO1 equally at home in theatres and clubs as it is in live concert touring, outside broadcast and music festivals.

Award-Winning MIDAS Mic Preamplifier
The Midas microphone preamplifier is considered by leading live sound and recording engineers to be the very essence of the famous Midas sound. More than 40 years of design experience paired with the finest choice of premium-grade components lead to the acclaimed warmth and depth – bringing out subtle ambience, maintaining spatial positioning and more effectively capturing a precise sound image. The acclaimed sound of the award-winning MIDAS microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic panoramas that have captivated audiences worldwide.
Since pristine sound always begins with the microphone preamplifier, the first point where the signal enters the console, PRO1 features the latest generation of Midas microphone preamplifiers, which faithfully reproduce every sonic detail so no part of a performance will ever be missed. Transparent and pristine sound, low noise and high common-mode rejection are all hallmarks of this classic design.
Over the years many mix engineers have found this robust and overload-tolerant design takes on a whole new dimension of sound when driven hard, the crystal-clear audiophile reproduction giving way to just the right combination of harmonics, a warm and organic sound heard by millions of concert goers and recorded for posterity on countless live albums over the years.

Digital Audio Networking
SuperMAC (AES50-Compliant) digital audio networking technology from Klark Teknik simultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.
PRO1 is compatible with all MIDAS PRO Series digital I/O units, as well as with any other 96 kHzenabled AES50-equipped devices. Multiple MIDAS PRO Series consoles can be connected together to create either larger mixing systems, or multiple discrete mixing consoles can share a common resource of networked and distributed I/O interfaces.
- Live performance digital console with up to 48 simultaneous input channels
- 24 award-winning Midas microphone preamplifiers
- 27 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 172 inputs and 172 outputs @ 96 kHz sample rate
- 8 VCA (Variable Control Association) and 6 POPulation groups
- Up to 28 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
- Up to 6 multi-channel digital signal processing effects engines
- 18 Midas PRO motorised 100 mm faders
- Daylight viewable 15″ full colour TFT display screen
- Fully interpolated touch sensitive controls
- Optional wireless remote control with Midas MIXTENDER App for iPad
- Auto-ranging universal switch-mode power supply
- Designed and engineered in the U.K.
Specification
System Specifications
| Sampling frequency | 96 kHz |
| Latency | <2 ms input to master (no compensation) |
| Dynamic range | 107 dB, 22 Hz to 22 kHz (no pre-emphasis) |
| Maximum voltage gain | 80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix |
| Crosstalk at 1 kHz | -100 dB physically adjacent input channels |
| Crosstalk at 10 kHz | -90 dB physically adjacent input channels |
| Fader/pan cut off at 1 kHz | -100 dB |
| Fader/pan cut off at 10 kHz | -100 dB |
| Display screen | 1 x 15″ daylight-viewable colour screen |
| Dimensions (H x W x D) | 685 x 722 x 288.6 mm (27.0 x 28.4 x 11.4″) |
| Net weight | PRO1 control centre: 21.5 kg |
| Shipping weight | Touring (in flight case): 97.5 kg Install (in carton): 28.7 kg |
| Power requirements | 100 V to 240 V a.c. ±10%, 50 to 60 Hz |
| Operating temperature range | +5°C to +45°C |
| Storage temperature range | -20°C to +60°C |
Frequency Response
| 0 dB Gain | |
| 40 dB Gain |
Gain Error at 1 kHz
| 0 dB Gain | |
| 45 db Gain |
Input CMRR
| 0 dB Gain | |
| 45 dB Gain |
Distortion at 0 dBu
| 0 dB Gain | |
| 45 dB Gain |
Distortion at +20 dBu
| 0 dB Gain | |
| 45 dB Gain |
Mixing Noise (All Bus Types) 22 Hz to 22 kHz Unweighted
| 12 Inputs | |
| 12 Inputs | |
| 24 Inputs | |
| 24 Inputs | |
| 48 Inputs | |
| 48 Inputs |
Signal Path Noise 22 Hz to 22 kHz Unweighted
| 0 dB Gain | |
| 45 dB Gain |
Dynamic Range 22 Hz to 22 kHz Unweighted
| 0 dB Gain | |
| 45 dB Gain |

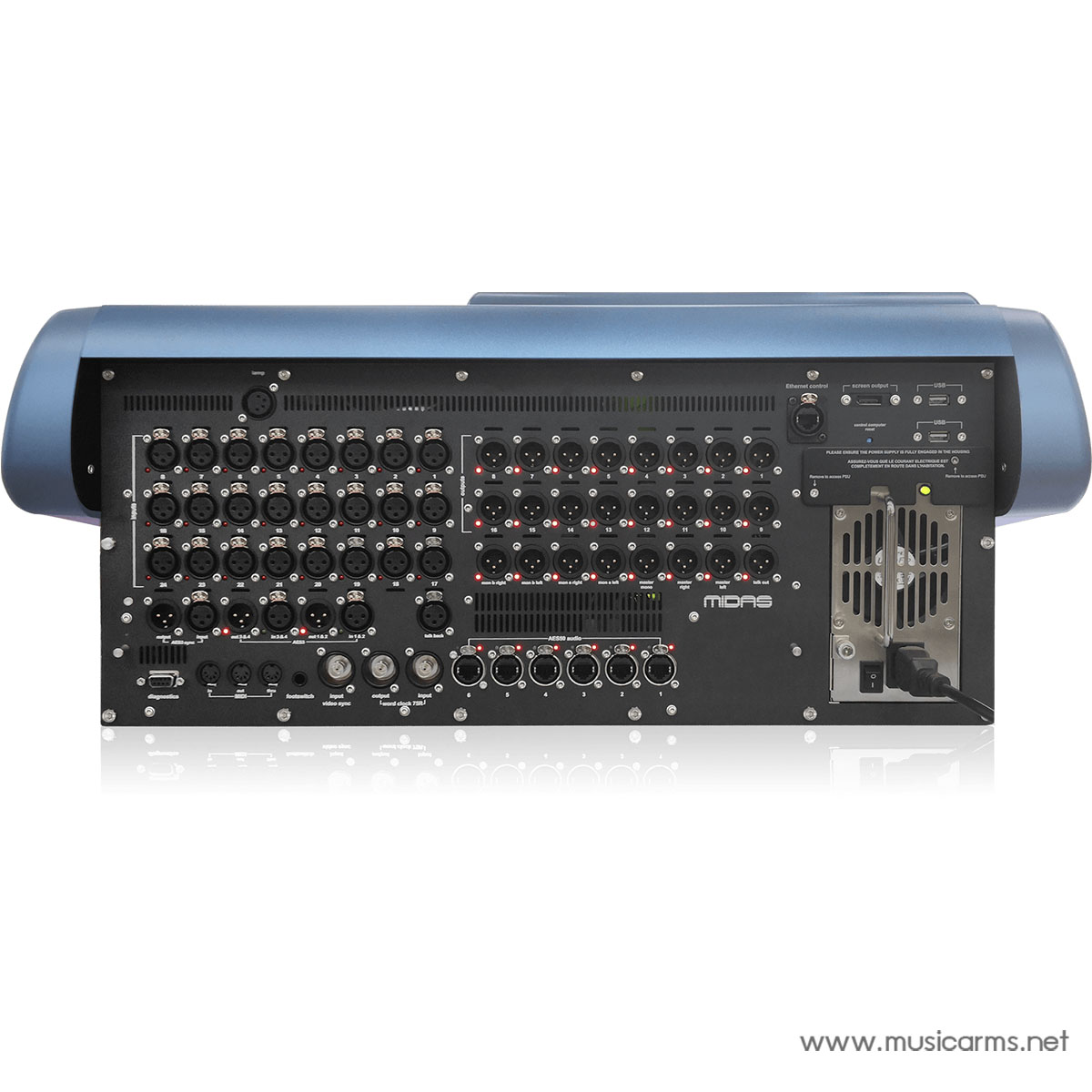

PRO1 Control Surface – DSP/Router System Inputs and Outputs
| System connectors | 6 x AES50 (24 channels of bidirectional digital audio) on RJ45 XLR |
| Word clock IN connector | BNC |
| Word clock OUT connector | BNC |
| Video sync IN connector | BNC |
| AES3 sync IN connector | 3-pin XLR |
| AES3 sync OUT connector | 3-pin XLR |
PRO1 Control Surface – Analogue Audio System Inputs
| Connector | 3-pin XLR balanced |
| A/D converter | 24-bit, 96 kHz with 128 times oversampling |
| Talkback connector | 3-pin XLR balanced line |
| Talk connector | 3-pin XLR balanced mic with +48 V phantom power |
PRO1 Control Surface – Analogue Audio System Outputs
| Connector | 3-pin XLR balanced |
| D/A converter | 24-bit, 96 kHz with 128 times oversampling |
| Monitor connector | 3-pin XLR balanced line |
| Talk connector | 3-pin XLR balanced line |
| Headphone connector | ¼” Jack (stereo) |
PRO1 Control Surface – Digital Audio System Inputs and Outputs
| Input connector | AES3 (two channels of digital audio) on 3-pin XLR |
| Sample rates | Accepts any frequency 32 kHz – 96 kHz |
| Bypass | Sample rate converter can be bypassed |
| Output connector | AES3 (two channels of digital audio) on 3-pin XLR |
| Sample rate | 48 kHz, 96 kHz, or auto-tracking to inputs |
| Bypass | Sample rate converter can be bypassed |
| Word length | 16, 20 or 24-bit |
PRO1 Control Surface – Control Data System Inputs and Outputs
| System connector | RJ45 XLR |
PRO1 Control Centre – Miscellaneous Inputs and Outputs
| Monitor output connector | DVI/DP+ |
| USB host connection | USB 2.0 full speed (12.0 Mbs) 5 V, 1A maximum load |
| Lamp connector | 4-pin XLR |
| MIDI | In, Out and Thru on 5-pin DIN |
| Footswitch connector | ¼” Jack |
Analogue Input Characteristics
| Surface I/O | |
| Talk Mic | |
| Monitor |
Analogue Output Characteristics
| Surface I/O | |
| Talk Out | |
| Monitor | |
| Headphones |
Digital I/O Characteristics
| AES3 | |
| AES3 | |
| AES50 |
Miscellaneous Digital Characteristics
| Word clock | |
| Word clock | |
| AES sync | |
| AES sync |
ข้อมูลสินค้า
Midas PRO1-IP
MIDAS PRO SERIES PRO1-IP: คอนโซลดิจิทัลสำหรับการแสดงสดประสิทธิภาพสูง
MIDAS PRO1 เป็นคอนโซลที่ก้าวล้ำนำสมัย มาพร้อม 48 ช่องสัญญาณอินพุตพร้อมกัน ที่มี 24 พรีแอมป์ไมโครโฟน Midas ที่ได้รับรางวัล และ 27 มิกซ์บัส ที่จัดเรียงเวลาและสอดคล้องกับเฟส ทั้งหมดนี้อยู่ในโครงอะลูมิเนียมน้ำหนักเบาดีไซน์ใหม่ล่าสุด เช่นเดียวกับคอนโซล PRO Series ทุกรุ่น PRO1 มีการจัดการความหน่วง และมีความแม่นยำในการประมวลผล 40 บิต floating point ออกแบบมาเพื่อใช้ในงานเสียงสดระดับสูง PRO1 สร้างมาตรฐานใหม่ด้านประสิทธิภาพและการพกพาในรูปแบบคอนโซลดิจิทัลที่กะทัดรัด
เทคโนโลยีเครือข่ายเสียง AES50 ช่วยให้ PRO1 สามารถกำหนดอินพุตได้สูงสุด 172 อินพุต และ 172 เอาต์พุต ที่อัตราการสุ่มตัวอย่าง 96 kHz ไปยังช่องสัญญาณอินพุตและเอาต์พุตบัสใดๆ ได้แบบฉากต่อฉาก การเชื่อมต่อระดับสูงนี้ ควบคู่ไปกับจำนวนช่องและบัสที่มาก ทำให้ PRO1 เหมาะสมอย่างยิ่งสำหรับโรงละครและคลับ เช่นเดียวกับการทัวร์คอนเสิร์ตสด การออกอากาศนอกสถานที่ และเทศกาลดนตรี
พรีแอมป์ไมโครโฟน MIDAS ที่ได้รับรางวัล
พรีแอมป์ไมโครโฟน Midas ได้รับการยกย่องจากวิศวกรเสียงชั้นนำทั้งในงานแสดงสดและการบันทึกเสียงว่าเป็นหัวใจสำคัญของเสียง Midas อันโด่งดัง ด้วยประสบการณ์การออกแบบกว่า 40 ปี ผสานกับการคัดสรรส่วนประกอบระดับพรีเมียมอย่างพิถีพิถัน ทำให้เกิดความอบอุ่นและความลุ่มลึกที่ได้รับการยอมรับ ซึ่งช่วยดึงบรรยากาศที่ละเอียดอ่อน รักษาสมดุลของตำแหน่งเสียง และจับภาพเสียงที่แม่นยำได้อย่างมีประสิทธิภาพมากยิ่งขึ้น เสียงอันโดดเด่นของพรีแอมป์ไมโครโฟน Midas ที่ได้รับรางวัล ได้สร้างแรงบันดาลใจให้นักวิศวกรเสียงสดหลายต่อหลายรุ่นสร้างสรรค์ผลงานที่ดีที่สุด สร้างสรรค์ภาพเสียงที่ดึงดูดผู้ชมทั่วโลก
เนื่องจากเสียงที่บริสุทธิ์มักจะเริ่มต้นที่พรีแอมป์ไมโครโฟน ซึ่งเป็นจุดแรกที่สัญญาณเข้าสู่คอนโซล ดังนั้น PRO1 จึงมาพร้อมกับพรีแอมป์ไมโครโฟน Midas รุ่นล่าสุด ซึ่งถ่ายทอดทุกรายละเอียดเสียงได้อย่างแม่นยำ เพื่อไม่ให้พลาดทุกส่วนของการแสดง คุณสมบัติเด่นของการออกแบบคลาสสิกนี้คือเสียงที่โปร่งใสและบริสุทธิ์ เสียงรบกวนต่ำ และการปฏิเสธโหมดทั่วไปที่สูง
ตลอดหลายปีที่ผ่านมา วิศวกรเสียงหลายคนพบว่าการออกแบบที่แข็งแกร่งและทนทานต่อการโอเวอร์โหลดนี้ให้มิติเสียงใหม่ทั้งหมดเมื่อถูกขับเคลื่อนอย่างหนัก การสร้างเสียงแบบออดิโอไฟล์ที่คมชัดจะเปลี่ยนไปเป็นการผสมผสานที่ลงตัวของฮาร์โมนิกส์ เสียงที่อบอุ่นและเป็นธรรมชาติที่ผู้เข้าร่วมคอนเสิร์ตหลายล้านคนได้ยิน และถูกบันทึกไว้เป็นประวัติศาสตร์ในอัลบั้มการแสดงสดนับไม่ถ้วนตลอดหลายปีที่ผ่านมา
เครือข่ายเสียงดิจิทัล
เทคโนโลยีเครือข่ายเสียงดิจิทัล SuperMAC (AES50-Compliant) จาก Klark Teknik พร้อมกันให้จำนวนช่องสัญญาณที่สูง ความหน่วงต่ำมากและสามารถกำหนดได้ การกระจายสัญญาณนาฬิกาแบบซิงโครนัสและเฟสตรงกัน การตรวจจับและแก้ไขข้อผิดพลาดของเครือข่าย ความซ้ำซ้อนของเครือข่าย และความง่ายในการติดตั้งและใช้งาน เพื่อตอบสนองความต้องการที่สูงของการทัวร์คอนเสิร์ตสด
PRO1 เข้ากันได้กับยูนิต I/O ดิจิทัล MIDAS PRO Series ทั้งหมด รวมถึงอุปกรณ์ที่รองรับ AES50 96 kHz อื่นๆ คอนโซล MIDAS PRO Series หลายเครื่องสามารถเชื่อมต่อกันเพื่อสร้างระบบผสมขนาดใหญ่ขึ้น หรือคอนโซลผสมแบบแยกส่วนหลายเครื่องสามารถแชร์ทรัพยากรทั่วไปของอินเทอร์เฟซ I/O แบบเครือข่ายและแบบกระจาย
คุณสมบัติการควบคุมและฟังก์ชันการทำงาน
- ศูนย์ควบคุมคอนโซลดิจิทัลสำหรับการแสดงสดพร้อมช่องสัญญาณอินพุตพร้อมกันสูงสุด 48 ช่อง
- 24 พรีแอมป์ไมโครโฟน Midas ที่ได้รับรางวัล
- 27 มิกซ์บัส ที่จัดเรียงเวลาและสอดคล้องกับเฟส
- เครือข่าย AES50 รองรับอินพุตสูงสุด 172 ช่อง และเอาต์พุต 172 ช่อง ที่อัตราการสุ่มตัวอย่าง 96 kHz
- 8 VCA (Variable Control Association) และ 6 POPulation groups เพื่อการจัดการกลุ่มช่องสัญญาณที่ยืดหยุ่น
- กราฟิกอีควอไลเซอร์ Klark Teknik DN370 แบบ 1/3 อ็อกเทฟ ที่กำหนดได้สูงสุด 28 ตัว
- เอฟเฟกต์ดิจิทัลแบบ Multi-channel สูงสุด 6 ตัว
- 18 Midas PRO motorised 100 mm faders: เฟดเดอร์แบบมอเตอร์ที่ตอบสนองการสัมผัสเพื่อการควบคุมที่แม่นยำ
- จอแสดงผล TFT สีเต็มรูปแบบ 15 นิ้ว ที่มองเห็นได้ในเวลากลางวัน
- ระบบควบคุมแบบสัมผัสที่ปรับแต่งได้อย่างเต็มที่ (Fully interpolated touch sensitive controls)
- อุปกรณ์ควบคุมไร้สายเสริมด้วย Midas MIXTENDER App สำหรับ iPad
- แหล่งจ่ายไฟแบบสวิตช์โหมดสากลปรับช่วงอัตโนมัติ (Auto-ranging universal switch-mode power supply)
- ออกแบบและผลิตในสหราชอาณาจักร
รายละเอียดคุณสมบัติ
ประสิทธิภาพโดยรวม
- อัตราการสุ่มตัวอย่าง (Sampling frequency): 96 kHz
- ความถี่ในการแปลงสัญญาณเสียงอนาล็อกเป็นดิจิทัลที่สูงนี้ช่วยให้ได้คุณภาพเสียงที่คมชัดและละเอียด
- ความหน่วง (Latency): <2 ms (จากอินพุตถึงเอาต์พุตหลักโดยไม่มีการชดเชย)
- ความหน่วงที่ต่ำกว่า 2 มิลลิวินาทีเป็นสิ่งสำคัญอย่างยิ่งสำหรับการแสดงสด เพื่อลดความล่าช้าที่อาจส่งผลต่อการรับรู้เสียงของผู้แสดงและผู้ฟัง
- ช่วงไดนามิก (Dynamic range): 107 dB, 22 Hz ถึง 22 kHz (ไม่มีการเน้นเสียงล่วงหน้า)
- ความสามารถในการจัดการระดับเสียงที่แตกต่างกันได้กว้าง ตั้งแต่เสียงเบาที่สุดไปจนถึงเสียงดังที่สุดโดยไม่มีการผิดเพี้ยน
- อัตราขยายแรงดันไฟฟ้าสูงสุด (Maximum voltage gain):
- 80 dB สำหรับอินพุตไปยัง Subgroups และ Masters
- 86 dB สำหรับอินพุตไปยัง Aux และ Matrix
- Crosstalk:
- ที่ 1 kHz: -100 dB สำหรับช่องสัญญาณอินพุตที่อยู่ติดกัน
- ที่ 10 kHz: -90 dB สำหรับช่องสัญญาณอินพุตที่อยู่ติดกัน
- แสดงถึงความสามารถที่ยอดเยี่ยมในการป้องกันการรบกวนของสัญญาณระหว่างช่องสัญญาณที่อยู่ติดกัน
- Fader/pan cut off:
- ที่ 1 kHz: -100 dB
- ที่ 10 kHz: -100 dB
- หน้าจอแสดงผล (Display screen): 1 x 15 นิ้ว จอสีที่มองเห็นได้ในเวลากลางวัน
- ข้อผิดพลาดของอัตราขยายที่ 1 kHz (Gain Error at 1 kHz):
- อัตราขยาย 0 dB
- อัตราขยาย 45 dB
- การตอบสนองความถี่ (Frequency Response):
- อัตราขยาย 0 dB
- อัตราขยาย 40 dB
คุณสมบัติอินพุตและเสียงรบกวน
- Input CMRR (Common Mode Rejection Ratio):
- อัตราขยาย 0 dB
- อัตราขยาย 45 dB
- ความสามารถในการปฏิเสธสัญญาณรบกวนที่เข้ามาในสายสัญญาณทั้งสองด้าน (Common Mode Noise) ได้อย่างมีประสิทธิภาพ
- ความผิดเพี้ยน (Distortion):
- ที่ 0 dBu:
- อัตราขยาย 0 dB
- อัตราขยาย 45 dB
- ที่ +20 dBu:
- อัตราขยาย 0 dB
- อัตราขยาย 45 dB
- ที่ 0 dBu:
- Mixing Noise (เสียงรบกวนจากการผสม) 22 Hz ถึง 22 kHz Unweighted:
- 12 อินพุต
- 24 อินพุต
- 48 อินพุต
- Signal Path Noise 22 Hz ถึง 22 kHz Unweighted:
- อัตราขยาย 0 dB
- อัตราขยาย 45 dB
- Dynamic Range 22 Hz ถึง 22 kHz Unweighted:
- อัตราขยาย 0 dB
- อัตราขยาย 45 dB
ระบบเสียงอนาล็อกและดิจิทัล
- PRO1 Control Surface – อินพุตและเอาต์พุตระบบ DSP/Router:
- ตัวเชื่อมต่อระบบ: 6 x AES50 (เสียงดิจิทัลแบบสองทิศทาง 24 ช่อง) บน RJ45 XLR
- ตัวเชื่อมต่อ Word clock IN/OUT: BNC (สำหรับซิงโครไนซ์เวลา)
- ตัวเชื่อมต่อ Video sync IN: BNC (สำหรับซิงโครไนซ์วิดีโอ)
- ตัวเชื่อมต่อ AES3 sync IN/OUT: XLR 3 พิน
- PRO1 Control Surface – อินพุตเสียงอนาล็อก:
- ตัวเชื่อมต่อ: XLR 3 พินแบบ Balanced
- A/D converter: 24-bit, 96 kHz พร้อม 128 เท่า Over-sampling
- ตัวเชื่อมต่อ Talkback: XLR 3 พิน Balanced line
- ตัวเชื่อมต่อ Talk: XLR 3 พิน Balanced mic พร้อม +48 V Phantom power
- PRO1 Control Surface – เอาต์พุตเสียงอนาล็อก:
- ตัวเชื่อมต่อ: XLR 3 พินแบบ Balanced
- D/A converter: 24-bit, 96 kHz พร้อม 128 เท่า Over-sampling
- ตัวเชื่อมต่อ Monitor: XLR 3 พิน Balanced line
- ตัวเชื่อมต่อ Talk: XLR 3 พิน Balanced line
- ตัวเชื่อมต่อ Headphone: แจ็ค ¼ นิ้ว (สเตอริโอ)
- PRO1 Control Surface – อินพุตและเอาต์พุตระบบเสียงดิจิทัล:
- ตัวเชื่อมต่ออินพุต: AES3 (เสียงดิจิทัลสองช่อง) บน XLR 3 พิน
- อัตราการสุ่มตัวอย่างที่รับได้: ความถี่ใดๆ ตั้งแต่ 32 kHz – 96 kHz
- Bypass: สามารถข้ามตัวแปลงอัตราการสุ่มตัวอย่างได้
- ตัวเชื่อมต่อเอาต์พุต: AES3 (เสียงดิจิทัลสองช่อง) บน XLR 3 พิน
- อัตราการสุ่มตัวอย่างเอาต์พุต: 48 kHz, 96 kHz, หรือ Auto-tracking ตามอินพุต
- Bypass: สามารถข้ามตัวแปลงอัตราการสุ่มตัวอย่างได้
- ความยาว Word: 16, 20 หรือ 24 บิต
การควบคุมและเชื่อมต่ออื่นๆ
- PRO1 Control Surface – อินพุตและเอาต์พุตระบบควบคุมข้อมูล:
- ตัวเชื่อมต่อระบบ: RJ45 XLR
- PRO1 Control Centre – อินพุตและเอาต์พุตเบ็ดเตล็ด:
- ตัวเชื่อมต่อเอาต์พุต Monitor: DVI/DP+ (สำหรับจอภาพภายนอก)
- การเชื่อมต่อโฮสต์ USB: USB 2.0 Full Speed (12.0 Mbs) 5 V, โหลดสูงสุด 1A
- ตัวเชื่อมต่อ Lamp: XLR 4 พิน (สำหรับไฟส่องสว่าง)
- MIDI: In, Out และ Thru บน 5-pin DIN
- ตัวเชื่อมต่อ Footswitch: แจ็ค ¼ นิ้ว
- ลักษณะอินพุตอนาล็อก (Analogue Input Characteristics):
- Surface I/O
- Talk Mic
- Monitor
- ลักษณะเอาต์พุตอนาล็อก (Analogue Output Characteristics):
- Surface I/O
- Talk Out
- Monitor
- Headphones
- ลักษณะ I/O ดิจิทัล (Digital I/O Characteristics):
- AES3
- AES50
- ลักษณะดิจิทัลเบ็ดเตล็ด (Miscellaneous Digital Characteristics):
- Word Clock
- AES sync
กำลังไฟและขนาดทางกายภาพ
- ข้อกำหนดด้านกำลังไฟ (Power requirements): 100 V ถึง 240 V a.c. $\pm$10%, 50 ถึง 60 Hz
- ขนาด (สูง x กว้าง x ลึก): 685 x 722 x 288.6 มม. (27.0 x 28.4 x 11.4 นิ้ว)
- น้ำหนักสุทธิ (PRO1 control centre): 21.5 กก.
- น้ำหนักในการขนส่ง:
- Touring (ใน Flight case): 97.5 กก.
- Install (ในกล่อง): 28.7 กก.
- ช่วงอุณหภูมิการทำงาน (Operating temperature range): +5°C ถึง +45°C
- ช่วงอุณหภูมิการจัดเก็บ (Storage temperature range): -20°C ถึง +60°C
