Jim Dunlop MXR MB301 Bass Synth เอฟเฟคเบส

The MXR M301 Bass Synth is a monophonic synthesizer pedal designed to turn your bass into a fun and versatile vintage analog synthesizer. Co-developed with bass tone connoisseur Ian Martin Allison, it crafts sounds inspired by legendary artists like Stevie Wonder, Michael Jackson, and Parliament Funkadelic.

• Effect Type: Monophonic Bass Synthesizer
• Design: Co-designed with bass tone connoisseur Ian Martin Allison.
• Presets: 8 ready-to-play presets crafted by Ian Martin Allison.
• Waveforms: 3 selectable waveforms (Triangle, Sawtooth, Square).
• Core Effects: Sub-Octave, Envelope Filter, Modulation.

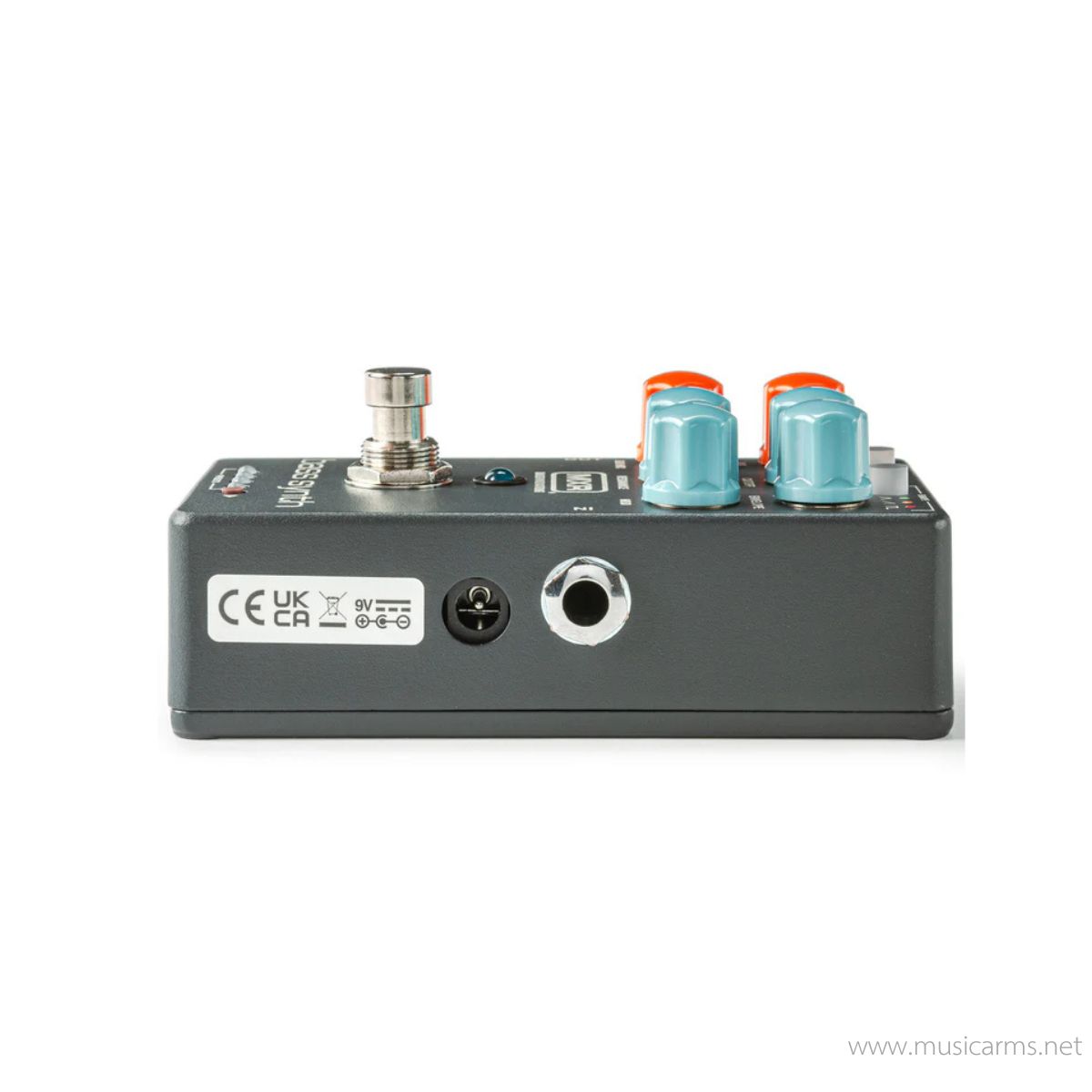

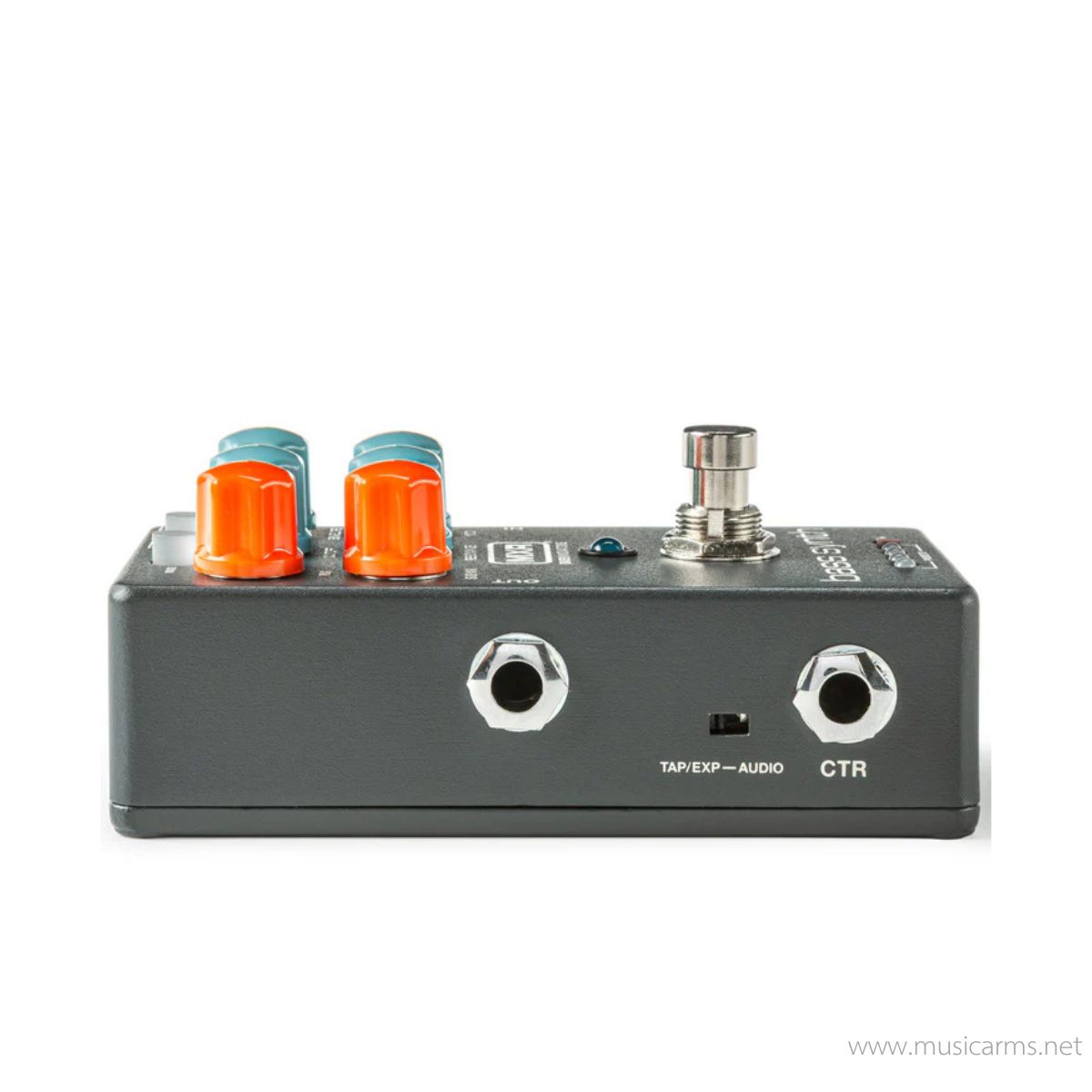

• Connectivity: Input, Output (TRS for Stereo Out), CTR (for Expression Pedal/Tap Tempo).
• Bypass: True Bypass (in Mono mode).

Functions & Applications

The MXR M301 is engineered for intuitive use while offering deep tonal sculpting. It’s ideal for bassists looking to add new colors and dimensions to their basslines, suitable for various contexts from playing pop/funk covers to creating experimental sounds in the studio.

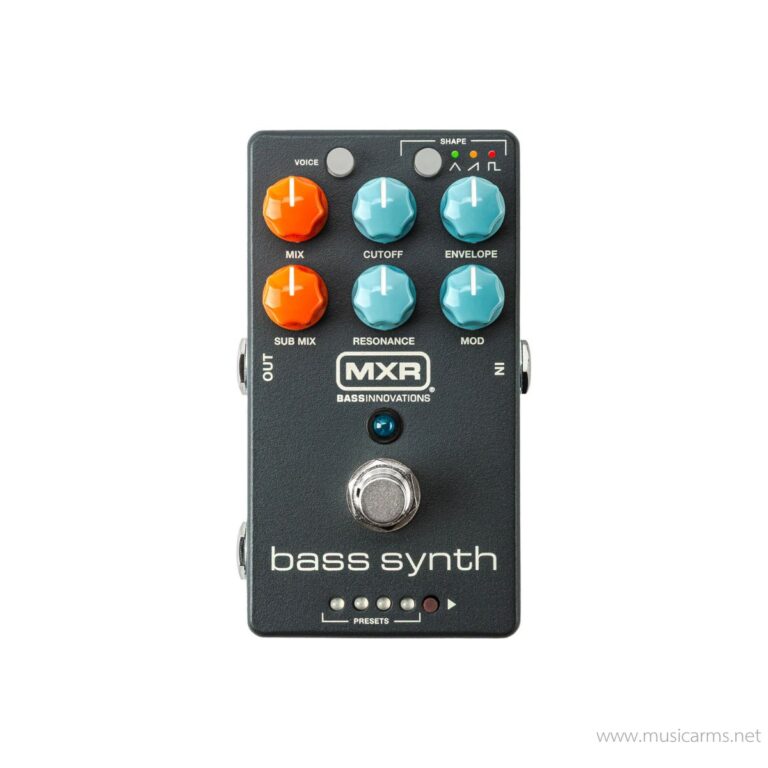

Primary Controls:

• MIX: Blends the dry (unaffected) and wet (synth) signals.
• SUB MIX: Blends the main synth signal with a sub-octave signal for added thickness and low-end.
• CUTOFF: Sets the cutoff frequency of the 4-pole low-pass filter.
• RESONANCE: Boosts the frequency at the cutoff point for a sharper, more expressive effect.
• MOD: Controls the depth and speed of the modulation effect.
• ENVELOPE: Determines the filter’s response to your playing dynamics.
• VOICE: Adds additional harmonically tuned oscillators for more complex tones.
• SHAPE: Selects one of three waveforms:
  • Triangle: Smooth and subtle.
  • Sawtooth: Rich and aggressive.
  • Square: Fat and punchy.

Highlights & Strengths

• High-Quality Synth Tones: Delivers authentic and usable vintage analog-style synth sounds.
• Excellent Tracking: Fast and accurate note tracking that supports 5-string basses and even guitars.
• User-Friendly: Comes with 8 instantly usable presets and an intuitive control layout.
• Deep Customization: Features a secondary layer of parameters for in-depth tweaking (e.g., Compression, Glide, Noise Mix).
• Compact Size: Housed in a standard MXR mini-sized pedal, saving pedalboard space.
• Stereo Output: Capable of stereo output for a wider, more immersive soundscape.
• No Computer Needed: All sound shaping can be done directly from the pedal’s interface, without requiring software.

• Input Impedance: 1 MΩ
• Output Impedance: 100 Ω
• Noise Floor: -97 dBV
• Current Draw: 330 mA
• Power Supply: 9V DC, Center Negative (included power supply recommended).

• Input Impedance: 1 MΩ
• Output Impedance: 100 Ω
• Noise Floor: -97 dBV
• Current Draw: 330 mA
• Power Supply: 9V DC, Center Negative (แนะนำให้ใช้หม้อแปลงที่ให้มา)
