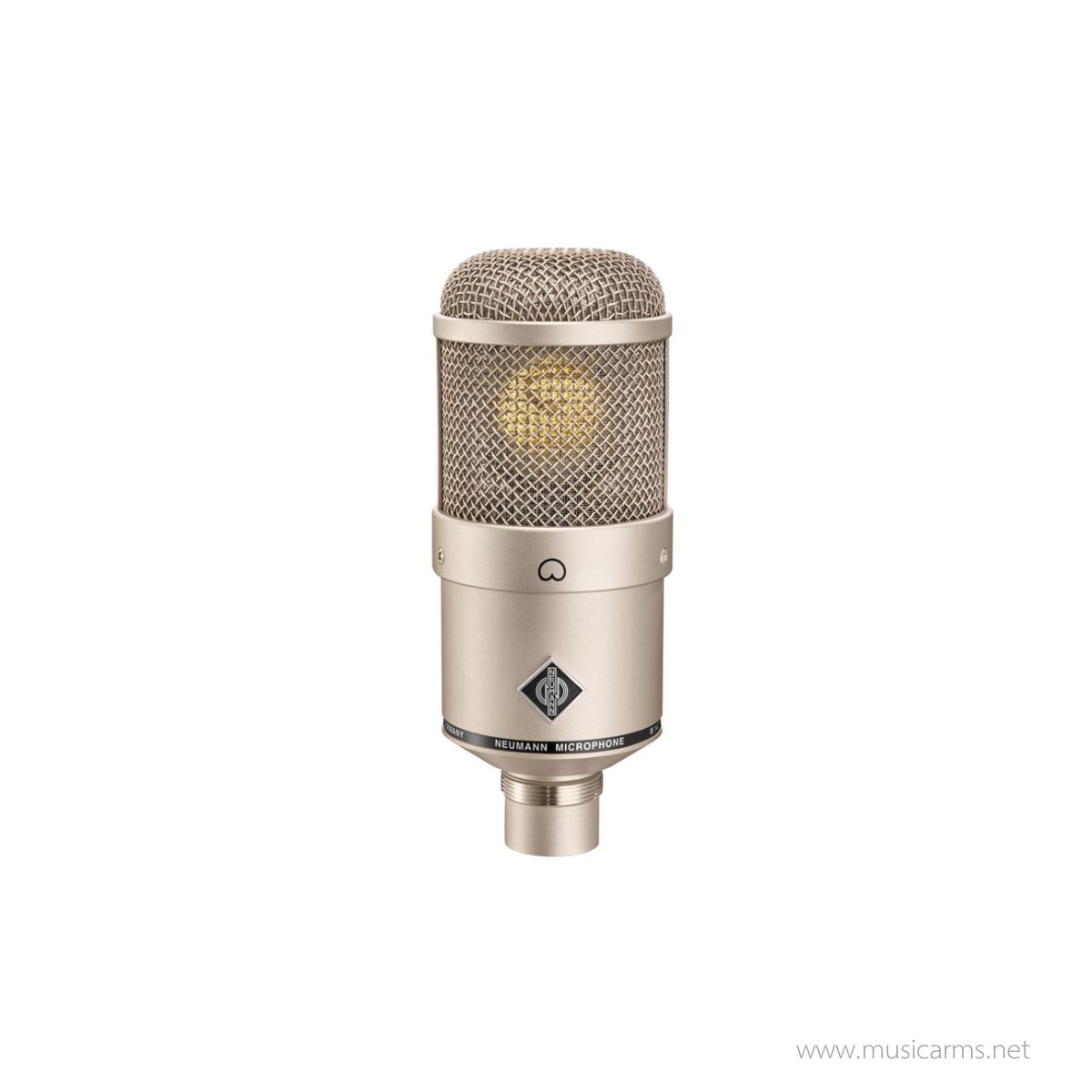

Neumann M 147 Tube (230 V Euro) ไมโครโฟนคอนเดนเซอร์
ราคา : 120,900 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Vintage Sound with Modern Muscle
With digital recording and ultra-clean processing, many engineers find themselves looking for tube microphones to reinstate a more “analogue” sound character. The Neumann M 147 is a tube microphone specially designed for 21st century recording chains. Its acoustic design is inspired by the legendary U 47, which revolutionized studio recording in the 1950s with its superior sound quality and is still used daily in top studios around the world. The head amplifier of the M 147 combines classic tube circuitry with an advanced solid state output stage for vintage sound with a modern punch.

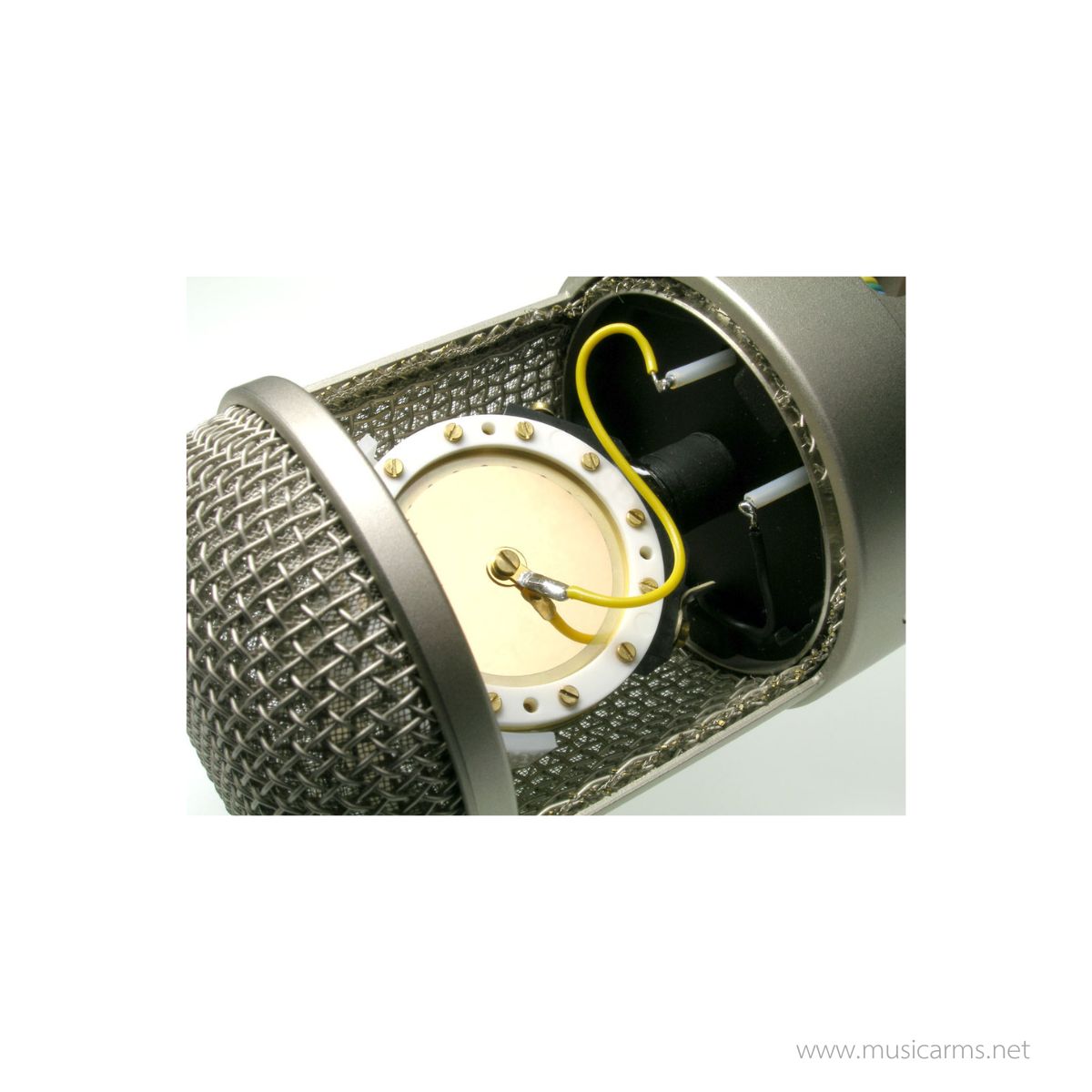

The headgrille of the M 147 is more than a visual statement: It is a slightly more compact version of the iconic U 47 capsule head, partly responsible for its legendary sound. Even more importantly, it shares the same sound transducer, the classic K 47 large diaphragm condenser capsule, known for its exceptional combination of warmth and presence. The capsule signal is amplified by a classic tube circuit using a specially selected subminiature triode. While vintage microphones relied on large and expensive audio transformers for the final impedance conversion, the M 147 uses a state-of-the-art transformerless solid state output stage, which allows for long cable runs up to 300 m without transmission losses and ensures a very direct sound with unrestricted bass response.
Applications

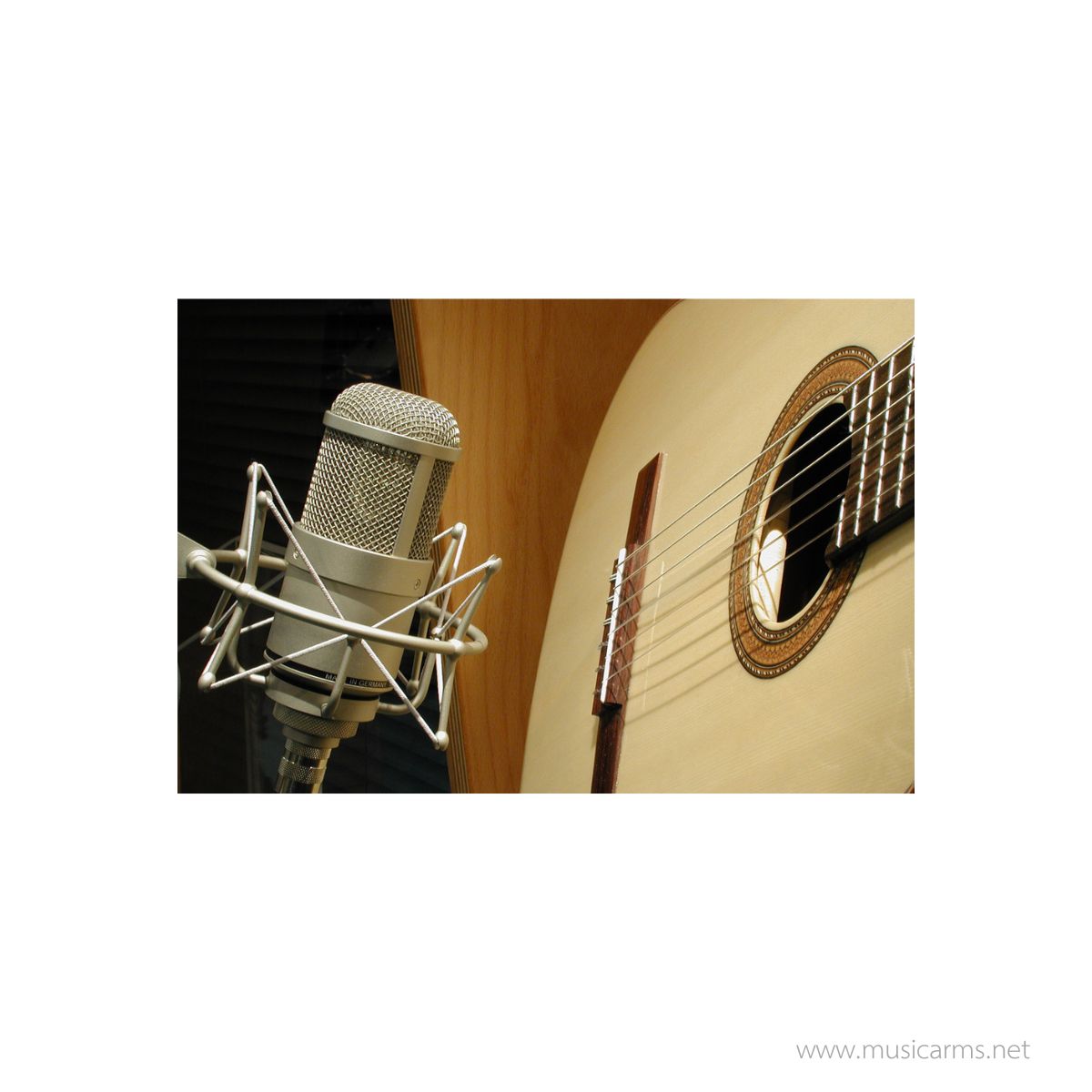

The M 147’s unique sound character with unsurpassed presence and a distinctive midrange focus is ideally suited for vocals, both male and female, as well as speech applications such as voice-over and film dubbing. The M 147 is also an excellent spot mic for any solo instruments. Unlike many other tube microphones, the M 147 can be used for quiet sources, due to its exceptionally low self-noise of only 12 dB-A. Although its max SPL figure of 114 dB appears low, the M 147 works well with louder sources, too, as distortion rises very slowly to 5% THD for 134 dB SPL. This behavior is intentional: The M 147 creates a sense of elevated loudness by means soft saturation – just like in the days of analog recording.
Specification
| Acoustical operating principle | Pressure gradient transducer |
|---|---|
| Directional Pattern | Cardioid |
| Frequency Range | 20 Hz … 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 20 mV/Pa |
| Rated Impedance | 50 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR¹⁾ | 24 dB |
| Equivalent noise level, A-weighted¹⁾ | 12 dB-A |
| Typical SPL (tube characteristic) for K<0.5% 3²⁾ | 114 dB |
| Typical SPL (tube characteristic) for K<5% 4²⁾ | 134 dB |
| Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ | 70 dB |
| Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ | 82 dB |
| Maximum output voltage | 8 dBu |
| Dynamic range of the amplifier, DIN/IEC 651, for THD < 0.5%²⁾ | 102 dB |
| Dynamic range of the amplifier, DIN/IEC 651, for THD < 5%²⁾ | 122 dB |
| Power supply | N 149 A |
| Matching connector | Microphone: DIN 8 F, Power Supply: XLR 3 F |
| Weight | 460 g |
| Diameter | 57 mm |
| Length | 142 mm |
ข้อมูลสินค้า
เสียงวินเทจในรูปแบบที่ทรงพลังของยุคปัจจุบัน
ในยุคของการบันทึกเสียงแบบดิจิทัลและการประมวลผลที่สะอาดเกินไป วิศวกรเสียงจำนวนมากจึงหันกลับไปหาไมโครโฟนหลอด เพื่อเติมเต็มลักษณะเสียงแบบ “แอนะล็อก” ให้กลับมาอีกครั้ง Neumann M 147 คือไมโครโฟนหลอดที่ถูกออกแบบขึ้นมาโดยเฉพาะสำหรับระบบบันทึกเสียงแห่งศตวรรษที่ 21 โครงสร้างอะคูสติกของไมโครโฟนรุ่นนี้ได้รับแรงบันดาลใจจากไมโครโฟนในตำนานอย่าง U 47 ซึ่งปฏิวัติวงการบันทึกเสียงสตูดิโอในยุค 1950 ด้วยคุณภาพเสียงที่เหนือชั้น และยังคงถูกใช้งานอยู่ในสตูดิโอระดับแนวหน้าทั่วโลกจนถึงทุกวันนี้
● หัวไมโครโฟนของ M 147 ไม่ได้มีดีแค่รูปลักษณ์
ด้วยดีไซน์ที่กระทัดรัดขึ้นของหัวแคปซูลรุ่น U 47 ไมโครโฟนรุ่นนี้จึงคงเอกลักษณ์ของเสียงระดับตำนานเอาไว้ได้ อีกทั้งยังใช้แคปซูลรับเสียงรุ่นเดียวกัน คือ K 47 ซึ่งเป็นแคปซูลคอนเดนเซอร์แบบไดอะแฟรมใหญ่ที่ขึ้นชื่อในเรื่องของความนุ่มนวลและการถ่ายทอดเสียงที่มีพลังชัดเจน
● วงจรขยายเสียงของ M 147 ผสมผสานความคลาสสิกเข้ากับเทคโนโลยีล้ำสมัย
สัญญาณเสียงจากแคปซูลจะถูกขยายผ่านวงจรหลอดแบบคลาสสิก โดยใช้หลอดไตรโอดแบบจิ๋วที่คัดเลือกมาอย่างพิถีพิถัน แทนการใช้หม้อแปลงเสียงขนาดใหญ่และมีต้นทุนสูงแบบไมโครโฟนวินเทจ M 147 เลือกใช้วงจรโซลิดสเตตแบบไม่มีหม้อแปลง ซึ่งรองรับการใช้งานร่วมกับสายสัญญาณยาวได้ถึง 300 เมตรโดยไม่มีการสูญเสียคุณภาพเสียง พร้อมให้ย่านเสียงต่ำที่ชัดเจนและไม่ถูกจำกัด
รายละเอียดคุณสมบัติ
ข้อมูลจำเพาะทางเทคนิคของ Neumann M 147
● หลักการทำงานทางอะคูสติก: ทรานสดิวเซอร์แบบแรงดันเสียงต่างระดับ (Pressure Gradient Transducer)
● รูปแบบการรับเสียง: คาร์ดิออยด์ (Cardioid)
● ช่วงความถี่ตอบสนอง: 20 Hz – 20 kHz
● ความไว (ที่ 1 kHz เข้าภาคโหลด 1 กิโลโอห์ม): 20 mV/Pa
● อิมพีแดนซ์ของไมโครโฟน: 50 โอห์ม
● โหลดอิมพีแดนซ์ที่แนะนำ: 1 กิโลโอห์ม
ประสิทธิภาพและสัญญาณรบกวน
● ระดับเสียงรบกวนเทียบเท่า (CCIR): 24 dB
● ระดับเสียงรบกวนเทียบเท่า (A-weighted): 12 dB-A
● ระดับความดังเสียงสูงสุด (SPL) โดยมีความเพี้ยนรวม THD < 0.5%: 114 dB
● ระดับความดังเสียงสูงสุด (SPL) โดยมีความเพี้ยนรวม THD < 5%: 134 dB
● อัตราส่วนสัญญาณต่อเสียงรบกวน (CCIR) เมื่อเทียบกับ 94 dB SPL: 70 dB
● อัตราส่วนสัญญาณต่อเสียงรบกวน (A-weighted) เมื่อเทียบกับ 94 dB SPL: 82 dB
คุณสมบัติทางไฟฟ้าและกายภาพ
● แรงดันสัญญาณขาออกสูงสุด: 8 dBu
● ไดนามิกเรนจ์ของภาคขยาย (THD < 0.5%): 102 dB
● ไดนามิกเรนจ์ของภาคขยาย (THD < 5%): 122 dB
● แหล่งจ่ายไฟ: รุ่น N 149 A
● ขั้วต่อ:
– ไมโครโฟน: DIN 8 F
– ชุดจ่ายไฟ: XLR 3 F
● น้ำหนัก: 460 กรัม
● เส้นผ่านศูนย์กลาง: 57 มิลลิเมตร
● ความยาว: 142 มิลลิเมตร
