Neumann U 67 SET ไมโครโฟนคอนเดนเซอร์
ราคา : 308,100 บาท
✅ ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ
🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
Description
Return of a Legend
Introduced as the successor to the eminent Neumann U 47, a lesser microphone would have failed. But the U 67 was quickly adopted as the new studio standard, offering many advantages over its predecessor. With three selectable polar patterns and advanced tube circuitry, including low cut and pad switches, the Neumann U 67 was well-equipped for virtually any recording task. It still is: To this day, many top level engineers would choose the U 67 as their “desert island” microphone for its extraordinary versatility and unmatched sound quality.
Neumann Engineering at Its Best

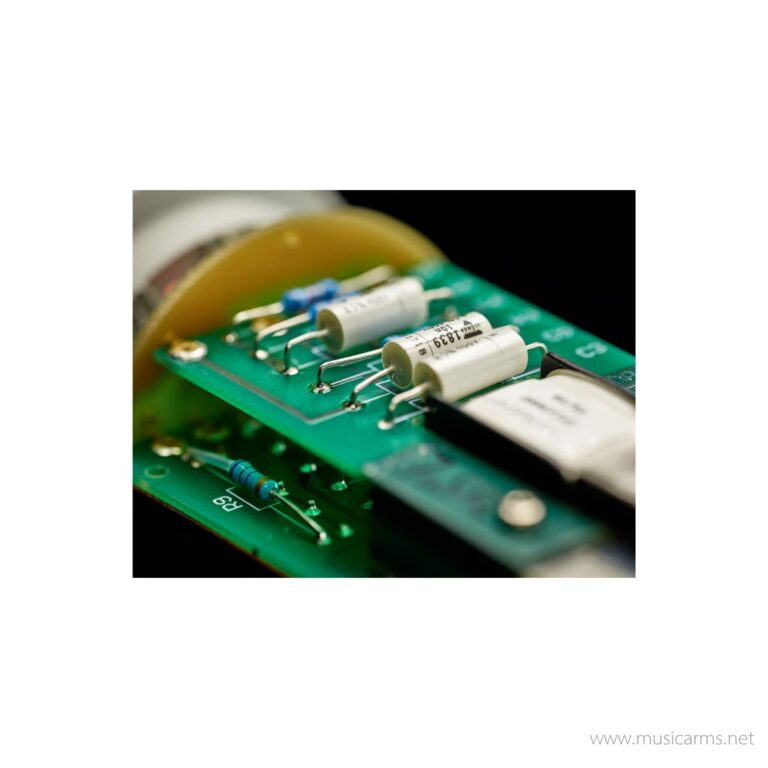

The U 67 was the first microphone equipped with the famous K 67 capsule, which has since become associated with “the Neumann sound” and continues to be used in its successor, the U 87 A. No less important is the U 67’s masterful tube circuit featuring a clever pre-emphasis/de-emphasis scheme to minimize tube hiss. The U 67 was also the first microphone to address modern recording techniques such as close miking. Its switchable low cut filter compensates for the proximity effect occurring at short recording distances. Using its preattenuation, the U 67 can handle high sound pressure levels of up to 124 dB without distortion (and much more if you don’t mind a bit of “tube grit”).

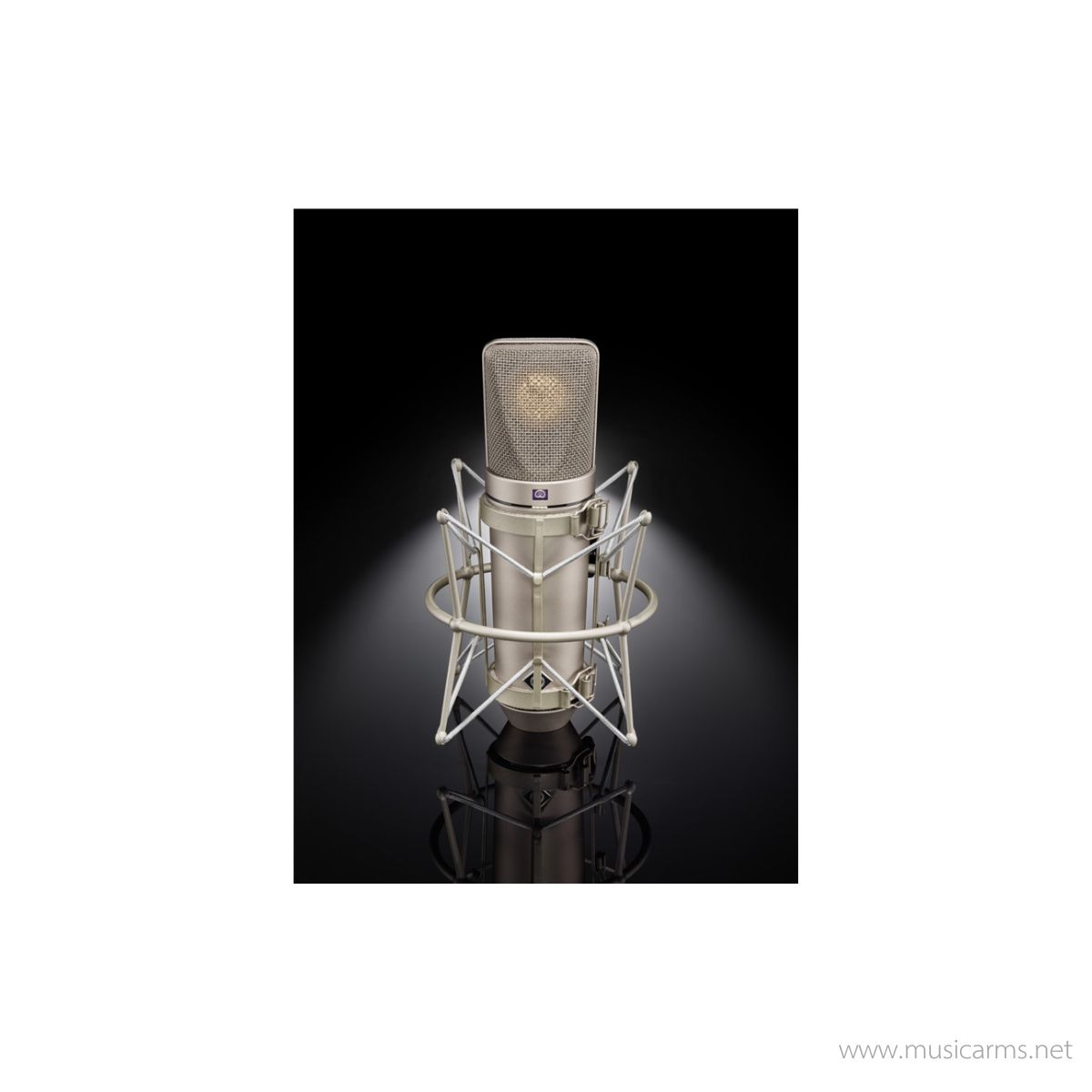

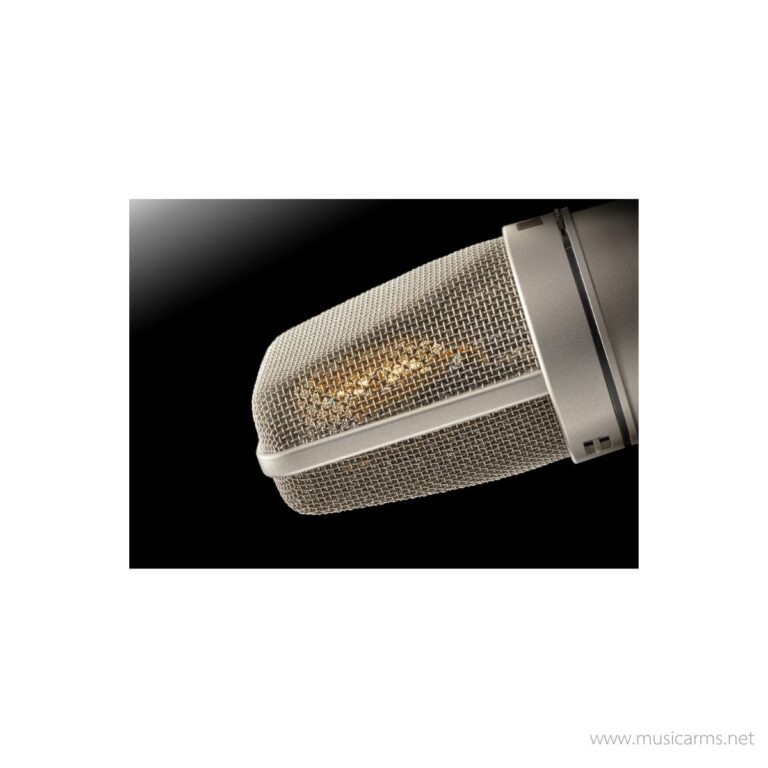

As timeless as its sound and technical design is its outer appearance. The U 67’s cone-shaped body and the tapered headgrille have since become iconic for the Neumann brand; the same elegant design would grace its solid state successor, the U 87, for the next 50+ years.
Applications
The U 67 is a universal studio microphone suitable for all applications. Its smooth top-end with a subtle tube shimmer makes the U 67 an outstanding vocal microphone. Due to its essentially linear response in three polar patterns – omni, cardioid, and figure-8 – the U 67 is also a very versatile microphone for all kinds of instruments such as strings, woodwinds, brass, piano, drums, acoustic and electric guitar, bass guitar and upright bass.
History Repeating

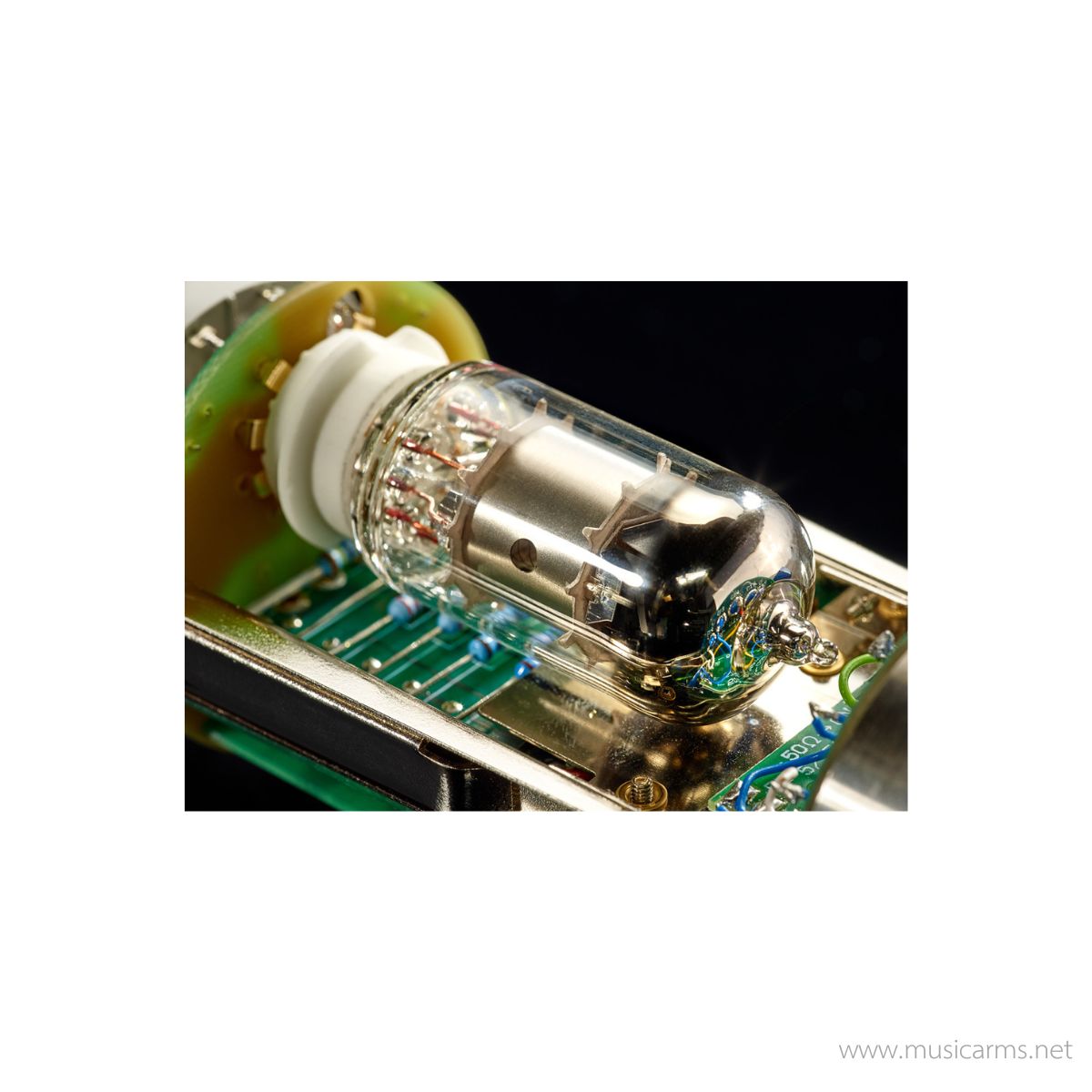

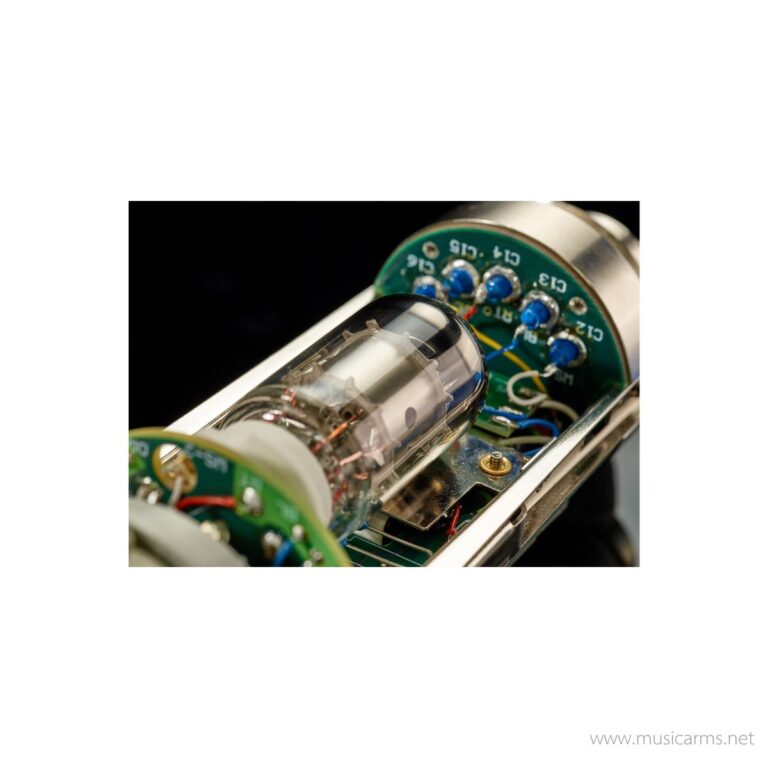

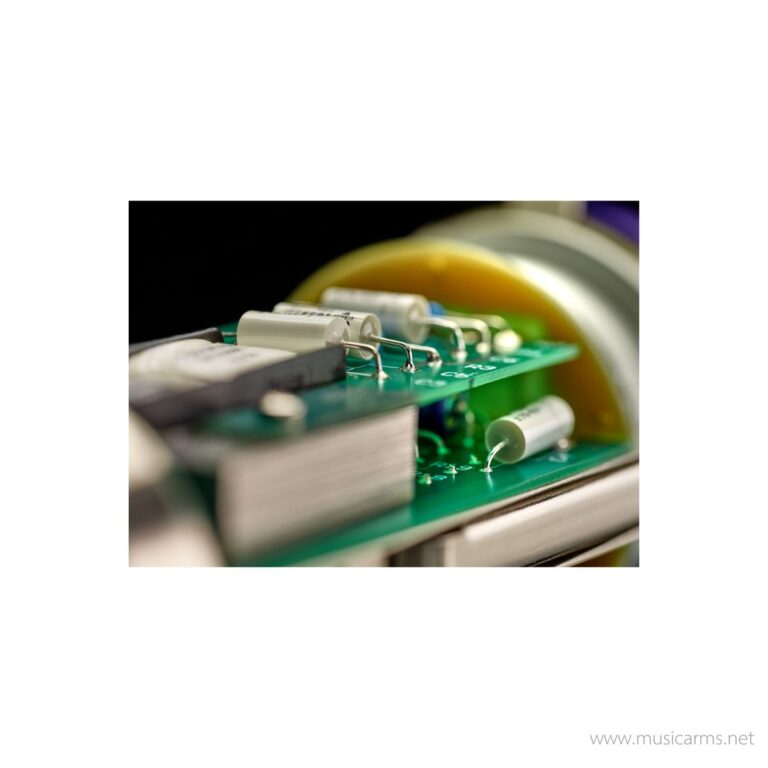

Sonically, the current reissue is identical to the U 67 made from 1960–1971. It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today’s strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.
Specification
| Acoustical operating principle | Pressure gradient transducer |
|---|---|
| Directional Pattern | Omnidirectional, cardioid, figure-8 |
| Frequency Range | 20 Hz … 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 15/24/16 mV/Pa ± 1 dB (Omni/cardioid/8) |
| Rated Impedance | 200 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR¹⁾ | 32/28/31 dB (Omni/cardioid/8) |
| Equivalent noise level, A-weighted¹⁾ | 21/17/20 dB-A (Omni/cardioid/8) |
| Maximum SPL for THD 0.5%²⁾ | 114 dB (cardioid) |
| Maximum SPL for THD 0.5% with preattenuation²⁾ | 124 dB |
| Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ | 62/66/63 dB (Omni/cardioid/8) |
| Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ | 73/77/74 dB (Omni/cardioid/8) |
| Maximum output voltage | -9.8 dBu |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 3.5 mA |
| Matching connector | Microphone: spec. 7pin, Power Supply: XLR 3 F |
| Weight | 560 g |
| Diameter | 56 mm |
| Length | 200 mm |
ข้อมูลสินค้า
การกลับมาของตำนาน
เปิดตัวในฐานะผู้สืบทอดของไมโครโฟนระดับตำนาน Neumann U 47 ไมโครโฟนธรรมดาทั่วไปคงไม่อาจเทียบได้ แต่ U 67 ได้รับการยอมรับอย่างรวดเร็วในฐานะมาตรฐานใหม่ของสตูดิโอ ด้วยข้อได้เปรียบหลายประการเหนือรุ่นก่อนหน้า ด้วยรูปแบบการรับเสียงที่เลือกได้สามแบบ และวงจรหลอดสุญญากาศขั้นสูงซึ่งรวมถึงสวิตช์กรองความถี่ต่ำและลดระดับเสียง U 67 จึงพร้อมสำหรับการบันทึกเสียงแทบทุกประเภท และยังคงเป็นเช่นนั้นจนถึงทุกวันนี้ วิศวกรเสียงระดับแนวหน้าหลายคนยังคงเลือกใช้ U 67 เป็นไมโครโฟน “หนึ่งเดียวถ้าต้องติดเกาะ” ด้วยความหลากหลายในการใช้งานและคุณภาพเสียงที่เหนือชั้น
Neumann Engineering at Its Best
สุดยอดวิศวกรรมจาก Neumann
U 67 เป็นไมโครโฟนรุ่นแรกที่ติดตั้งแคปซูล K 67 ซึ่งภายหลังกลายเป็นเอกลักษณ์ของ “เสียง Neumann” และยังคงใช้อยู่ในรุ่นสืบทอดอย่าง U 87 A จุดเด่นไม่แพ้กันคือวงจรหลอดที่ออกแบบอย่างพิถีพิถัน ซึ่งใช้ระบบเพิ่ม-ลดความถี่เพื่อควบคุมเสียงรบกวนจากหลอดอย่างชาญฉลาด U 67 ยังเป็นไมโครโฟนรุ่นแรกที่ตอบสนองต่อเทคนิคการบันทึกเสียงยุคใหม่ เช่น การไมค์ระยะใกล้ โดยมีฟิลเตอร์กรองความถี่ต่ำเพื่อชดเชยผลกระทบจากระยะใกล้ และมีสวิตช์ลดระดับเสียงเพื่อรองรับความดังสูงสุดถึง 124 เดซิเบลโดยไม่เกิดความเพี้ยน (หรือมากกว่านั้น หากยอมรับเสียง “แตกหลอด” เล็กน้อยได้)
รูปลักษณ์ภายนอกของ U 67 ก็คลาสสิกไม่แพ้กัน ตัวเครื่องทรงกรวยและตะแกรงศีรษะทรงเรียวได้กลายเป็นสัญลักษณ์ของแบรนด์ Neumann โดยดีไซน์เดียวกันนี้ได้ถูกนำไปใช้ในรุ่นต่อมาอย่าง U 87 ต่อเนื่องยาวนานกว่า 50 ปี
Applications
การใช้งาน
U 67 เป็นไมโครโฟนอเนกประสงค์สำหรับการใช้งานในสตูดิโอทุกรูปแบบ ปลายเสียงที่นุ่มนวลพร้อมความวาวของหลอดสุญญากาศเล็กน้อย ทำให้เป็นไมโครโฟนที่โดดเด่นในการบันทึกเสียงร้อง ด้วยการตอบสนองความถี่ที่แทบจะเป็นเส้นตรงในทั้งสามรูปแบบการรับเสียง ได้แก่ ออมnidirectional, คาร์ดิออยด์ และฟิกเกอร์-8 U 67 จึงเหมาะสำหรับเครื่องดนตรีทุกประเภท ทั้งเครื่องสาย เครื่องเป่าลมไม้ เครื่องทองเหลือง เปียโน กลอง กีตาร์โปร่งและไฟฟ้า กีตาร์เบส และดับเบิลเบส
History Repeating
ประวัติศาสตร์ซ้ำรอย
ในด้านเสียง รุ่นที่นำกลับมาผลิตใหม่ในปัจจุบันมีลักษณะเสียงเหมือนกับรุ่นดั้งเดิมที่ผลิตระหว่างปี 1960–1971 โดยใช้แคปซูลและวงจรอิเล็กทรอนิกส์แบบเดียวกัน ส่วนประกอบหลัก เช่น หม้อแปลงสัญญาณออก BV 12 ได้รับการผลิตซ้ำอย่างแม่นยำตามเอกสารต้นฉบับ หลอด EF86 ผ่านการคัดเลือกอย่างพิถีพิถันเพื่อให้ได้ค่าที่เหมาะสมและเสียงรบกวนน้อยที่สุดในศูนย์ทดสอบเฉพาะทาง แหล่งจ่ายไฟได้รับการออกแบบใหม่เพื่อให้เป็นไปตามมาตรฐานความปลอดภัยสมัยใหม่ และรองรับกระแสหลอดที่สูงขึ้นในหลอดรุ่นพรีเมียม แหล่งจ่ายไฟรุ่นใหม่ NU 67 V สามารถใช้งานร่วมกับไมโครโฟน U 67 รุ่นเก่าได้อย่างสมบูรณ์
รายละเอียดคุณสมบัติ
ลักการทำงานทางเสียง
ทรานสดิวเซอร์แบบแรงดันต่างระดับ (Pressure Gradient Transducer)
Directional Pattern
รูปแบบการรับเสียง
ออมนิไดเรกชันนัล, คาร์ดิออยด์, ฟิกเกอร์-8
Frequency Range
ช่วงความถี่ตอบสนอง
20 Hz – 20 kHz
Sensitivity at 1 kHz into 1 kohm
ความไวที่ 1 กิโลเฮิรตซ์เมื่อเชื่อมต่อโหลด 1 กิโลโอห์ม
15 / 24 / 16 mV/Pa ± 1 dB (ออมนิ / คาร์ดิออยด์ / ฟิกเกอร์-8)
Rated Impedance
อิมพีแดนซ์ที่กำหนด
200 โอห์ม
Rated load impedance
อิมพีแดนซ์โหลดที่แนะนำ
1 กิโลโอห์ม
Equivalent noise level, CCIR¹⁾
ระดับเสียงรบกวนเทียบเท่า ตามมาตรฐาน CCIR
32 / 28 / 31 dB (ออมนิ / คาร์ดิออยด์ / ฟิกเกอร์-8)
Equivalent noise level, A-weighted¹⁾
ระดับเสียงรบกวนเทียบเท่า แบบถ่วงน้ำหนัก A
21 / 17 / 20 dB-A (ออมนิ / คาร์ดิออยด์ / ฟิกเกอร์-8)
Maximum SPL for THD 0.5%²⁾
ระดับความดังสูงสุดที่ค่าเพี้ยนรวมไม่เกิน 0.5%
114 dB (คาร์ดิออยด์)
Maximum SPL for THD 0.5% with preattenuation²⁾
ระดับความดังสูงสุดที่ค่าเพี้ยนรวมไม่เกิน 0.5% เมื่อเปิดลดระดับสัญญาณ
124 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾
อัตราส่วนสัญญาณต่อเสียงรบกวน ตามมาตรฐาน CCIR (อ้างอิงเสียงขนาด 94 dB SPL)
62 / 66 / 63 dB (ออมนิ / คาร์ดิออยด์ / ฟิกเกอร์-8)
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾
อัตราส่วนสัญญาณต่อเสียงรบกวน แบบถ่วงน้ำหนัก A (อ้างอิงเสียงขนาด 94 dB SPL)
73 / 77 / 74 dB (ออมนิ / คาร์ดิออยด์ / ฟิกเกอร์-8)
Maximum output voltage
แรงดันขาออกสูงสุด
-9.8 dBu
Supply voltage (P48, IEC 61938)
แรงดันไฟเลี้ยง (P48 ตามมาตรฐาน IEC 61938)
48 V ± 4 V
Current consumption (P48, IEC 61938)
กระแสไฟที่ใช้ (ตามมาตรฐาน IEC 61938)
3.5 mA
Matching connector
ขั้วต่อที่ใช้
ไมโครโฟน: ขั้วต่อ 7 พินพิเศษ, แหล่งจ่ายไฟ: XLR 3 ขา (ตัวเมีย)
Weight
น้ำหนัก
560 กรัม
Diameter
เส้นผ่านศูนย์กลาง
56 มิลลิเมตร
Length
ความยาว
200 มิลลิเมตร
