NEXO DTDAMP 4×0.7 Power Amp 4-Ch Power Amp

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : NEXO

ราคา : 78,120 บาท

รุ่น :  NEXO DTDAMP 4×0.7 Power Amplifier
🚚 การจัดส่ง

ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ

🚀 จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล

💳 ช่องทางการชำระเงิน
จ่ายหน้าร้าน 13 สาขา โอนเงิน เก็บปลายทาง บัตรเครดิต ผ่อน 0% (บางรายการ) Shopee Lazada

🏢
ลูกค้าองค์กร / ขอใบเสนอราคา
สั่งซื้อ NEXO DTDAMP 4×0.7 Power Amp 4-Ch Power Ampผ่านline สั่งซื้อ NEXO DTDAMP 4×0.7 Power Amp 4-Ch Power Ampผ่าน messenger

Description

NEXO DTDAMP 4×0.7C: The Ultimate 4-Channel Professional Power Amp

Experience unparalleled audio performance with the NEXO DTDAMP 4×0.7C, a 4-channel power amplifier meticulously engineered to drive your NEXO sound system with maximum power and pristine clarity. Combining a compact design, high efficiency, and seamless integration with the DTD Controller, this amp is poised to elevate every performance.

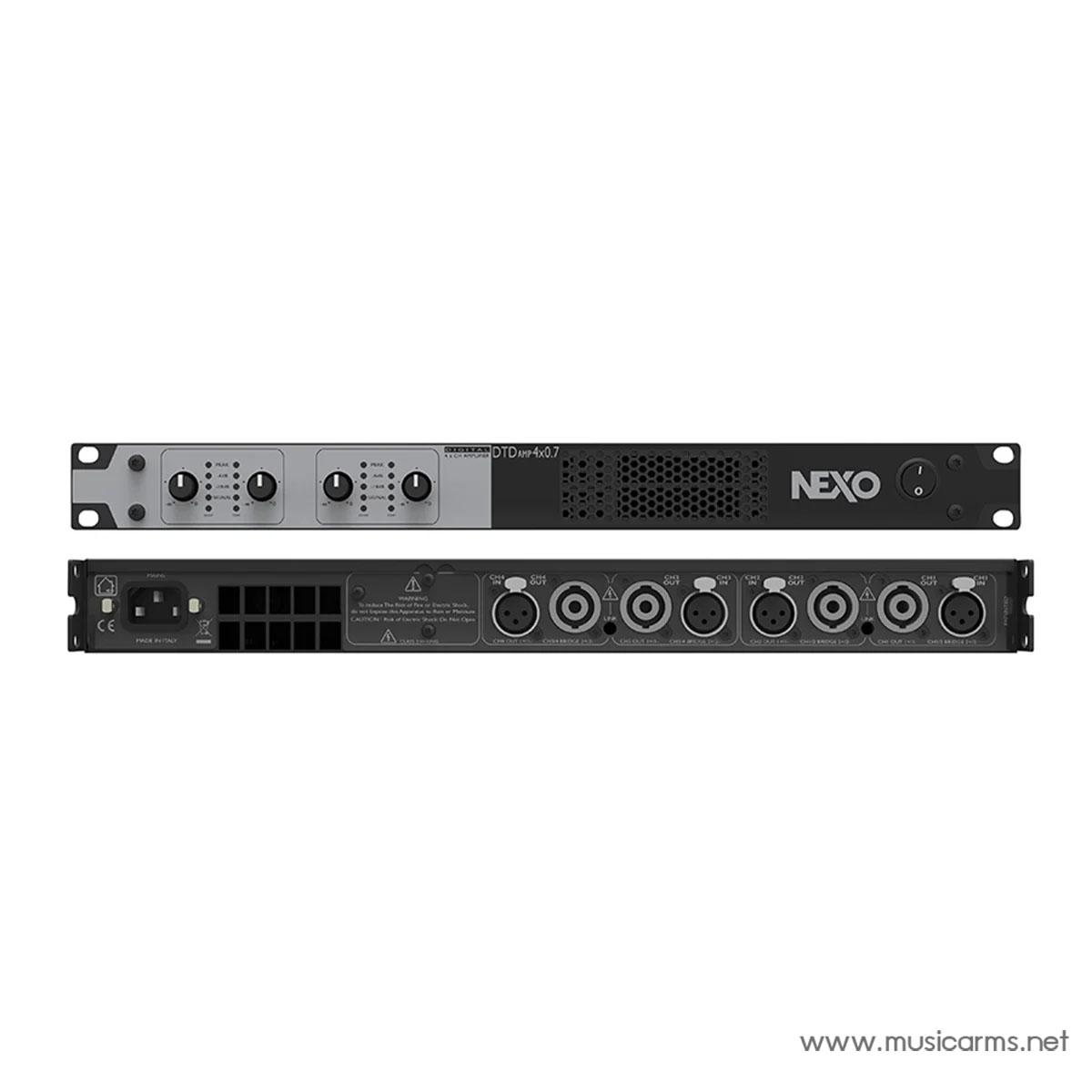

NEXO DTDAMP 4×0.7

Key Features

  • Powerful and Flexible Output: Delivers immense power, up to 700W x 4 at 4 Ohms, with the ability to bridge channels for 1400W x 2 at 8 Ohms, meeting the demands of diverse audio setups.
  • Seamless NEXO Ecosystem Integration: Fully compatible with DTD Controller and a wide range of NEXO loudspeakers, offering effortless setup and ensuring optimal sonic performance right out of the box.
  • Compact and Lightweight Design: Housed in a 1U Rack unit and weighing just 7.5 kg, it’s incredibly easy to install, transport, and ideal for both permanent installations and Dry Hire applications.
  • Comprehensive Protection System: Equipped with advanced safeguards against over/under voltage, DC Output, short circuit, and a variable speed cooling system for utmost stability and device longevity.

Conclusion

Whether you’re a professional rental house or an audio system owner seeking reliability and top-tier performance, the NEXO DTDAMP 4×0.7C is a valuable investment. Its superior efficiency, operational flexibility, and perfect synergy with the DTD Controller ensure you consistently achieve the best possible sound quality from your NEXO loudspeakers.

Specification

General

Channels 4 (Bridgeable 2 x 2)
Nominal Gain 32 dB
Dynamic Range (A-weighted) >110 dB
THD+N 0.01% (Typical)

Performance

Max Voltage (No Load) 4 x 85V
Max Output Power 4 Channels / 8Ω: 4 x 360W
4 Channels / 4Ω: 4 x 700W
2 Channels Bridge / 8Ω: 2 x 1400W
Frequency Response ±0.5 dB (20 Hz – 20 kHz)
Input Impedance 10 kΩ
Input Sensitivity +5 dBu

Inputs & Outputs

Analog Audio Inputs 4 x XLR Balanced
Outputs 4 x SP-4
Link Switch Uses single XLR for 2 adjacent channels
Power Connector IEC C14 with lock

Controls & Indicators

Switches & Controls On/Off Button and Volume per channel
Status LEDs LEDs per channel (Signal / -18 dB / -6 dB / Peak)
Amplifier Status Amp Ready and Temperature per channel pair

Power

Voltage Factory set 120V or 230V
Power Consumption (Idle) 65 W
Power Consumption 1/8 Max, 4Ω 580 W
Power Consumption 1/4 Max, 4Ω 1100 W

Physical

Dimensions (W x H x D) 480 x 44 x 370 mm (19 inches / 1U)
Weight 7.5 kg
Operating Temperature 0°C – 45°C

Compliance & Certifications

CE Standards 2006/95/CE (Low Voltage), 2004/108/CE (EMC), 2002/95/CE (RoHS)
Electrical Safety Certifications CSA, CB, EN60065
EMC Certifications EN55103-1 / EN55103-2 / FCC

ข้อมูลสินค้า

NEXO DTDAMP 4×0.7C: ขุมพลังเสียงระดับมืออาชีพ 4 ช่อง

สัมผัสประสบการณ์เสียงที่เหนือกว่าด้วย NEXO DTDAMP 4×0.7C เพาเวอร์แอมป์ 4 ช่องสัญญาณที่ถูกออกแบบมาเพื่อขับเคลื่อนระบบเสียง NEXO ของคุณให้ทรงพลังและสมบูรณ์แบบที่สุด ด้วยดีไซน์ที่กะทัดรัด ประสิทธิภาพสูง และการทำงานร่วมกับ DTD Controller ได้อย่างไร้ที่ติ แอมป์รุ่นนี้พร้อมยกระดับทุกการแสดงของคุณ

NEXO DTDAMP 4×0.7

Key Features

  • กำลังขับสูงและยืดหยุ่น: มอบพลังเสียงสูงสุด 700 วัตต์ x 4 ที่ 4 โอห์ม และสามารถ Bridge ช่องสัญญาณเป็น 1400 วัตต์ x 2 ที่ 8 โอห์ม เพื่อรองรับความต้องการของระบบเสียงที่หลากหลายได้อย่างลงตัว
  • ผสานการทำงานกับ NEXO Ecosystem: ออกแบบมาเพื่อทำงานร่วมกับ DTD Controller และลำโพง NEXO ทุกรุ่นได้อย่างสมบูรณ์แบบ ให้การตั้งค่าที่ง่ายดายและได้ประสิทธิภาพเสียงสูงสุดทันทีที่ใช้งาน
  • ดีไซน์กะทัดรัด น้ำหนักเบา: บรรจุในขนาด 1U Rack และมีน้ำหนักเพียง 7.5 กก. ทำให้ง่ายต่อการติดตั้ง เคลื่อนย้าย และเหมาะสำหรับทั้งงานติดตั้งถาวรและ Dry Hire
  • ระบบป้องกันขั้นสูง: มาพร้อมการป้องกันแรงดันไฟฟ้าเกิน/ต่ำ, DC Output, ไฟฟ้าลัดวงจร และระบบระบายความร้อนอัจฉริยะ เพื่อความเสถียรและความปลอดภัยสูงสุดของอุปกรณ์

Conclusion

ไม่ว่าคุณจะเป็นนักเช่าอุปกรณ์มืออาชีพ หรือเจ้าของระบบเสียงที่ต้องการความน่าเชื่อถือ NEXO DTDAMP 4×0.7C คือการลงทุนที่คุ้มค่า ด้วยประสิทธิภาพที่เหนือชั้น ความยืดหยุ่นในการใช้งาน และการทำงานร่วมกับ DTD Controller ได้อย่างลงตัว เพื่อให้คุณมั่นใจว่าจะได้รับคุณภาพเสียงที่ดีที่สุดจากลำโพง NEXO ของคุณ

รายละเอียดคุณสมบัติ

ข้อมูลทั่วไป

จำนวนแชนแนล 4 แอมป์ (Bridge 2 ต่อ 2 ได้)
Nominal Gain 32 dB
Dynamic Range (A-weighted) >110 dB
THD+N 0.01% (Typical)

ประสิทธิภาพ

แรงดันสูงสุด (No Load) 4 x 85V
กำลังขับสูงสุด 4 แชนแนล / 8Ω: 4 x 360W
4 แชนแนล / 4Ω: 4 x 700W
2 แชนแนล Bridge / 8Ω: 2 x 1400W
ตอบสนองความถี่ ±0.5 dB (20 Hz – 20 kHz)
Input Impedance 10 kΩ
Input Sensitivity +5 dBu

อินพุตและเอาต์พุต

อินพุตเสียงอนาล็อก 4 ช่อง XLR Balanced
เอาต์พุต 4 ช่อง SP-4
Link Switch ใช้ XLR เดียวสำหรับ 2 ช่องติดกัน
เต้าเสียบไฟฟ้า IEC C14 พร้อมล็อค

การควบคุมและตัวแสดงสถานะ

สวิตช์และปุ่มควบคุม ปุ่ม On/Off และ Volume ต่อช่อง
LED แสดงสถานะ LEDs ต่อช่อง (Signal / -18 dB / -6 dB / Peak)
สถานะแอมป์ Amp Ready และ Temperature ต่อคู่ช่อง

พลังงาน

แรงดันไฟฟ้า ตั้งโรงงาน 120V หรือ 230V
การใช้พลังงาน (Idle) 65 W
การใช้พลังงาน 1/8 Max, 4Ω 580 W
การใช้พลังงาน 1/4 Max, 4Ω 1100 W

ทางกายภาพ

ขนาด (W x H x D) 480 x 44 x 370 mm (19 นิ้ว / 1U)
น้ำหนัก 7.5 kg
อุณหภูมิการใช้งาน 0°C – 45°C

มาตรฐานและการรับรอง

มาตรฐาน CE 2006/95/CE (Low Voltage), 2004/108/CE (EMC), 2002/95/CE (RoHS)
การรับรองความปลอดภัยไฟฟ้า CSA, CB, EN60065
การรับรอง EMC EN55103-1 / EN55103-2 / FCC
