NPE TPM-2500MP3 พาวเวอร์มิกเซอร์
Description

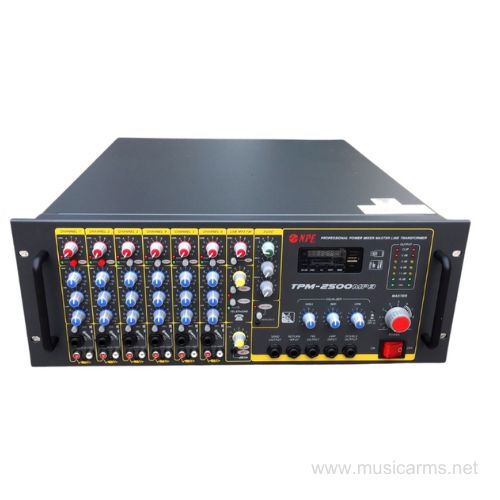

NPE TPM-2500MP3 High-Power Mixer Amplifier for Paging Systems
The NPE TPM-2500MP3 is a high-power mixer amplifier designed specifically
for long-distance paging and distributed sound systems.
With a powerful 2,500-watt output, it delivers clear and consistent audio,
making it ideal for villages, schools, temples, hospitals,
and government or commercial installations.
Key Technologies and Highlights
Integrated Multimedia Playback
- Bluetooth: Wireless music streaming from smartphones and tablets
- USB / SD Card: Direct MP3 playback without external players
- FM Radio: Built-in FM tuner for news and music programs
Designed for Distributed PA Systems
- High-Voltage Line Output: Supports 100V, 150V, and 200V systems
for long cable runs with minimal signal loss - Horn Speaker Compatibility: Ideal for horn and ceiling speakers
using matching transformers
Automatic Priority Function
- Priority Mic (Mic 1): Automatically attenuates background music
when announcements are made - Clear Announcements: Ensures voice clarity for public address applications
Main Features
- Power Output: 2,500 watts RMS for large-scale paging systems
- Multiple Inputs: Up to 6 Mic/AUX input channels
- Full Sound Control: 3-band EQ, Echo effect, and Priority control
on both input channels and master output - Built-in Protection Circuits:
DC protection, thermal protection, and soft-start system - Cooling System: Internal fan for stable and continuous operation
Who Is the NPE TPM-2500MP3 For?
- Village Paging Systems: Long-distance announcements and background music
- Schools, Temples, and Hospitals: Reliable public address solutions
- Government and Commercial Facilities: Professional PA installations
Conclusion
The NPE TPM-2500MP3 is a powerful and versatile mixer amplifier
combining high output power, integrated multimedia playback,
and essential priority functions.
It is a reliable choice for professional distributed audio
and paging system installations.
Specification
Product Specifications |
|
|---|---|
| Product Type | Transformer Power Mixer |
| Inputs | 6 Mic Inputs / 6 AUX Inputs |
| EQ | 3-Band Master EQ |
| Frequency Response (Mic) | 20 Hz – 20 kHz |
| Frequency Response (Aux) | 20 Hz – 20 kHz |
| Frequency Response (Amp In) | 91 Hz – 40 kHz |
| Power Output | 2500 W @ 4 Ohms |
| Line Output Power | 2500 W |
| High Voltage Outputs | 2500 W @ 100V 2500 W @ 150V 2500 W @ 200V |
| Power Requirement | 220 VAC / 50 Hz |
| Dimensions (W x H x D) | 483 x 177 x 522 mm (4U) |
| Weight | 51.2 kg |
ข้อมูลสินค้า
NPE TPM-2500MP3 เพาเวอร์มิกเซอร์กำลังขับสูง สำหรับระบบเสียงตามสาย
NPE TPM-2500MP3 เป็นเพาเวอร์มิกเซอร์กำลังขับสูง 2,500 วัตต์
ที่ออกแบบมาโดยเฉพาะสำหรับงานประชาสัมพันธ์และระบบเสียงตามสาย
รองรับการกระจายเสียงระยะไกล ให้พลังเสียงที่ชัดเจนและสม่ำเสมอ
เหมาะสำหรับการติดตั้งในหมู่บ้าน วัด โรงพยาบาล โรงเรียน
และหน่วยงานราชการหรือเอกชนที่ต้องการระบบเสียงที่เชื่อถือได้
จุดเด่นและเทคโนโลยี
ฟังก์ชันมัลติมีเดียครบครันในเครื่องเดียว
- Bluetooth: เชื่อมต่อเพลงจากมือถือหรือแท็บเล็ตแบบไร้สาย
- USB / SD Card: รองรับการเล่นไฟล์ MP3 โดยไม่ต้องใช้อุปกรณ์เสริม
- วิทยุ FM: มีจูนเนอร์ FM ในตัว สำหรับรับฟังข่าวสารหรือเพลงทั่วไป
ออกแบบมาสำหรับระบบเสียงตามสายโดยเฉพาะ
- Line Output 100V / 150V / 200V: มีหม้อแปลงเอาต์พุตในตัว
รองรับการเดินสายลำโพงระยะไกล ลดการสูญเสียสัญญาณเสียง - รองรับลำโพงฮอร์น: เหมาะสำหรับการใช้งานร่วมกับลำโพงฮอร์น
หรือระบบลำโพงจำนวนมากผ่าน Matching Transformer
ระบบ Priority ตัดเสียงอัตโนมัติ
- Priority Mic (Mic 1): เมื่อมีการพูดผ่านไมโครโฟน
เสียงเพลงจะถูกลดระดับอัตโนมัติ - เพิ่มความชัดเจน: เสียงประกาศเด่นชัด
และเสียงเพลงจะกลับมาเองเมื่อหยุดพูด
คุณสมบัติเด่น
- กำลังขับ: 2,500 วัตต์ (RMS) รองรับลำโพงตามสายจำนวนมาก
- อินพุต Mic / AUX: รองรับสูงสุด 6 ช่อง ปรับแยกได้อิสระ
- ปรับแต่งเสียงครบ:
มี Echo, Priority และ EQ ปรับทุ้ม-กลาง-แหลม (3 Band)
ทั้งช่องอินพุตและมาสเตอร์ - ระบบป้องกันความเสียหาย:
ป้องกัน DC ออกลำโพง, ความร้อนเกิน และระบบ Soft Start - ระบบระบายความร้อน: พัดลมในตัว ช่วยให้ทำงานต่อเนื่องได้ยาวนาน
NPE TPM-2500MP3 เหมาะสำหรับใคร
- ระบบเสียงตามสายหมู่บ้าน: ใช้งานประกาศและเปิดเพลงระยะไกล
- วัด โรงเรียน โรงพยาบาล: งานประชาสัมพันธ์และกิจกรรมต่าง ๆ
- หน่วยงานราชการและเอกชน: ระบบ PA ที่ต้องการความเสถียรสูง
สรุป
NPE TPM-2500MP3 เป็นเพาเวอร์มิกเซอร์สำหรับระบบเสียงตามสายที่ครบเครื่อง
ให้กำลังขับสูง ฟังก์ชันมัลติมีเดียพร้อมใช้ และระบบ Priority ที่ตอบโจทย์งานประกาศโดยเฉพาะ
เหมาะสำหรับงานติดตั้งระยะยาวที่ต้องการทั้งคุณภาพเสียงและความทนทาน
รายละเอียดคุณสมบัติ
รายละเอียดสินค้า |
|
|---|---|
| ชนิด | เพาเวอร์มิกเซอร์แบบหม้อแปลง (Transformer Power Mixer) |
| จำนวนอินพุต | 6 ช่องไมโครโฟน / 6 ช่อง AUX |
| EQ | Master EQ 3 แบนด์ |
| การตอบสนองความถี่ (MIC) | 20 Hz – 20 kHz |
| การตอบสนองความถี่ (AUX) | 20 Hz – 20 kHz |
| การตอบสนองความถี่ (AMP IN) | 91 Hz – 40 kHz |
| กำลังขับ | 2500 วัตต์ @ 4 โอห์ม |
| Line Output | 2500 วัตต์ |
| Output แบบไลน์โวลต์ | 2500 วัตต์ @ 100V 2500 วัตต์ @ 150V 2500 วัตต์ @ 200V |
| แหล่งจ่ายไฟ | 220 VAC / 50 Hz |
| ขนาด (กว้าง x สูง x ลึก) | 483 x 177 x 522 มม. (ขนาด 4U) |
| น้ำหนัก | 51.2 กก. |
