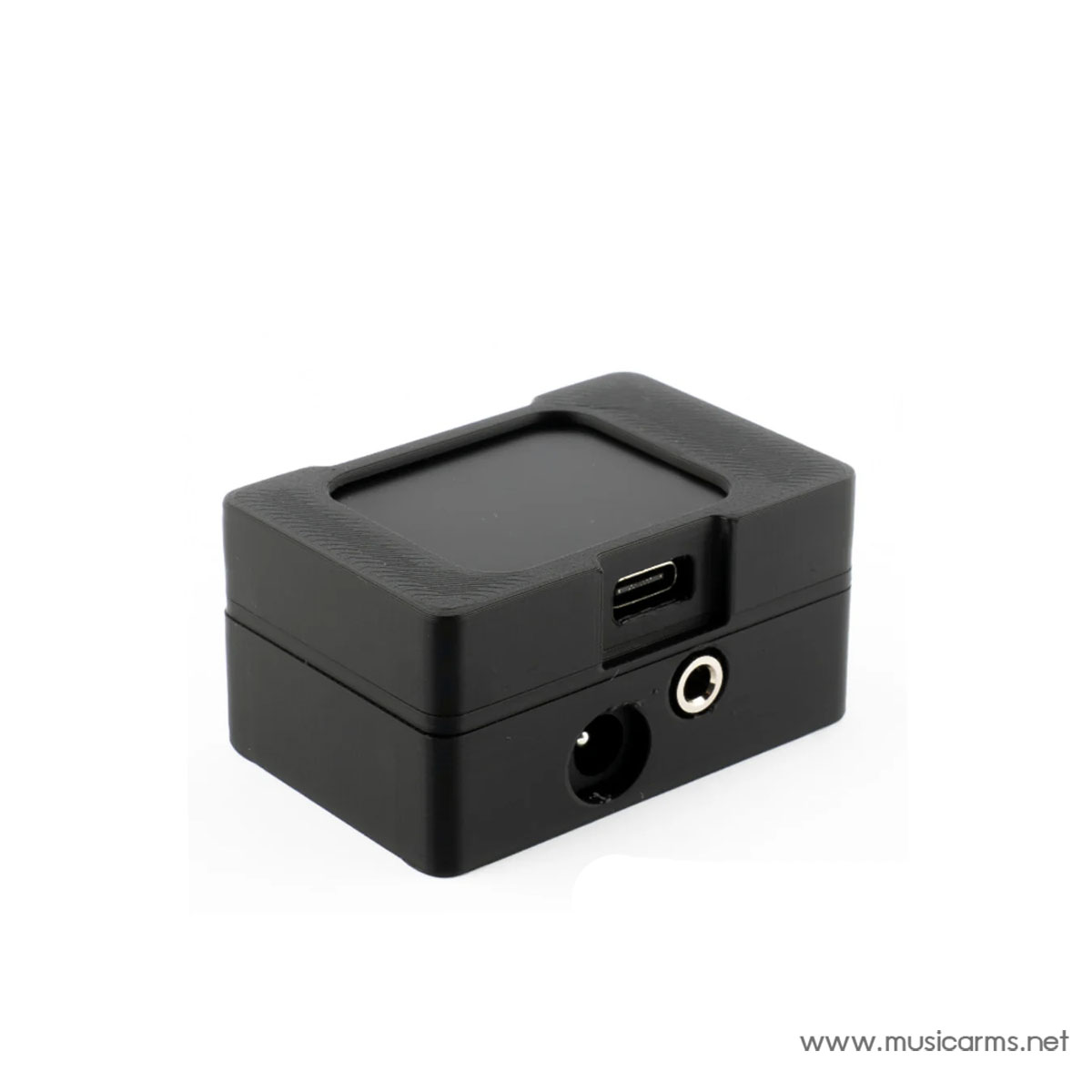

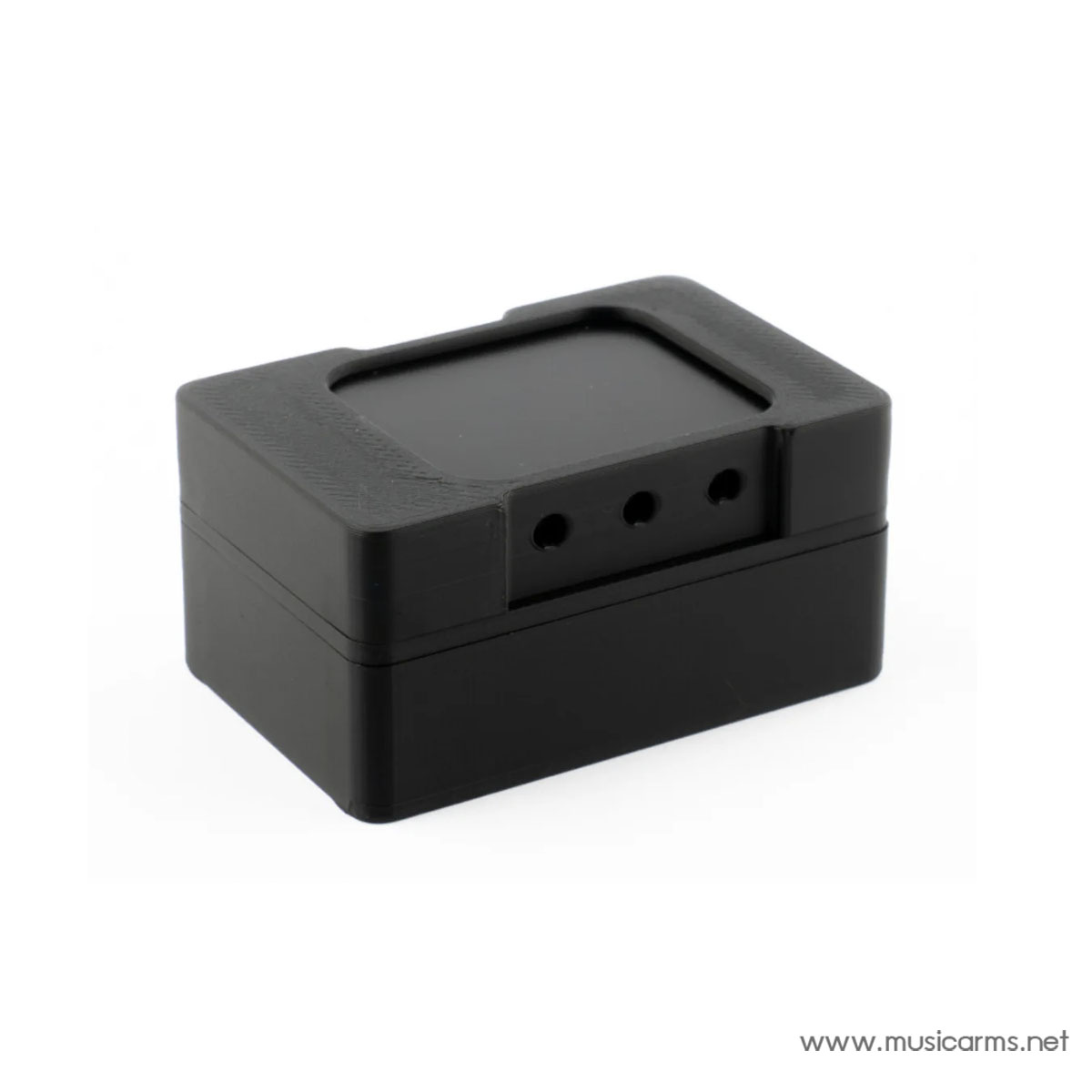

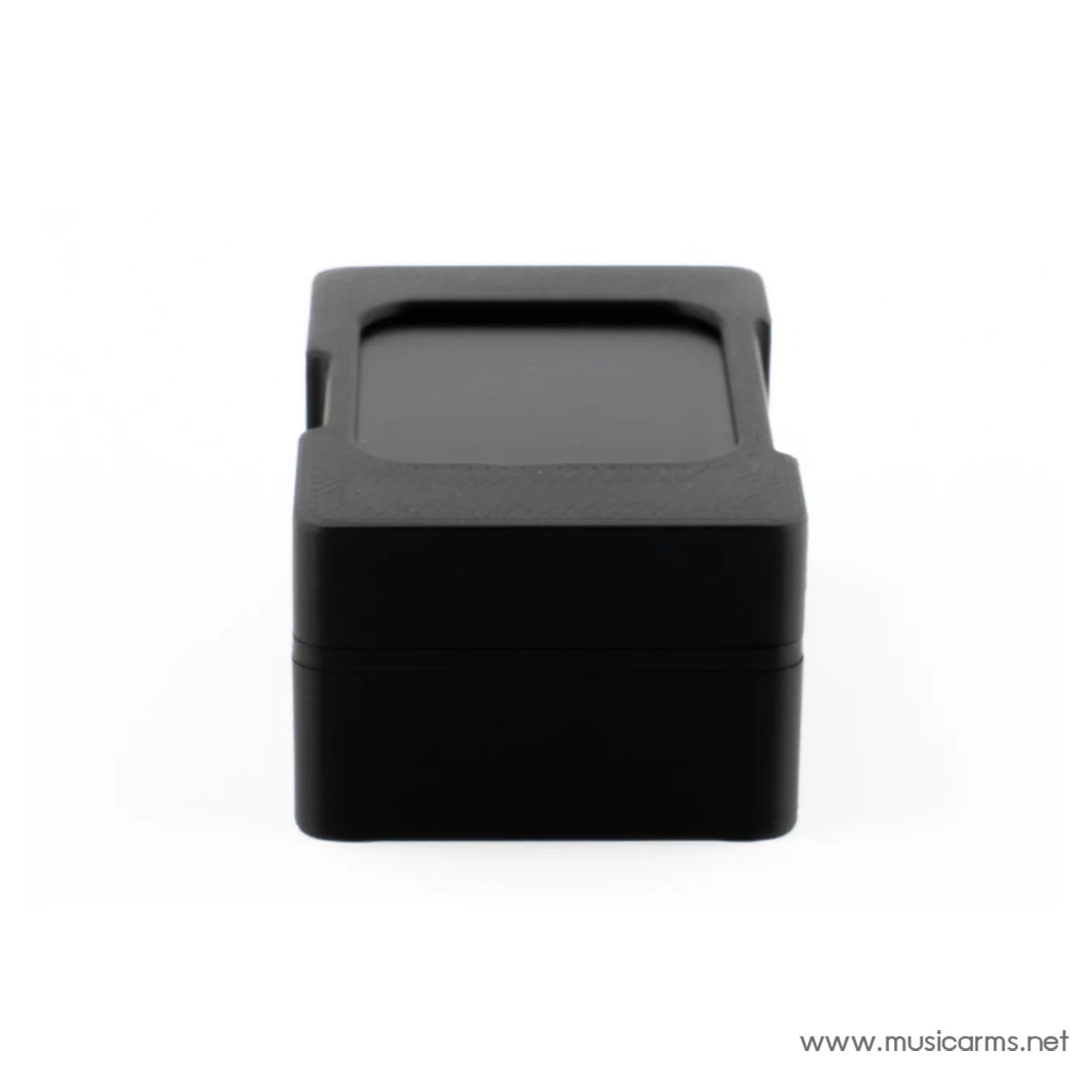

Pirate Midi Polar Mini

Pirate Midi Polar Mini: Wireless MIDI Control Box with LCD for ToneX One

The Pirate Midi Polar Mini is a dedicated MIDI control box designed to expand the control capabilities of the ToneX One pedal. It features plug-and-play functionality via a single USB-C port, which powers the unit and sends MIDI messages to the ToneX One simultaneously. Built with an ESP32 wireless board, it supports both wired and wireless control via Bluetooth and WiFi, complemented by a 1.69” LCD screen for visual feedback. This makes the Polar Mini a flexible and centralized solution for managing your effects rig.

Key Features

• Complete Wired and Wireless Control: Equipped with an ESP32 board for MIDI control via Bluetooth and WiFi, plus a 3.5mm TRS (Type A) MIDI input for standard wired setups.
• Plug-and-Play USB-C Power and MIDI: Uses the USB-C port to receive power and communicate MIDI data directly with the ToneX One, simplifying your cable management.
• Standard Pedal Power Compatible: Features a custom 9V center-negative power circuit, allowing it to integrate seamlessly with standard guitar pedal power supplies.
• Durable Design with Display: Includes vent holes for cooling and durable metal threaded inserts for easy access, alongside a clear 1.69″ non-touch LCD screen for parameter display.

Summary and Unleashing ToneX One Control

The Polar Mini is a key member of the Polar controller series (Pico, Mini, Plus, and Max), all sharing core USB, wired, and wireless MIDI functionalities. The Mini provides robust control for the ToneX One, highlighted by its clear display and versatile connectivity. To get started, you will need a USB Type-C cable, a 9V DC power adapter with at least 300mA, and a MIDI controller or computer/smartphone to access the web configuration page. The Polar Mini empowers you to easily manage and switch presets, unlocking the full potential of your ToneX One on any stage or studio setup.
